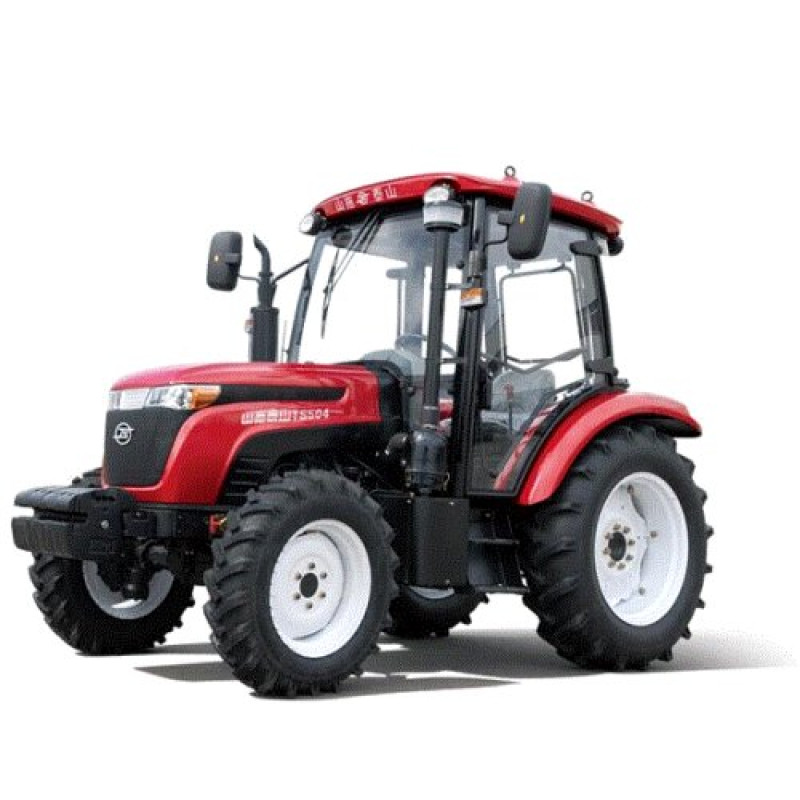

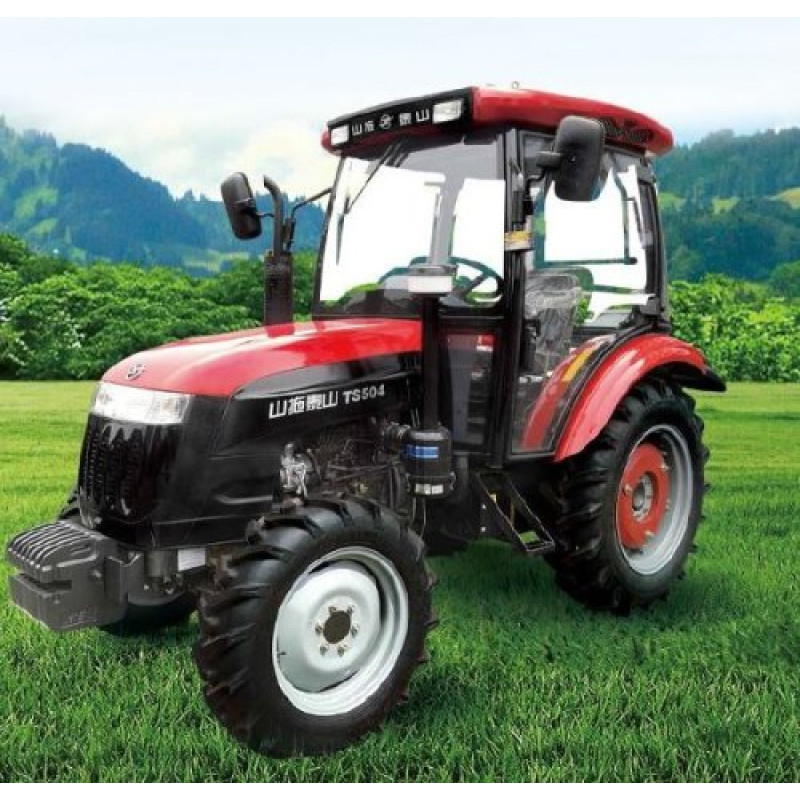

WUZHENG TS504 Tractor
The WUZHENG TS504 tractor from the WUZHENG brand is a modern mini-tractor for agriculture, utility work, and industrial tasks. The model belongs to the category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini-tractors. The TS504 combines reliability, versatility, and excellent value for money, ensuring efficient operation with mounted and trailed equipment.
Description and Key Features
The WUZHENG TS504 is equipped with 4x4 all-wheel drive and a powerful ChangChai diesel engine, model CC4G33T. The engine has 4 cylinders, a displacement of 3.26 L, is vertical-type with water cooling and turbocharging. The rated power is 36.75 kW (50 hp), and the maximum torque is 183 N·m at 2400 rpm, which guarantees reliable traction and operation with heavy mounted equipment.
Specific fuel consumption is 250 g/kWh, and the fuel tank capacity is 70 L, allowing for long continuous operation without frequent refueling. The WUZHENG TS504 has a PTO at 540/1000 rpm, a traction force of 9.3 kN, and a wide speed range from 2.59 to 29.86 km/h, making it versatile for both field work and transportation.

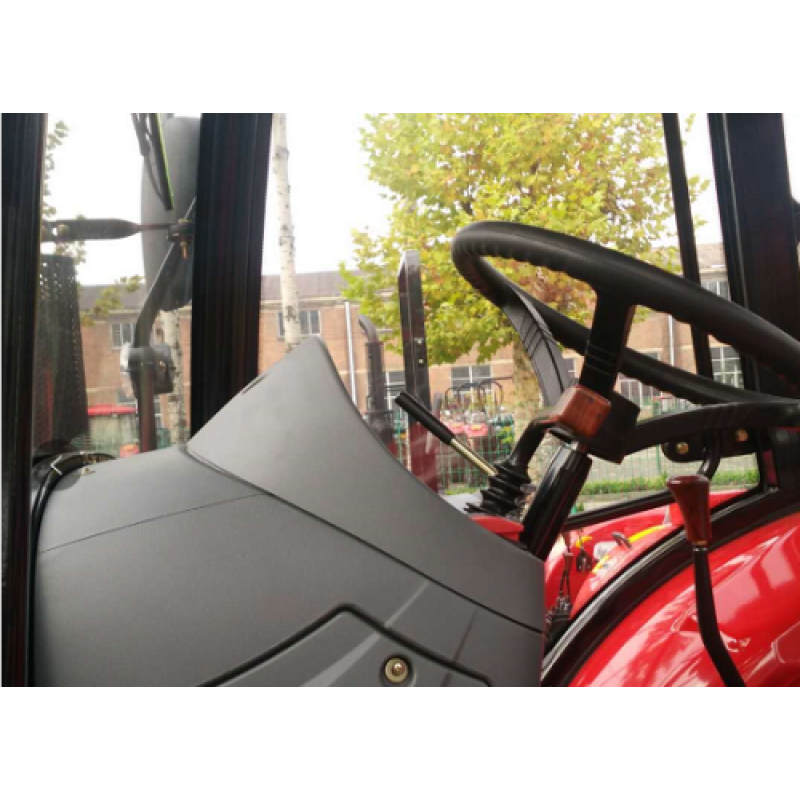

The standard cabin provides operator comfort in any weather, and the air conditioning adds convenience during long work in hot conditions. The compact dimensions of the tractor — 3848 × 1705 × 2550 mm with a ground clearance of 430 mm and a weight of 2180 kg — ensure good maneuverability and stability during various operations.
Tire size: front 8.3-20, rear 12.4-28. Front wheel track width — 1270 mm, rear — 1320 mm. Front counterweights — 145 kg, rear — 90 kg. There are 2 pairs of hydraulic outlets, allowing for the connection of various mounted equipment and ensuring the machine's multifunctionality.
| Wheel formula | 4*4 |
| Model | CC4G33T |
| Number of cylinders | 4 |
| Displacement | 3.26 |
| Type | Vertical, water-cooled, four-stroke with turbocharging |
| Rated power kW (hp) | 36.75 (50) |
| Torque, N-m / Rated RPM, rpm | 183/2400 |
| Specific fuel consumption, g / kWh | 250 |
| Fuel tank capacity, L | 70 |
| Travel speed (km / h) | 2.59-29.86 |
| PTO rpm. | 540/1000 |
| Traction force (kN) | 9.3 |
| Number of hydraulic outlets, pairs, pcs. | 2 |
| Overall dimensions, (LxWxH), mm | 3848*1705*2550 |
| Tire size | 8.3-20, 12.4-28 |
| Front wheel track width | 1270 |
| Rear wheel track width | 1320 |
| Ground clearance, mm | 430 |
| Weight, kg | 2180 |
| Front counterweights (kg) | 145 |
| Rear counterweights (kg) | 90 |
| Air conditioner | + |
Application and Compatible Equipment
The WUZHENG TS504 is ideal for land cultivation, working with tillage equipment, utility services, cargo transportation, and industrial tasks. Thanks to the combination of the ChangChai CC4G33T engine and a well-designed transmission, the tractor withstands intensive use and works with a wide range of mounted equipment.
Similar Models and Analogues
- Jinma 404
- Shifeng 354 / Minitractor Shifeng
- Dongfeng
- Xingtai
- Foton
- Zoomlion
- DTZ 5244HRX
- Bulat 454, Bulat 250, Bulat 254
- Belarus 320.4
- DW 244
- DTZ 5404K
- Solis 26 Tractor
Mini-tractor Price. How to Buy?
To buy the WUZHENG TS504, place an order on the Flash Army website. After placing the order, a sales representative will contact you to answer questions regarding price, configuration, delivery, and operation. We will help you choose the optimal options and mounted equipment according to your tasks.
The WUZHENG TS504 tractor is a solution for those who need a powerful, reliable, and comfortable mini-tractor with a cabin, air conditioning, and extensive options for connecting mounted equipment. Brand: WUZHENG. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini-tractors.
