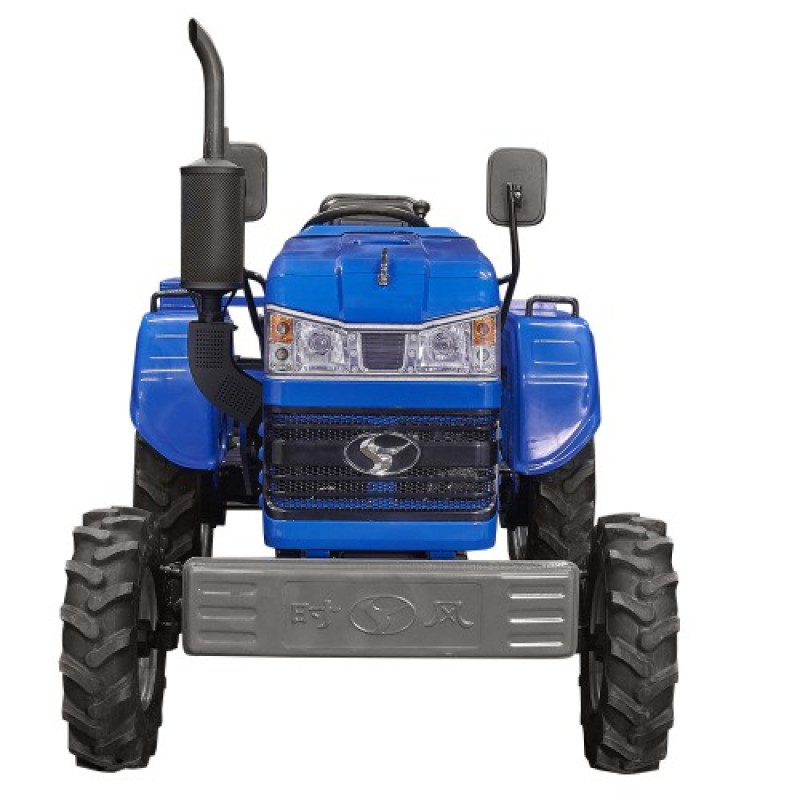

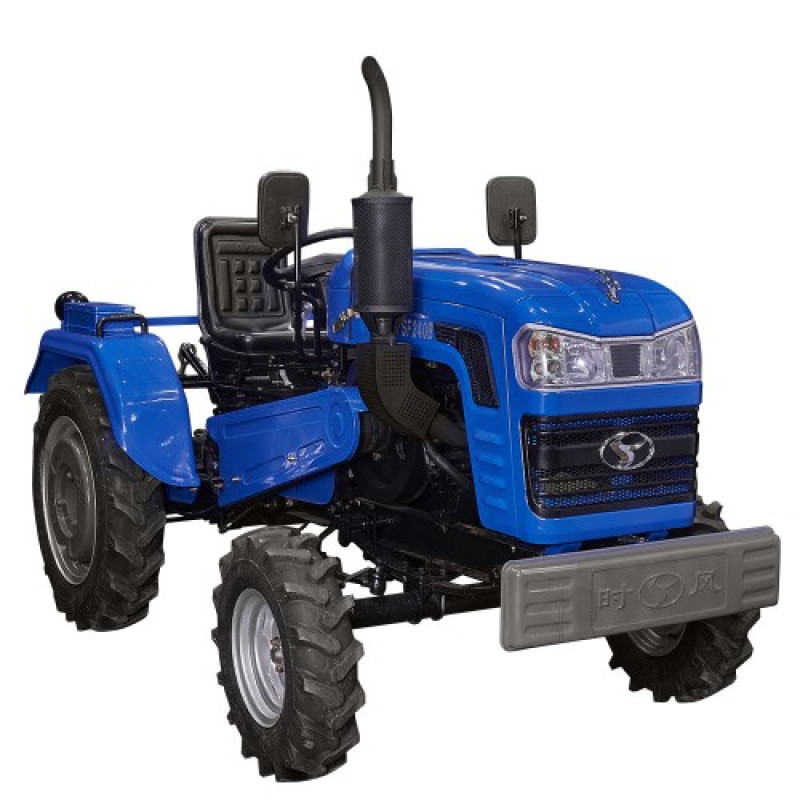

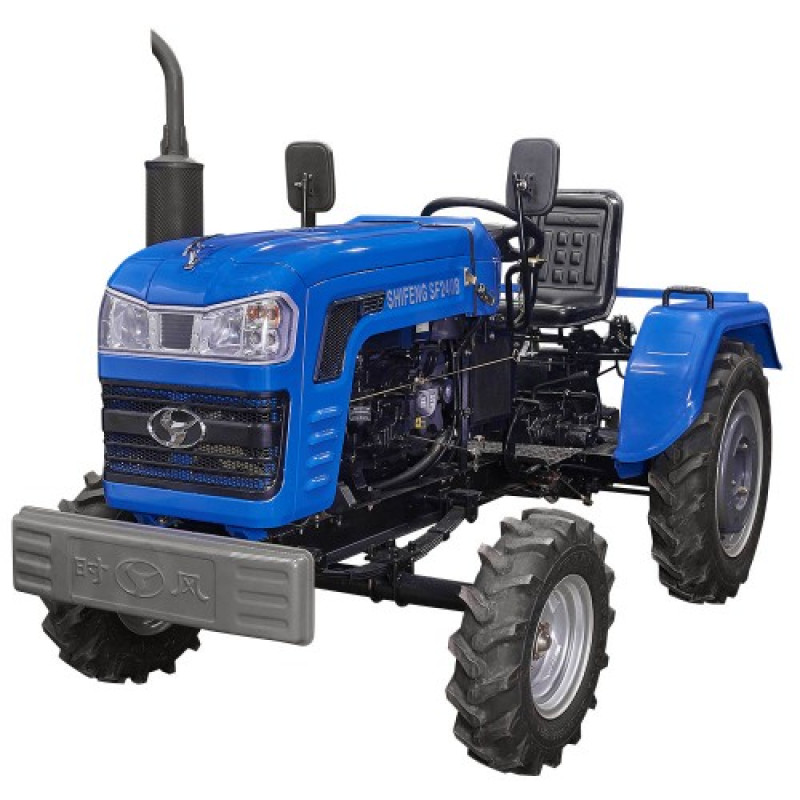

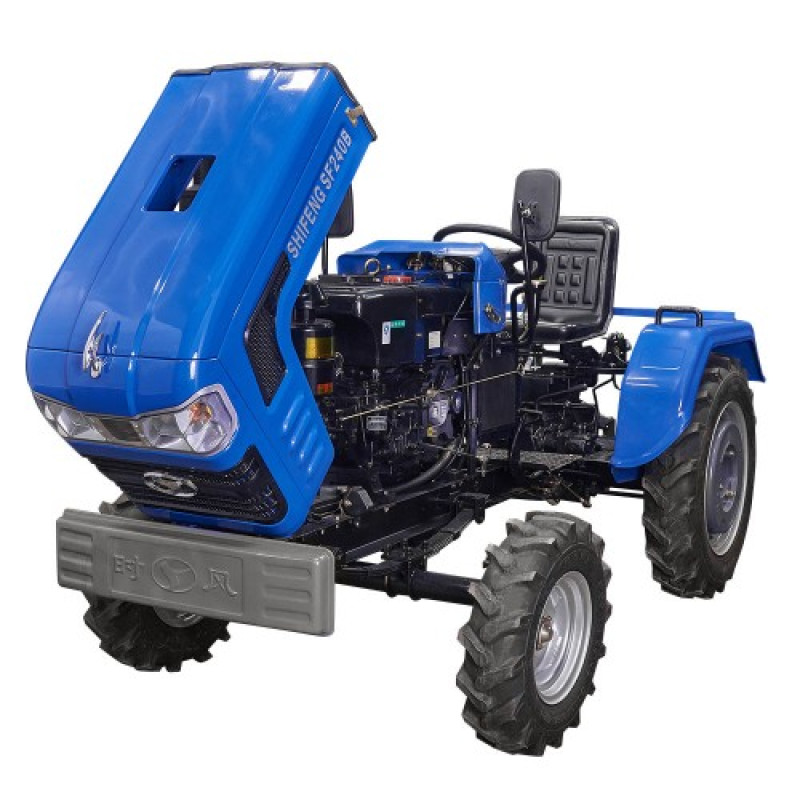

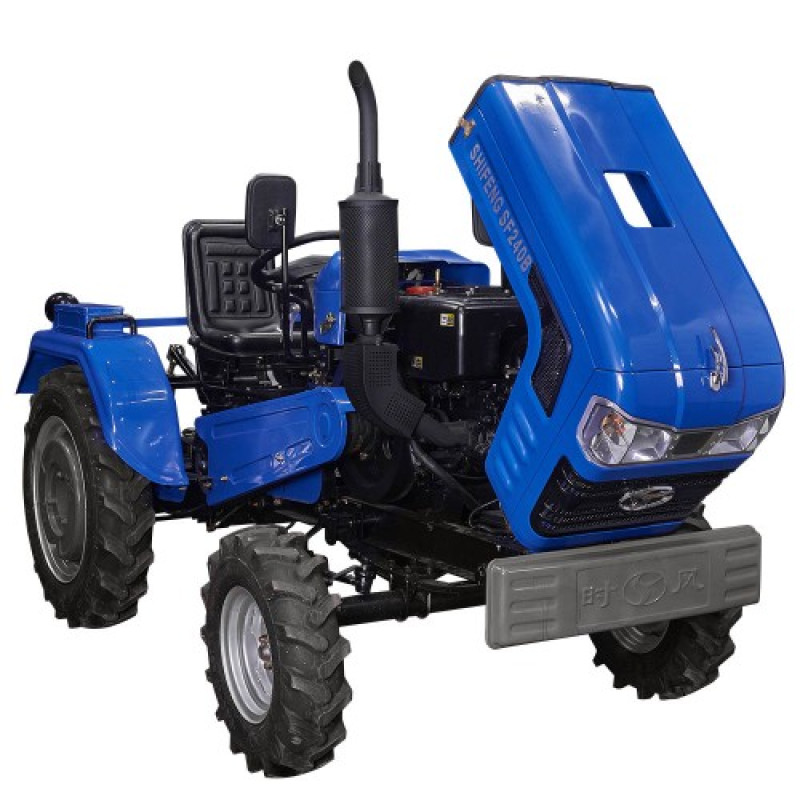

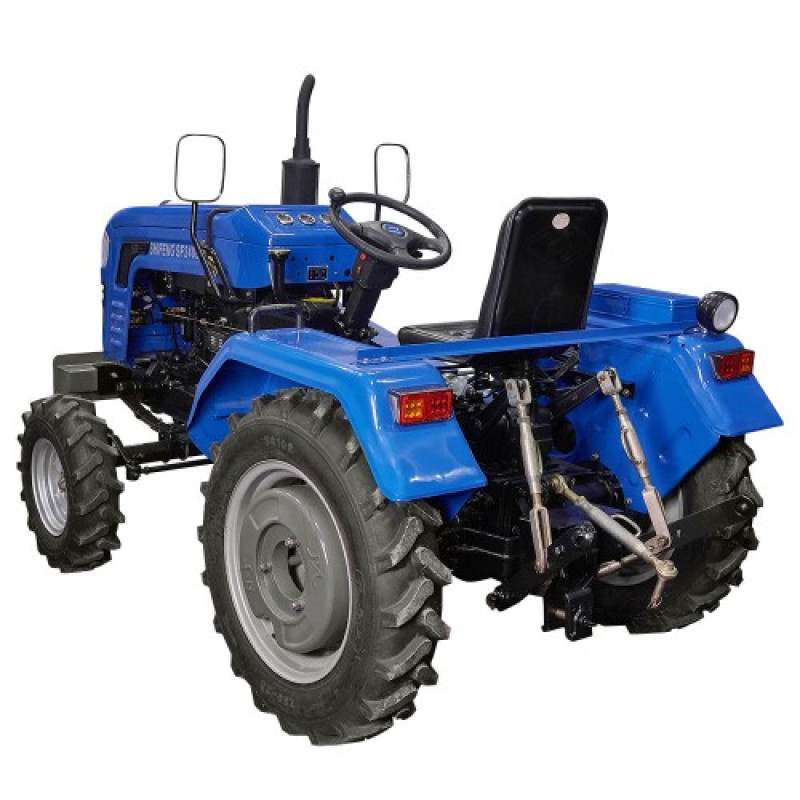

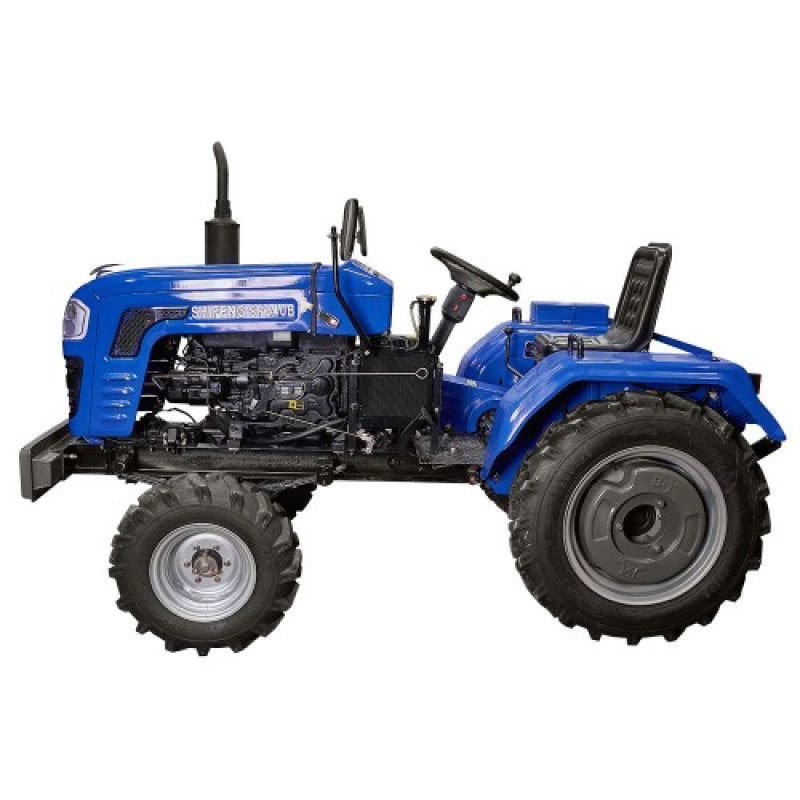

Description of the SHIFENG SF 240B Mini Tractor
The SHIFENG 240B is an affordable and reliably designed 24 hp rear-wheel drive tractor, distinguished by its V-belt transmission from the engine to the gearbox. The tractor has a frame layout with a sprung front axle. The engine is a single-cylinder, horizontally opposed, water-cooled unit. The belt drive simplifies the design, significantly eases maintenance and repair, and reduces operating costs. The elasticity of the belt drive prevents engine and transmission damage due to overload or improper speed selection. The tractor is equipped with drum brakes, a dry dual-disc clutch, a gear-type transmission with 6 forward and 1 reverse speeds, and a power take-off shaft. The hitch system is a standard 3-point hydraulic type, with an electrical outlet and a hydraulic output.
Design Features of the SHIFENG SF 240B Mini Tractor:
- Horizontal 1-cylinder diesel engine;
- Water cooling for the engine;

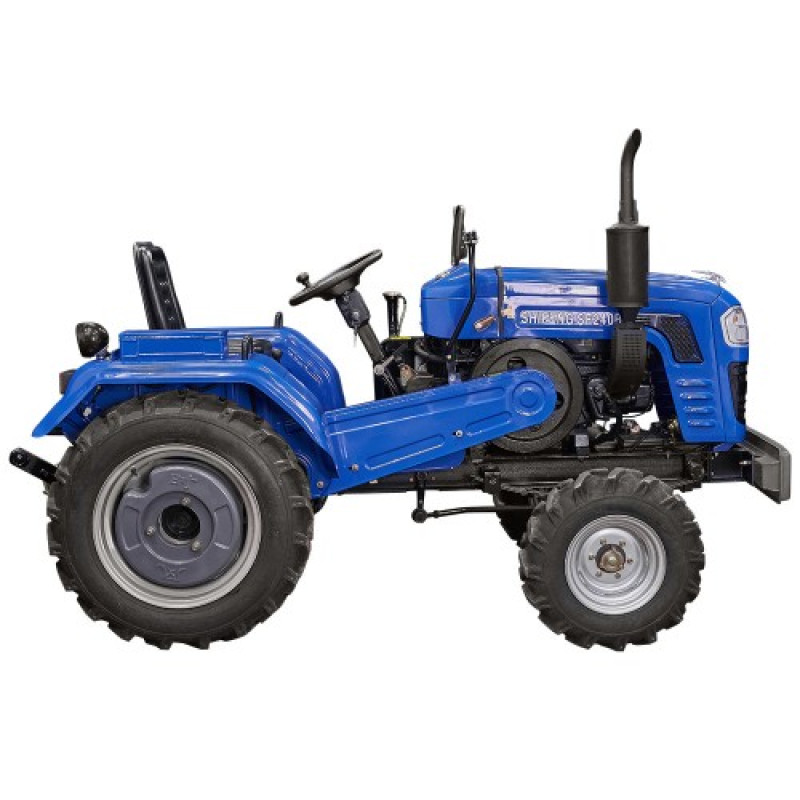

- V-belt drive from engine to gearbox, 4 belts;
- Fully geared transmission 6+1;
- Manual throttle;
- Dry dual-disc clutch, constantly engaged;
- Sprung front axle;
- Rear longitudinal PTO with 540 rpm;
- Wheels 6.00-12 / 7.5-20;
- Rear drum brakes;
- Rear differential lock;
- Disconnectable gear pump hydraulic system drive;
- Parking brake.
SHIFENG SF 240B Tractor Configuration:
- Large rearview mirrors on swivel brackets;
- Rear headlight;
- Toolbox on the left fender;
- Oil pressure gauge, coolant temperature gauge, hour meter, voltmeter;
- Horn, high/low beam, turn signals;
- Combined switch for electrical lighting modes;
- Battery disconnect switch;
- 80 A∙h battery;
- Emergency alarm;
- Hydraulic system for rear hitch;
- Steering wheel quick-turn knob;
- Front and rear wheels with "Herringbone" tread.
You can buy the SHIFENG SF 240B tractor throughout Ukraine from our official representatives or order it via the special feedback form in the "Contacts" section. All SHIFENG tractors come with a 1-year warranty.
Specifications
Additional Cockpit Equipment
–
Additional Equipment
–
Additional Footrests
–
Additional front/rear payload, (unit × kg)
1x26 / 2x16.5
Additional Step-Down Gearboxes
2 bands
Agrotechnical clearance, mm
340
Air Filter
Contact-oil type
Battery disconnect switch
+
Battery voltage and capacity, V/Ah
12 / 80
Brakes
Drum mechanical
Clearance, mm
280
Clutch coupling
2-disc, normally closed, dry
Cockpit
–
Cooling System
Liquid with forced circulation
Crankcase oil capacity, L
4.5
Crankcase oil type
Engine Oil: DTZ TURBOSYNT DIESEL SAE 10W-40 API CF-4/SG
Dashboard
With separate indicators
Decompression Needle
+
Design of side guy lines and braces
The lower rods are not adjustable, the central upper rod, vertical posts, and side braces are smoothly adjustable via thread
Driver's Cab
–
Driver's Seat
Flip-up
Engine displacement, cm³
1344
Engine model
SF138-2
Engine type
Diesel
Expansion Tank for Cooling System
–
Front Axle
–
Front Harness System
–
Front tire size
6.00-12
Front track, mm
1240
Fuel filter, fine filtration
-
Fuel injection pressure, MPa (kgf/cm²)
20±0.5 (200)
Fuel pre-filter
+
Fuel tank capacity, L
9.0
Gear Shifting Formula
(3x2)+1
Generator – type, voltage (V), power (W)
AC, 14, 350
Hydraulic fluid type
DTZ HYDRA SYNT ISO HM ISO 46 DIN HLP 46
Hydraulic lift actuator
Integrated hydraulic cylinder, separate gear hydraulic pump
Hydraulic Lift Control
Three-position hydraulic control valve
Hydraulic lift oil placement
Separately in the cavity of the hydraulic lift mechanism
Hydraulic outputs for connecting attachments
1 (pressure/drain)
Hydraulic system oil tank volume, L
3.2
Intake manifold air heater
–
Kit Contents
–
Launch System
Electric starter, manual starter
Lighting Equipment
Main headlights, tail light, rear lights, front and rear turn signals
Lubrication System
Combined, pump and spray
Main Gearbox
3 speeds
Maximum payload capacity of the attachment mechanism, kg
300
Minimum turning radius with brakes, m
–
Minimum turning radius without brakes, m
6.7
Nominal crankshaft speed, rpm
2200
Nominal fuel consumption, g/kW*h
≤252
Nominal pulling force, kN
4.5
Number and arrangement of cylinders
1, horizontal
Oil filter for lubrication system
–
Operating weight, kg
1050
Other Electronic Equipment
Audible alarm, emergency signaling
Other Equipment
–
Overall dimensions (L x W x H), mm
2860x1400x1770
Parking Brake
+
Power steering oil tank volume, L
–
Power Take-Off (PTO)
Rear, longitudinal, 6 splines, Ø35
Power take-off (PTO) shaft speed, rpm
540
Quick Control Handle
+
Rated engine power, hp (kW)
24 (17.6)

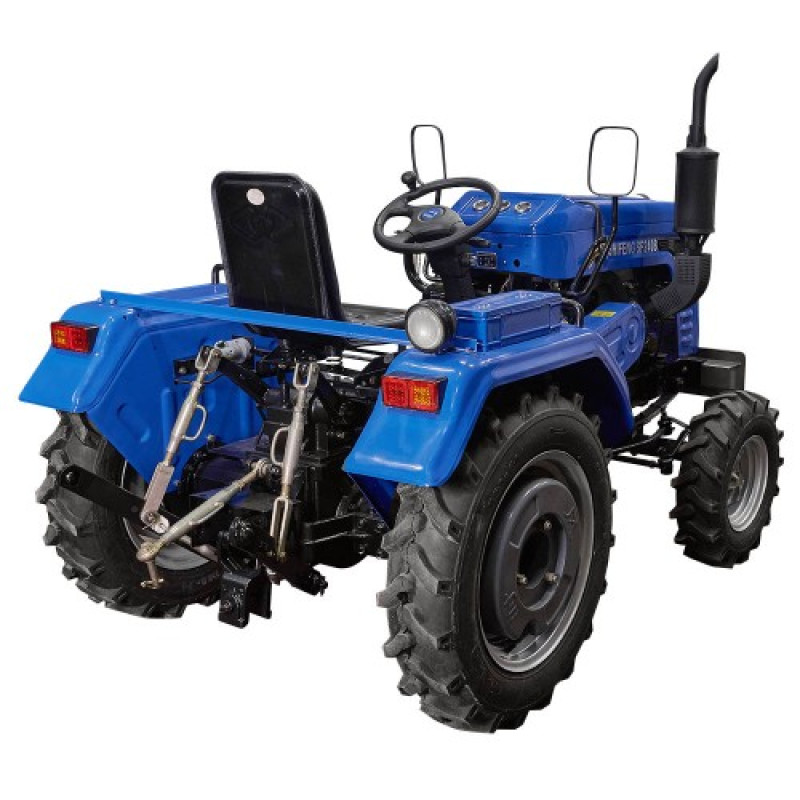

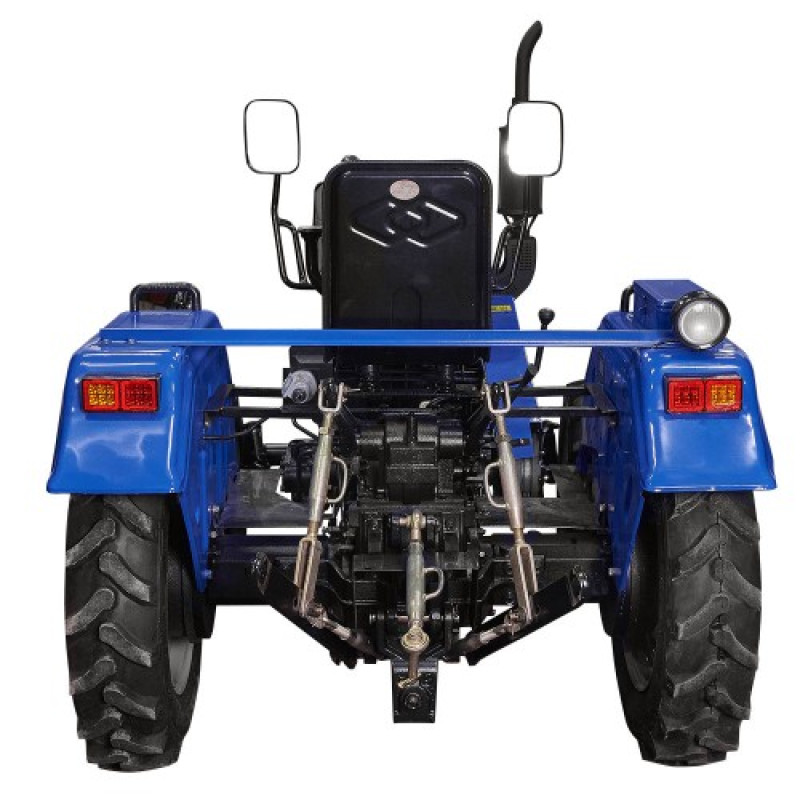

Rear attachment system
Universal 3-point with hydraulic lift
Rear axle differential lock
+
Rear Tire Size
7.50-20
Rear track, mm
1200
Safe Launch
–
Separate Reversible Box
–
Simultaneous PTO and towing capability
–
Steering
Mechanical
Steering Hydraulic Cylinder
–
Theoretical forward speed, km/h
2.5-27.0
Theoretical reverse speed, km/h
5.5
Towing Device
Removable pendulum ear hook with vertical non-rotating trunnion
Trailer Connector Socket
+
Transmission type
Mechanical gear
Transmission/FWD axle oil capacity, L
10.0 / –
Turbocharger
–
Type of grease in NVG
–
Type of lubricant in the transmission and front axle crankcase
Transmission Oil DTZ TAD-17i SAE 85W-90 API GL-5
Wheel formula
4x2
Wheelbase, mm
1480
