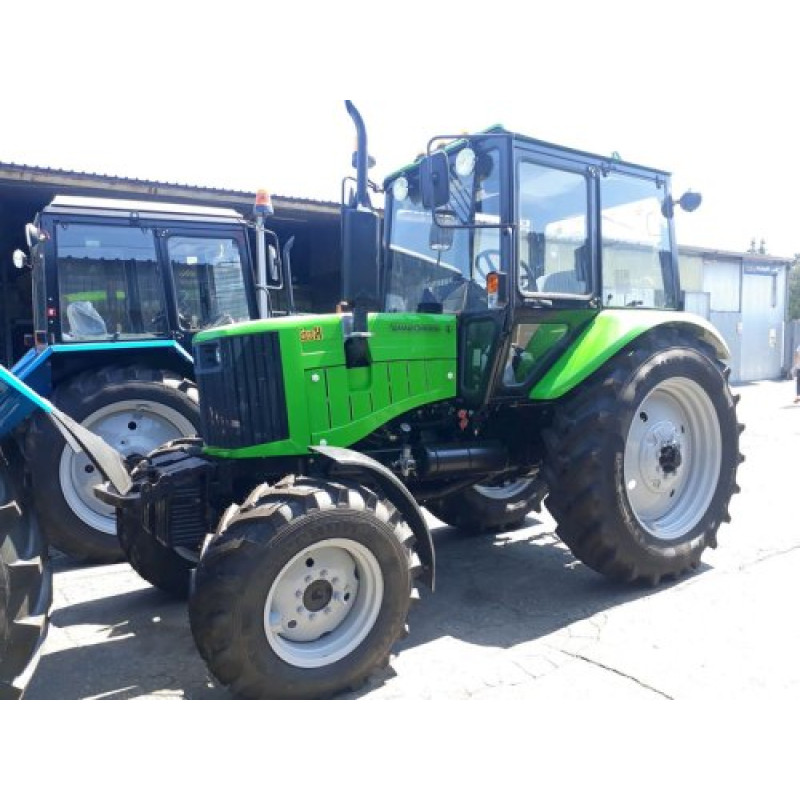

KIY 14102SH Tractor — Powerful Universal Tractor for Heavy-Duty Work
The KIY 14102SH tractor from manufacturer KIY is a modern 4x4 universal agricultural tractor with a turbocharged four-cylinder diesel engine, specially designed for intensive use in the field, on the farm, and in municipal services. The model combines high power, reliable transmission, and an efficient hydraulic system, making it an optimal choice for plowing, cultivation, working with front-end equipment, transportation, and loading/unloading tasks.
Manufacturer: KIY. Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.
Key Advantages:
- Robust turbocharged D-245 (MMZ) diesel engine provides a nominal power of 105 hp (77 kW) at 2200 rpm for heavy-load operation.
- 4x4 all-wheel drive and a turning radius of 5.9 m ensure maneuverability and confident movement on challenging terrains.
- Separate-aggregate hydraulic system with a capacity of 45 l/min and a hitch lifting capacity of 3200 kg allows for the use of a wide range of mounted and trailed equipment.
- Universal PTO speeds of 540/1000 rpm for compatibility with various drives and working units.
- Reliable 18/4 gearbox and single-disc dry clutch ensure durability and ease of maintenance.
Application and Functionality
Thanks to its 105 hp power and reliable transmission, the KIY 14102SH is suitable for cultivating heavy soils, performing field work, sowing, fertilizing, and working with mounted and trailed machinery. The high ground clearance of 410 mm and robust chassis design make the tractor suitable for field conditions and uneven roads. The thoughtful design and high lifting capacity of the hitch mechanism make the model versatile for private farms, agricultural complexes, and municipal enterprises.
Technical Specifications
| Engine type | 4-cylinder diesel, turbocharged D-245 (MMZ) |
| Engine power, hp (kW) | 105 (77) |
| Nominal engine crankshaft speed, rpm | 2200 |
| Drive | 4x4 |
| Clutch | single-disc, dry |
| Gearbox | 18/4 |
| Hydraulic system: type / number of hydraulic outlets | separate-aggregate |
| PTO: speed, rpm | 540/1000 |
| Hitch lifting capacity, kg | 3200 |
| Hydraulic system capacity, l/min | 45 |
| Front / rear tire size, inch | 13.6-20 / 16.9R38 |
| Wheel turning radius, m | 5.9 |
| Ground clearance, mm | 410 |
| Overall dimensions: LxWxH, mm | 4400x2000x2850 |
| Curb weight, kg | 4000 |
| Fuel tank capacity, l | 130 |
The KIY 14102SH model ensures versatility of use: from light agricultural operations to intensive field work. Thanks to the combination of the D-245 engine, all-wheel drive system, and powerful hydraulic system, this tractor effectively works with plows, cultivators, seeders, trailed and mounted units, as well as front-end loaders.
If you need consultation regarding configuration or selection of mounted equipment, please contact our specialists who will help you choose the optimal options for your farm.
