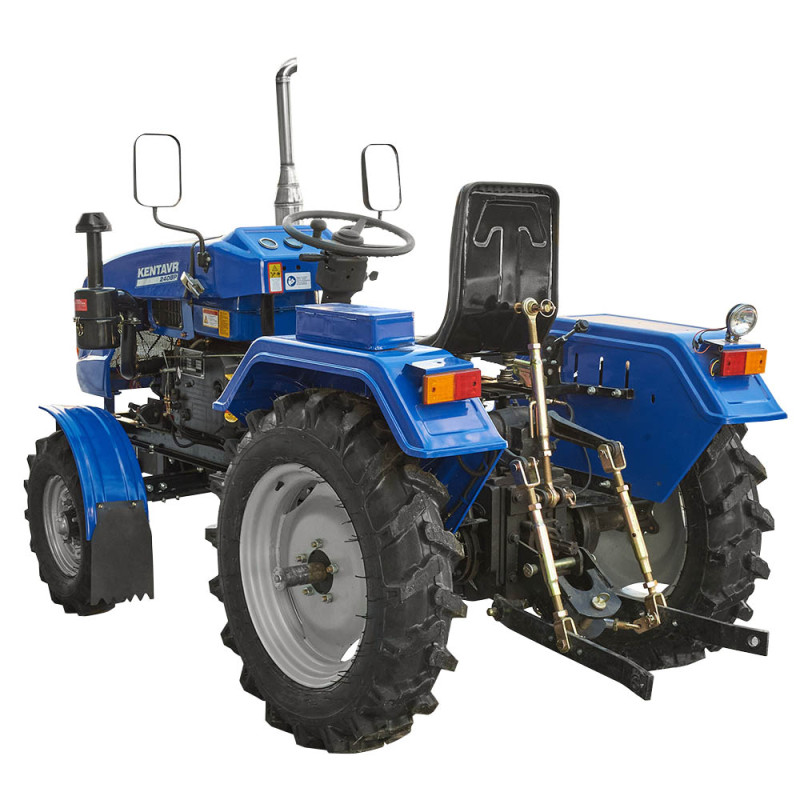

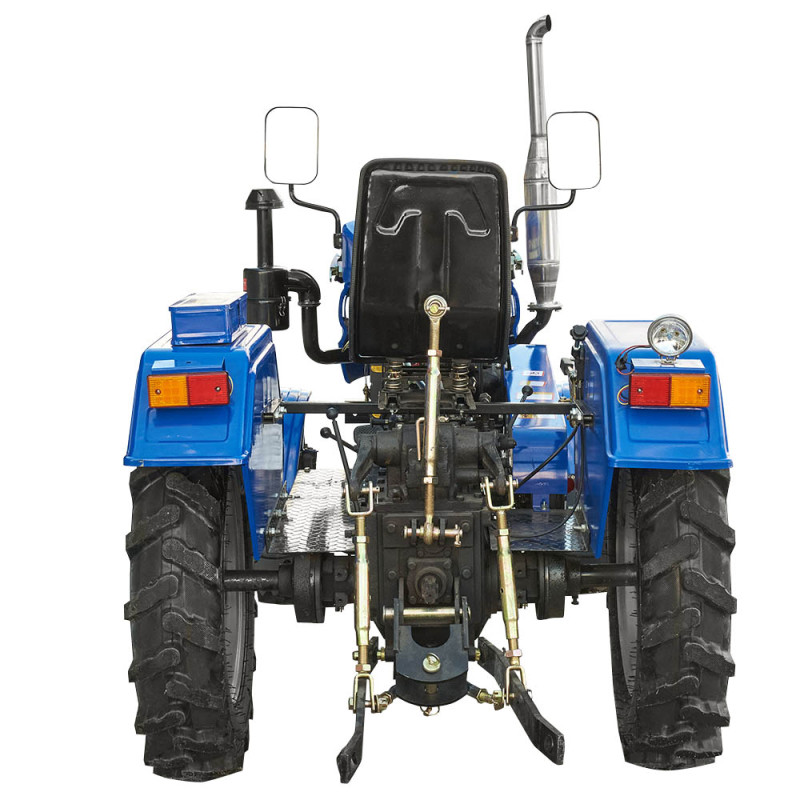

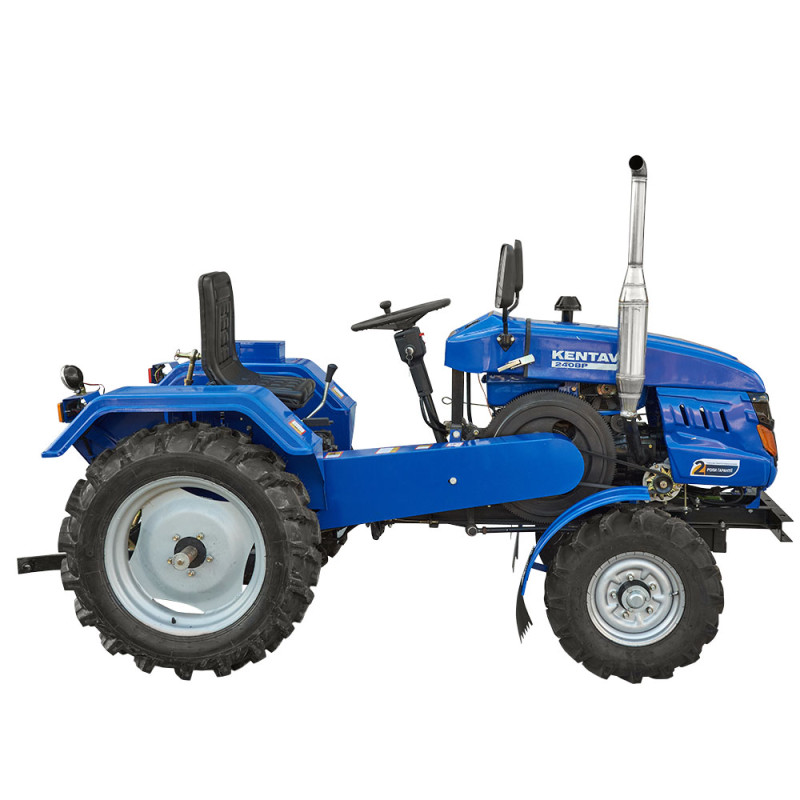

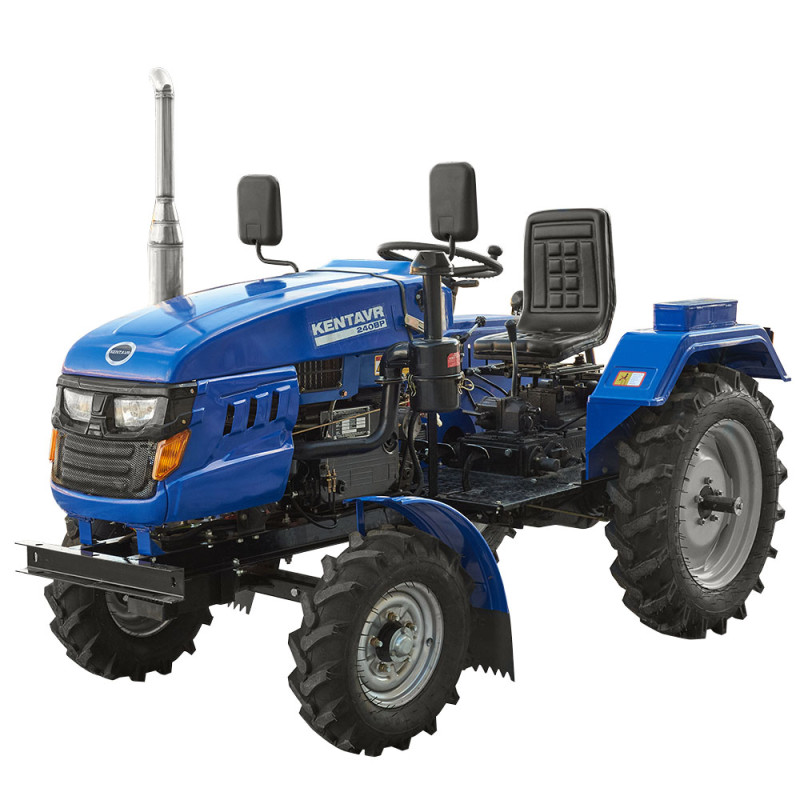

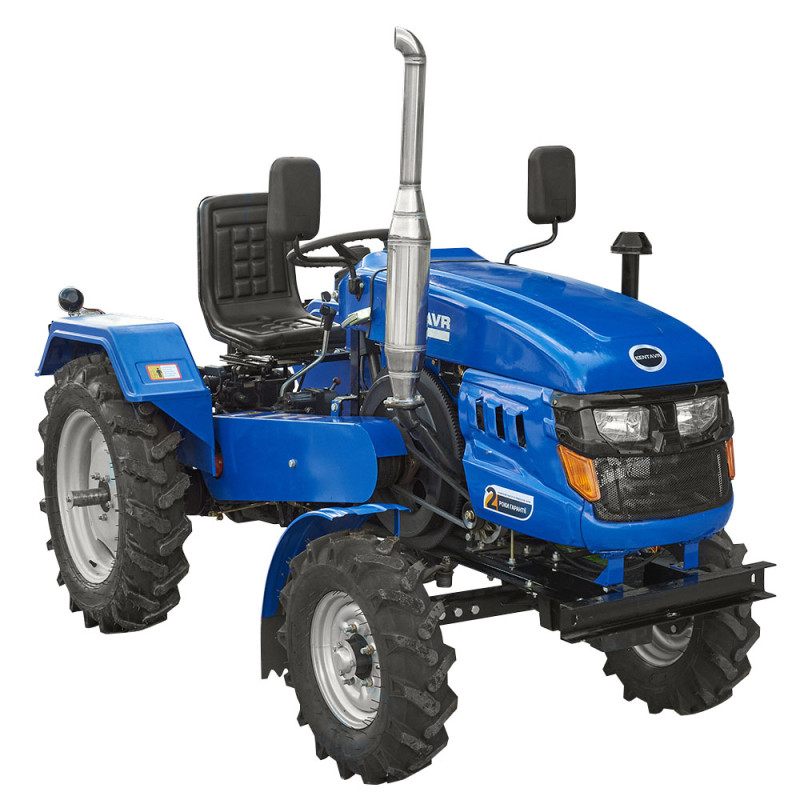

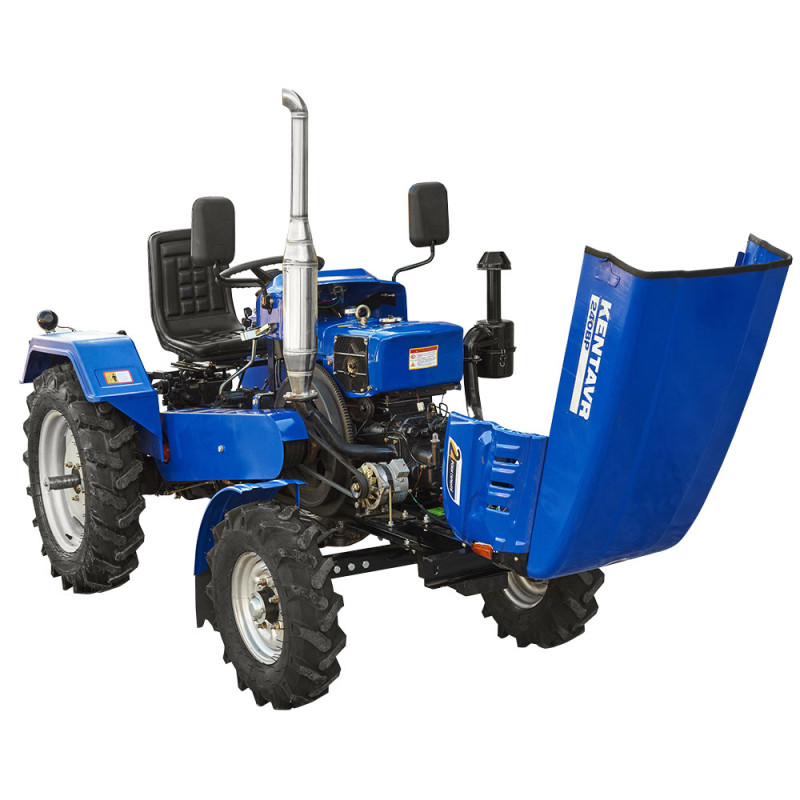

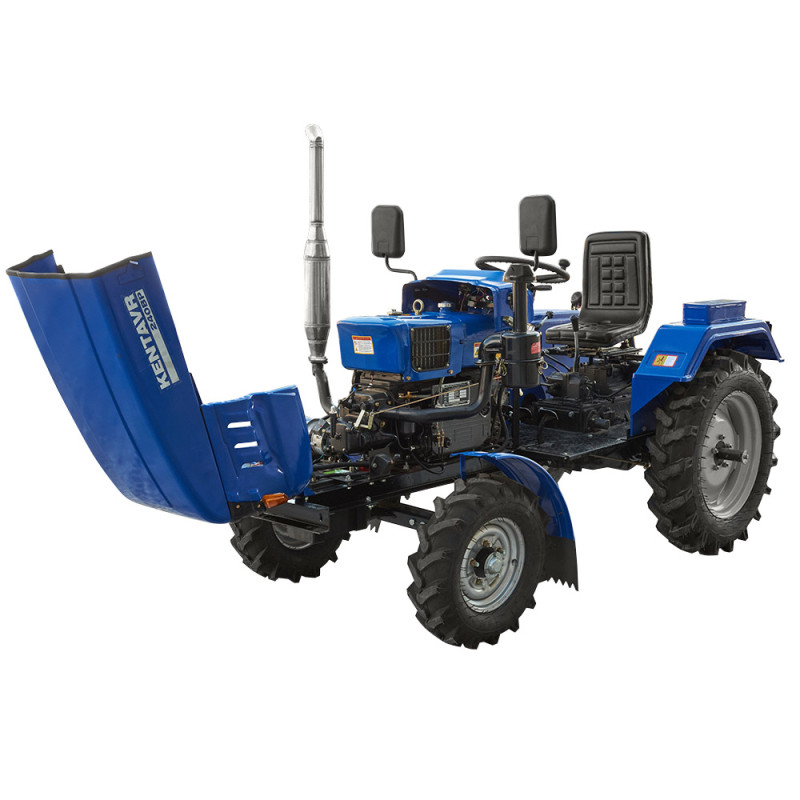

KENTAVR 240BP Tractor

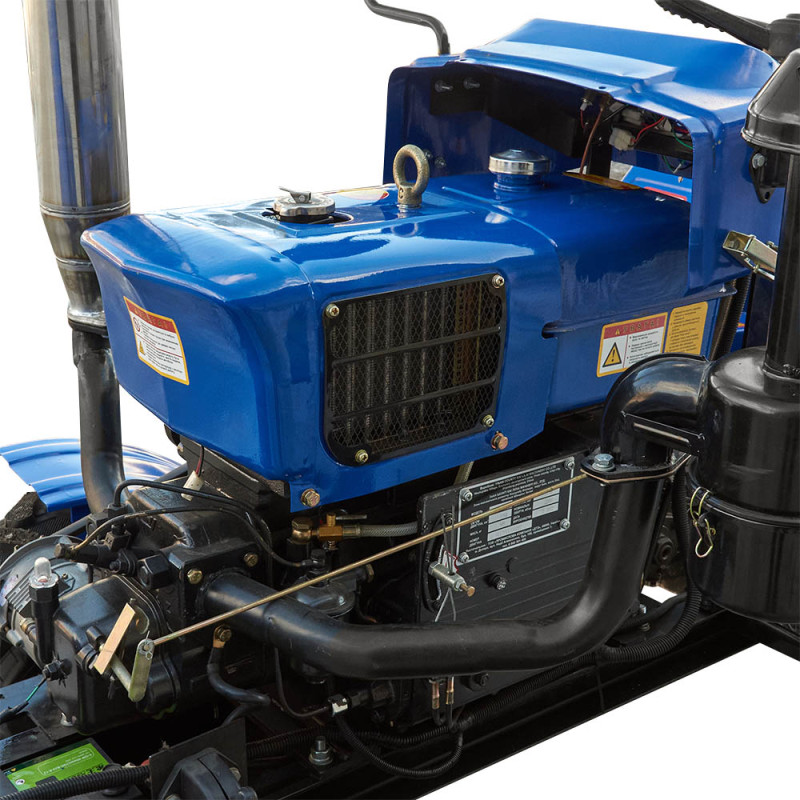

The KENTAVR 240BP tractor is a basic mini-tractor model with 24 hp, designed for small farms, dachas, gardens, and vegetable plots. Equipped with a 4-stroke, 1194 cm³ diesel engine, it ensures stable operation under moderate loads. The nominal speed is 2200 rpm, and diesel fuel consumption is always economical. The lubrication system is maintained with special TURBO SYNT 10W-40 oil, extending engine life.
Reliable Mechanics and Simple Design for Daily Operation
The tractor is equipped with a mechanical transmission with a (3+1)×2 gear shifting formula. The main gearbox has 3 speeds, and an additional reduction gear allows working on various soil types. Traction is transmitted by the rear drive axle, without differential lock, while the front axle is adjustable and non-driven. The 4×2 wheel formula provides simple yet reliable movement. Drum brakes and mechanical steering are a proven classic for easy operation.
Simple and Functional Hitch System with PTO

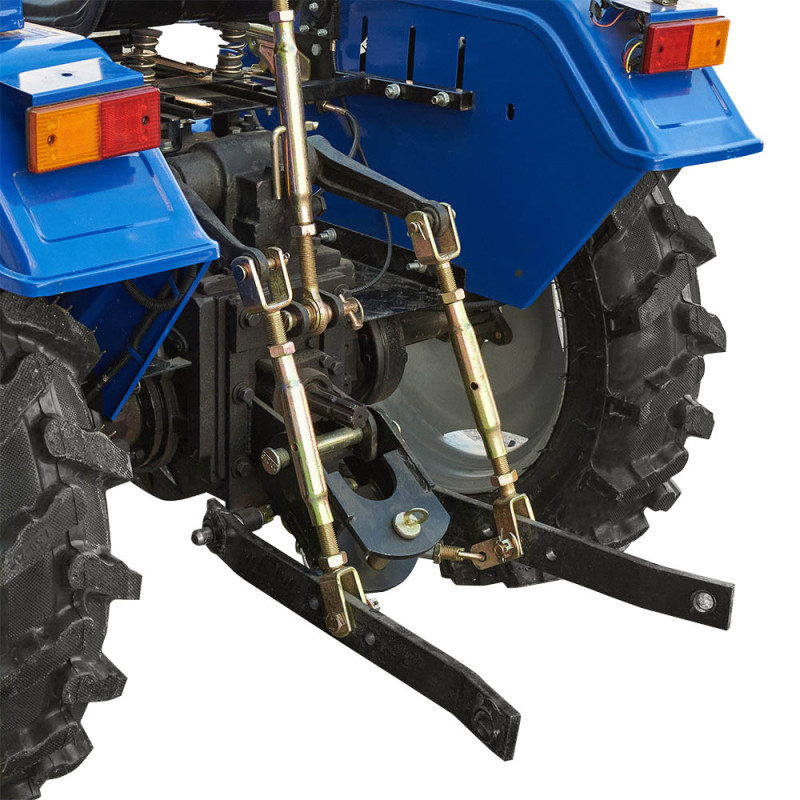

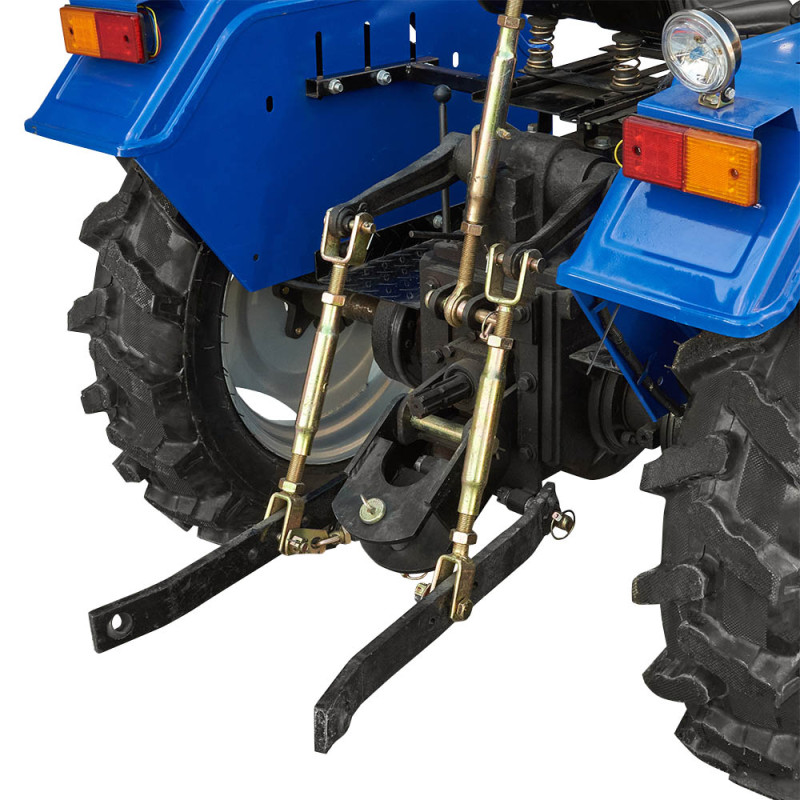

The KENTAVR 240BP features a rear three-point hitch system driven by a separate gear pump. The power take-off (PTO) shaft rotates at 540 rpm and has a standard diameter of 35 mm. The hydraulic system tank capacity is 3.2 liters. This configuration allows for the aggregation of basic implements — plows, cultivators, trailers, etc.
Comfort and Equipment

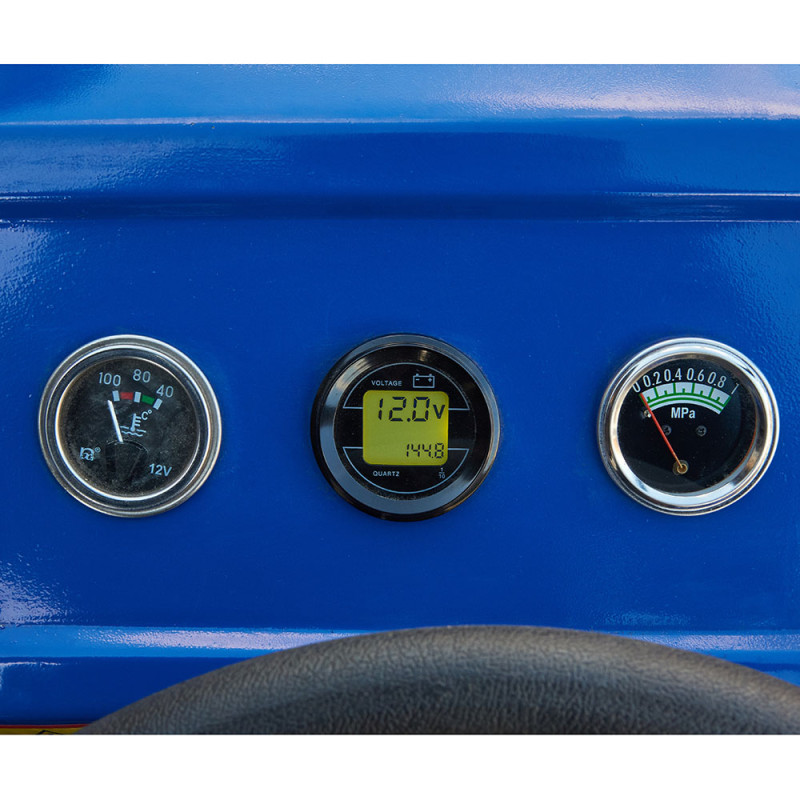

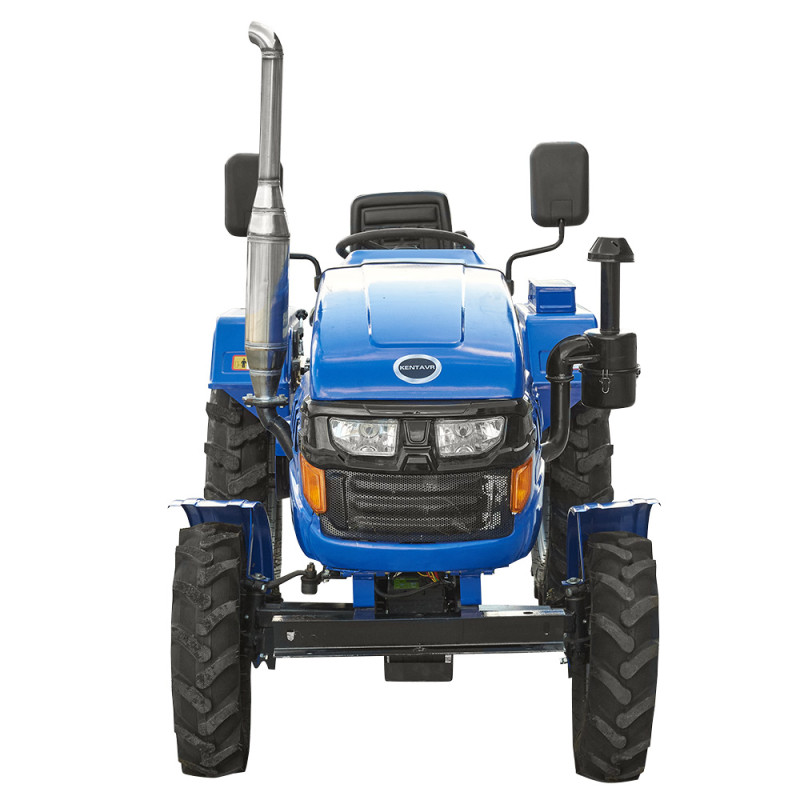

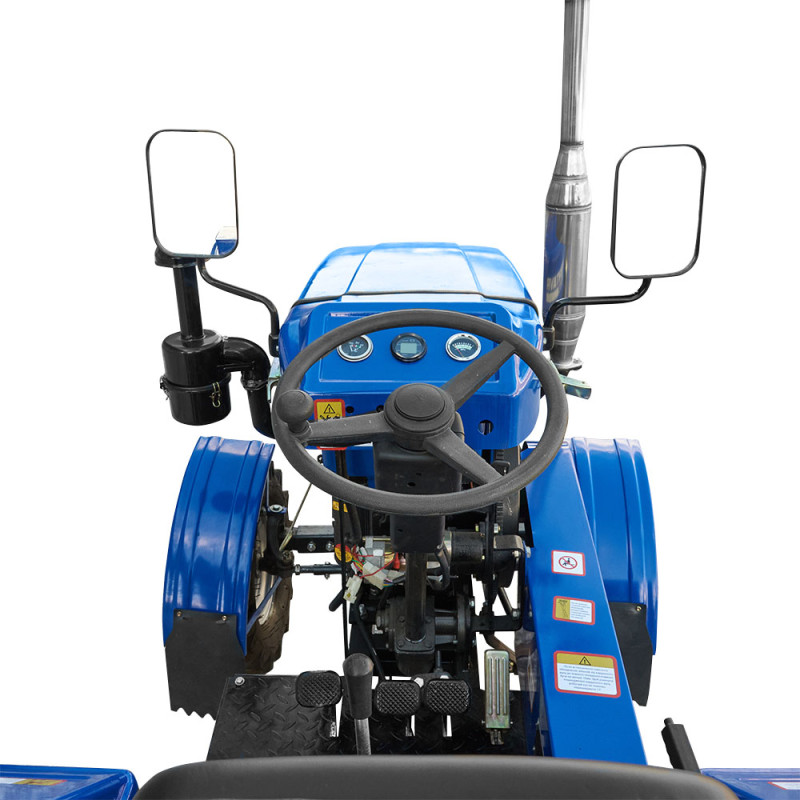

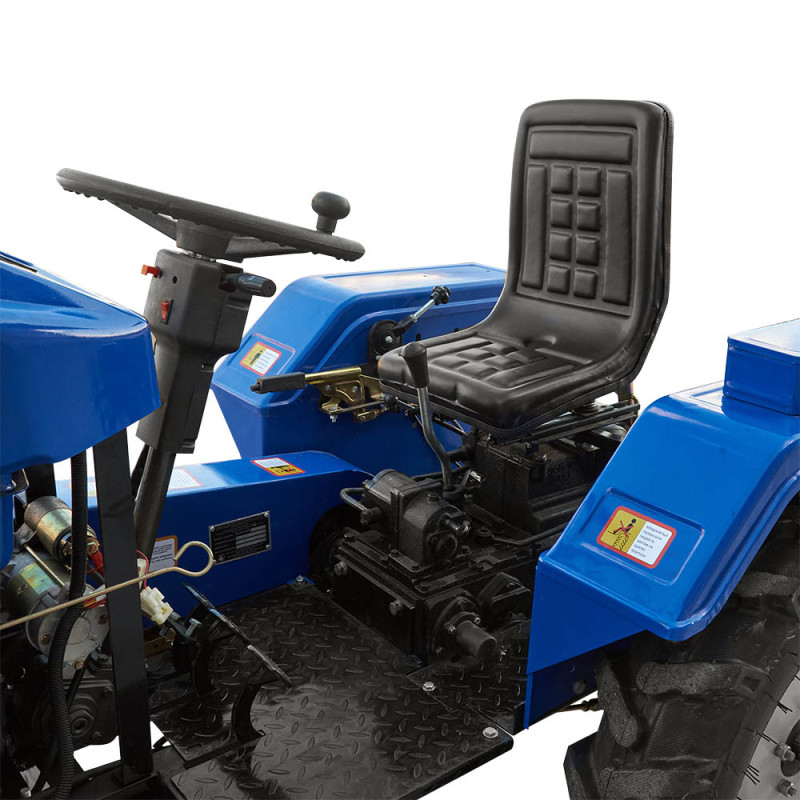

The tractor does not have a cab but is equipped with a folding seat, a dashboard with indicators, and basic lighting equipment: front/rear headlights, turn signals. The electrical equipment operates on a 12 V/60 Ah battery and a 350 W generator.
Compact Dimensions and Versatility

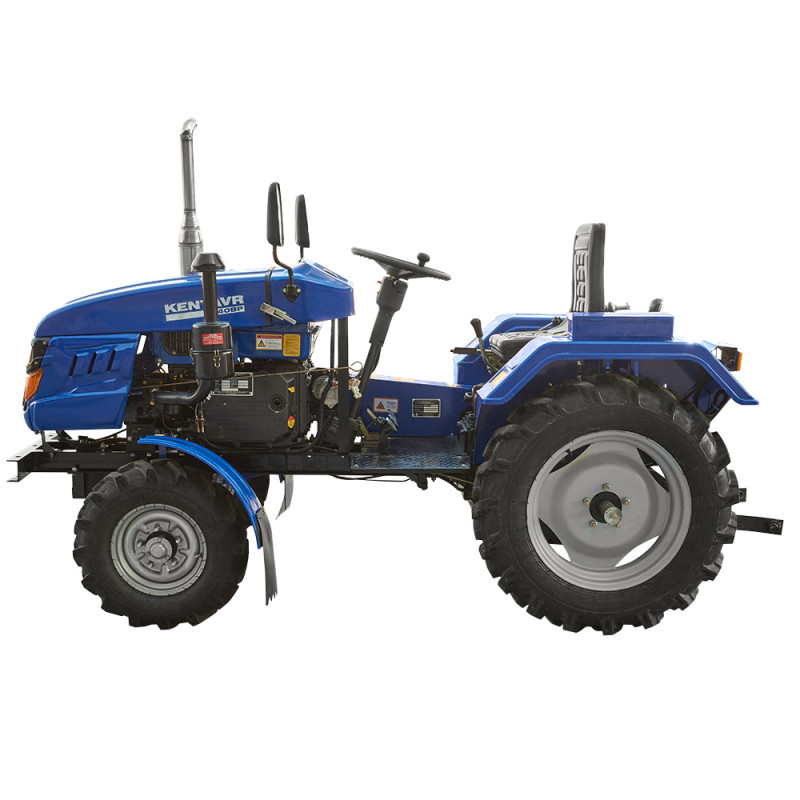

The tractor's weight is 740 kg, ground clearance is 280 mm, and agrotechnical clearance is 330 mm, allowing work with row crops. The front wheel track is adjustable within 950–980 mm, and the rear up to 1240 mm. Dimensions (2850×1270×1770 mm) allow for easy transport of the tractor on a trailer.
