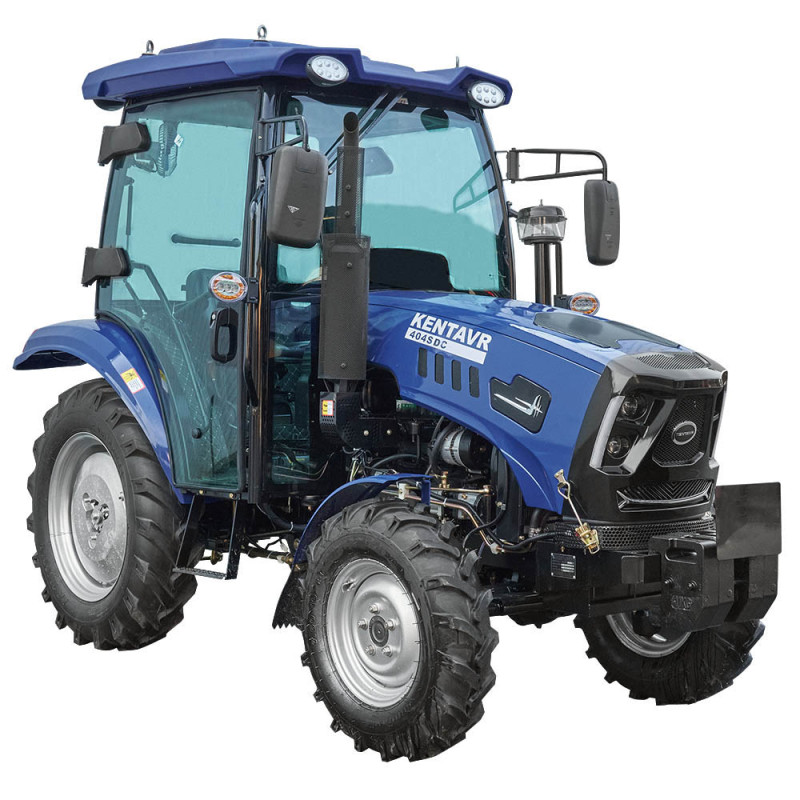

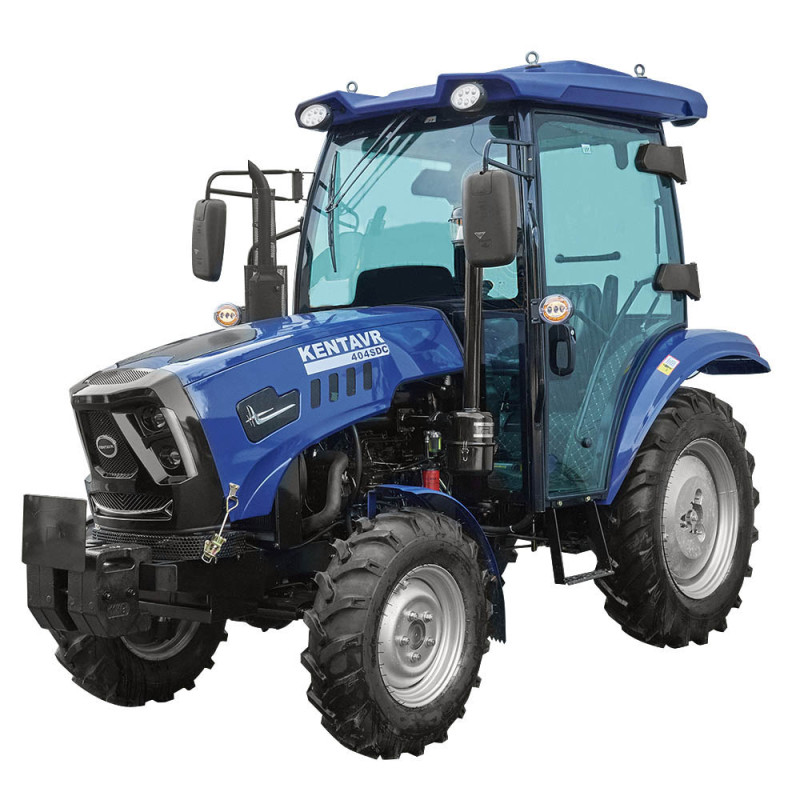

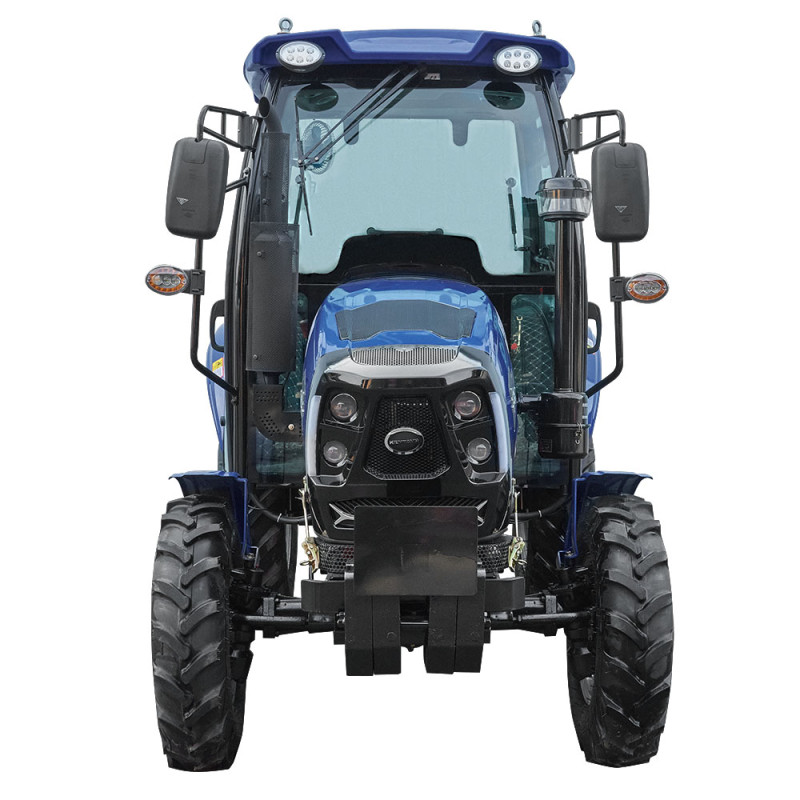

KENTAVR 404SDC Tractor — Powerful 4×4 Diesel with Reliable Hydraulic System and Comfortable Cab

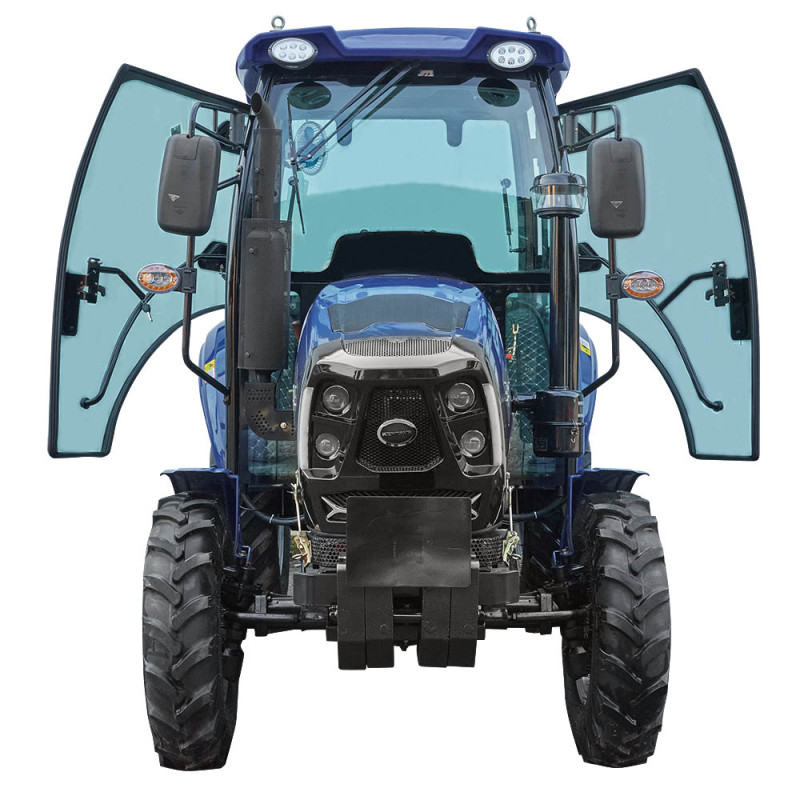

KENTAVR 404SDC is a modern universal tractor with a 40 HP 4-cylinder diesel engine, 4×4 all-wheel drive, and hydrostatic steering with a separate pump and oil tank. Reliability, productivity, and operator comfort are combined in this unit for efficient agricultural work.
Engine and Fuel System

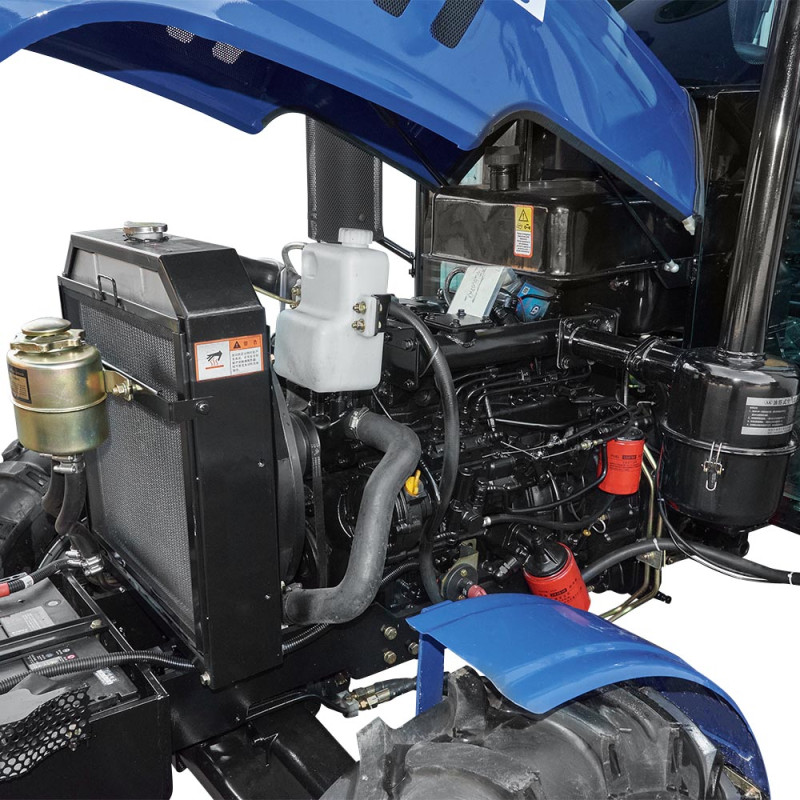

KM490BT engine with a displacement of 2544 cm³, 4-stroke, 4-cylinder, with electric starter and clutch pedal starter lockout for safe starting. Cooling system is liquid, with radiator and expansion tank. The fuel system includes a transparent sediment bowl with a tap and mesh, a CX70100 fine filter, an air filter with a metal mesh and oil bath, and an upward-routed air intake. Air preheating is via an electro-flame plug. JX0811A oil filter, oil volume in crankcase 6 L.
Transmission and Chassis
Mechanical gear transmission with 3 main gears and 2 reduction ranges. Clutch is 2-disc dry, constantly engaged. Brakes are drum, rear, with mechanical drive and dual pedals. Parking brake locks the main brakes. Rear axle differential lock is symmetrical with forced locking. Front axle is driven, disengaged by a lever from the cab. Steering is hydrostatic with a separate pump and oil tank, double-acting symmetrical hydraulic cylinder, with a quick-steering handle. Tires 7.50-16 (front), 11.2-24 (rear). Wheelbase 1820 mm, ground clearance 300 mm, agricultural clearance 380 mm.
Hitch System and PTO

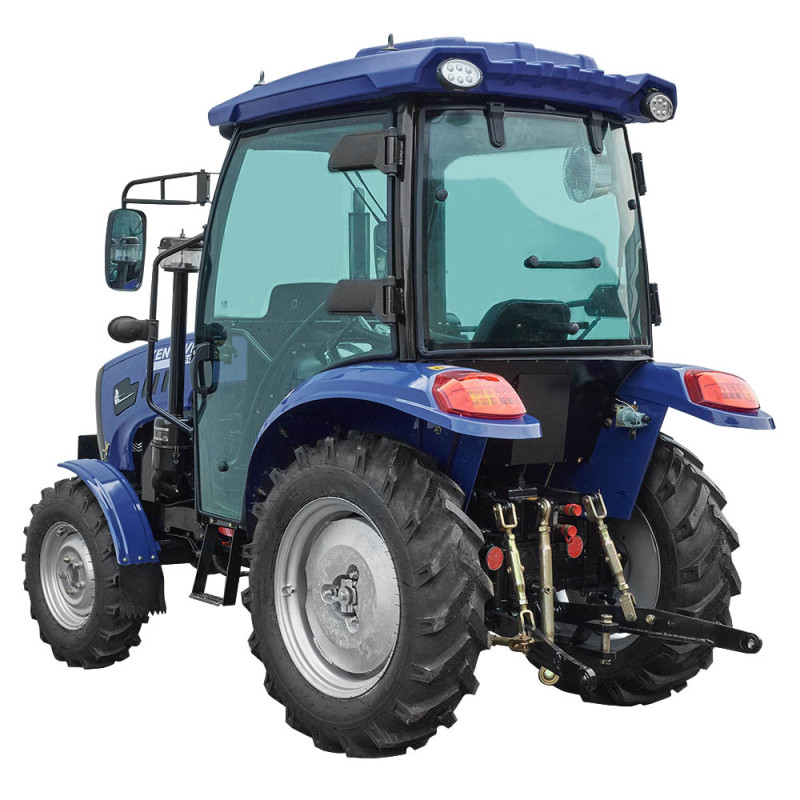

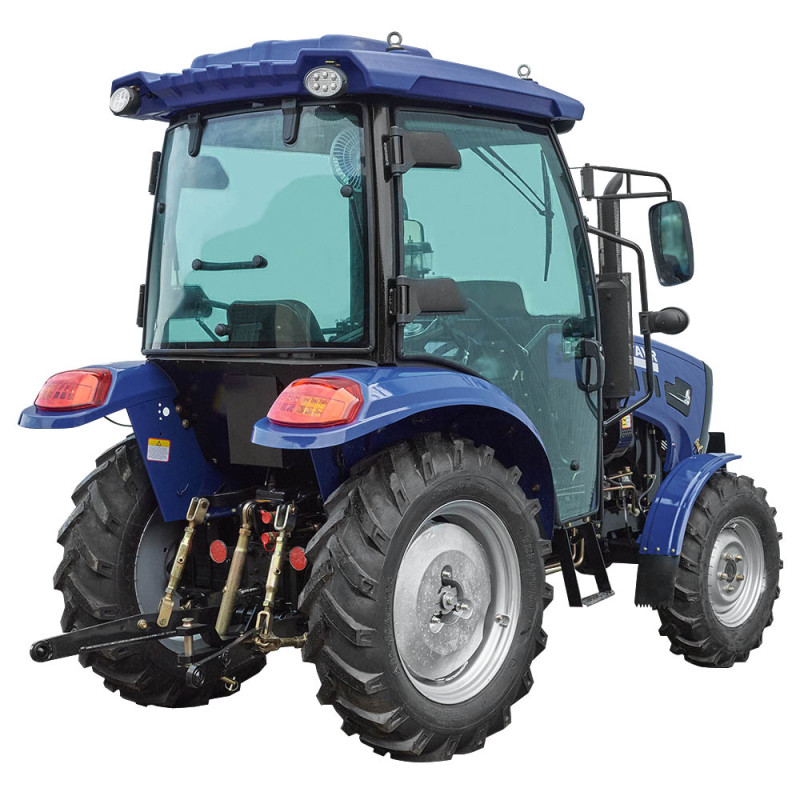

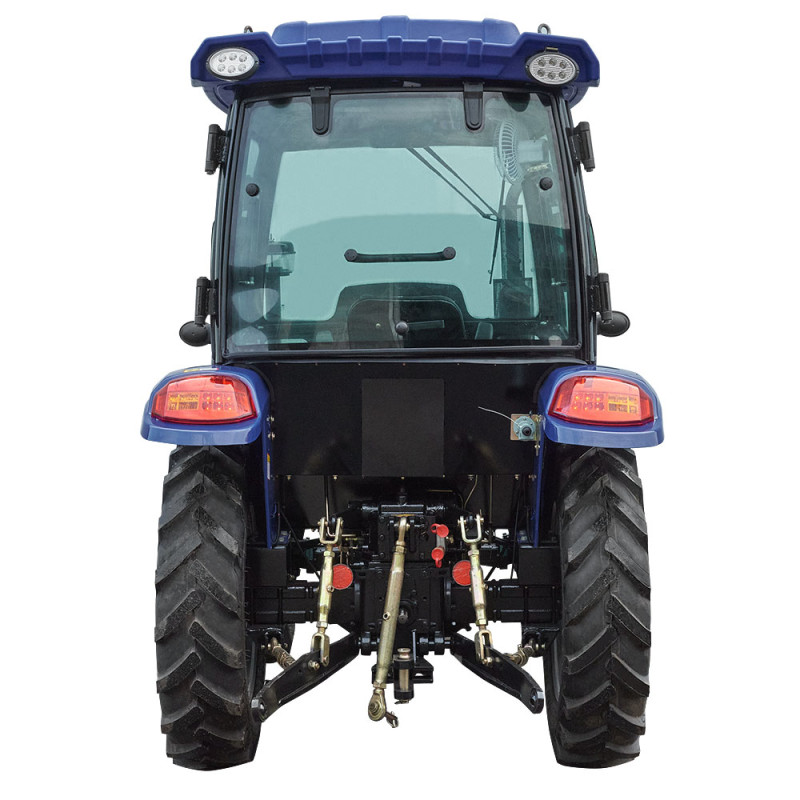

Universal three-point rear hitch system with hydraulic lift based on a single-section plunger valve, maximum lifting capacity 550 kg. Hydraulic outlets — 2 with quick-release couplings. Power take-off shaft — rear, 6-spline, Ø35 mm, speeds 640 / 800 rpm. Simultaneous PTO connection and towing is possible. Towing device — removable pendulum drawbar.
Comfort and Electrical Equipment

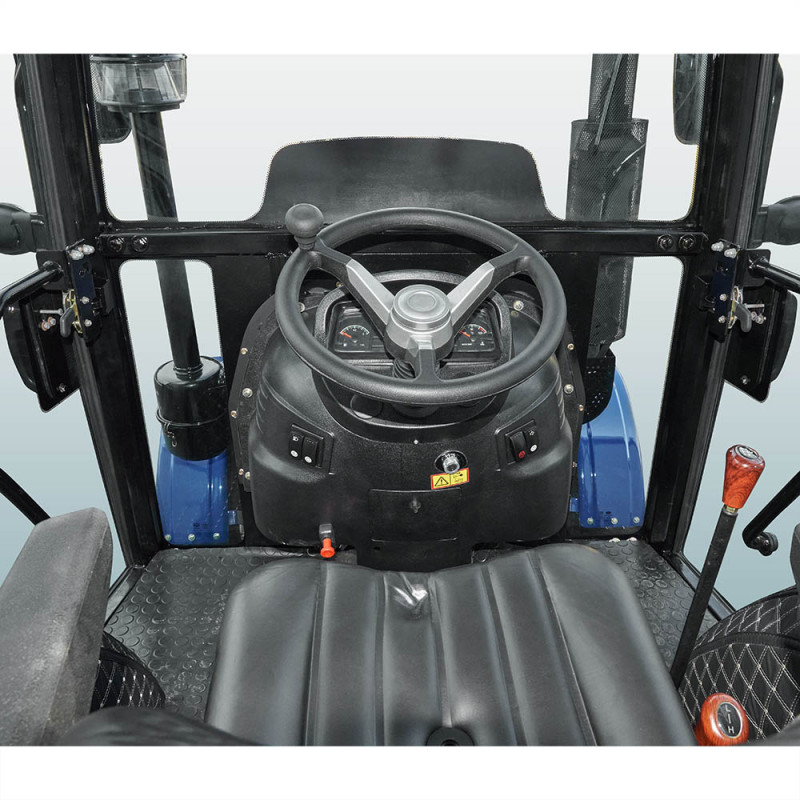

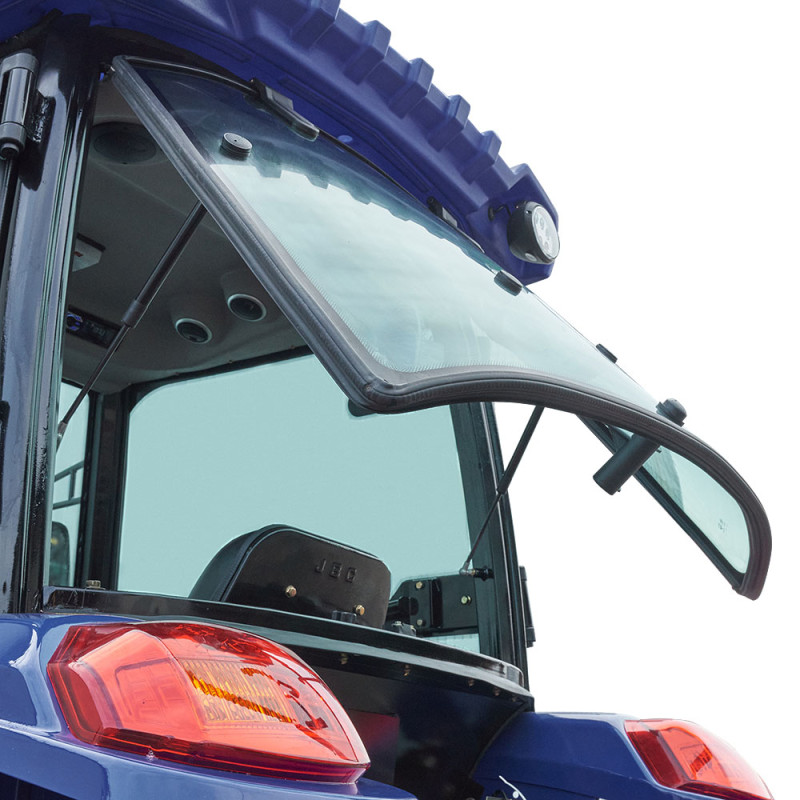

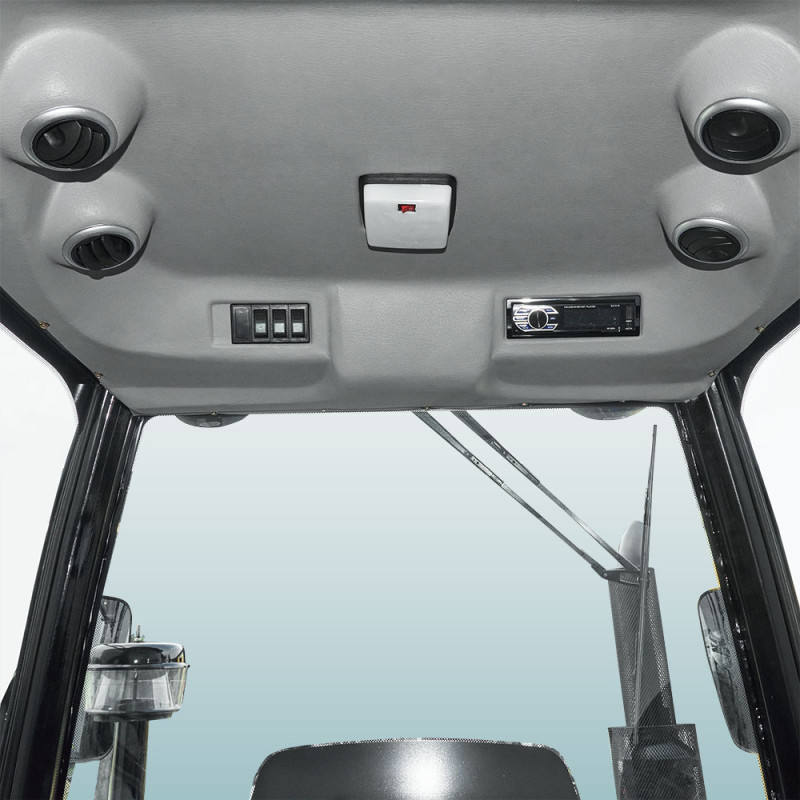

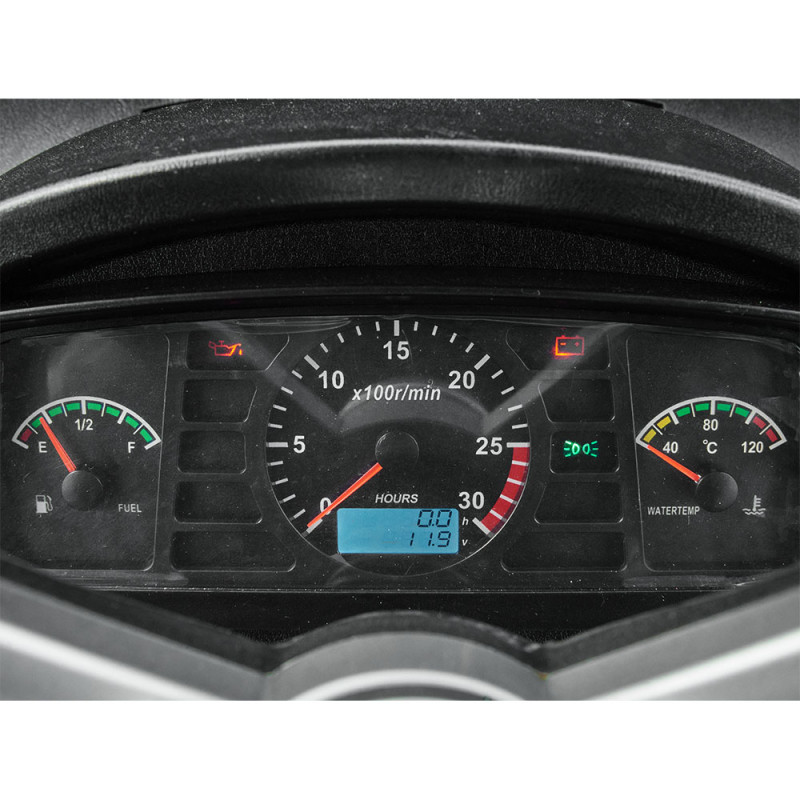

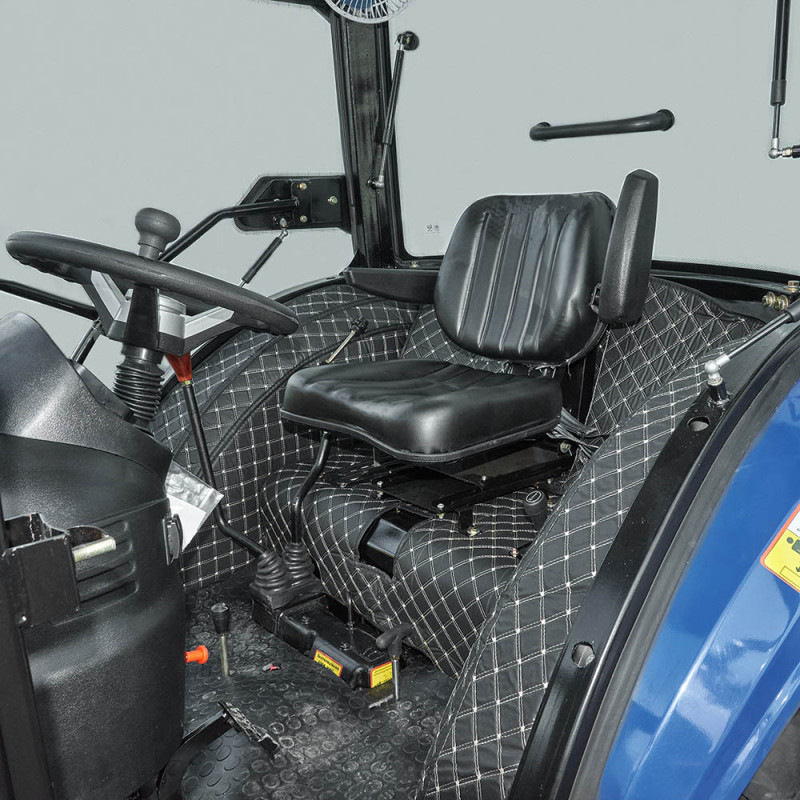

The comfortable cab is equipped with a suspension seat adjustable for distance to the steering wheel, a combined instrument panel with analog and light indicators. Generator 14 V, 750 W, battery 12 V 100 Ah, with battery disconnect switch. Lighting equipment includes front and rear headlights, brake lights, turn signals. There is a protected electrical socket for a trailer. The package is supplemented with a horn, hazard warning lights, car radio, metal front and rear fenders, and a toolbox.
