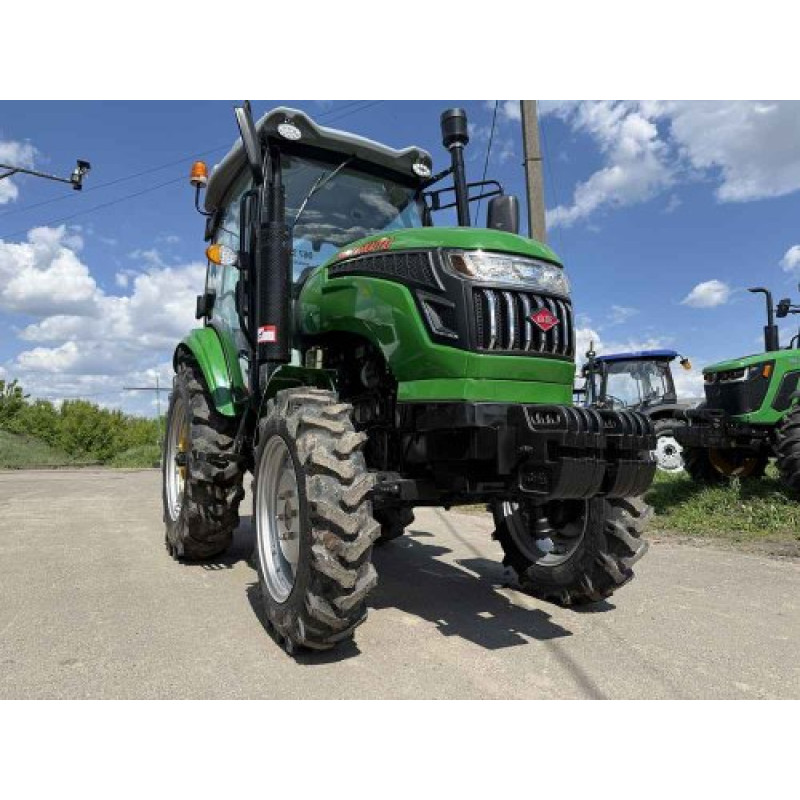

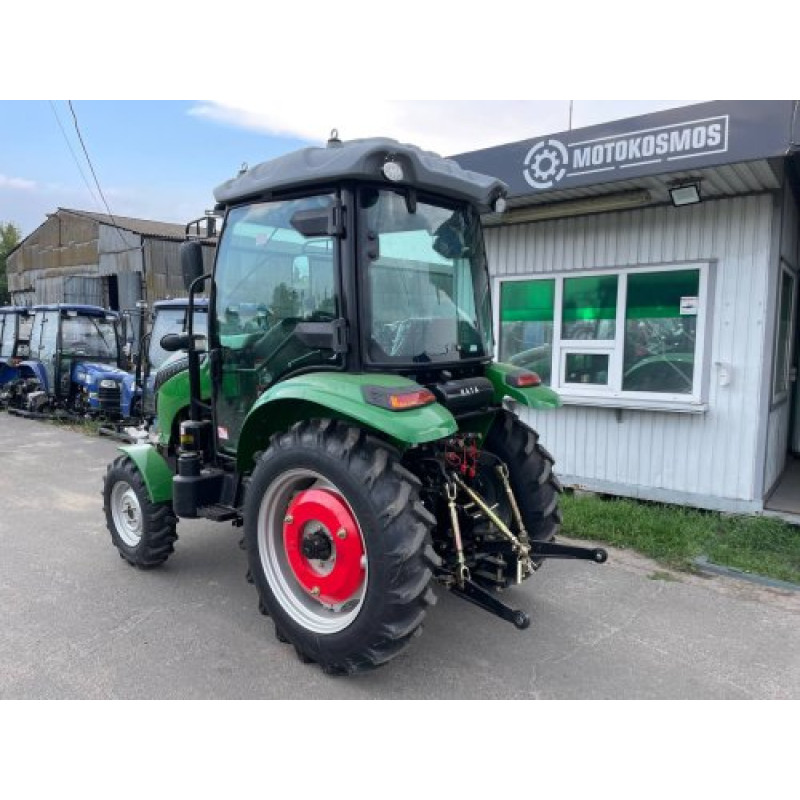

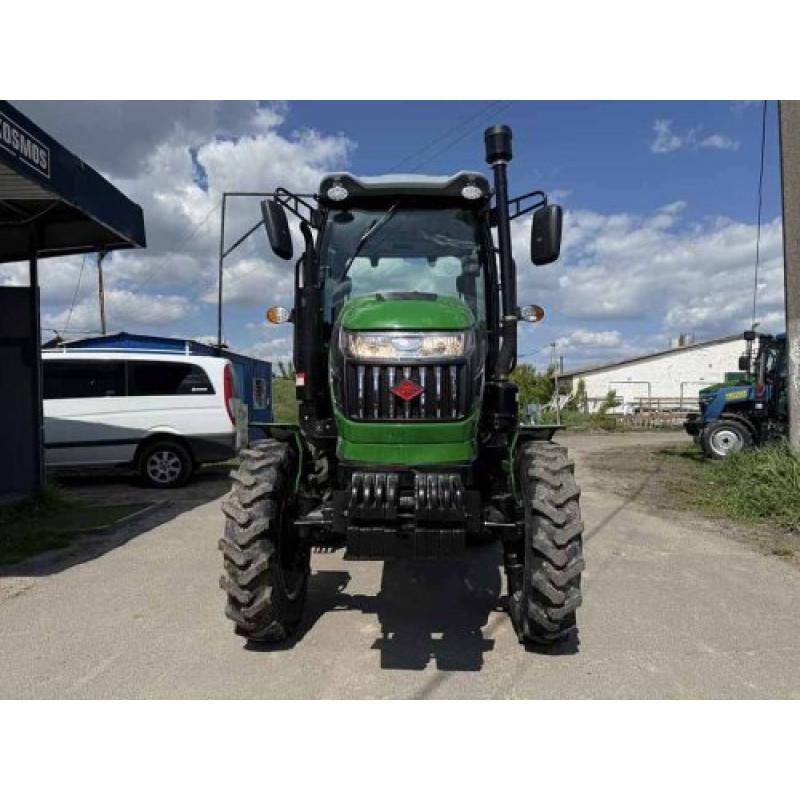

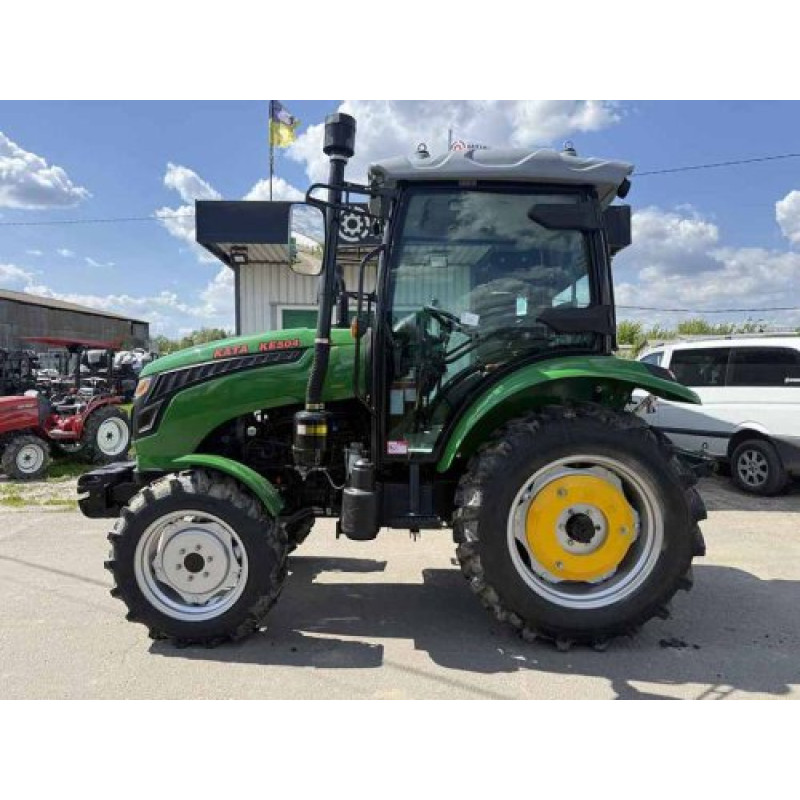

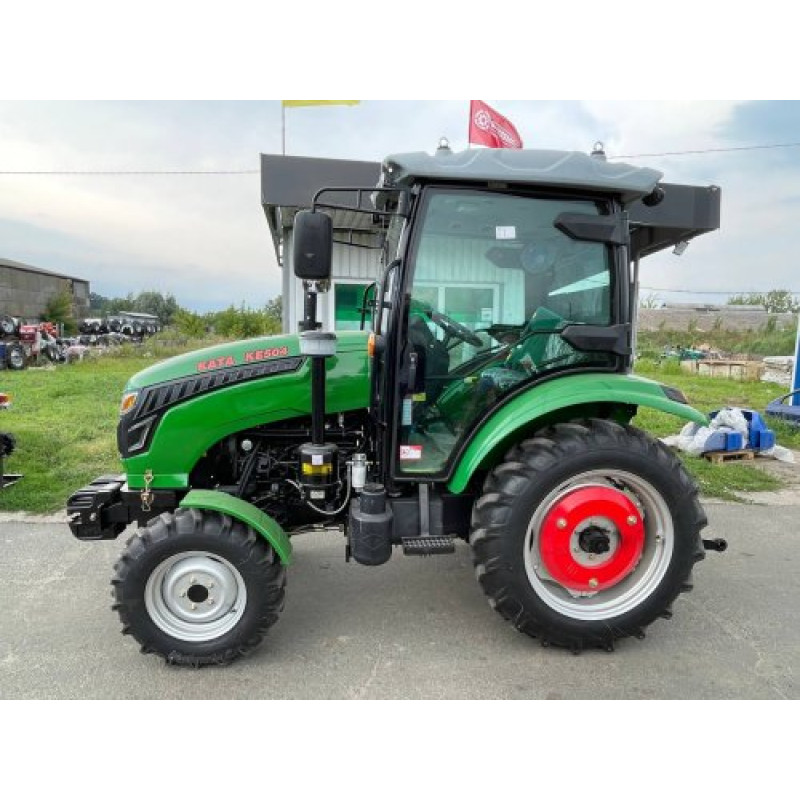

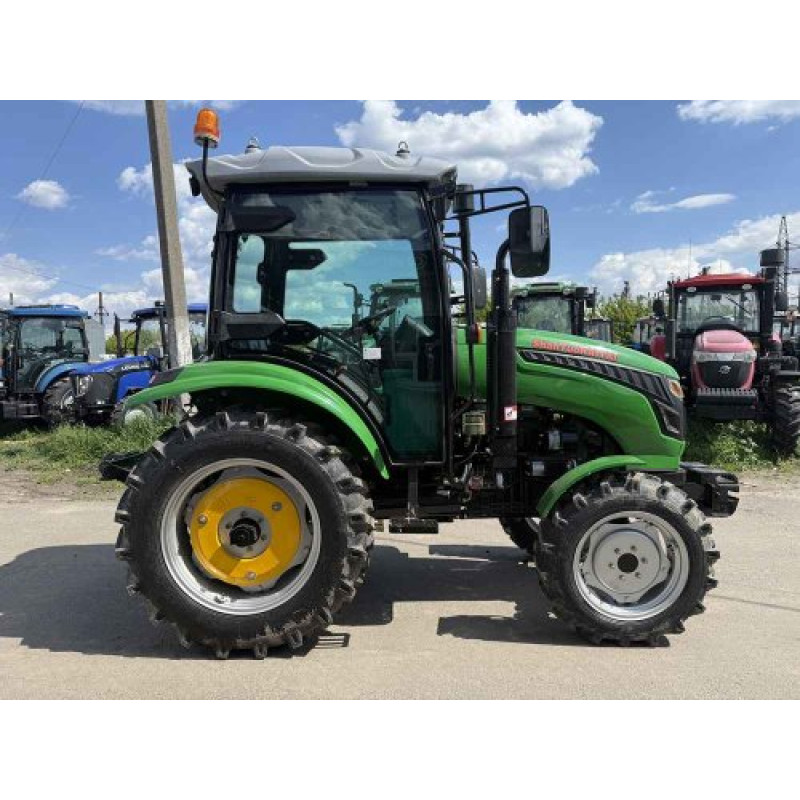

KATA KE 504 Tractor is a powerful and reliable mini-tractor from the manufacturer KATA, designed for intensive use in the field, on the farm, and in the municipal sector. The KE 504 model is equipped with a 4-stroke diesel engine A498BT-6A with a displacement of 3170 cm3 and a power of 50 hp (33.1 kW), which guarantees high traction potential (nominal traction force 13.5 kN) and excellent cross-country capability thanks to 4x4 all-wheel drive.
Description and Purpose
KATA KE 504 is designed for cultivating small and medium-sized land plots, soil preparation, mowing, transporting goods, and working with trailers. The engine is started using an electric starter, and a liquid-closed cooling system with forced circulation ensures stable temperature even during prolonged operation. The fan drive system uses a V-belt transmission. The tractor features hydraulic power steering, a compressor, and sockets for connecting a trailer, simplifying operation and maintenance in the field.
Key Advantages
- 50 hp (33.1 kW) — optimal power for a wide range of agricultural and utility tasks;
- 4x4 all-wheel drive for confident grip and maneuverability on difficult terrain;
- Reliable transmission ((4+4)x2 gearbox) with rear differential lock for working in challenging conditions;
- PTO with 540 / 1000 rpm modes — compatibility with various attachments;

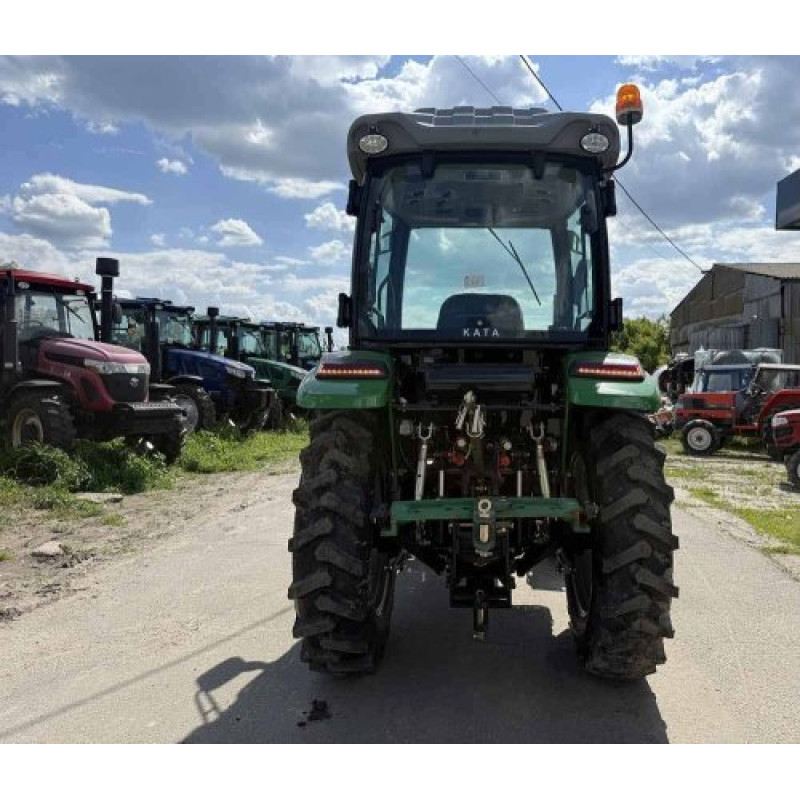

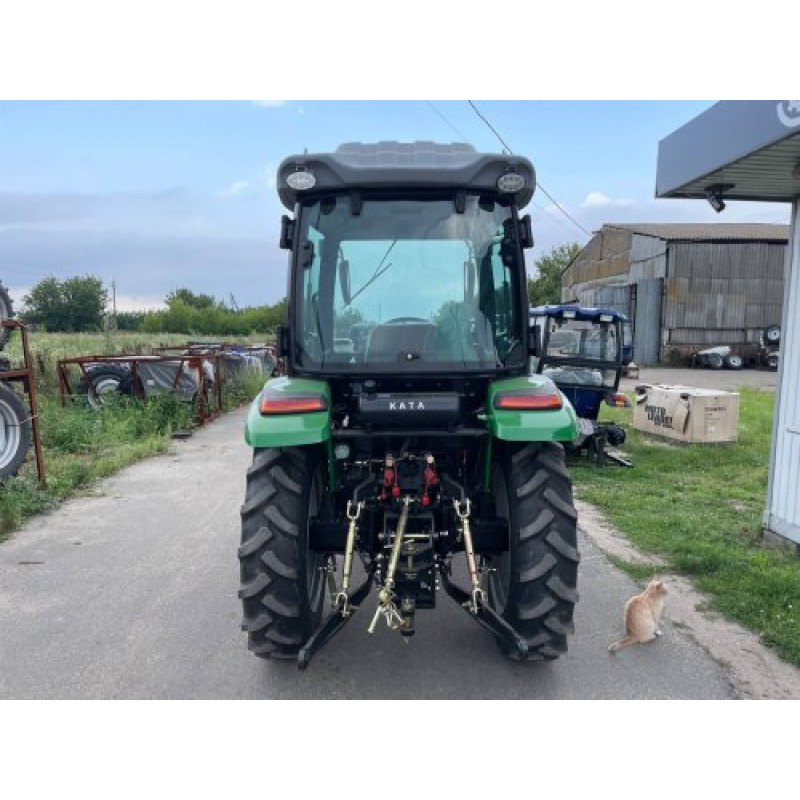

- Hitch lifting capacity — 850 kg, allowing work with heavy implements;
- Dry 2-disc constantly closed clutch and brakes on the secondary gearbox shaft with brake drums for safe operation.
Specifications:
| Engine power, hp (kW) | 50 (33.1) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, A498BT-6A |
| Number and arrangement of cylinders | 4, vertical |
| Engine start system | electric starter |
| Cooling system | liquid, closed, with forced coolant circulation |
| Cooling system fan drive | V-belt transmission |
| Engine displacement, cm3 | 3170 |
| Nominal engine fuel consumption, g/kW*h | ≤245 |
| Nominal traction force, kN | 13.5 |
| Gearbox (GB) | (4+4)x2 |
| Rear differential lock | + |
| Clutch | dry 2-disc constantly closed type |
| Final drive | direct |

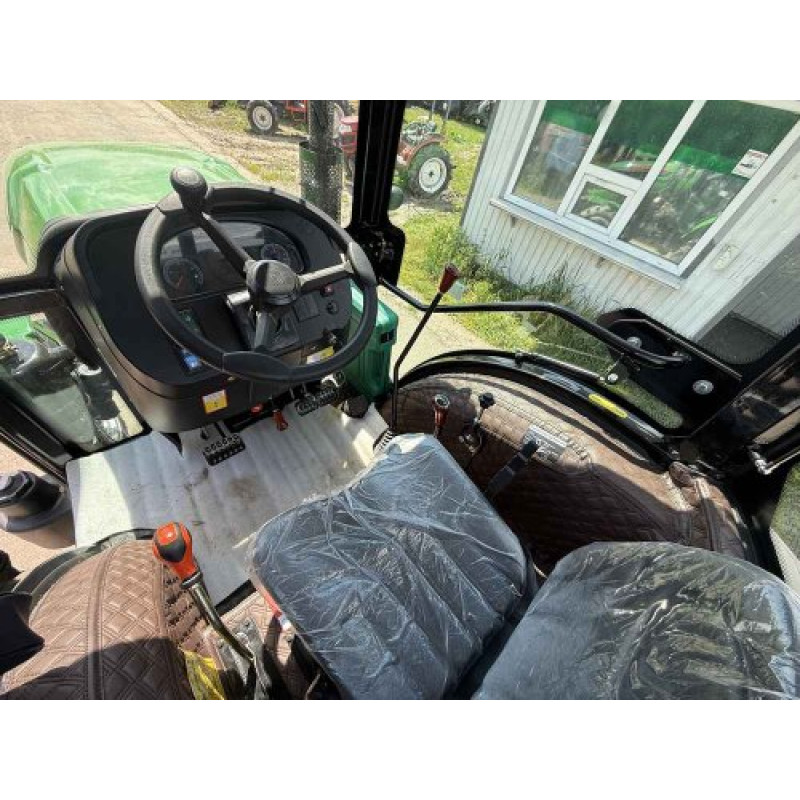

| Steering | hydraulic |
| Brakes | on the secondary gearbox shaft, brake drums |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump (NSH) for hitch drive / NSH for power steering operation |

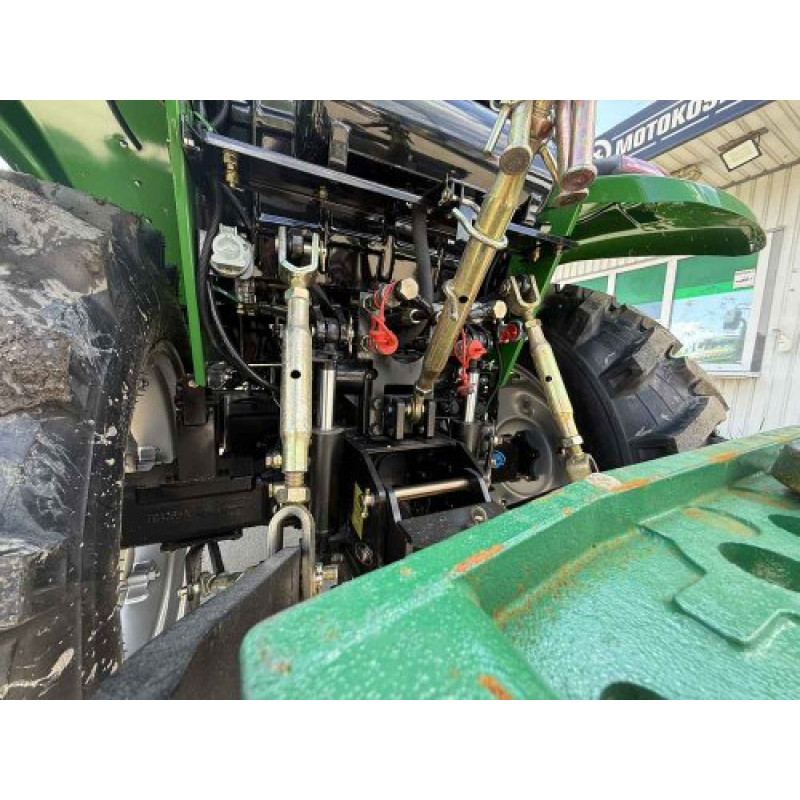

| Hitch lifting capacity | 850 kg |
| Power take-off (PTO) shaft speed, rpm | 540 / 1000 |
| Wheel track | front 1205, rear 1244-1425 |
| Tire size | front 8.30-20, rear 12.4-28 |
| Ground clearance, mm | 305 |
| Number of hydraulic outlets | 3 |
| Trailer connector (socket) | + |
| Compressor | + |
| Dimensions LхWхH mm | 3450х1650х2500 |
| Curb weight, kg | 2060 |
The KATA KE 504 model features a well-thought-out design: direct final drive, rear differential lock, three hydraulic outlets, and a gear pump for hitch drive ensure reliable operation with various mounted and towed equipment. The track and tires (front 8.30-20, rear 12.4-28) provide optimal stability and cross-country capability, while the 305 mm ground clearance allows confident navigation over uneven terrain.
KE 504 is a versatile mini-tractor for those seeking a balance between power, economy, and ease of maintenance. Thanks to the electric starter, efficient cooling system, and reliable transmission, this tractor is suitable for a wide range of agricultural and utility tasks.
