Description

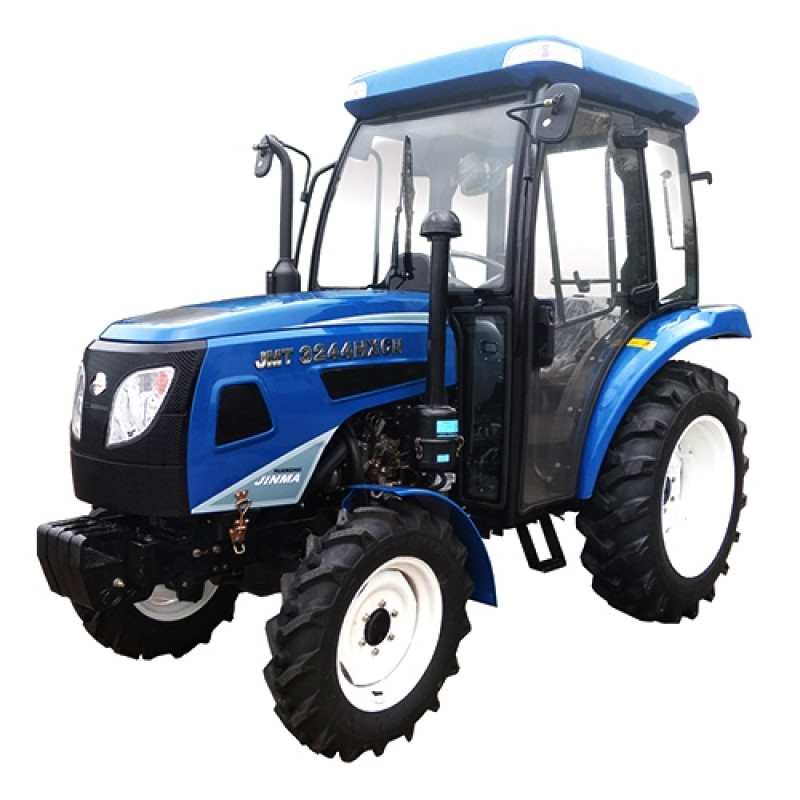

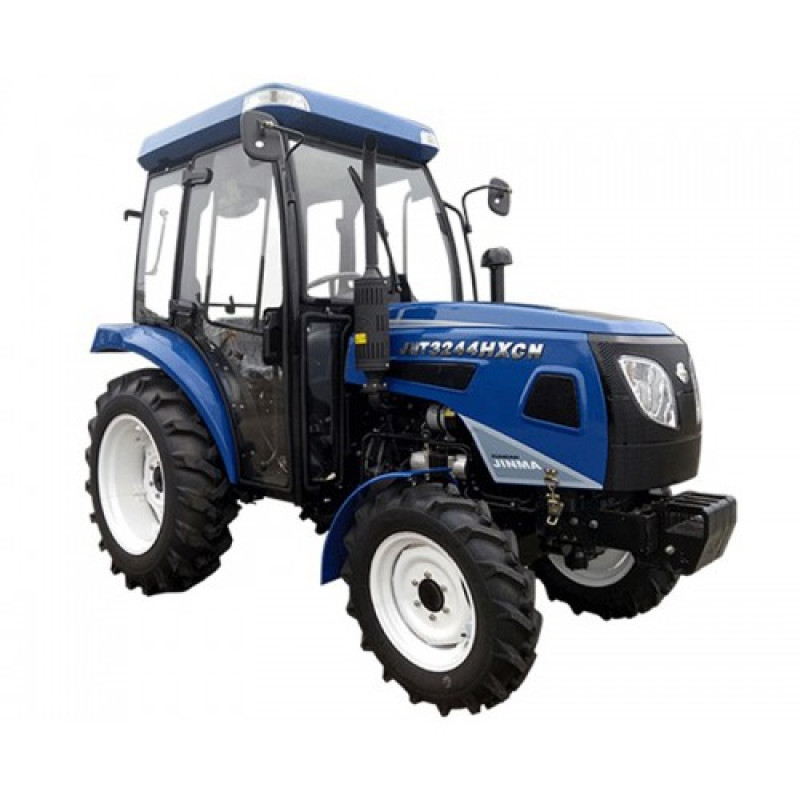

JMT 3244HXCN Tractor


The JMT 3244HXCN mini-tractor is a modern 4x4 tractor designed for daily work in the field, garden, or farm. Thanks to its YD 385T three-cylinder diesel engine with a displacement of 1532 cm³ and a power of 24 hp, this tractor demonstrates reliability, fuel efficiency, and sufficient power for aggregation with attachments. The liquid cooling system and electric starter ensure confident starting and stable operation even in difficult conditions.

Reliable Transmission, All-Wheel Drive, and Maneuverability

The (4+1)×2×2 gearbox allows choosing from 8 forward and 8 reverse speeds, which is optimal for performing various tasks. The 4x4 all-wheel drive and rear axle differential lock ensure confident traction. Power steering simplifies tractor control. Drum brakes and a minimum turning radius of 2.8 m allow for effective maneuvering in all conditions.

Optimized Hydraulic System and Attachments

The JMT tractor is equipped with a three-point hitch system with a power take-off (540/1000 rpm), allowing it to work with a wide range of agricultural machinery. The gear pump of the hydraulic system and 2 hydraulic outlets (1 pressure, 1 drain) guarantee stable operation even with demanding hydraulic drives.

Comfortable Cabin and Ergonomics for Daily Use

The JMT 3244HXCN tractor is equipped with a spacious cabin with ventilation and heating. The driver's seat is adjustable and mounted on slides.

A digital hour meter allows for maintenance control, and an electrical outlet for a trailer expands its functionality.

Reliability, Economy, and Multifunctionality

With a weight of 1460 kg, dimensions of 3150×1500×2230 mm, and a ground clearance of 300 mm, this mini-tractor combines stability with compactness. The 30-liter fuel tank capacity ensures long autonomous operation, and economical fuel consumption (≤248 g/kWh) makes the tractor cost-effective for long-term use.

Specifications
Bore/stroke 85 / 90
Brakes drum mechanical
Clutch coupling 2-disc, dry
Cockpit +
Cooling System liquid forced
Cooling system fan drive V-belt drive
Driver's Seat adjustable, on a rail
Engine cooling system capacity, L 10
Engine displacement, cm³ 1532
Engine model YD 385T
Engine oil capacity, L 6.6
Engine type diesel
Front axle crankcase volume, L 6
Front axle lubricant type Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission)
Front tire size 6.50-16
Front track, mm 1100
Fuel tank capacity, L 30
Gearbox (4+1)x2x2
Gearbox and rear axle crankcase volume, L 14
Hour Meter digital
Hydraulic pump type gear
Launch System electric starter, with safe start
Loaded weight, kg 1460
Main Gear direct
Minimum clearance, mm 300
Minimum turning radius with brakes, m 2.8±0.2
Minimum turning radius without brakes, m 3.0±0.2
Nominal crankshaft speed, rpm 2350
Nominal engine oil consumption, g/kWh 2.04
Nominal fuel consumption, g/kW*h ≤248
Nominal pulling force, kN 6.6
Number and arrangement of cylinders 3, vertical
Number of Hydration Ports 2 (1 pressure, 1 drain)
Overall dimensions (L x W x H), mm 3150 x 1500 x 2230
Power Steering Pump UP
Power Take-Off (PTO) rear longitudinal
Power take-off (PTO) shaft speed, rpm 540 / 1000
Rated engine power, hp (kW) 24 (17.6)
Rear axle differential lock +
Rear Tire Size 11.20-24
Rear track, mm 1120–1340
Theoretical forward speed, km/h 1.73-26.4
Theoretical reverse speed, km/h 2.28-11.02
Trailer Connector Socket 1
Type of oil in gearbox and rear axle TAP 15
Wheel formula 4x4
Wheelbase, mm 1700
