Product Code: FA101-239376-101
In Stock
675 000 грн.
Buy this product in 1 click:
Main specifications
Additional Equipment:
Horn, emergency alarm, rearview mirrors, front and rear headlights, front and rear turn signals, rear brake light and running lights, cabin lighting
Additional front/rear loads, (pcs. × kg):
4×20 /2×30
Additional Step-Down Gearboxes:
2 gears, neutral
Agrotechnical clearance, mm:
N/A
Air Conditioner:
Is
All specifications
We will deliver this product:
Payment
Description

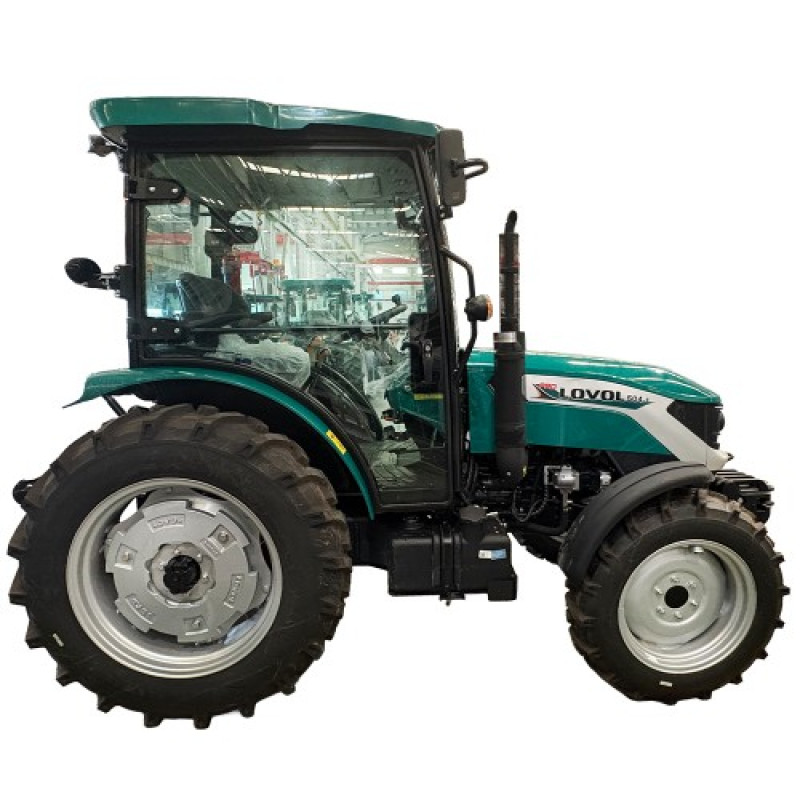

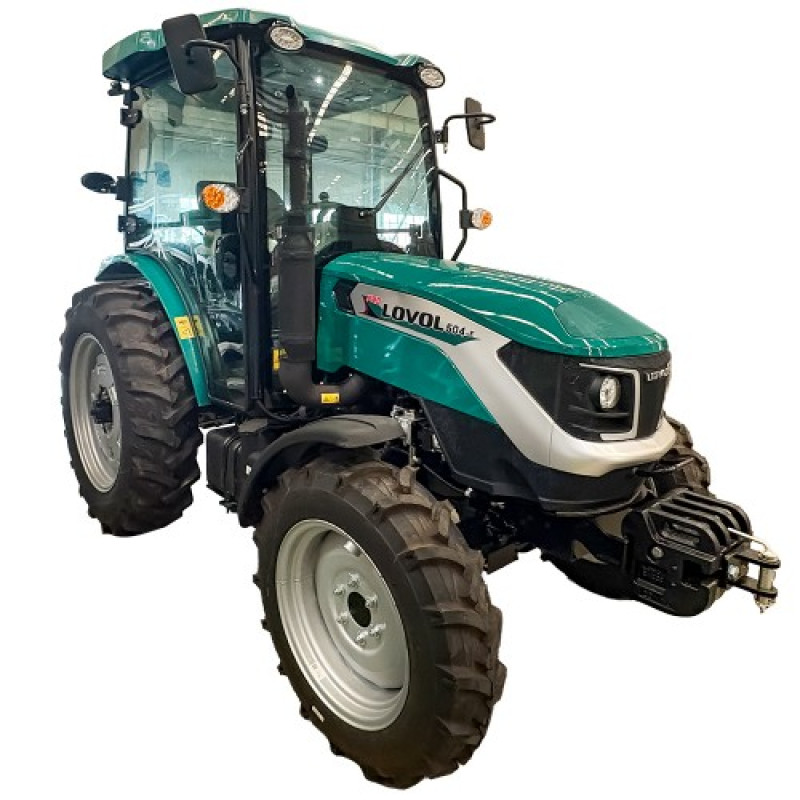

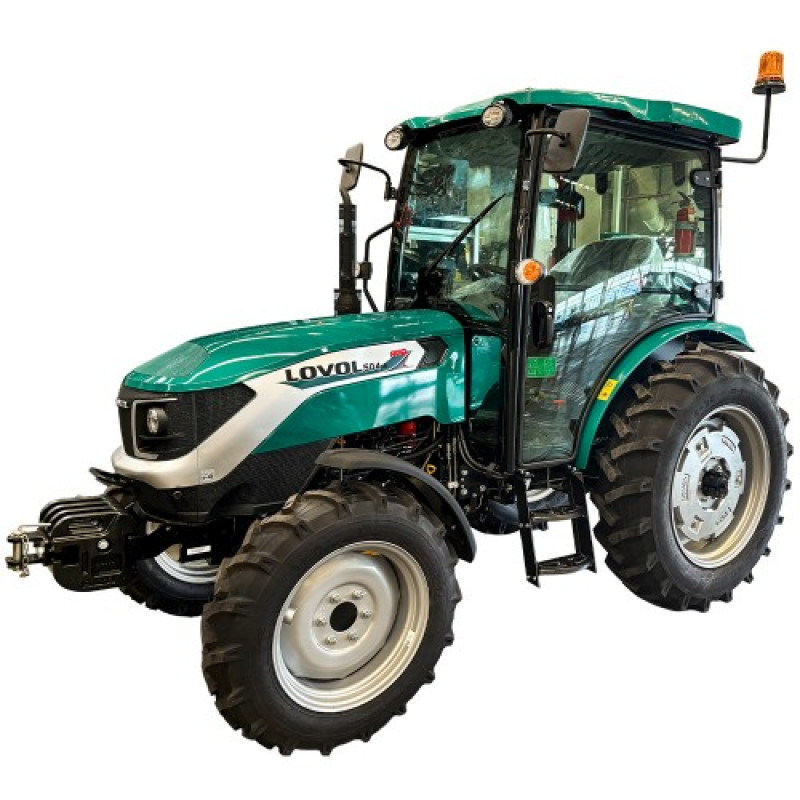

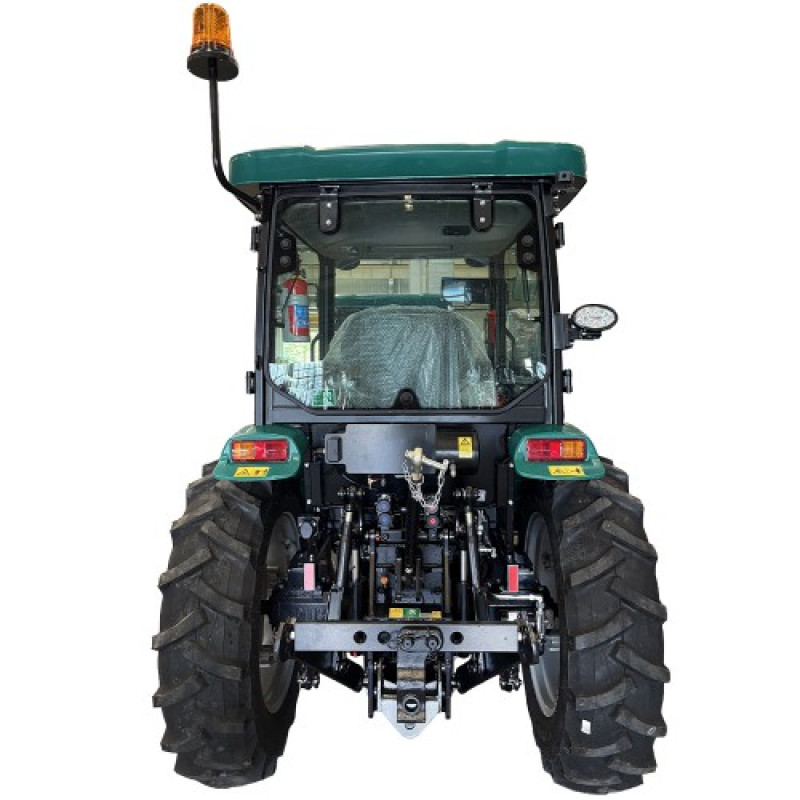

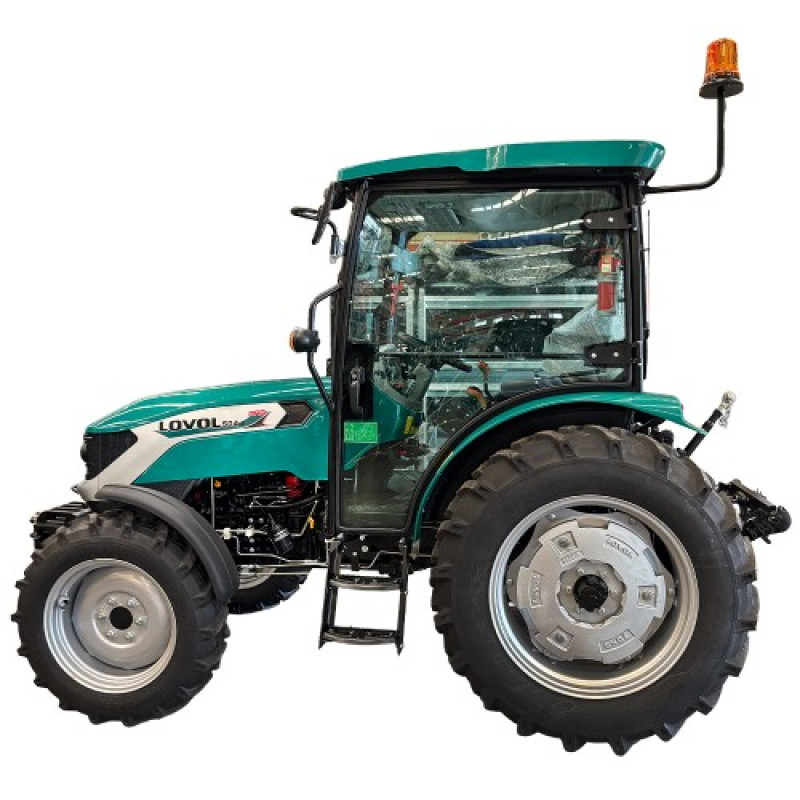

The FT504TE tractor (often associated with the DTZ/Foton brand) — is a powerful 4x4 mini-tractor with 50 hp and a comfortable heated cabin, designed for agricultural, municipal, and construction work. It is equipped with a reliable diesel engine, boasts good off-road capability, and high productivity.
This tractor is an excellent choice for farms that need powerful yet economical equipment.
This tractor is an excellent choice for farms that need powerful yet economical equipment.
Specifications
Additional Equipment
Horn, emergency alarm, rearview mirrors, front and rear headlights, front and rear turn signals, rear brake light and running lights, cabin lighting
Additional front/rear loads, (pcs. × kg)
4×20 /2×30
Additional Step-Down Gearboxes
2 gears, neutral
Agrotechnical clearance, mm
N/A
Air Conditioner
Is
Air Filter
Contact-oil: oil bath, metal mesh, cyclone
Battery voltage and capacity, V/A•h
12/n/a
Brakes
Rear, mechanical disc, separate pedals for right and left wheels, synchronized simultaneous pedal action
Car Stereo
Is
Clearance, mm
N/A
Clutch coupling
Single-function, dual-disc, normally closed type
Compressor
Is
Dashboard
Multifunctional Electronic
Driver's Cab
Is

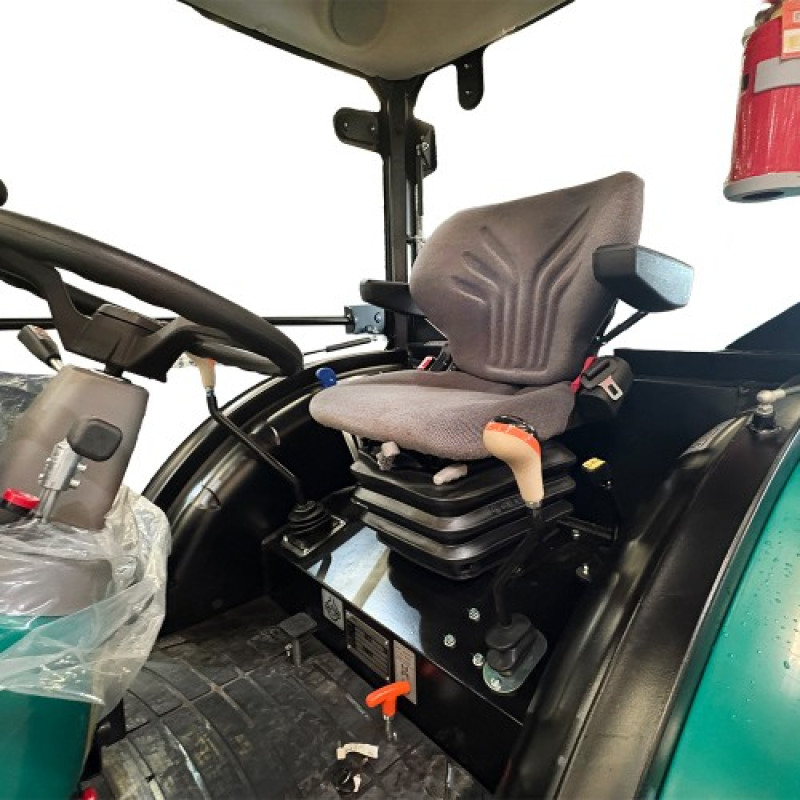

Driver's Seat
Grammer suspension seat, adjustable for distance to steering wheel, with armrests
Engine displacement, cm³
3170
Engine model
KM495T
Engine type
Diesel, 4-stroke, with direct injection
Flat floor
Is
Front tire size
280/70R20
Front track, mm
N/A
Front wings
Plastic
Fuel tank capacity, L
50
Gear Shifting Formula
(4x2)+(4x2)
Generator voltage and capacity, V/A•h
14/n/a
Heated Cabin
Is
Hydraulic lift actuator
2 hydraulic cylinders
Hydraulic outputs for connecting attachments
2 (1 pressure/drain) with quick-release couplings, controlled by the main hydraulic distributor
Hydraulic system oil tank volume, L
N/A
Intake manifold air heater
Electric flare candle
Main Gearbox
4 forward, neutral
Max payload capacity of suspension mechanism, kg
N/A
Minimum turning radius with brakes, m
N/A
Minimum turning radius without brakes, m
N/A
Nominal pulling force, kN
N/A
Number and arrangement of cylinders
4, vertical
Operating weight, kg
N/A
Overall dimensions (LxWxH), mm
N/A
Power take-off (PTO) shaft speed, rpm
540-1000
Rated engine power, hp (kW)
50 (36.8)
Rear attachment system
Universal, 3-point
Rear axle differential lock
Is
Rear Tire Size
380/70R28
Rear track, mm
N/A
Separate Reversible Box
Forward-neutral-reverse

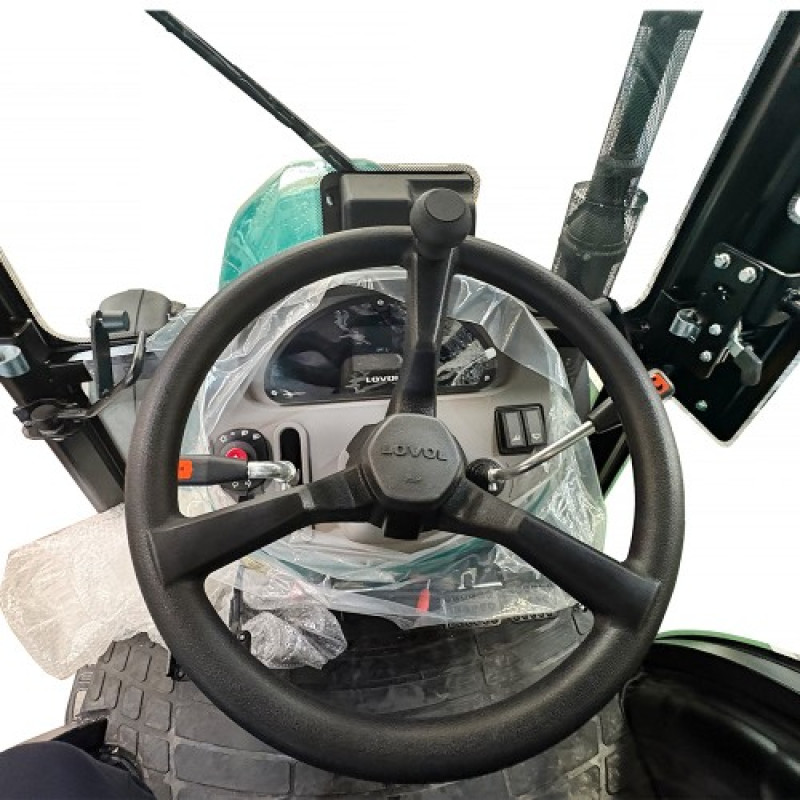

Steering
Hydrostatic with separate pump and separate oil tank
Theoretical forward speed, km/h
N/A
Theoretical reverse speed, km/h
N/A
Towing Device
Removable pendulum trunnion
Trailer Connector Socket
Is
Transmission type
Mechanical gear
Turbocharger
No
Wheel formula
4×4
Wheelbase, mm
N/A
