Product Code: FA101-228276-101
In Stock
247 500 грн.
Buy this product in 1 click:
Main specifications
Additional Cockpit Equipment:
none
Additional Equipment:
none
Additional Footrests:
on the left side
Additional front/rear payload, (unit × kg):
6x4.5 / 2x15
Additional Step-Down Gearboxes:
2 bands
All specifications
We will deliver this product:
Payment
Description

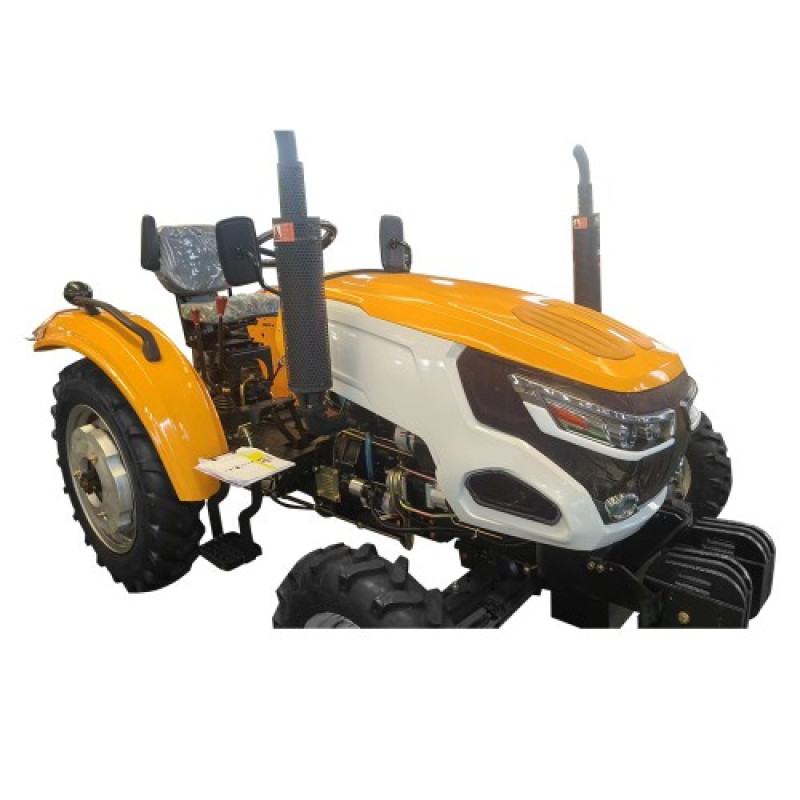

Structural features of the Sintay 244LT tractor:
- economical and reliable 3-cylinder engine;
- transparent cyclone on the air filter intake;
- electric flare system for air preheating in the intake manifold;
- exhaust system fully enclosed by protective screens;
- power take-off shaft 540 rpm;
- three-point hitch system with reinforced lower links and hydraulic lift;
- hydraulic power steering with a separate pump and oil tank;
- towing device – quick-change swinging drawbar;
- gearbox (3+1)x2;
- wheels: front 6.00-14, rear 9.50-20;
- drum brakes with individual locking capability;
- adjustable front and rear track.
Sintay 244LT model configuration:
- cushioned seat;
- informative dashboard: digital hour meter, digital fuel level indicator, analog ammeter, analog indicators for coolant temperature, engine oil pressure, and ammeter;
- quick-steering knob;
- electrical socket for trailer;
- large rearview mirrors;
- 2 hydraulic outlets with quick-release couplings;
- front counterweights;
- rear counterweights;
- front wheel fenders with flexible mudguards;
- rear wheel fenders with flexible mudguards;
- battery disconnect switch;
- additional rear light;
- front and rear mounting for license plate.
The 244LT tractor can be purchased throughout Ukraine from our official representatives or ordered via the special feedback form in the "Contacts" section.
Specifications
Additional Cockpit Equipment
none
Additional Equipment
none
Additional Footrests
on the left side
Additional front/rear payload, (unit × kg)
6x4.5 / 2x15
Additional Step-Down Gearboxes
2 bands
Agrotechnical clearance, mm
300
Air Filter
contact-oil: high air intake with translucent cyclone, oil bath, metal mesh
Battery disconnect switch
is
Battery voltage and capacity, V/Ah
12 / 74
Brakes
on rear wheels, drum, with mechanical drive, dual pedals
Clearance, mm
220
Clutch coupling
1-disc, normally closed type
Cockpit
none
Cooling System
liquid, closed, with forced circulation of coolant
Crankcase oil capacity, L
6.5
Crankcase oil type
engine oils for diesel engines M-10G2K, SAE 5W-30, 10W-30, 10W-40
Dashboard
five separate round indicators, without backlighting
Decompression Needle
none
Design of side guy lines and braces
lower links are not adjustable, central upper link, vertical struts smoothly via thread, side stays – chain
Driver's Cab
none
Driver's Seat
on springs, without armrests
Engine displacement, cm³
1532
Engine model
KM385VT
Engine type
diesel, 4-stroke, with direct injection
Expansion Tank for Cooling System
none
Front Axle
leading, turns off
Front Harness System
none
Front tire size
6.00-14
Front track, mm
960, 1000
Fuel filter, fine filtration
CX0706
Fuel injection pressure, MPa (kgf/cm²)
18.5-19.0 (185-190)
Fuel pre-filter
transparent, without water-in-fuel sensor, with drain plug
Fuel tank capacity, L
20
Gear Shifting Formula
(3+1)x2
Generator – type, voltage (V), power (W)
AC, 14, 350
Hydraulic fluid type
MG-46V, MGE-46V in summer, M-15V(S) in winter
Hydraulic lift actuator
integrated hydraulic cylinder, separate gear hydraulic pump
Hydraulic Lift Control
Three-position hydraulic control valve
Hydraulic lift oil placement
separately in the cavity of the hydraulic lift mechanism
Hydraulic outputs for connecting attachments
2 (1 pressure/drain) with quick-release couplings
Hydraulic system oil tank volume, L
4.0
Intake manifold air heater
Electric flare candle
Kit Contents
metal front fenders with flexible mud flaps, license plate mounting brackets
Launch System
electric starter
Lighting Equipment
main headlights, rear headlight, tail lights, front and rear turn signals
Lubrication System
combined, pump and spray
Main Gearbox
3 speeds
Maximum payload capacity of the attachment mechanism, kg
420
Minimum turning radius with brakes, m
4.3
Minimum turning radius without brakes, m
4.5
Nominal crankshaft speed, rpm
2350
Nominal fuel consumption, g/kW*h
≤275
Nominal pulling force, kN
5.8
Number and arrangement of cylinders
3, vertical
Oil filter for lubrication system
is
Operating weight, kg
920
Other Electronic Equipment
audible alarm, emergency alarm
Other Equipment
none
Overall dimensions (L x W x H), mm
2950x1250x1940
Parking Brake
lever-actuated main brake lock
Power steering oil tank volume, L
1,2
Power Take-Off (PTO)
rear, longitudinal, 6 splines, Ø35
Power take-off (PTO) shaft speed, rpm
640
Quick Control Handle
is
Rated engine power, hp (kW)
24 (17.6)
Rear attachment system
universal 3-point with hydraulic lift
Rear axle differential lock
lever
Rear Tire Size
9.50-20
Rear track, mm
1000, 1080, 1240
Safe Launch
none
Separate Reversible Box
none
Simultaneous PTO and towing capability
is
Steering
hydrostatic with separate pump and separate oil tank
Steering Hydraulic Cylinder
two-way symmetrical
Theoretical forward speed, km/h
2.6-27.0
Theoretical reverse speed, km/h
2.5; 9.4
Towing Device
removable pendulum hanger with vertical non-rotating trunnion
Trailer Connector Socket
is
Transmission type
mechanical gear
Transmission/FWD axle oil capacity, L
12.0 / 4.0
Turbocharger
none
Type of grease in NVG
MG-46V, MGE-46V in summer, M-V(S) in winter
Type of lubricant in the transmission and front axle crankcase
Transmission Oil TAP-15, TAD-17, Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90
Wheel formula
4x4
Wheelbase, mm
1545
