DTZ 1104 Tractor — Overview and Advantages

Brand: DTZ. Model: DTZ 1104 Tractor. Category: Tractors / Mini Tractors. This versatile machine combines high power, reliability, and an attractive price, making it an optimal choice for agricultural work, municipal services, and medium-sized farms.

Engine and Fuel System

The DTZ 1104 is equipped with a four-cylinder CF5F110-T-Q01F diesel engine with a turbocharger and intercooler, and a liquid cooling system with forced circulation. The maximum power of the power unit is 110 hp (81.4 kW), engine displacement is 4830 cm3, which provides a significant traction reserve for plowing, working with a plow, tiller, mulcher, and other mounted implements. Starting is done by an electric starter. For durability and air purity, American DONALDSON filters with a three-level cleaning system are used, and BOSCH electronic control optimizes fuel consumption and stabilizes operation under load. The fuel tank capacity is 170 liters, allowing for long work shifts without frequent refueling.

Transmission, PTO, and Hydraulics

The synchronized 24+24 transmission with reverse ensures smooth and efficient gear shifting in the field and on the road. The tractor's rated traction force is 23 kN. The clutch is a dry 2-disc constantly closed type, the main drive is direct, and it has a rear differential lock for better cross-country capability. The rear, splined PTO with 540 and 1000 rpm modes allows for connecting a wide range of mounted equipment. The hydraulic system operates on gear pumps (НШ) — separately for the hitch drive and for power steering, with 2 hydraulic outlets and a hitch lifting capacity of 2200 kg.

Chassis and Wheels

The 4x4 wheel formula ensures high cross-country capability, with front tires 11.2-28 and rear tires 16.9-34. A ground clearance of 507 mm allows working in conditions of high vegetation and on uneven terrain. The table shows the track values: front 15951675 17551855, rear 1650-2050. Tractor dimensions (LxWxH) are 4325x19700x2938 mm, curb weight is 4600 kg. The presence of a trailer connector and a compressor increases the machine's operational versatility.

Cab, Comfort, and Safety

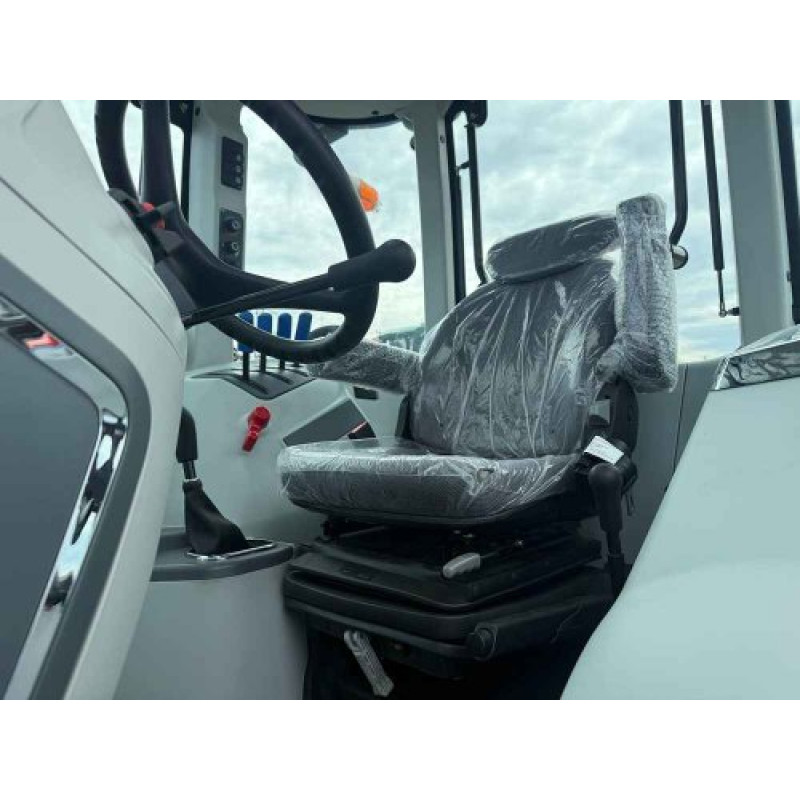

The DTZ 1104 cab is sealed and sound-insulated, equipped with an adjustable seat with improved cushioning, armrests, and a modern climate system for comfortable work in any season. The ergonomic arrangement of controls reduces operator fatigue during long shifts. The braking system is implemented on the secondary shaft of the gearbox with brake drums, and the steering is hydraulic.

Manufacturer, Warranty, and Service

The manufacturer is the Dnipropetrovsk Tractor Plant (DTZ) with many years of experience in producing agricultural machinery in Ukraine. The DTZ 1104 model comes with a 3-year warranty. The manufacturer provides a wide range of mounted and trailed equipment and service support throughout the country.

Who This Model Is Suitable For

The DTZ 1104 is ideal for medium-sized farms, agricultural services, and municipal enterprises that require a versatile tractor for plowing, cultivation, soil preparation, working with plows, tillers, mulchers, and other complex mounted implements. The powerful turbocharged and intercooled diesel engine, BOSCH electronics, efficient DONALDSON filtration, synchronized 24+24 transmission, 540/1000 rpm PTO, 2200 kg lifting capacity, and НШ hydraulic system make this model an effective tool for seasonal and year-round tasks.

Where to Buy

Flash Army online store offers sales and service of DTZ tractors throughout Ukraine: test drive, home delivery, payment by credit or installment. We have a wide range of equipment, competitive prices, and qualified service.

Why choose DTZ 1104: powerful turbocharged and intercooled CF5F110-T-Q01F diesel engine, BOSCH electronic control, DONALDSON filtration, synchronized 24+24 transmission, 540/1000 rpm PTO, 2200 kg lifting capacity, НШ hydraulic system, sealed comfortable cab, and a 3-year warranty.
