DONGFENG 240D TRACTOR — buy mini tractor DongFeng 240D

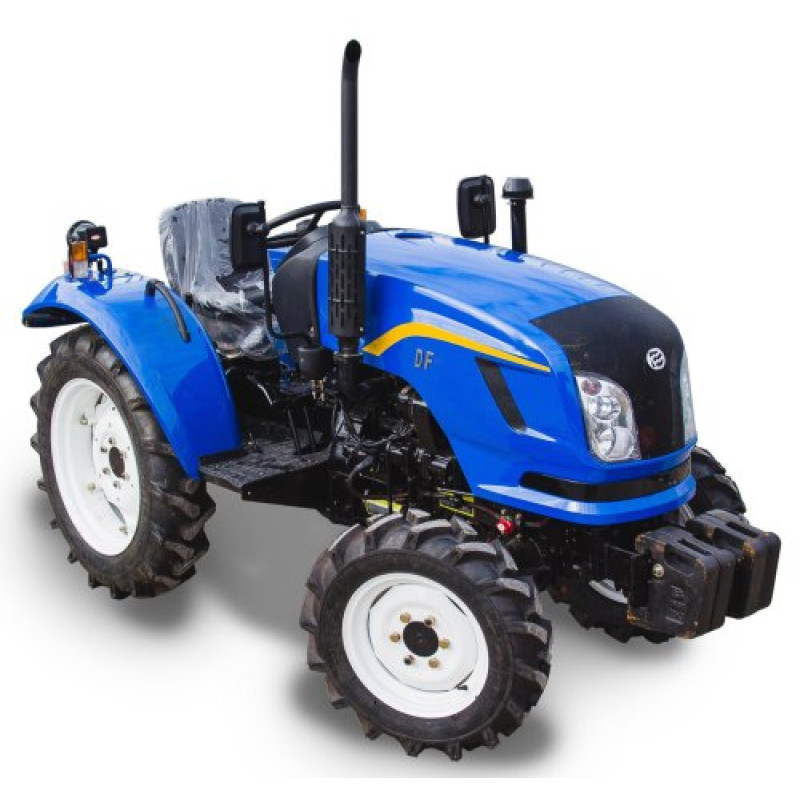

Introducing the DongFeng 240D wheeled mini tractor — a reliable, versatile unit for agricultural, municipal, and construction work. This mini tractor combines a high-quality three-cylinder vertical diesel engine, simple maintenance, and compatibility with a wide range of mounted and trailed equipment, making it a convenient choice for farmers, municipal services, and private households.
Brand: DongFeng
Category: Tractors > Mini Tractors
Description and Key Features
The DongFeng 240D is equipped with a liquid cooling system and an electric starter for easy engine start-up. The dashboard is modern and informative, allowing control of key engine operating parameters during use. The model features a dry single-disc clutch and a (4 + 1) × 2 gearbox, ensuring economical and reliable power transmission. It includes a rear differential lock for improved off-road capability, a drum-type braking mechanism, and a V-belt drive for the cooling system fan.
Applications and Advantages
The DongFeng 240D mini tractor is versatile: it can be fitted with a plow, tiller, harrow, front loader, excavator bucket, dozer blade, auger, and other implements. This allows for sowing and soil cultivation, area cleaning, cargo transportation, road, and construction work. The absence of power steering is a design feature of the model, which in most cases does not complicate operation or reduce the unit's functionality.
If you are looking for a reliable and economical mini tractor with good compatibility for attachments — the DongFeng 240D offers an optimal balance of durability, ease of maintenance, and affordable price. You can purchase the DONGFENG 240D mini tractor with delivery across Ukraine in our online store.
Recommended alternatives: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244NRX, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Mini tractor Shifeng, DW 244, DTZ 5404K, Solis 26 Tractor.
Technical specifications:
| Tractor power, hp (kW) | 24 (17.6) |
| Wheel formula | 4 × 2 |
| Engine type | vertical, 3-cylinder 4-stroke diesel with forced liquid cooling and direct injection. |
| Engine start | electric starter with safe start |
| Engine displacement, cm³ | 1532 |
| Cylinder diameter / piston stroke | 85 × 90 |
| Nominal fuel consumption, g/kWh | 278 |
| Fuel pump type | plunger, in-line |
| Nominal engine crankshaft speed, rpm | 2350 |
| Nominal traction force, kN | 4.9 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Nominal engine oil consumption, g/kWh | 2.04 |
| Gearbox (КПП) | (4 + 1) × 2 |
| Oil type in gearbox, rear axle | transmission oil |
| Oil type in front axle | transmission oil |
| Rear differential lock | + |
| Clutch | dry, single-disc |
| Power steering | - |
| Cooling system fan drive | V-belt drive |
| Braking mechanism | drum type |
| Power take-off (PTO) speed, rpm | 540 / 720 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of mounted mechanism, kg | 423 |
| Minimum ground clearance, mm | 292 |
| Wheelbase, mm | 1540 |
| Wheel track, mm | rear 1030,121, front 975, 1075, 1175, 1275 |
| Tire size | front 5.00 - 15, rear 9.5 - 24 |
| Minimum turning radius, m | with one-sided brake 2.8 ± 0.2, without brake 3.0 ± 0.2 |
| Theoretical travel speed, km/h | forward 1.32 - 30.48, reverse 1.73 - 8.96 |
| Fuel tank volume, L | 25 |
| Engine crankcase volume, L | 6.6 |
| Gearbox and rear axle crankcase volume, L | 20 |
| Front axle crankcase volume, L | - |
| Engine cooling system volume, L | 6 |
| Overall dimensions, (L × W × H), mm | 3088 × 1360 × 1910 |
| Structural weight, kg | 1040 |
This table contains a complete list of key technical parameters necessary to evaluate the tractor's operational capabilities: engine power, fuel and oil system volumes, oil types, transmission characteristics, PTO, brakes, hydraulics, dimensions, and weight.
If you need a practical mini tractor for a wide range of tasks — the DongFeng 240D will provide decent performance, ease of maintenance, and compatibility with the necessary mounted equipment.
