Main specifications
Bore/stroke:
90/100
Braking Mechanism:
disc brakes
Clutch:
dry, dual-action
Cooling system fan drive:
V-belt drive
Engine cooling system capacity, L:
9
All specifications
We will deliver this product:
Payment
Description

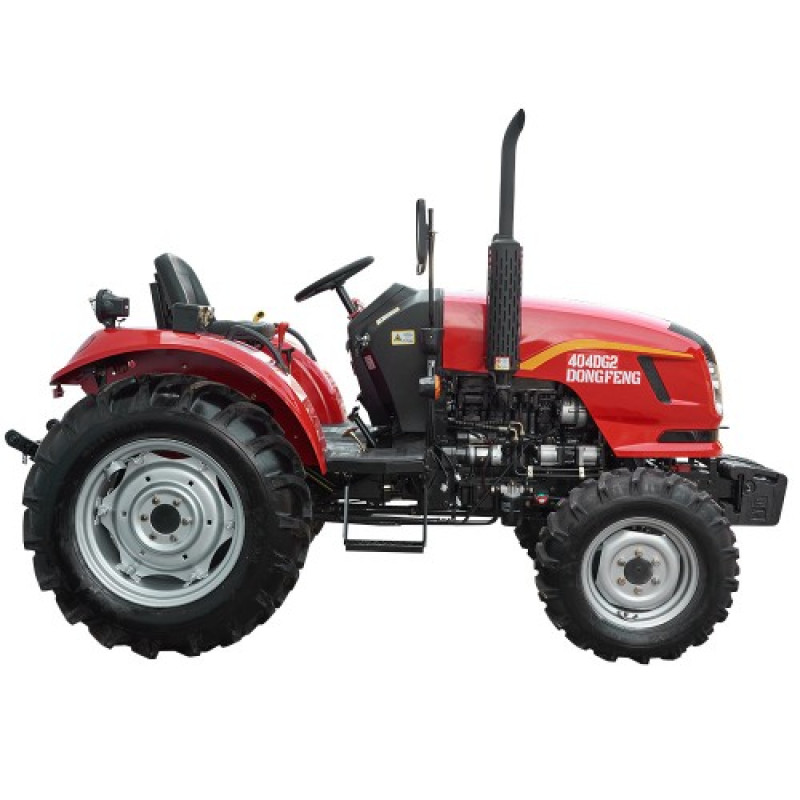

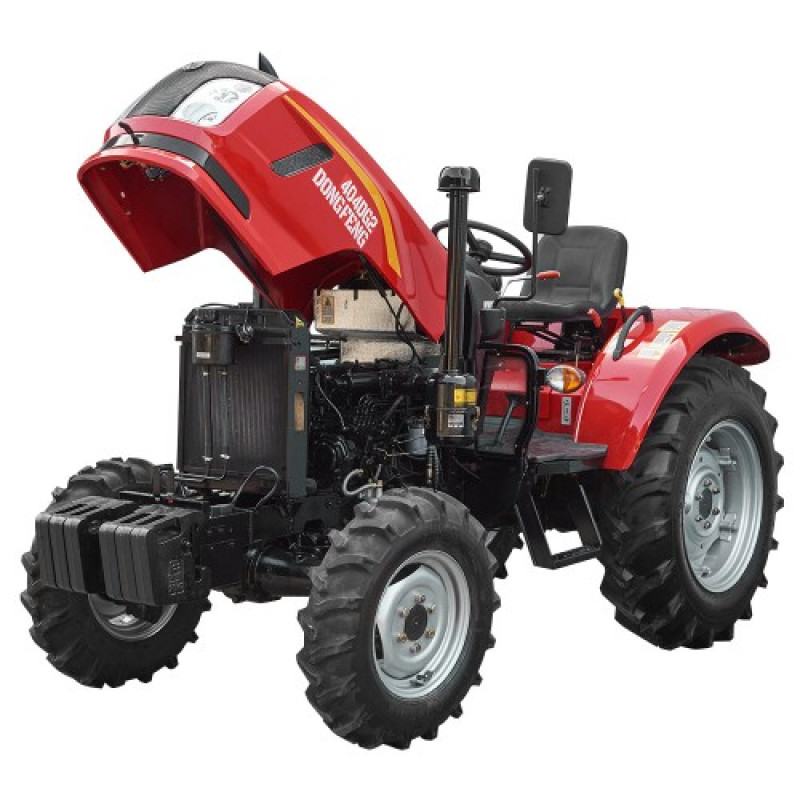

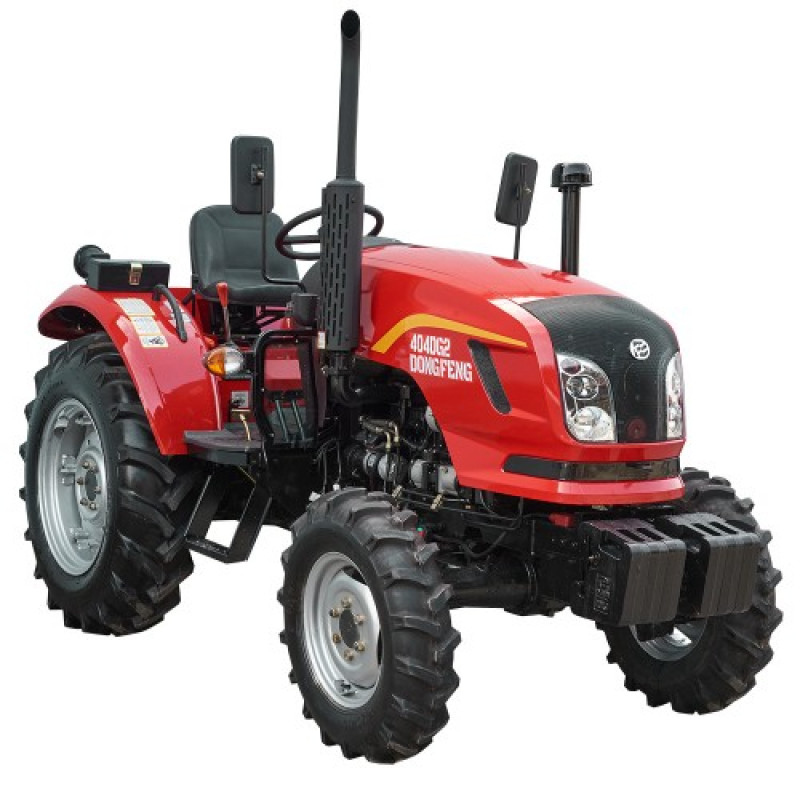

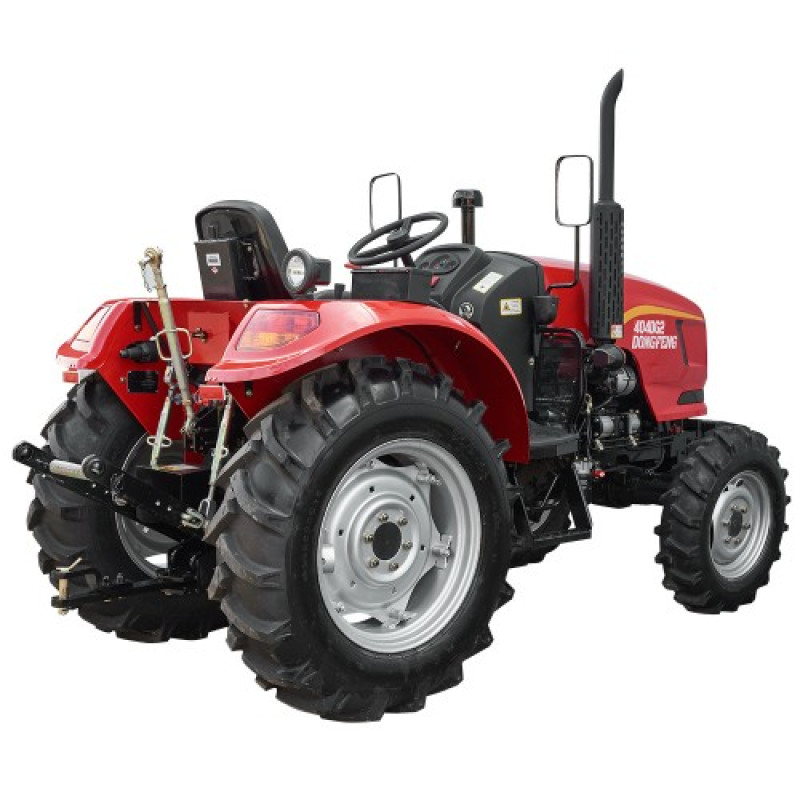

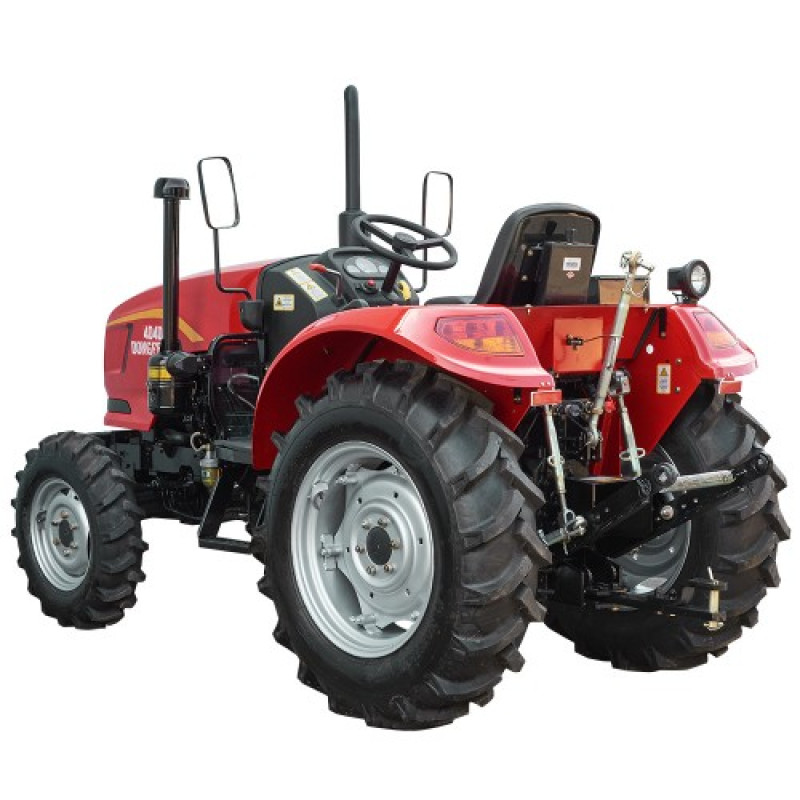

Description of the Dongfeng 404DG2 Tractor
The universal 40 hp all-wheel-drive tractor is a further modernization of the DF 404DHL model. It is designed for a wide range of agricultural, transport, and other tasks in private households, small and medium-sized farms, and municipal services – in cases where 24 hp is insufficient for the tasks at hand.
Design Features of the Dongfeng 404DG2 Tractor:
- New, modern design;
- Reliable 4-cylinder engine with 40 hp;
- 8+8 reverse gearbox;
- 2-disc clutch;
- Safe engine start, clutch pedal lock;
- Hydraulic power steering with a separate reservoir and hydraulic pump;
- Control levers located on the sides of the seat with multi-colored handles;
- Front drive axle can be disengaged;
- 2-speed PTO 540/1000 rpm;
- Adjustable front and rear tracks;
- Wide tires 7.50-16 / 12.4-24;
- Separate disc brakes for rear wheels;
- Automotive-type parking brake;
- Hand throttle;
- Rear axle differential lock;
- Powerful hitch system;
- Combined oil bath for gearbox and hydraulic system;
- Quick-release towing device with movement limitation;
Dongfeng 404DG2 Model Configuration:
- Instrument panel with separate gauges: digital hour meter, analog gauges for coolant temperature, oil pressure, ammeter, fuel level indicator;
- Effective front optics, projector low beam headlights;
- Rear auxiliary light;
- Front mounted weights 6x20 kg;
- Adjustable seat with shock absorber;
- Flat floor with rubber mat;
- Operator's area fully protected from dirt from below;
- Transparent mudguards;
- Convenient and wide footrests on both sides;
- Electrical socket for trailer;
- Battery disconnect switch;
- Two gas struts for the hood;
- High muffler with protective cover;
- Rearview mirrors;
- Side marker and turn signal repeaters on side protective bars;
- Original combined rear stop/marker lights, turn signal indicators;
- Additional rear reflectors;
- Emergency stop signal;
- Two hydraulic outlets.
You can buy the Dongfeng DF 404DG2 tractor throughout Ukraine through our official representatives or order it using the special feedback form in the "Contacts" section. All Dongfeng tractors come with a 2-year warranty period.
Specifications
Bore/stroke
90/100
Braking Mechanism
disc brakes
Clutch
dry, dual-action
Cooling system fan drive
V-belt drive
Engine cooling system capacity, L
9
Engine displacement, cm³
2545
Engine oil capacity, L
6.6
Engine oil type
10W-40
15W-40
Engine Start
electric starter with safe start
Engine type
vertical, 4-cylinder, 4-stroke diesel with forced water cooling and direct injection
Front axle crankcase volume, L
5
Front axle lubricant type
TAP-15 or Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission)
Front tire size
7.50-16
Front track, mm
1100, 1400
Fuel pump type
plunger, in-line
Fuel tank capacity, L
28
Gearbox
(4x2)+(4x2)
Gearbox and rear axle crankcase volume, L
35
Hydraulic pump type
gear pump
Lift body volume, L
—
Loaded weight, kg
1770
Maximum payload capacity of the attachment mechanism, kg
665
Minimum clearance, mm
370
Minimum turning radius with brakes, m
3.5±0.2
Minimum turning radius without brakes, m
4.0±0.2
Nominal engine crankshaft speed, rpm
2350
Nominal engine oil consumption, g/kWh
240
Nominal pulling force, kN
9.2
Overall dimensions (L x W x H), mm
3460x1570x2180
Power take-off (PTO) shaft speed, rpm
540/1000
Rated engine power, hp (kW)
40 (29.4)
Rear axle differential lock
+
Rear Tire Size
12.4-24
Rear track, mm
1100, 1200, 1400, 1500
Steering
UP
Theoretical forward speed, km/h
1.47–25.01
Theoretical reverse speed, km/h
1.13—19.20
Type of oil in gearbox and rear axle
TAP-15 or Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission)
Wheel formula
4x4
Wheelbase, mm
1910
