Product Code: FA101-80449-101
355 340 грн.
Buy this product in 1 click:
Main specifications
Bore/stroke:
85 / 90
Brakes:
rear drum mechanical
Clutch coupling:
2-disc, dry, constantly closed
Cooling System:
liquid forced
Cooling system fan drive:
V-belt drive
All specifications
We will deliver this product:
Payment
Description
All Foton/Lovol tractors come with a 2-year warranty.
Specifications
Bore/stroke
85 / 90
Brakes
rear drum mechanical
Clutch coupling
2-disc, dry, constantly closed
Cooling System
liquid forced
Cooling system fan drive
V-belt drive

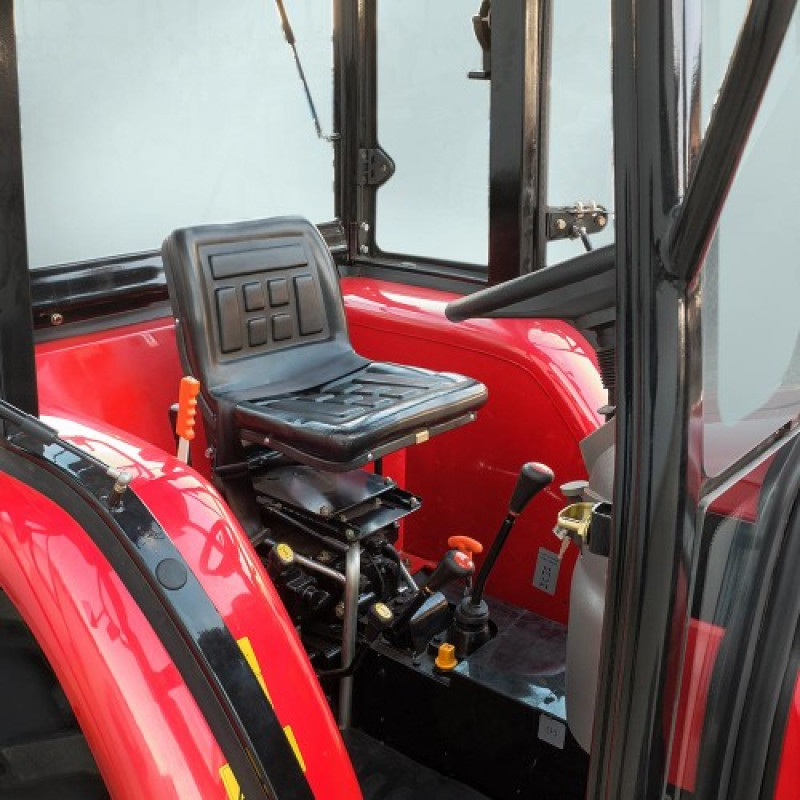

Driver's Seat
on a shock absorber, adjustable for height and distance to the handlebars, without armrests
Engine cooling system capacity, L
12
Engine displacement, cm³
1532
Engine model
KM385BT
Engine oil capacity, L
5
Engine oil type
mineral or semi-synthetic
for diesel engines
Engine type
diesel
Front axle crankcase volume, L
3.5
Front axle lubricant type
Silver SAE 85W-90; Gold SAE 80W-90;
Platinum SAE 75W-90 (transmission)
Front tire size
6.50-16
Front track, mm
1290, 1390
Fuel tank capacity, L
29
Gearbox
(4x2)+(4x2)
Gearbox and rear axle crankcase volume, L
20

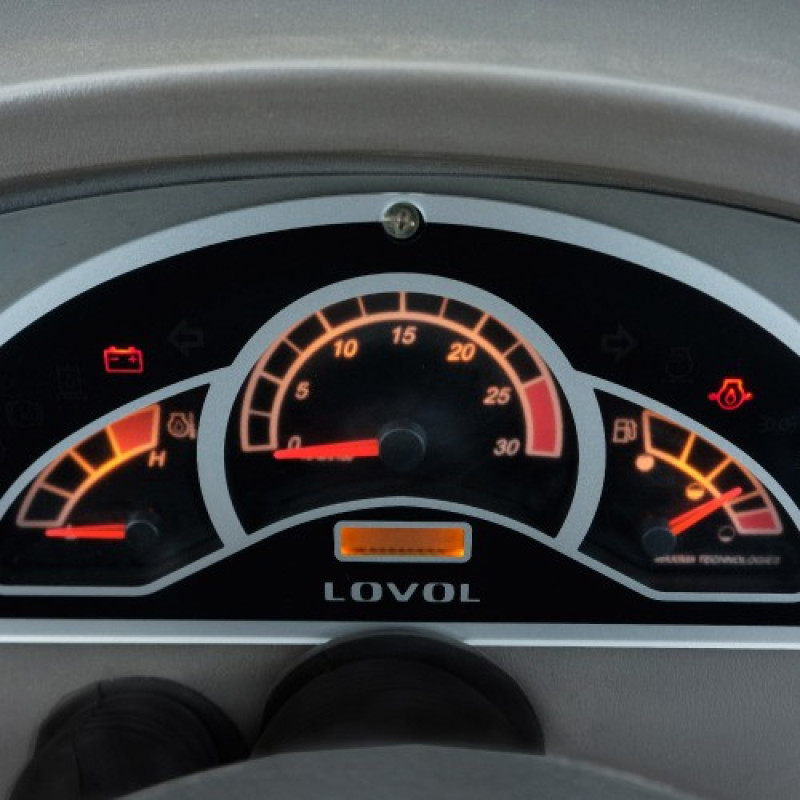

Hour Meter
digital
Hydraulic pump type
gear-driven
Launch System
electric starter
Loaded weight, kg
1670
Main Gear
direct
Maximum payload capacity of the attachment mechanism, kg
420
Minimum clearance, mm
295
Minimum turning radius with brakes, m
3.1
Minimum turning radius without brakes, m
3.25
Nominal engine crankshaft speed, rpm
2350
Nominal engine oil consumption, g/kWh
2.04
Nominal fuel consumption, g/kW*h
≤248
Nominal pulling force, kN
5.2
Number and arrangement of cylinders
3, vertical
Number of Hydration Ports
2 (1 pressure + 1 drain)
Overall dimensions (L x W x H), mm
3240x1550x2380
Power Steering Pump
UP
Power Take-Off (PTO)
rear longitudinal
Power take-off (PTO) shaft speed, rpm
540 / 1000
Rated engine power, hp (kW)
24 (17.6)
Rear axle differential lock
+
Rear Tire Size
11.2-24
Rear track, mm
1155-1520
Rear Wheel Cargo
6x9
Theoretical forward speed, km/h
1.92-29.83
Theoretical reverse speed, km/h
0.54-11.91
Trailer Socket
1
Type of oil in gearbox and rear axle
Silver SAE 85W-90; Gold SAE 80W-90;
Platinum SAE 75W-90 (transmission)
Wheel formula
4x4
Wheelbase, mm
1670
