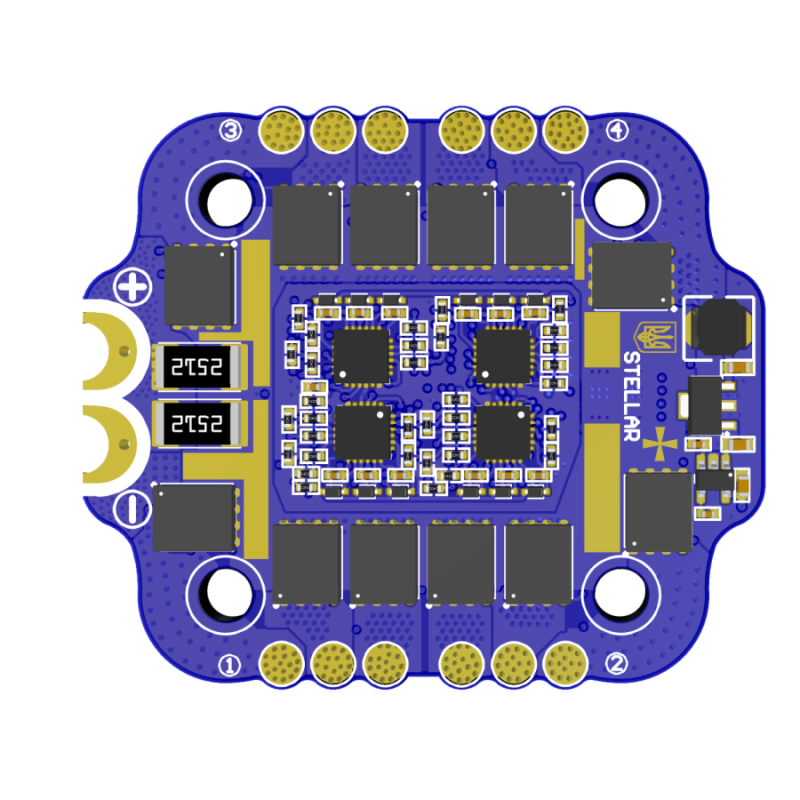

Stellar 8bit ESC 70A 4-in-1 speed controller by StingBee — a powerful module for FPV

Stellar 8bit ESC 70A 4-in-1 by StingBee is a high-performance four-channel electronic speed controller for brushless motors, designed for building compact and aggressive FPV quadcopters. The device combines a reliable hardware platform, an efficient cooling system, and compatibility with modern firmware, ensuring stable operation under high loads.

Purpose and compatibility

The Stellar 8bit ESC 70A is designed for integration into an FC+ESC stack and provides fast processing of commands from the flight controller, smooth thrust delivery, and accurate RPM telemetry when using supported protocols. It is ideal for pilots and engineers who build racing and freestyle drones.

Technical specifications

• Firmware: supports BLHeli_S and Bluejay, including advanced control features and Bidirectional DShot for RPM telemetry transmission.
• Processor: 8-bit EFM8BB21 for fast signal processing and stable ESC operation.
• Max current: 70A per channel, allowing the use of powerful brushless motors.
• Input voltage: compatible with 2S to 6S LiPo batteries.
• Supported protocols: DShot 300/600, PWM, Oneshot125, Multishot, and Bidirectional DShot for RPM.
• Mounting size: 30.5x30.5 mm, compatible with standard FPV frame mounts.
• Cooling: integrated aluminum heatsink for efficient heat dissipation and MOSFET protection against overheating.
• Platform and power: optimized PCB layout with reinforced copper traces to minimize power loss and ensure stability under load.

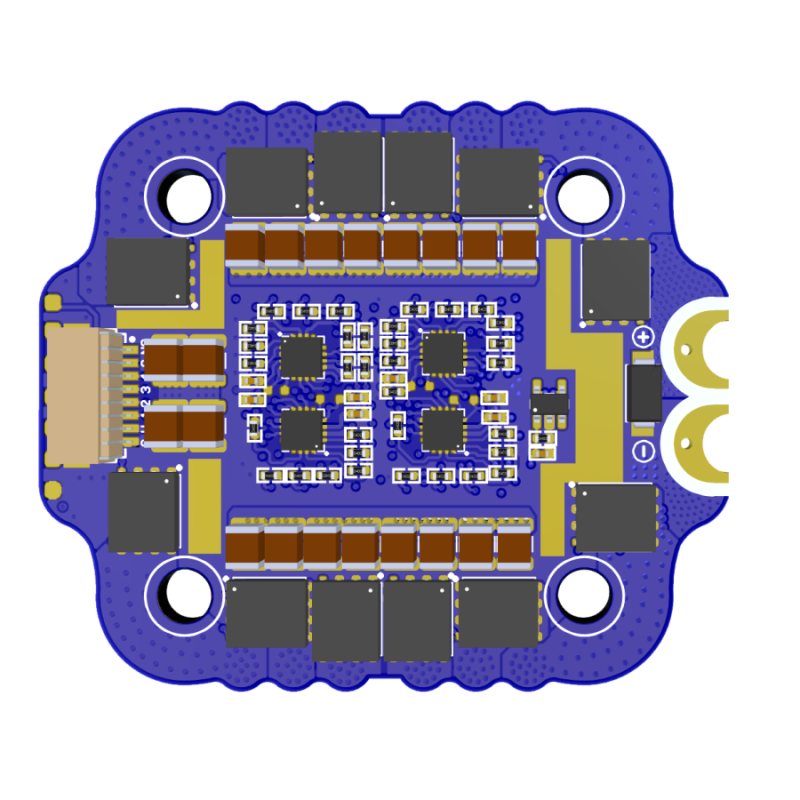

• Capacitors: equipped with 24 1210-size capacitors, 11 µF each, to reduce voltage ripple and enhance power stability.

Advantages of Stellar 8bit ESC 70A 4-in-1

This StingBee controller offers an optimal balance of price and features: modern BLHeli_S and Bluejay firmware provide flexible settings, the 8-bit processor ensures stable command processing, and the reinforced hardware guarantees durability during intense flights. The integrated aluminum heatsink and a large number of capacitors enhance reliability in aggressive use scenarios.

Product category: Drones & Quadcopters > Drone Components > Drone Parts > Stacks (FC+ESC). Recommended for building racing FPV quadcopters, upgrading existing stacks, and use in projects requiring high throughput and stable RPM telemetry.
