Product Code: FA94-18316-94
126 720 грн.
Buy this product in 1 click:
Main specifications
Cooling: natural

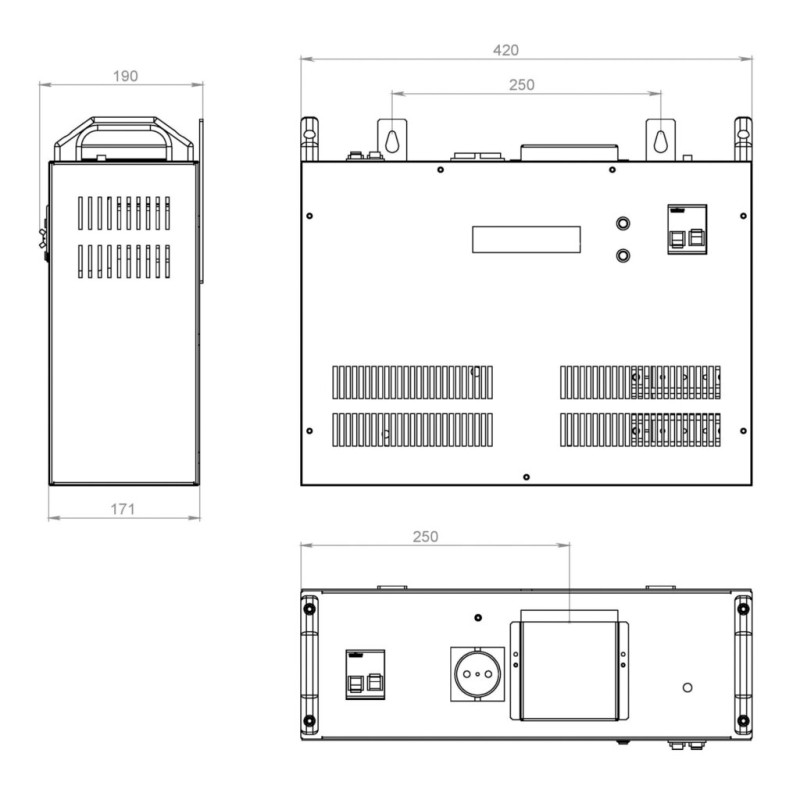

Dimensions (HxWxD), mm: (350 x 420 x 160)*3
Efficiency, %: 98
Humidity, max: 40…80%
Max. power at Umin, kW: 25.5
All specifications
We will deliver this product:
Payment
Description

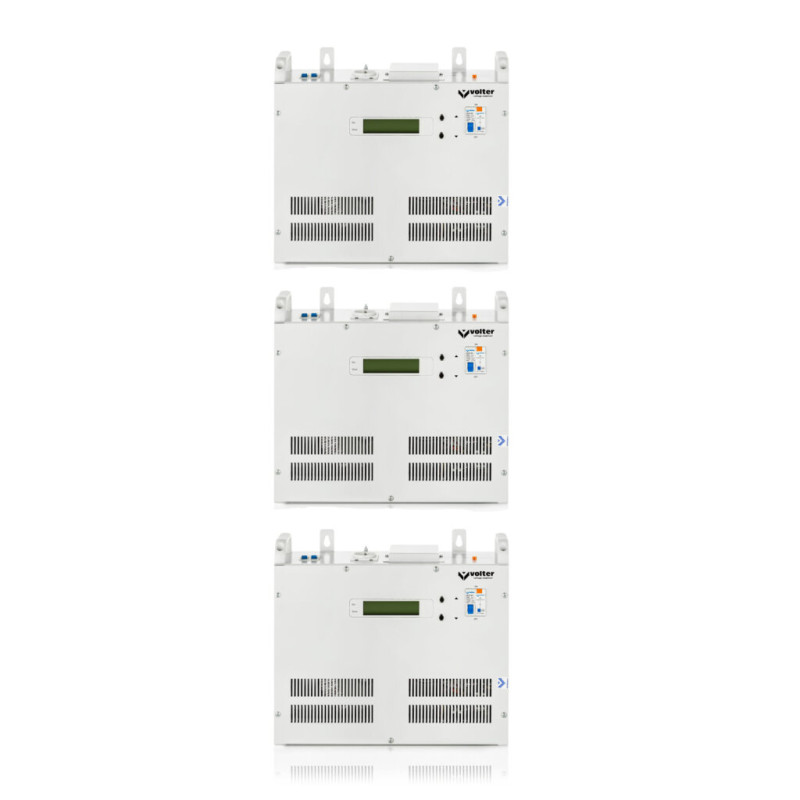

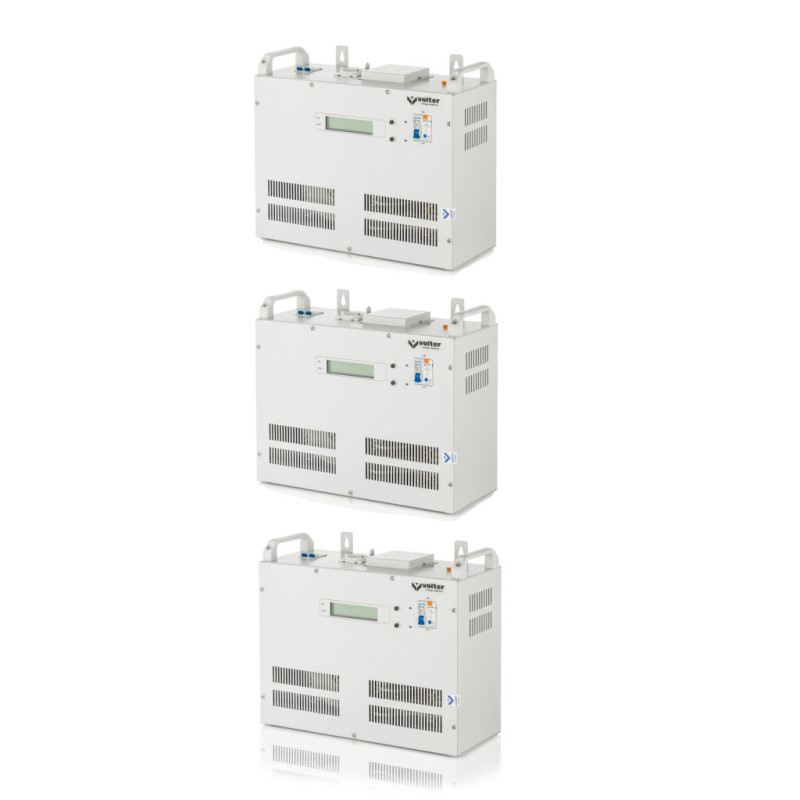

The Volter 33 PTS is a three-phase voltage stabilizer for an apartment or house with a maximum power of 33 kW, belonging to the Volter PTS series – high-precision with a wide symmetrical input voltage range.

Volter stabilizers are designed for continuous 24/7 operation in enclosed spaces and are permanently installed for the entire house (apartment, office, production equipment). It connects via a terminal block, in the phase break at the input immediately after the meter. You can complete this model as a three-phase stabilizer. We recommend this model for enterprises and workshops with increased demands on electrical networks and equipment.

Specifications
Cooling natural
Dimensions (HxWxD), mm (350 x 420 x 160)*3
Efficiency, % 98
Humidity, max 40…80%
Max. power at Umin, kW 25.5
Maximum current, A 50
Maximum power, kW 33
Mounting method wall-mounted/floor-standing
Noise level, dB 34-40, depending on the load
Number of stages 16
Output voltage 220 V (per phase)
Phase three phases
Protection class IP20
Response time, ms 20
Stabilization accuracy +2 -3%
Temperature range Operating temperature range from +1°C to 40°C indoors
Temperature range, custom Operating range from minus 25°C to plus 40°C indoors - additional cost for a three-phase stabilizer - 1500
Type electronic thyristor
Warranty, months LIFETIME
Weight, kg 101.4
Weight, kg 33.8*3
Color light gray
