Product Code: FA94-18356-94
95 220 грн.
Buy this product in 1 click:
Main specifications
Cooling:
natural
Dimensions (HxWxD), mm:
(350 x 420 x 160)*3
Efficiency, %:
98
Humidity, max:
40…80%
Max. power at Umin, kW:
16.2
All specifications
We will deliver this product:
Payment
Description

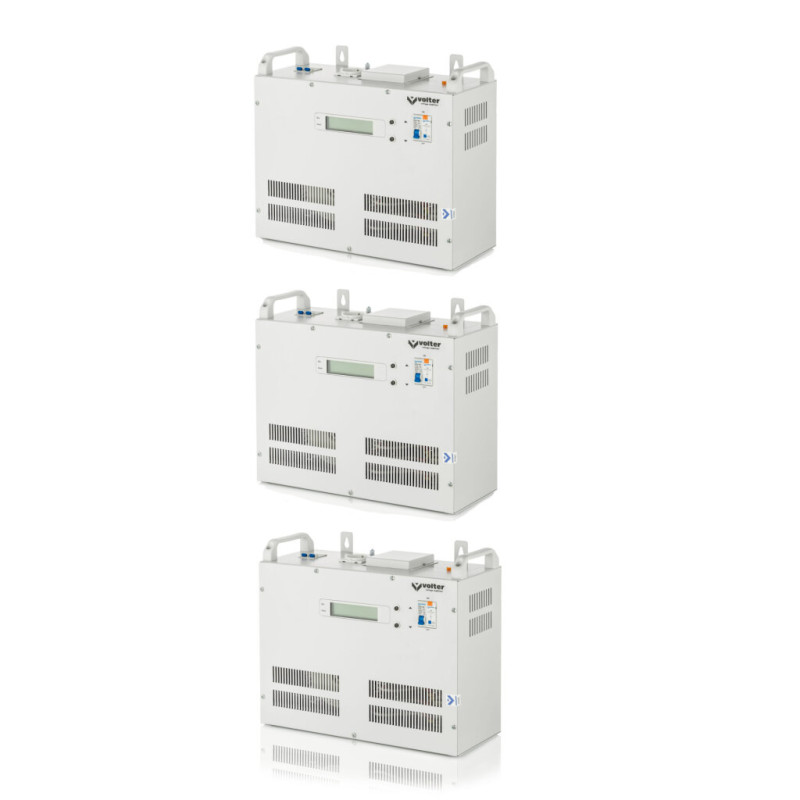

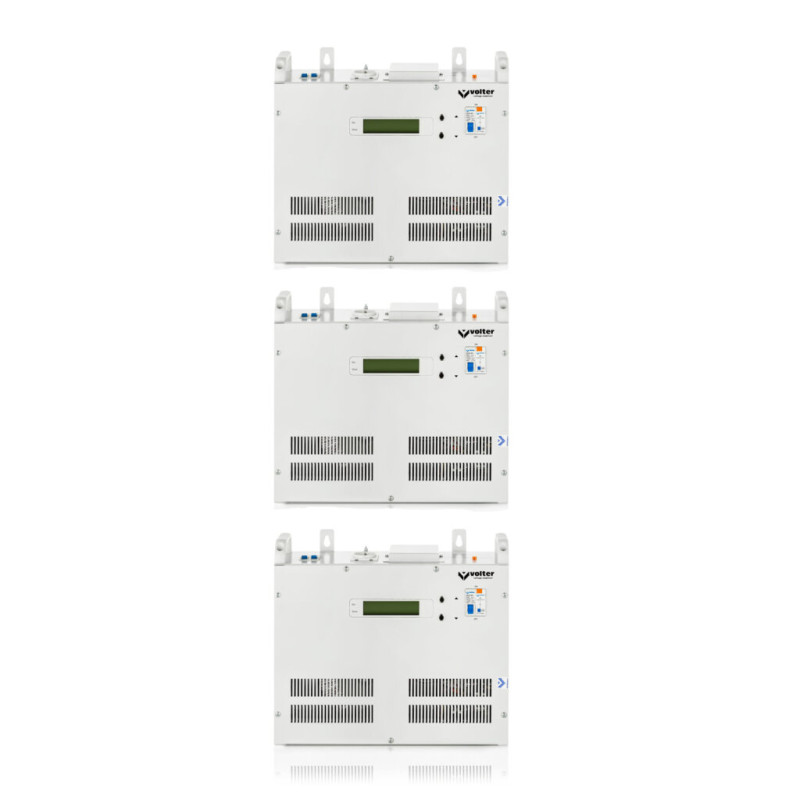

Volter-21 pts-sh – a three-phase voltage stabilizer with a maximum power of 21 kW, enhanced accuracy, and a wide symmetrical input voltage range.
Volter stabilizers are designed for continuous 24/7 operation indoors and are permanently installed for the entire house (apartment, office, production equipment). It connects via a terminal block, in the phase break at the input immediately after the meter.
We recommend this model for offices, private homes, and production facilities.
Specifications
Cooling
natural

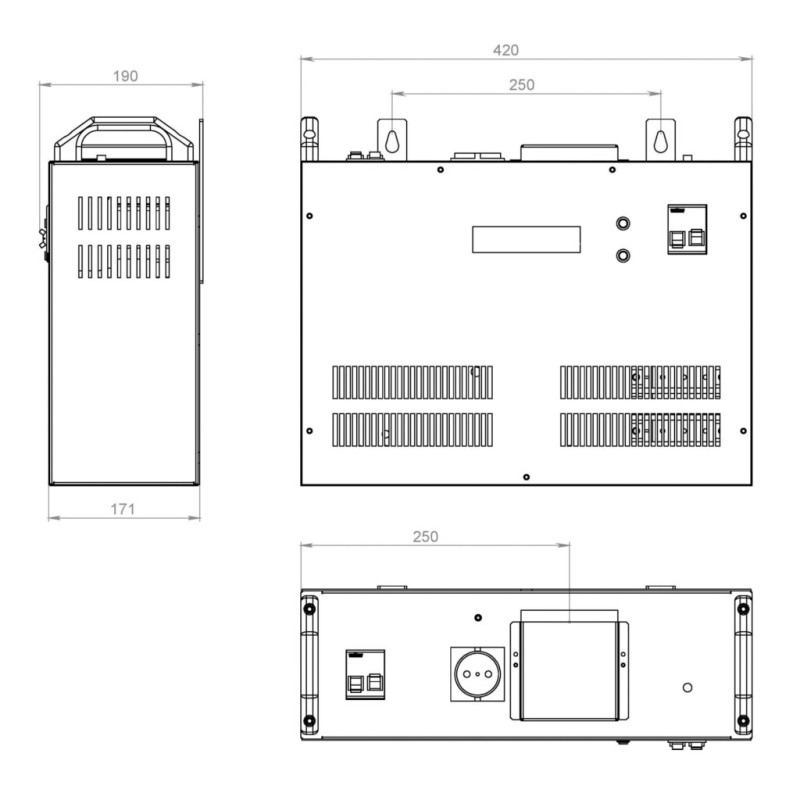

Dimensions (HxWxD), mm
(350 x 420 x 160)*3
Efficiency, %
98
Humidity, max
40…80%
Max. power at Umin, kW
16.2
Maximum current, A
32
Maximum power, kW
21
Mounting method
wall-mounted/floor-standing
Noise level, dB
34-40, depending on the load
Number of stages
16
Output voltage
220 V
Phase
three phases
Protection class
IP20
Response time, ms
20
Stabilization accuracy
+3.5 -5.5%
Temperature range
Operating temperature range from +1°C to 40°C indoors
Temperature range, custom
Operating range from minus 25°C to plus 40°C indoors - additional cost for a three-phase stabilizer - 1500
Type
electronic thyristor
Warranty, months
LIFETIME
Weight, kg
78.3
Weight, kg
26.1*3
Color
light gray
