Product Code: FA94-18318-94
126 720 грн.
Buy this product in 1 click:
Main specifications
Cooling: natural
Dimensions (HxWxD), mm: (350 x 420 x 190)*3
Efficiency, %: 98
Humidity, max: 40…80%
Max. power at Umin, kW: 21.6
All specifications
We will deliver this product:
Payment
Description

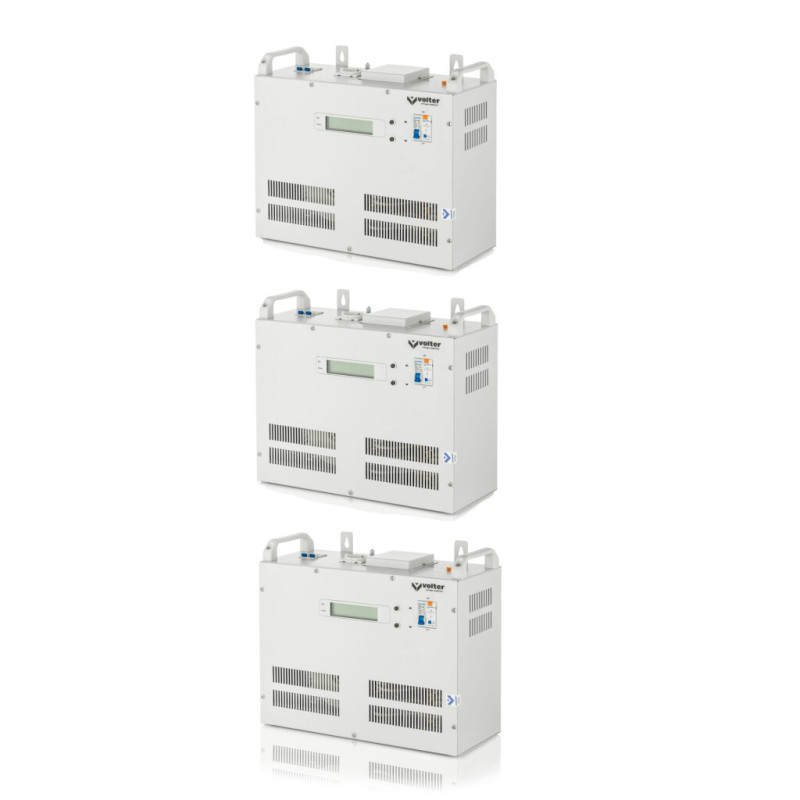

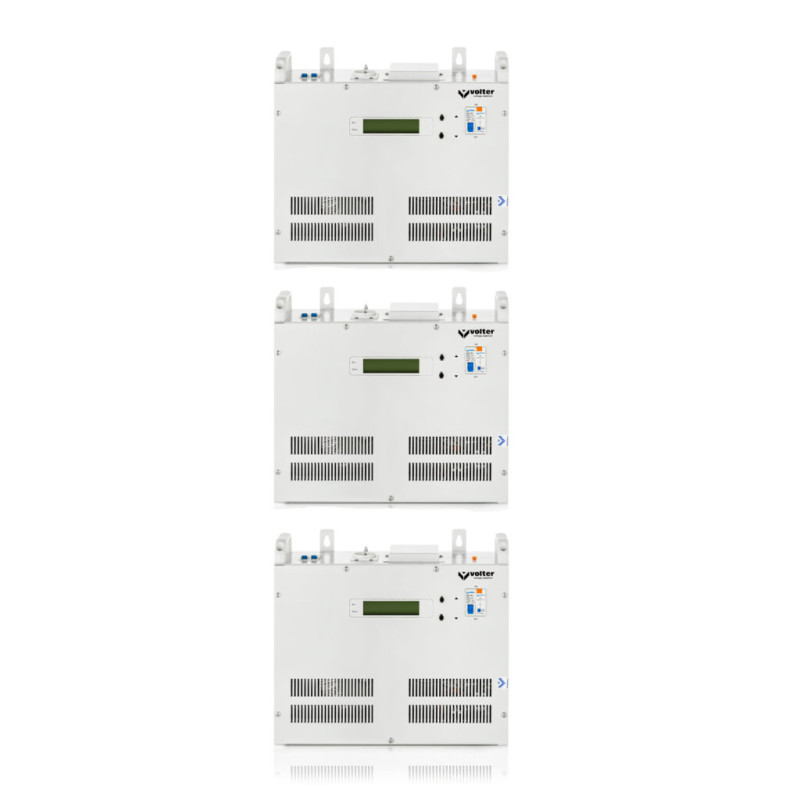

Volter-33 pts-sh – a three-phase voltage stabilizer with a maximum power of 33 kW, enhanced accuracy, and a wide symmetrical input voltage range.
Volter stabilizers are designed for continuous 24/7 operation indoors and are permanently installed for the entire house (apartment, office, production equipment). It connects via a terminal block, in the phase break at the input immediately after the meter. We offer this model for enterprises and workshops with increased demands on electrical networks and equipment. We protect expensive equipment from power surges in the network, which can be tens or hundreds of thousands of dollars.

Specifications
Cooling natural

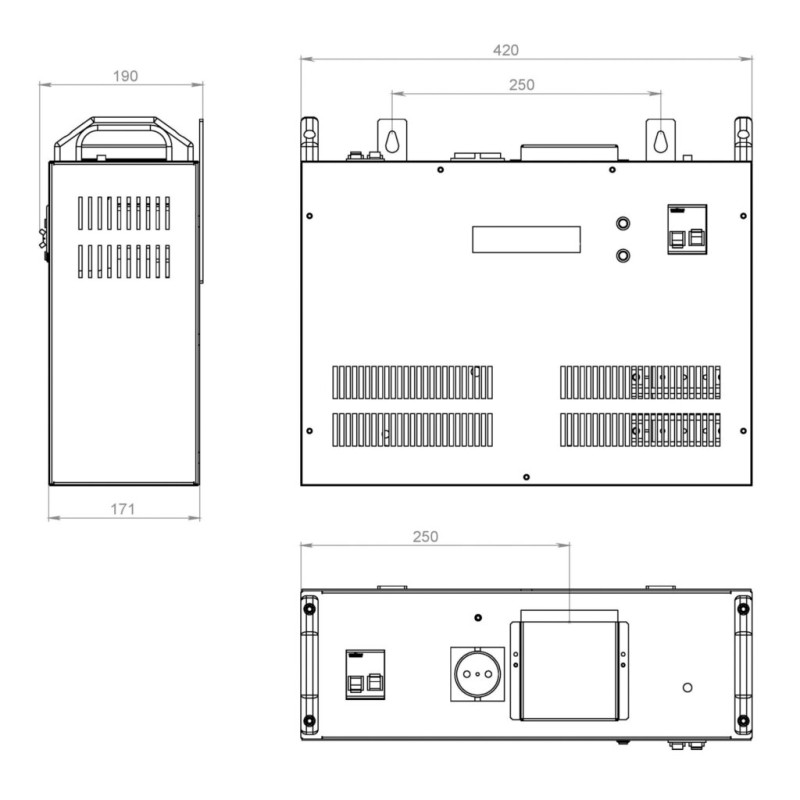

Dimensions (HxWxD), mm (350 x 420 x 190)*3
Efficiency, % 98
Humidity, max 40…80%
Max. power at Umin, kW 21.6
Maximum current, A 50
Maximum power, kW 33
Mounting method wall-mounted/floor-standing
Noise level, dB 34-40, depending on the load
Number of stages 16
Output voltage 220 V (per phase)
Phase three phases
Protection class IP20
Response time, ms 20
Stabilization accuracy +3.5 -5.5%
Temperature range Operating temperature range from +1°C to 40°C indoors
Temperature range, custom Operating range from minus 25°C to plus 40°C indoors - additional cost for a three-phase stabilizer - 1500
Type electronic thyristor
Warranty, months LIFETIME
Weight, kg 101.4
Weight, kg 33.8*3
Color light gray
