Product Code: FA94-6783-94
24 778 грн.
Buy this product in 1 click:
Main specifications
Battery connection type to UPS: Anderson connector
Built-in battery capacity, Ah: 9
Charge current from mains, A: 1
Frequency range, Hz: 50/60
Height, mm: 330
All specifications
We will deliver this product:
Payment
Description

LogicPower presents the innovative Smart-UPS LogicPower 3000 PRO (with battery). This is high-tech equipment for providing backup power during sudden or emergency power outages.
Today, it is the most affordable and economical uninterruptible power supply with voltage stabilization and cold start functions.
The Smart-UPS LogicPower 3000 PRO (with battery) is suitable for providing backup power to cash registers, terminals, server, and network devices. In addition, this model can be used for:
- personal computers;
- small network equipment;
- office equipment;
- audio and video equipment;
- network storage.
The uninterruptible power supply (UPS) with pure sine wave Smart-UPS LogicPower 3000 PRO (with battery) has the following technical specifications:
- power - 3000VA/2700W;
- input voltage range - 140-290V;
- frequency range - 50/60 Hz;
- output voltage waveform - pure sine wave;
- output voltage waveform distortion - < 1 %;
- voltage stabilization function - AVR;
- cold start (ability to start equipment without connecting to the power grid);
- battery - 72V 9 Ah;
- active cooling (fan);
- interface for connecting to a personal computer - RS232 (optional), and via USB port;
- RJ11/RJ45 data transmission channel protection with guaranteed high operating speed;
- protection against: short circuit, overload, overvoltage in the power grid, battery discharge and overcharge, high/low voltage;
- ability to control audio signals.

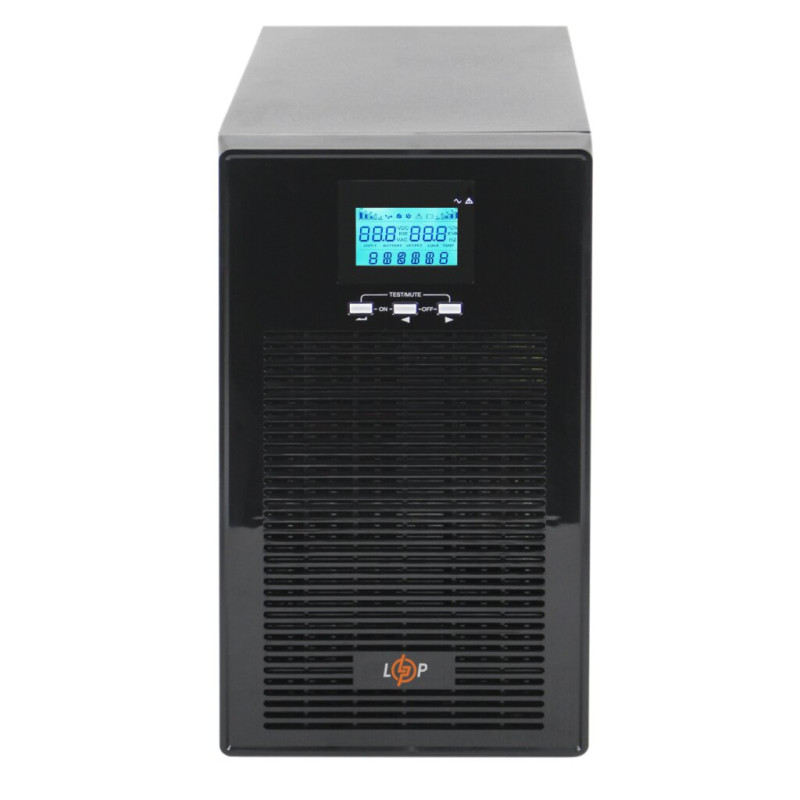

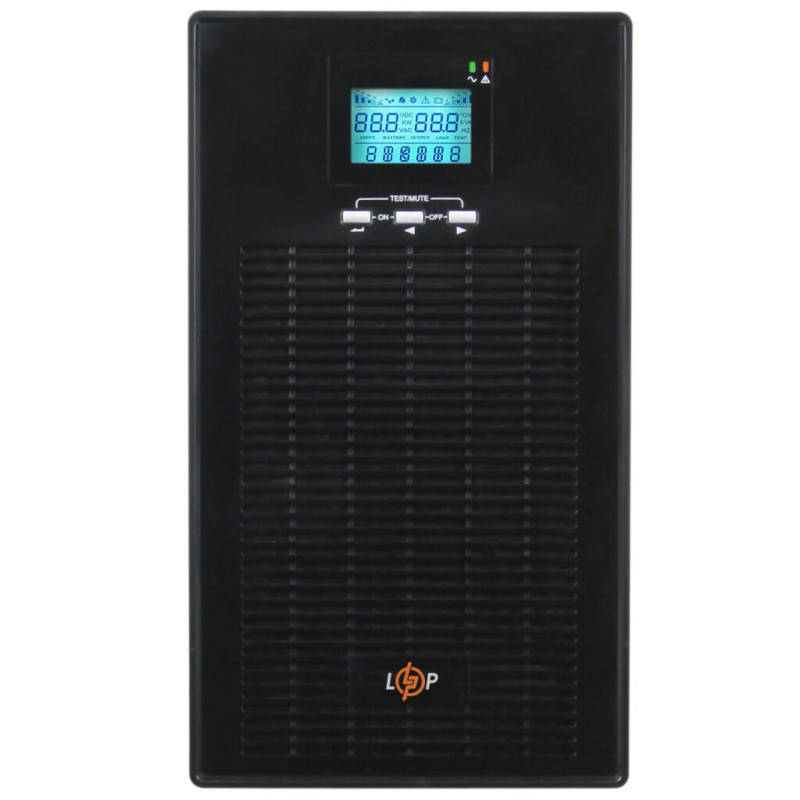

The Smart-UPS LogicPower 3000 PRO (with battery) casing is made of metal alloy. An LCD screen is located on the front panel to monitor device operating parameters.

Specifications
Battery connection type to UPS Anderson connector
Built-in battery capacity, Ah 9
Charge current from mains, A 1
Frequency range, Hz 50/60
Height, mm 330
Housing material metal
Indication type LCD
Input voltage range, V 110-300
Length, mm 405
Network Connection Type Europlug
Nominal battery voltage, V 72
Number of built-in batteries, pcs 6
Number of Outputs 6
Number of Phases 1
Operating temperature, °C 0 ~ +40
Output voltage waveform pure sine wave
Output voltage, V 208/220/230/240±1%
PC connection interface USB, RS232 - optional
Power, VA/W 3000/2700
Protection against short circuit, voltage surges, overload, discharge, overcharge of batteries
Switching time, ms 0
Type smart online
Type of UPS load connection IEC320 C13
Volume, m³ 0.0609
Warranty, months 24 - for UPS, 12 - for battery
Weight, kg 23.95
Width, mm 190
Color black
