Scout T-220B (3T) Mototractor Review

Scout T-220B (3T) Mototractor — reliable and affordable equipment for gardens, vegetable patches, and small farms. Manufacturer: Scout. Category: Tractors > Mototractors. The model comes in a universal configuration with a three-point hitch and a single-speed power take-off (PTO) shaft; a 130-cm rotary tiller is included, allowing immediate work on the plot.

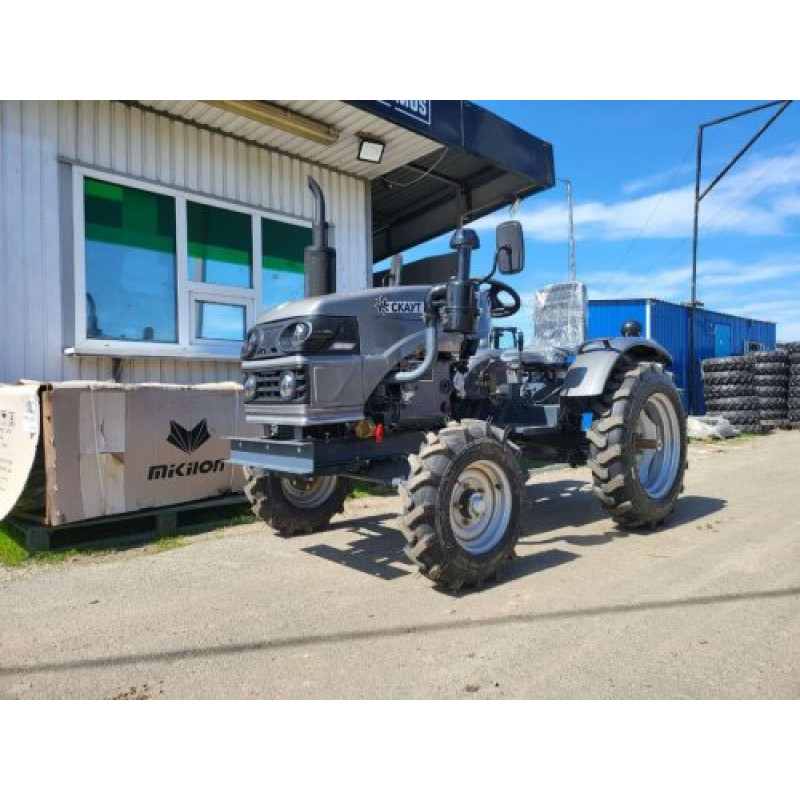

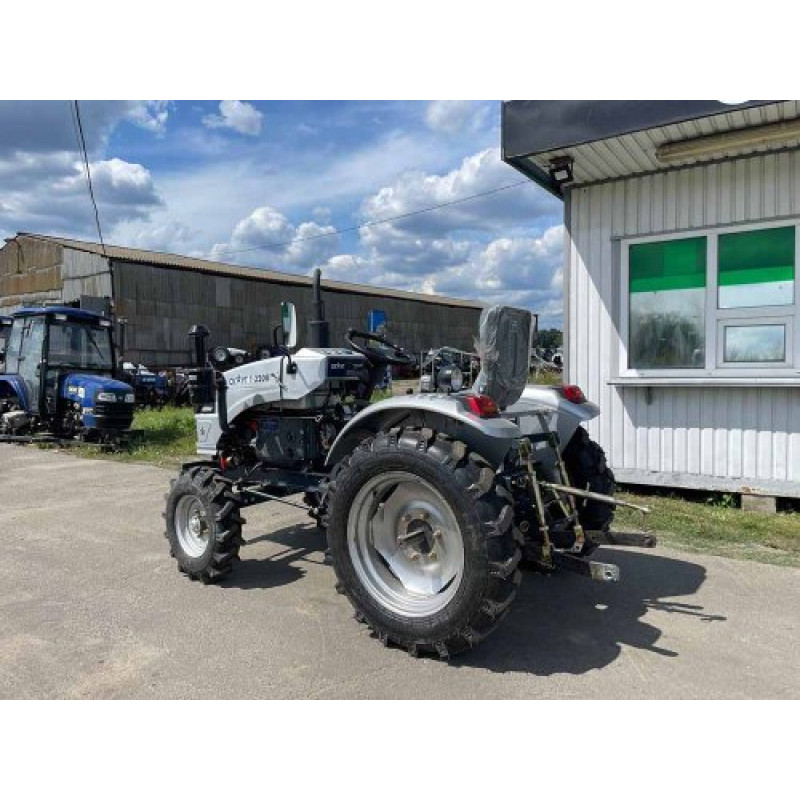

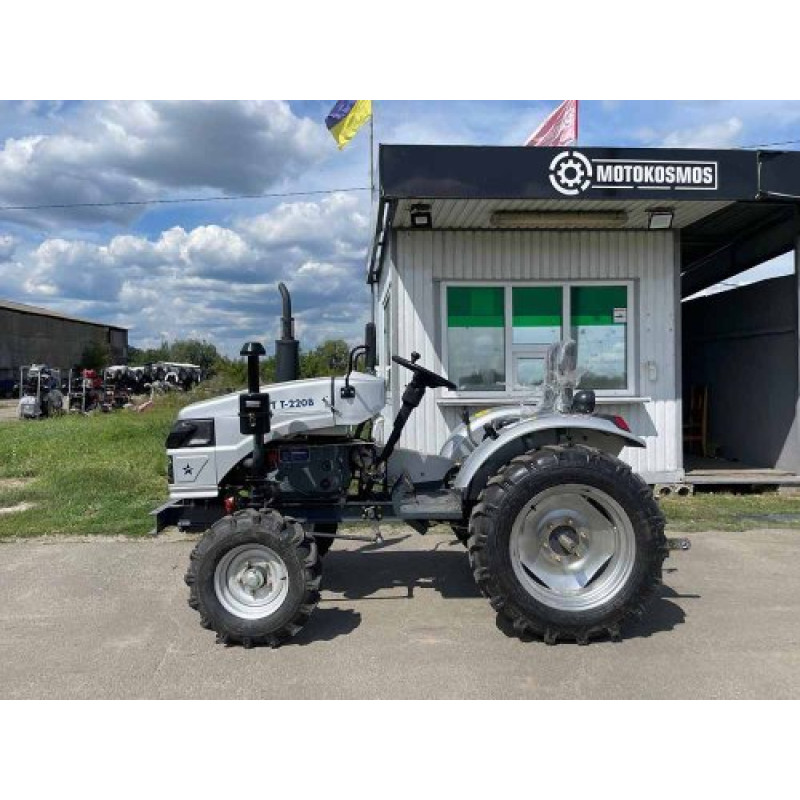

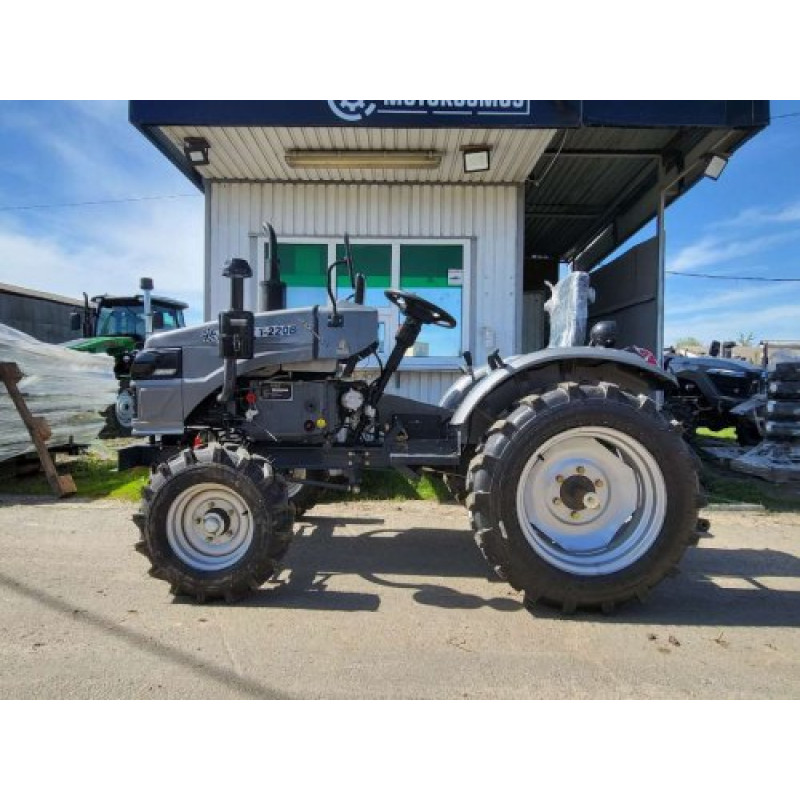

The mototractor stands out for its ease of operation, thoughtful ergonomics, and attractive price. The body is painted gray. Equipment includes modern front and rear optics: headlights, taillights, turn signals; there are rearview mirrors. The exhaust pipe is positioned so that exhaust gases do not reach the operator. The driver's area is spacious and comfortable for long hours of work.

Engine, Cooling System, and Fuel System

Under the hood is a ZS1115 engine — a single-cylinder unit with a liquid cooling system. A 40 Ah battery ensures reliable starting. Both a manual starter (Z-shaped handle) and an electric starter are provided. The 10-liter fuel tank is complemented by an expansion tank for coolant; an oil-bath air filter is located nearby. The fuel system is mechanical with direct injection; injection pressure is 12753 kPa (130 kgf/cm2), and the injection advance angle is 16 ± 2 degrees before top dead center. Recommended valve clearances: intake 0.25 ± 0.05 mm, exhaust 0.30 ± 0.05 mm.

Chassis and Controls

Rotation is transmitted from the engine to the rear axle via a belt drive, protected by a steel casing. Rear-wheel drive, 4x2 wheel formula. Tracks are adjustable for inter-row cultivation, and wide tires increase stability and passability. The minimum turning radius with brakes is 2.2 m, ensuring high maneuverability. Brakes are dry drum type.

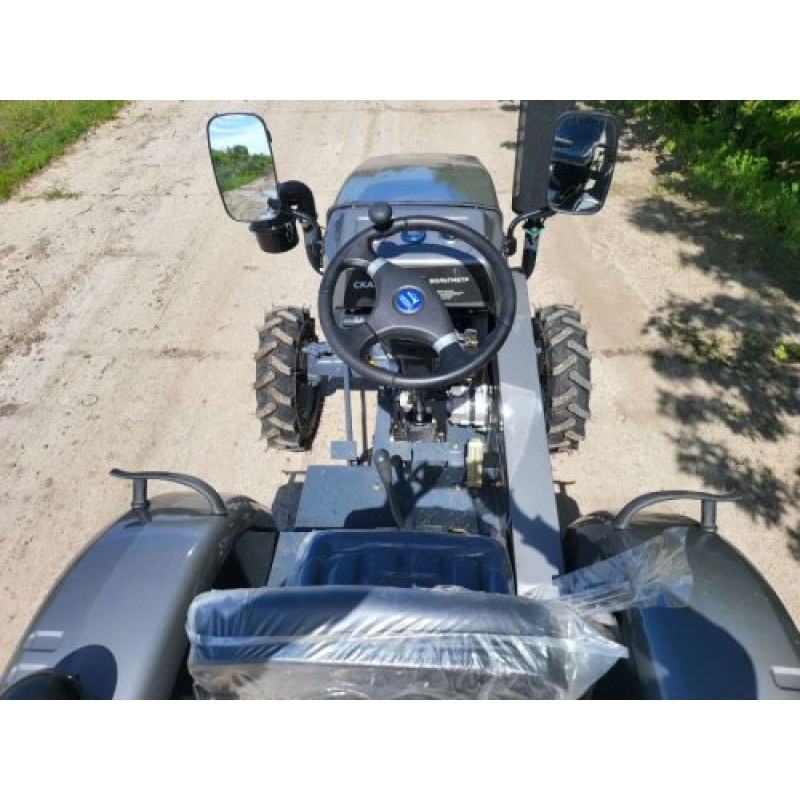

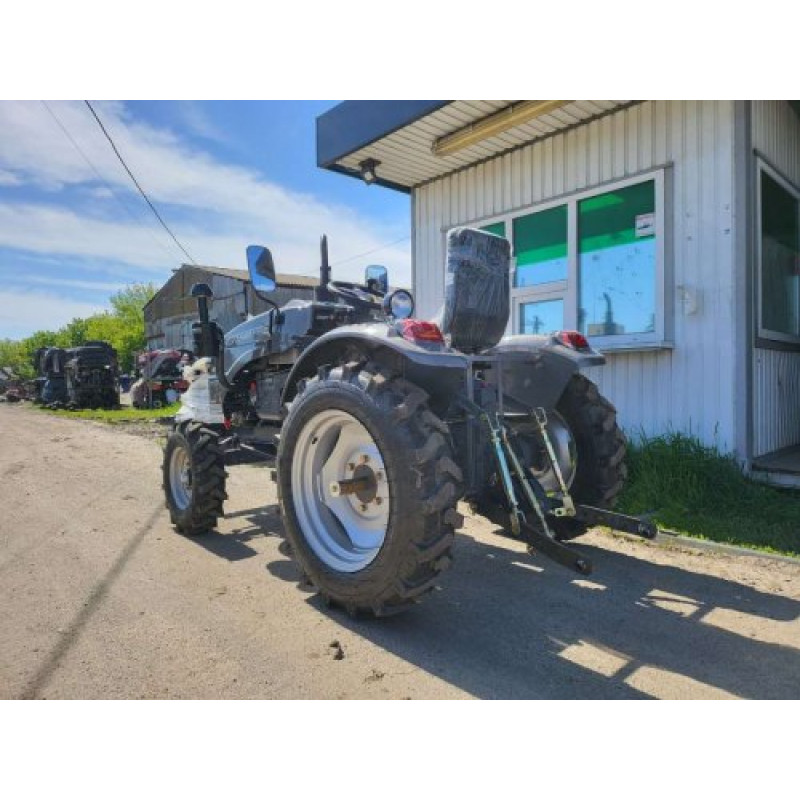

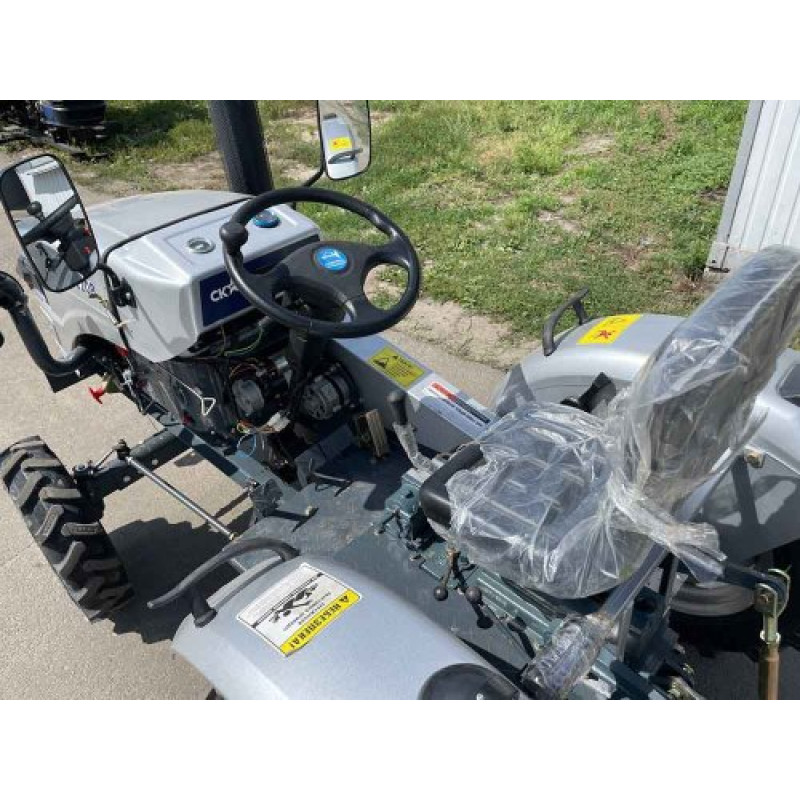

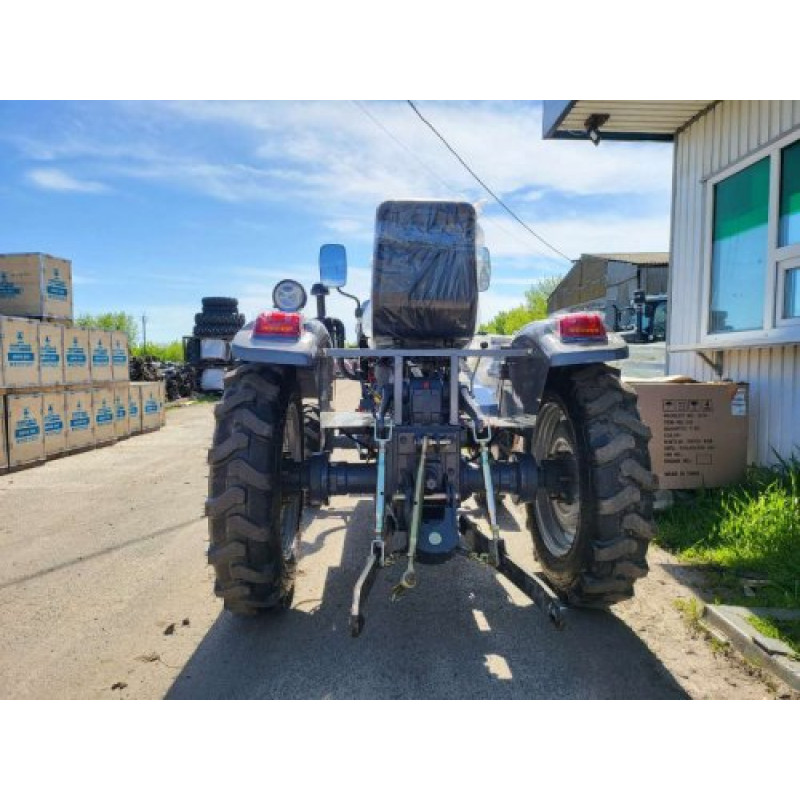

Controls are simple and intuitive: steering wheel without power steering; combined-type gearbox (3+1) × 2; clutch — dual-disc. The rear hitch is controlled by a single side lever. Brake pedals are separate. The dashboard features simple gauges and an electronic ammeter. There is both main and hand throttle. The three-point hitch is rated for approximately 300 kg of lift, which is sufficient for typical farm tasks. The PTO shaft allows connecting active equipment via a cardan shaft.

Configuration and Additional Equipment

The Scout T-220B mototractor comes with a 130-cm rotary tiller. A wide range of mounted and trailed equipment is available for this model: plows, cultivators, hilling machines, sprayers, potato planters, seeders, potato diggers, and more. The store offers competitive prices and the option of installment plans or credit. Available payment options — cash or credit; delivery is free under seller's terms, please contact the sales department for details.

Below are the technical specifications of the model, which will help in selection and work planning:

The Scout T-220B (3T) model is an optimal solution for those seeking a balance between cost, ease of maintenance, and functionality: reliable ZS1115 engine, 24 hp, liquid cooling, a full set of basic electrical and mechanical options, and the ability to connect a wide range of attachments. Contact the sales department for consultation on options, credit programs, and delivery.
