Fenix HP25R V2.0 Headlamp
Brand: Fenix. This is a powerful headlamp for camping, tourism, professional use, and outdoor activities, equipped with a Luminus SST40 LED and an ANSI-equivalent brightness of 1600 lumens.

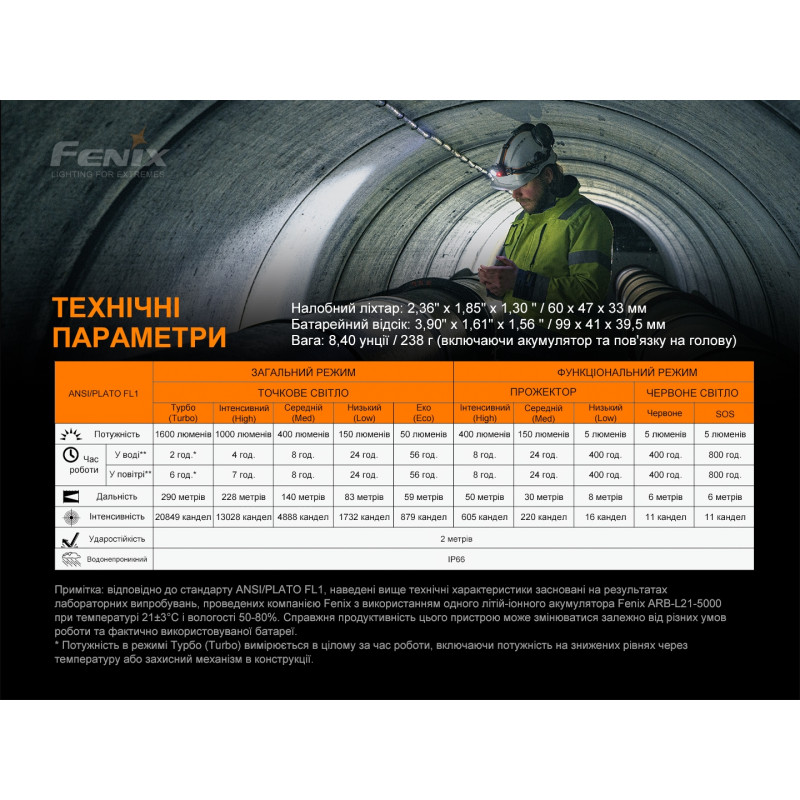

Technical Specifications and Operating Modes| Parameter | Spotlight (ANSI) | Floodlight | Red Light |
|---|---|---|---|
| Brightness Modes | Turbo 1600 lm, Max 1000 lm, Mid 400 lm, Min 150 lm, Eco 50 lm | Max 400 lm, Mid 150 lm, Min 5 lm | Red 5 lm, SOS 5 lm |
| Runtime | Turbo 2 hr*, Max 4 hr, Mid 8 hr, Min 24 hr, Eco 56 hr | Max 8 hr, Mid 24 hr, Min 400 hr | Red 400 hr, SOS 800 hr |
| Beam Distance | Turbo 290 m, Max 228 m, Mid 140 m, Min 83 m, Eco 59 m | Max 50 m, Mid 30 m, Min 8 m | Red 6 m, SOS 6 m |
| Intensity (candela) | Turbo 20849 cd, Max 13028 cd, Mid 4888 cd, Min 1732 cd, Eco 879 cd | Max 605 cd, Mid 220 cd, Min 16 cd | Red/SOS 11 cd |
| Impact Resistance | 2 m | ||
| Water Resistance | IP66 | ||
| Body Size | 60 mm (length) × 47 mm (width) × 33 mm (height) | ||
| Weight | 238 g (including battery and head mount) | ||

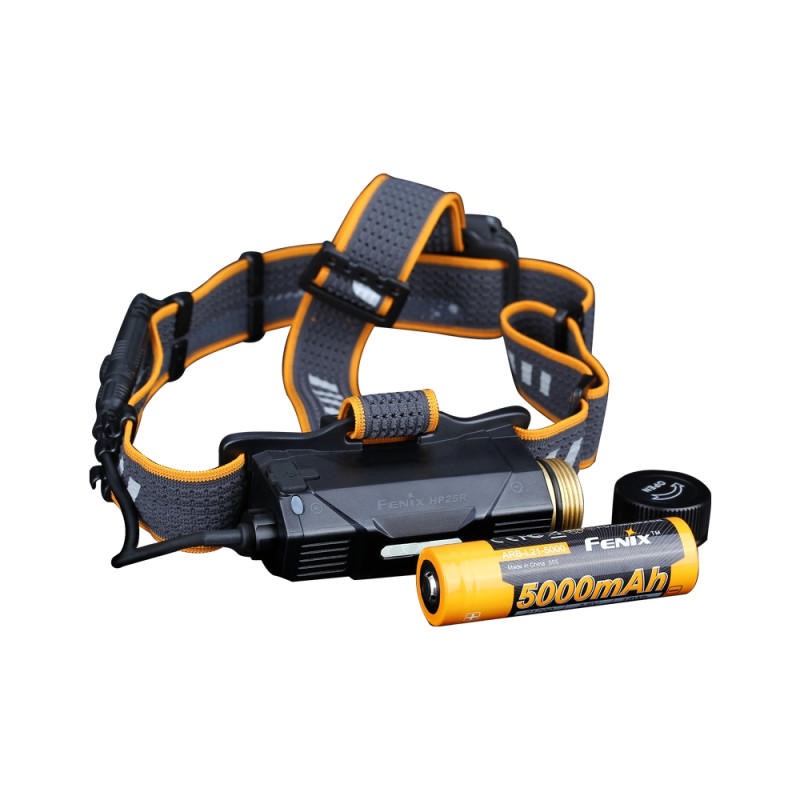

| Power Source | Fenix ARB-L21-5000 battery (18650 type), included, USB Type-C charging | ||
| Reflector Type | Smooth reflector | ||
| Body Material | Aircraft-grade aluminum and plastic, Type III hard-anodized finish | ||
| Optical System | Reflector | ||
| Packaging | Cardboard box | ||
| Package Contents | Fenix HP25R V2.0 headlamp, Fenix ARB-L21-5000 battery, USB Type-C charging cable, 4 helmet hooks, 3 cable clips, spare O-ring, user manual, warranty card | ||

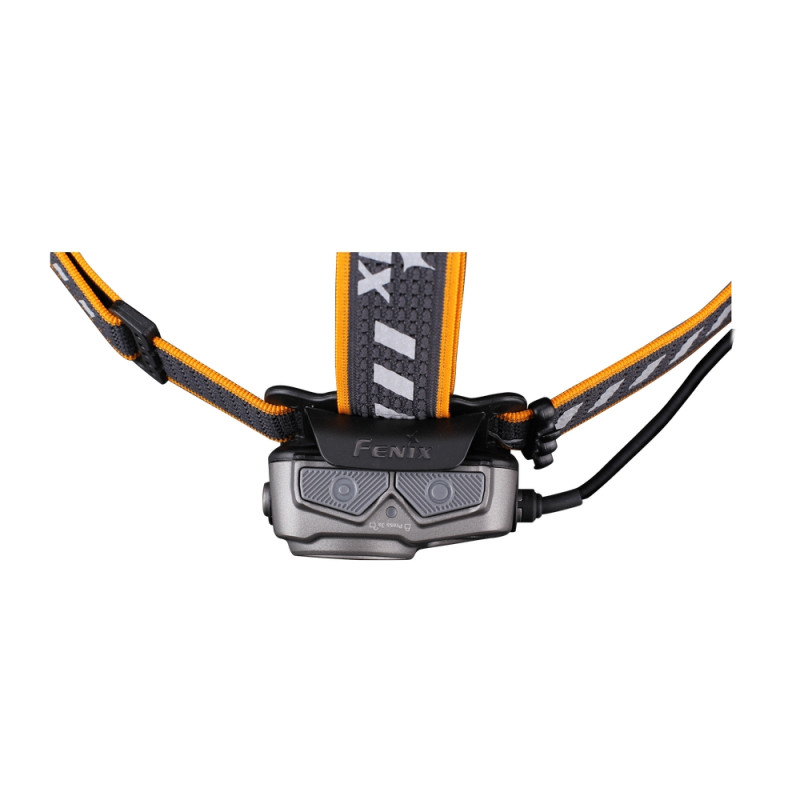

| Controls | Two buttons on the top of the body for on/off and mode switching; accidental activation lockout available | ||
| Additional Features | Battery level indicator, low voltage warning, overheat protection | ||
Description and Features

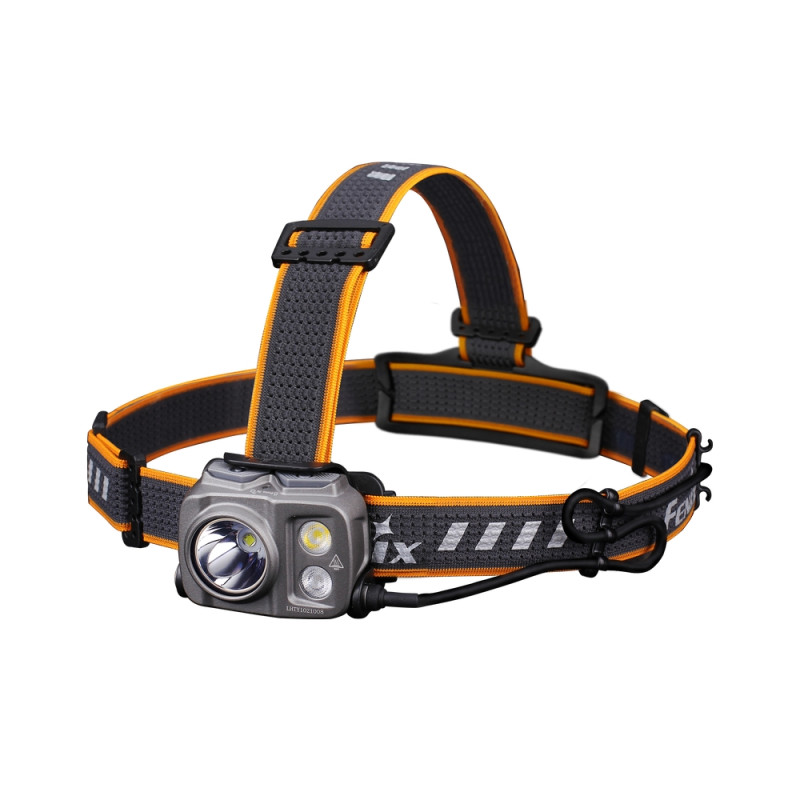

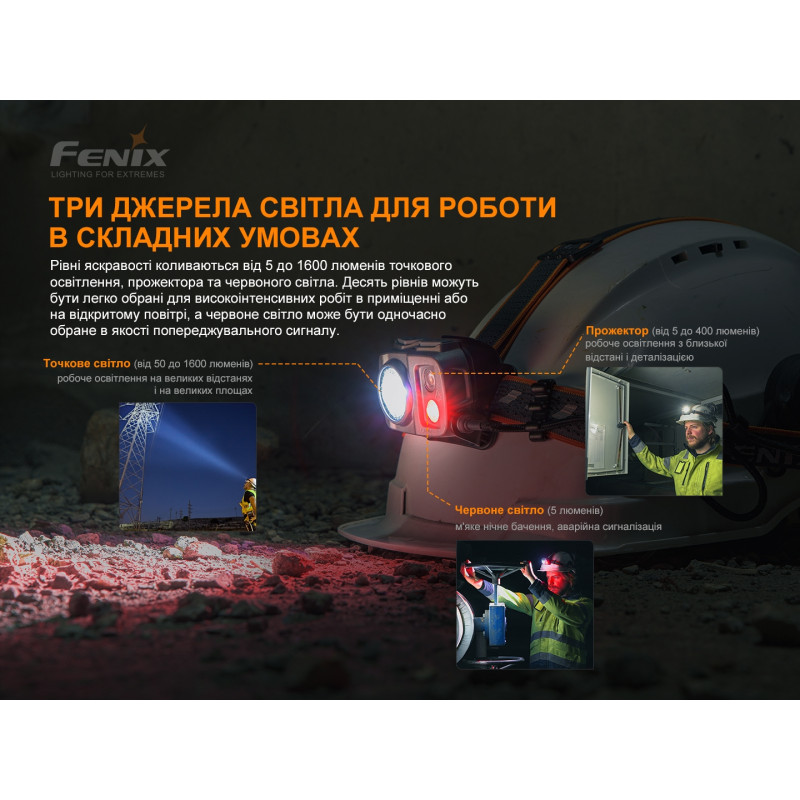

The Fenix HP25R V2.0 combines a powerful spotlight beam and versatile floodlight functional modes. The main Luminus SST40 LED provides white light up to 1600 lumens, with additional Cree XP-G3 S4 for neutral white and Everlight 2835 for red illumination. The LEDs have a lifespan of up to 50,000 hours. The device is compatible with the Fenix ARB-L21-5000 battery (included), can operate with 18650-type cells, and charges via a USB Type-C port.
Control is simple and intuitive: the main button switches the "main" mode group (Eco, Minimum, Medium, Maximum, Turbo), and the functional button switches the "functional" mode group (Minimum, Medium, Maximum, Red Light, SOS). To turn on/off, press and hold any button for 0.5 seconds. Accidental activation lockout is achieved by holding one button or both buttons simultaneously for 3 seconds; the indicator will signal with four red flashes.
Overheat protection is included: if the body temperature rises above 60 °C, brightness automatically decreases to a safe level; once cooled, you can return to more powerful modes. The headlamp features a battery level indicator: when a button is pressed in the off state, the indicator shows the battery status — 100–85% solid green, 85–50% flashing green, 50–25% solid red, 25–1% flashing red (requires charging).
Operating Modes (briefly)
- Spotlight: Turbo 1600 lm (290 m, ≈2 hr), Max 1000 lm (228 m, 4 hr), Mid 400 lm (140 m, 8 hr), Min 150 lm (83 m, 24 hr), Eco 50 lm (59 m, 56 hr).
- Floodlight: Max 400 lm (50 m, 8 hr), Mid 150 lm (30 m, 24 hr), Min 5 lm (8 m, 400 hr).
- Red Light: Red Mode 5 lm (6 m, 400 hr), SOS 5 lm (6 m, 800 hr).
Physical Parameters and Reliability

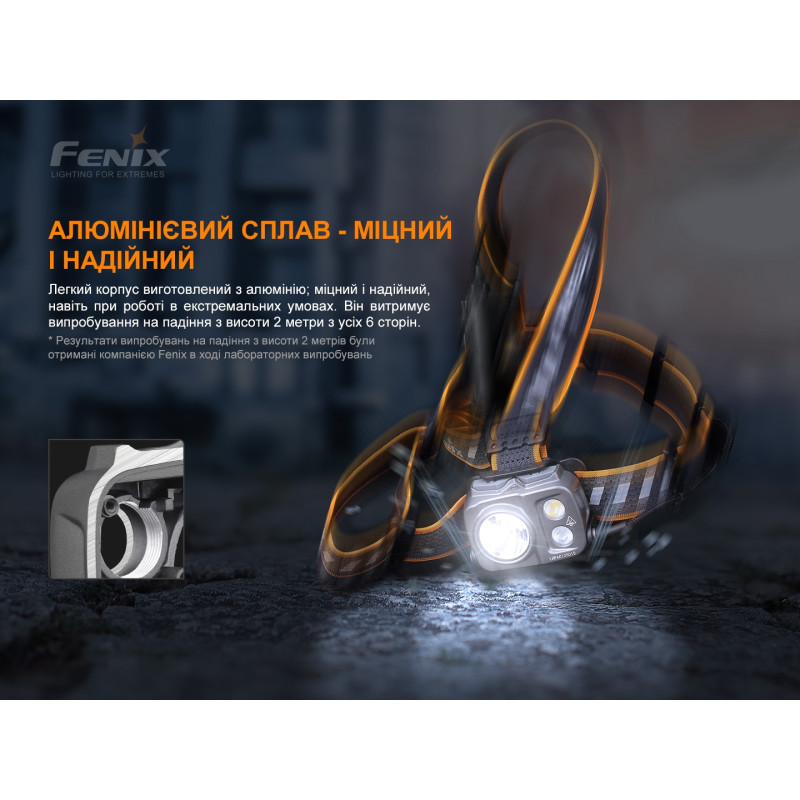

Body dimensions are 60×47×33 mm, weight 238 g with battery and mount. The body is made of aircraft-grade aluminum combined with plastic, Type III hard-anodized finish, impact resistance up to 2 m, IP66 protection rating guarantees operation in high humidity and dusty conditions. The headlamp can be tilted up to 60° for precise beam direction.

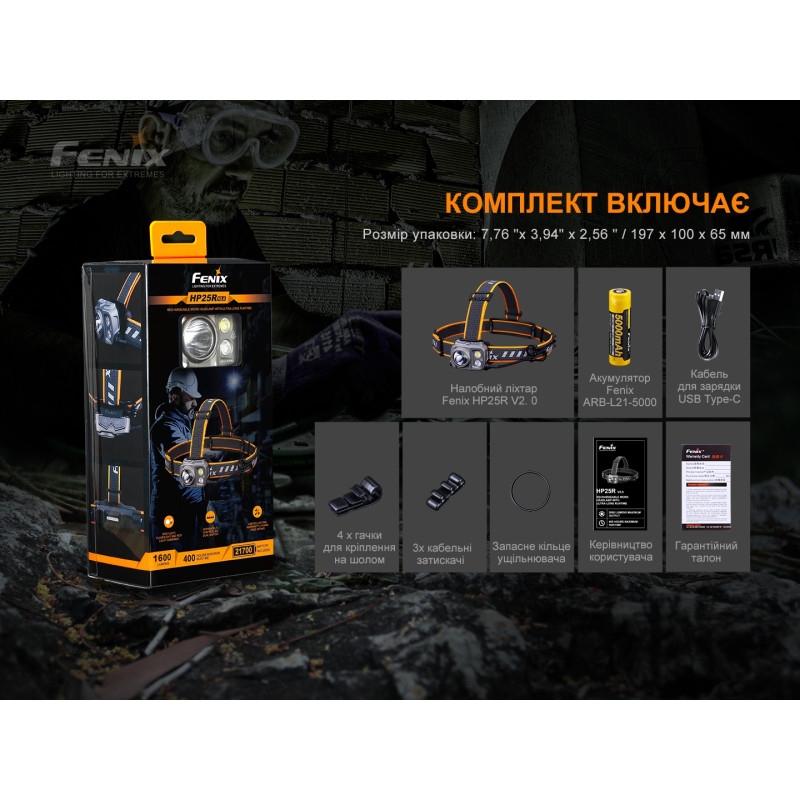

The package includes everything you need: Fenix HP25R V2.0 headlamp, Fenix ARB-L21-5000 battery, USB Type-C charging cable, four helmet hooks, three cable clips, a spare O-ring, user manual, and warranty card. Manufacturer's warranty is 5 years from the date of purchase.
Additional instruction manual available for download: Download Manual
Note: The stated parameters were tested under laboratory conditions with a Fenix ARB-L21-5000 battery at a temperature of approximately 21±3 °C and humidity of 50–80%; values may vary when using other power sources or under different conditions.
