TowerPro MG996R 10kg Servo — Reliable High-Torque Module for Robotics
TowerPro MG996R — is a high-performance servo from the TowerPro brand, designed for intensive loads in model building, drones, and robotics projects. The model features a reinforced metal gear train and a metal output shaft, ensuring durability and resistance to wear during operation. Thanks to standard mounting holes, integration into existing structures is quick and without unnecessary modifications.
According to the manufacturer, the servo demonstrates an impressive torque of up to 11 kg·cm at 6V and high speed — 0.14 seconds per 60° at 6V, making it suitable for tasks where precision and operational positioning are important. At the same time, the technical specification lists a nominal stall torque of 10 kg/cm at 6V and a no-load speed of 60° in 0.2 s at 6V. We retain both indicators to give you a complete understanding of the MG996R's capabilities.
| Specifications | Description |
|---|---|
| Weight | 60 g |
| Size | 40.3mm x 20mm x 44.1mm |
| Operating Voltage | 4.8…7.2 V |
| No-load Speed | 60 degrees in 0.2 sec. at 6 V |
| Stall Torque | 10 kg/cm at 6 V |
| Wire Length | 30 cm |
| Output Shaft Material | Metal |
| Gear Material | Metal |
| Controller Type | Analog based on AA51880 controller |
| Suitable for | Robot drives, automation, and other devices under heavy loads |
The MG996R has compact dimensions of 40.3mm x 20mm x 44.1mm and a weight of 60g, making it convenient for installation in model chassis, drone bodies, or robots. The operating voltage from 4.8 to 7.2 V allows for flexible power source selection, and the 30 cm cable provides convenience for connection in various designs.
Key advantages of this model:
- high stall torque and stability under load,
- fast response to control commands,
- durable mechanical part with metal gears and shaft,
- easy installation and compatibility with standard mounts.
Package Contents:

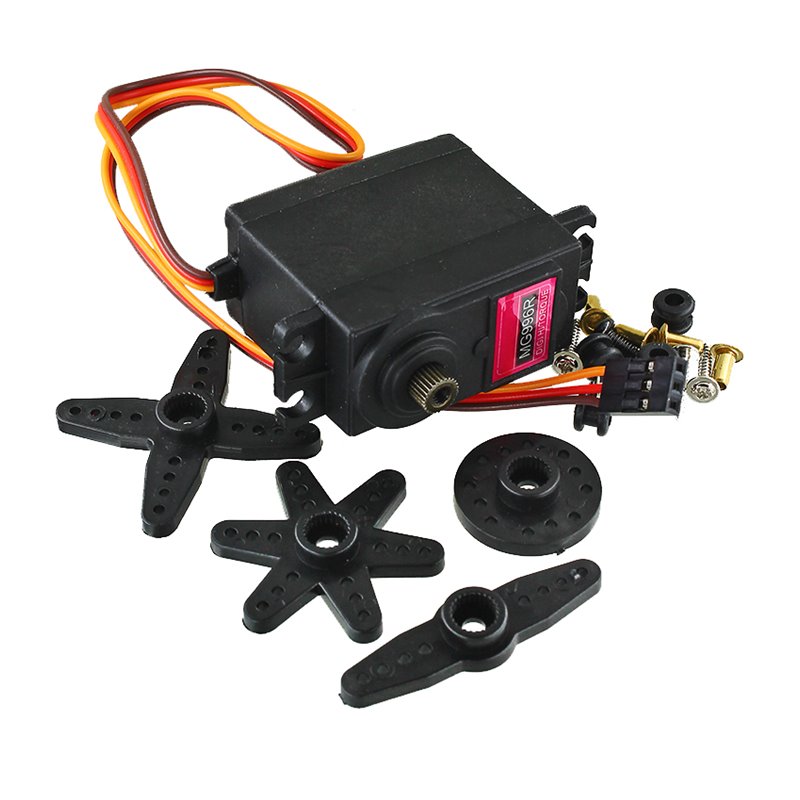

1 x TowerPro MG996R

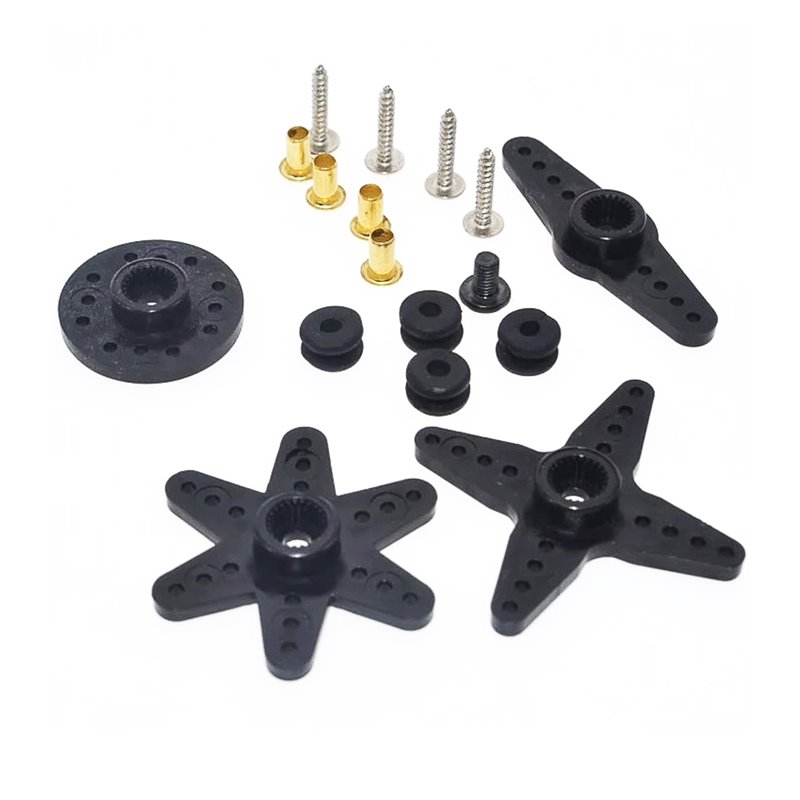

1 x mounting kit
The model belongs to the category: Drones & Quadcopters > Motors. If you need a reliable servo for demanding tasks in RC models, drones, or robots — the MG996R from TowerPro combines strength, precision, and durability, confirmed by metal components and stable operation of the AA51880 controller.
