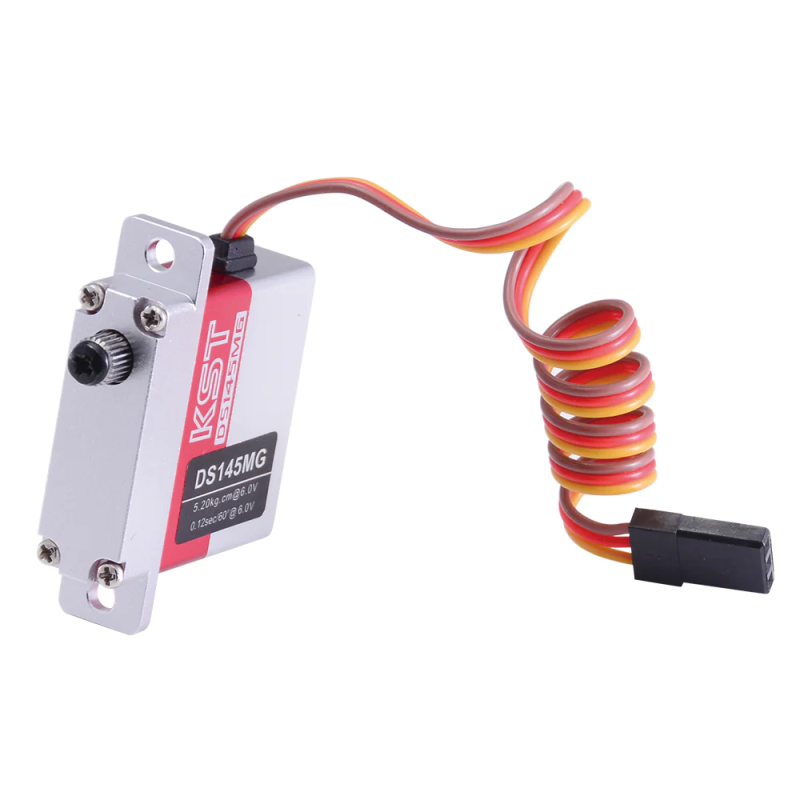

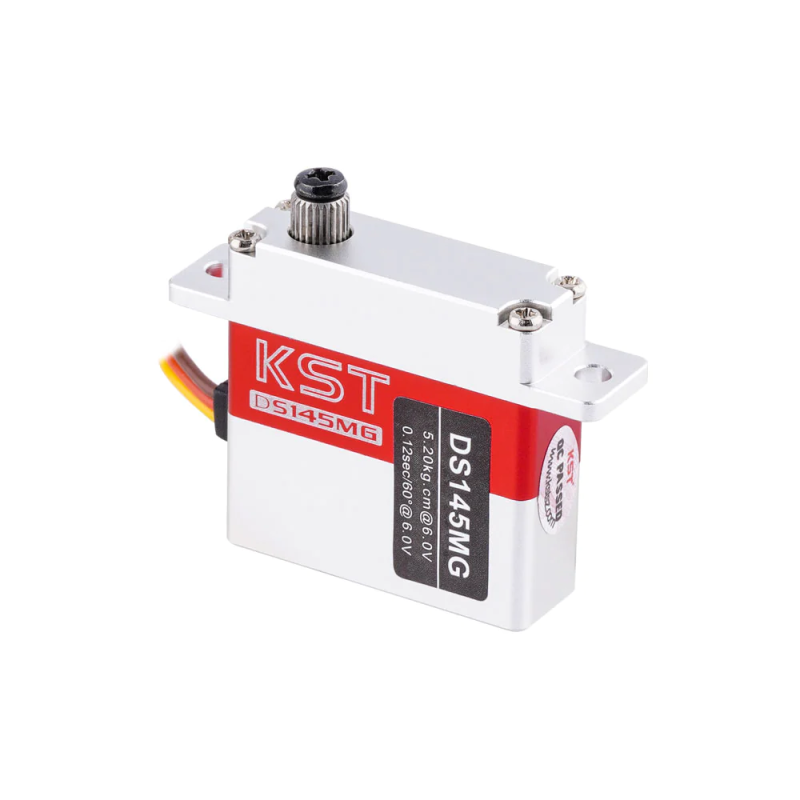

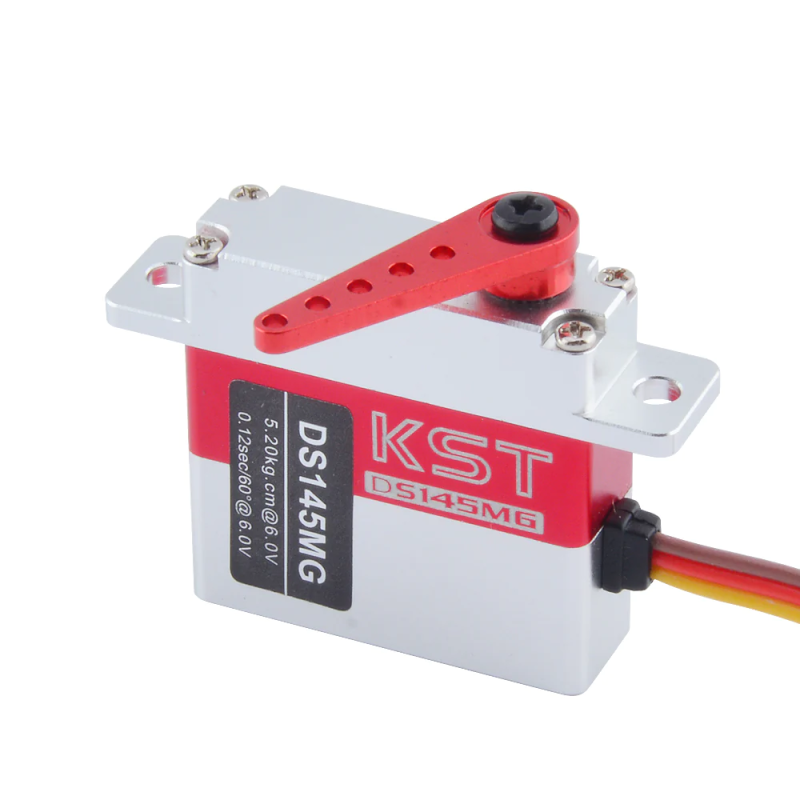

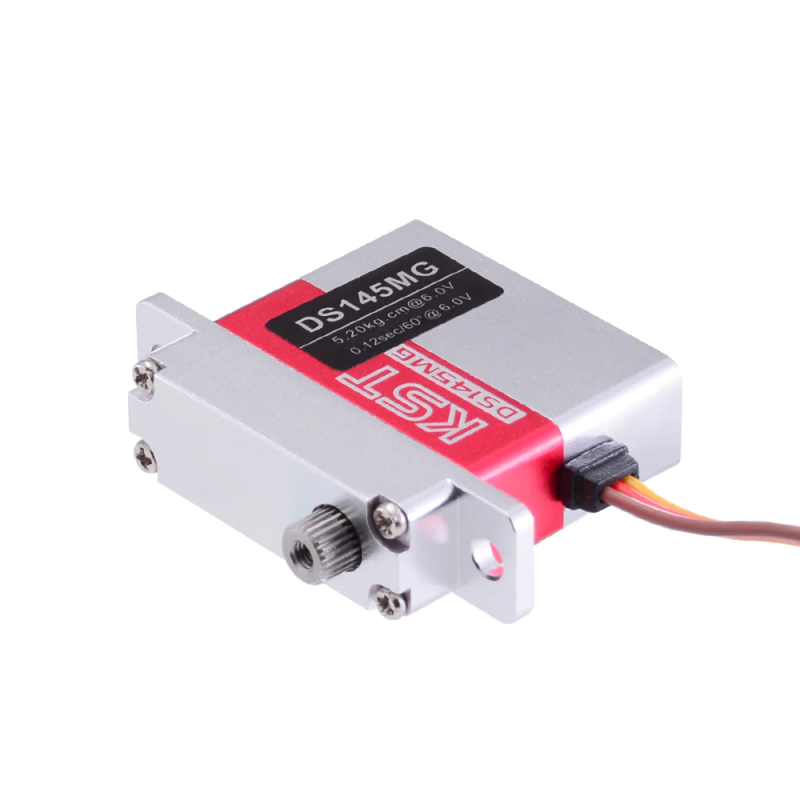

KST DS145MG 23G Servo

The KST DS145MG digital servo, weighing only 23g, is a professional solution from the KST brand for FPV drones, flying wings, gliders, helicopter models, and other RC aircraft where precision, fast response, and reliability are critical. The DS145MG combines a fully CNC-machined aluminum case, all-metal gears, and two ball bearings, ensuring enhanced durability, stability under load, and efficient heat dissipation with minimal mass.

Key Features

• Type: Digital servo

• Weight: 23 g

• Case: Fully CNC-machined aluminum

• Operating Voltage: 4.8-7.4 V (supports operation from 2S LiPo battery without BEC)

• Speed (6.0 V): 0.07 sec/60°

• Speed (7.4 V): 0.05 sec/60°

• Torque (6.0 V): 3.5 kg·cm

• Torque (7.4 V): 4.2 kg·cm

• Gear Type: All-metal

• Bearings: Two ball bearings

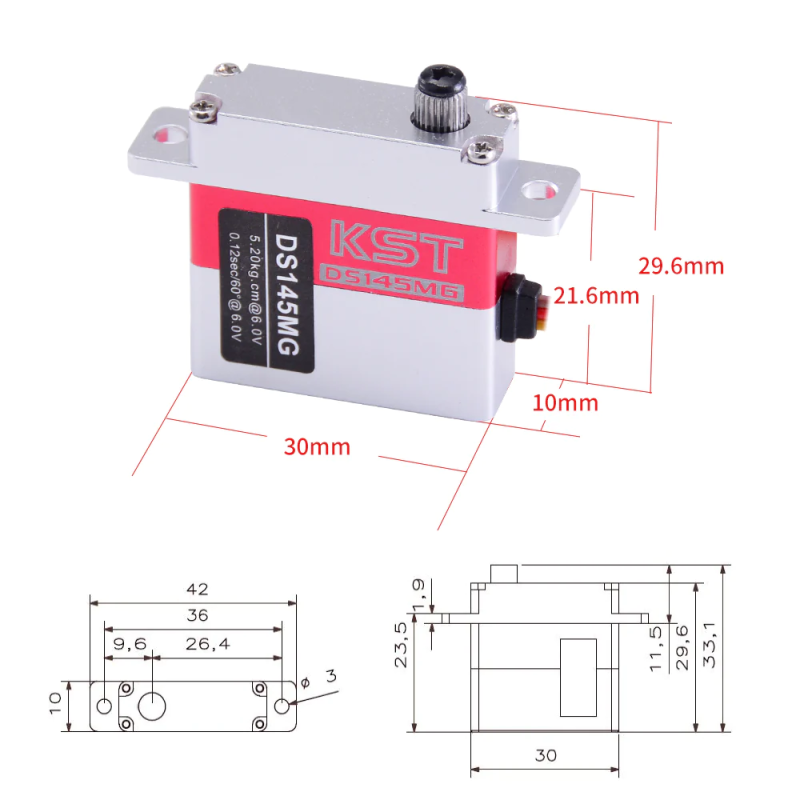

• Dimensions: 30 × 10 × 29 mm

• Signal Protocol: PWM

Features and Benefits

• High precision and stability thanks to the digital controller, ensuring correct operation under intense loads and during rapid maneuvers.

• All-metal gears increase wear resistance and extend lifespan compared to plastic counterparts.

• Very fast response — 0.05 sec/60° at 7.4 V makes the DS145MG ideal for helicopter tail control, glider control surfaces, and racing FPV drones.

• Aluminum case provides structural rigidity and efficient heat dissipation, reducing the risk of overheating during intensive flights.

• 2S LiPo support (4.8-7.4 V) allows the servo to be operated without an additional BEC in many configurations, simplifying the electrical circuit and reducing the overall weight of the project.

The KST DS145MG 23G servo is recommended for applications where compactness, low weight, and high speed are important: FPV drones, flying wings, gliders, helicopter models, and other RC aircraft. Thanks to the combination of high speed (0.05 sec/60° at 7.4 V), sufficient torque (4.2 kg·cm at 7.4 V), and reliable mechanical components, the DS145MG provides smooth, precise, and durable control of control surfaces. Manufacturer: KST. Product Category: Drones & Quadcopters > Motors. Signal Protocol: PWM.
