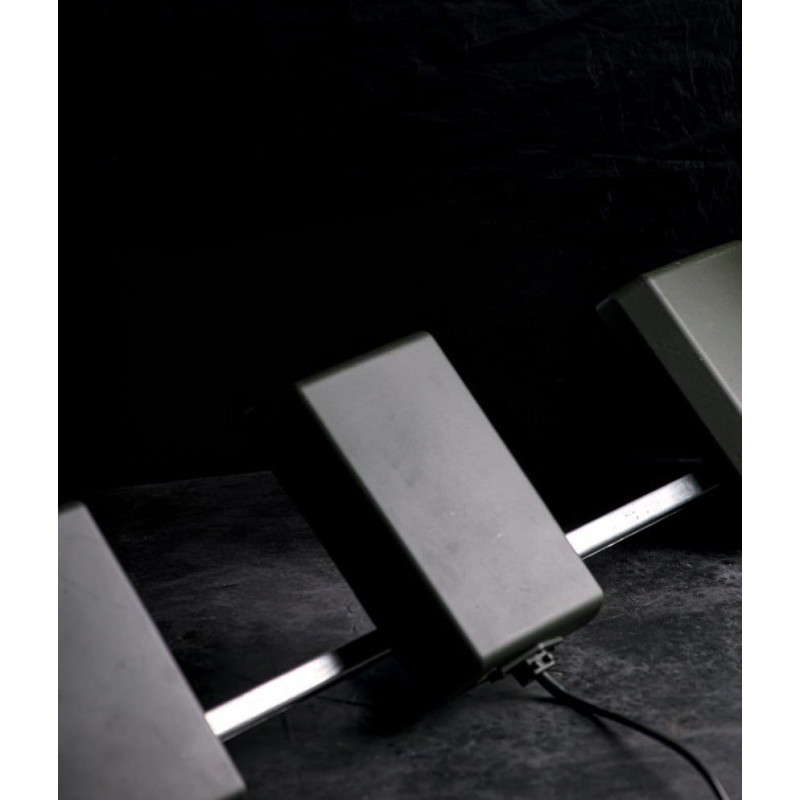

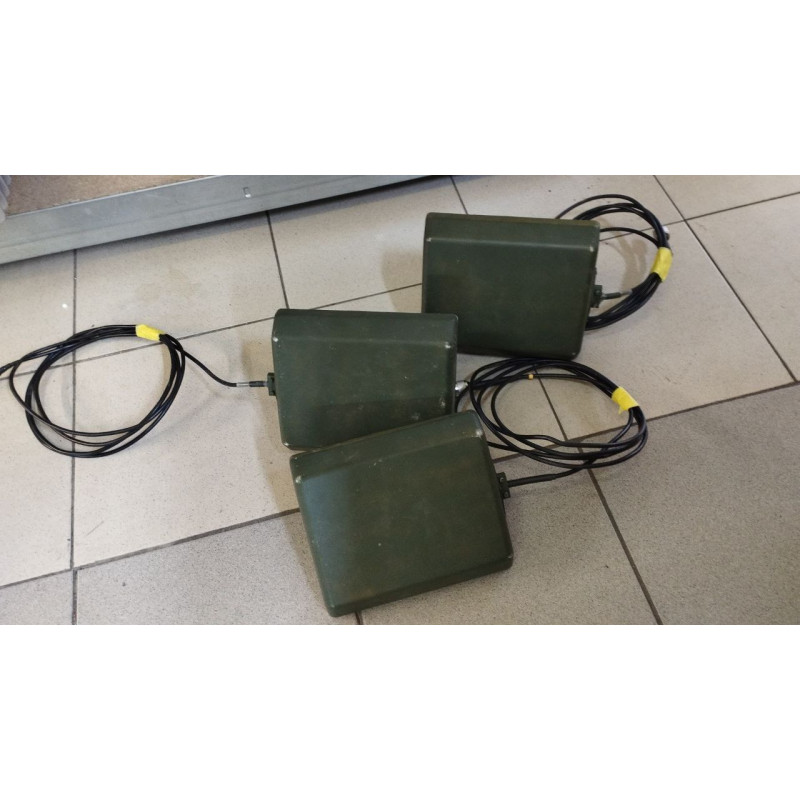

Sector Antenna 2.4 GHz (2360-2500 MHz) BlueBird
The 2.4 GHz (2400 MHz) sector antenna for electronic warfare (EW) from BlueBird is a specialized transceiver device in the Antennas category, designed for directional coverage of a specific sector. The antenna is intended for effective jamming and protection against unmanned aerial vehicles (FPV drones): it allows control of approach paths, reduces the risks of payload drops, and prevents unauthorized use of airspace.
Description and Application
The sector design concentrates energy within a specified sector, making this antenna an optimal solution for stationary and portable EW systems, security complexes, and mobile installations. Vertical linear polarization ensures compatibility with typical 2.4 GHz antenna configurations. Its small size and weight contribute to rapid deployment in field conditions and integration with jammers of various power outputs.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 2360–2500 MHz |
| Operating Frequency | 2400 MHz |
| Polarization | Linear, Vertical |
| Gain | 9 dB |
| Horizontal Beamwidth | 56° |
| Vertical Beamwidth | 65° |
| Impedance | 50 Ohm |
| VSWR | < 1.5 |
| Input Power | 50 W |
| Housing | ABS / Aluminum |
| Connector Type | N-Female |
| Dimensions | 205×180×45 mm |
| Weight | 380 g |
| Operating Temperature | -45…+60 °C |
The antenna can operate with various jammer power outputs, making it versatile for configurations with different range and jamming density requirements. The ABS and aluminum housing provides reliable protection against mechanical stress and environmental factors, while a wide operating temperature range from -45 to +60 °C allows the device to be used in harsh climatic conditions.
The N-Female connector ensures a reliable connection with coaxial cables and adapters of standard systems. Compact dimensions of 205×180×45 mm and a weight of 380 g simplify transportation and mounting on masts, vehicle racks, or stationary brackets. The 9 dB gain and directional sector pattern enhance the effectiveness of EW systems when targeting FPV drones and other aerial targets.
Advantages
- Directional sector pattern for targeted impact on drones;
- High gain of 9 dB to increase the effectiveness of EW systems;
- Low VSWR ( < 1.5 ) for efficient power transmission and minimal losses;
- Compact dimensions of 205×180×45 mm and low weight of 380 g for convenient deployment;
- Durable ABS and aluminum housing for operation in harsh conditions;
- Universal compatibility via N-Female connector and 50 Ohm impedance;
- Wide operating temperature range from -45 to +60 °C ensures reliable operation in various climatic conditions.
The Sector Antenna 2.4 GHz (2360-2500 MHz) BlueBird is a reliable component for building electronic warfare systems and security complexes, combining compactness, high performance, and resistance to external factors. Manufacturer: BlueBird. Product Category: Antennas.
