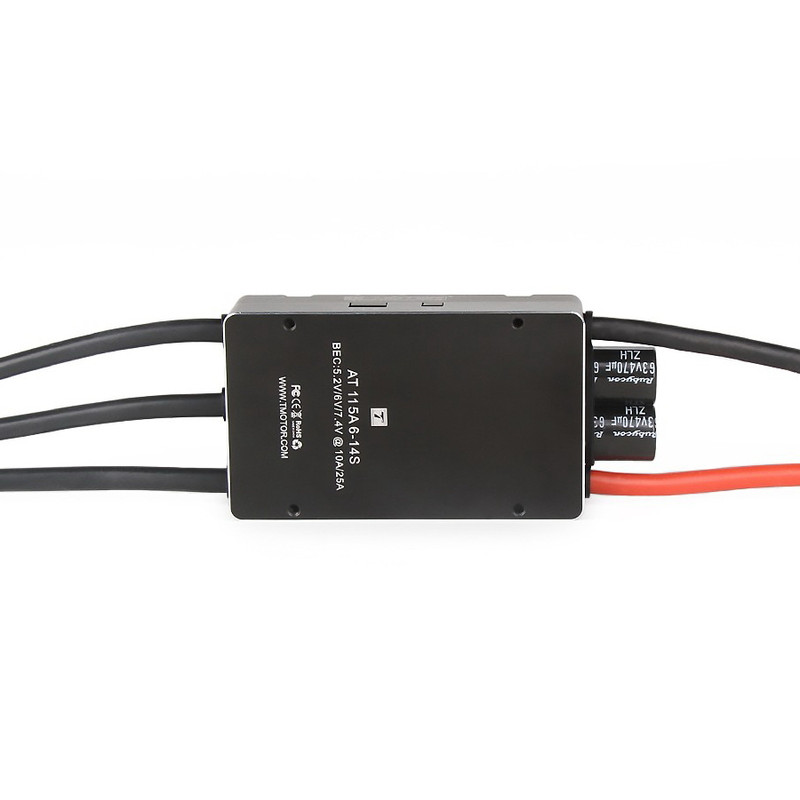

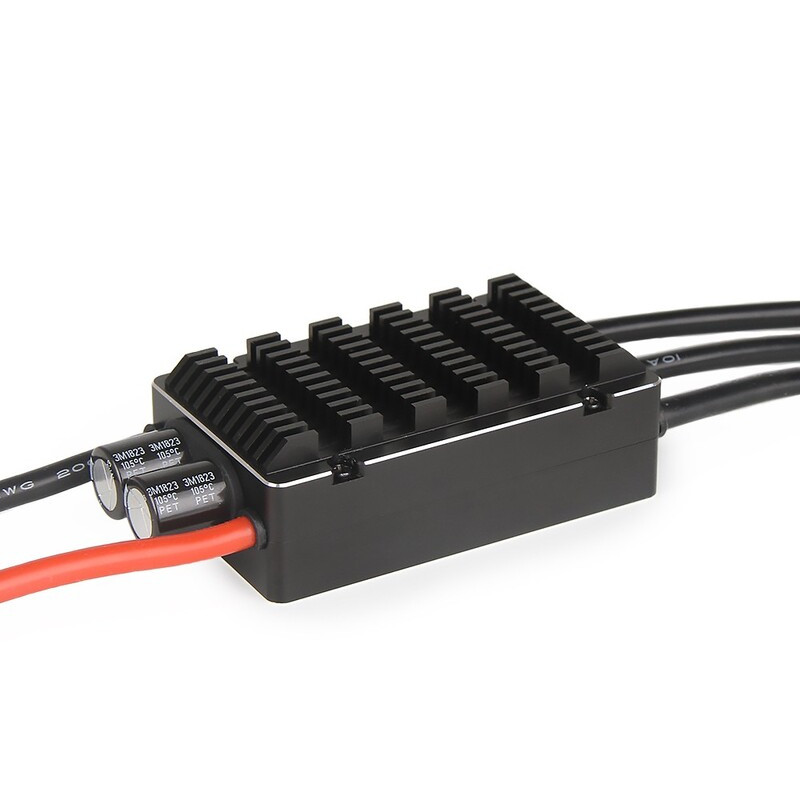

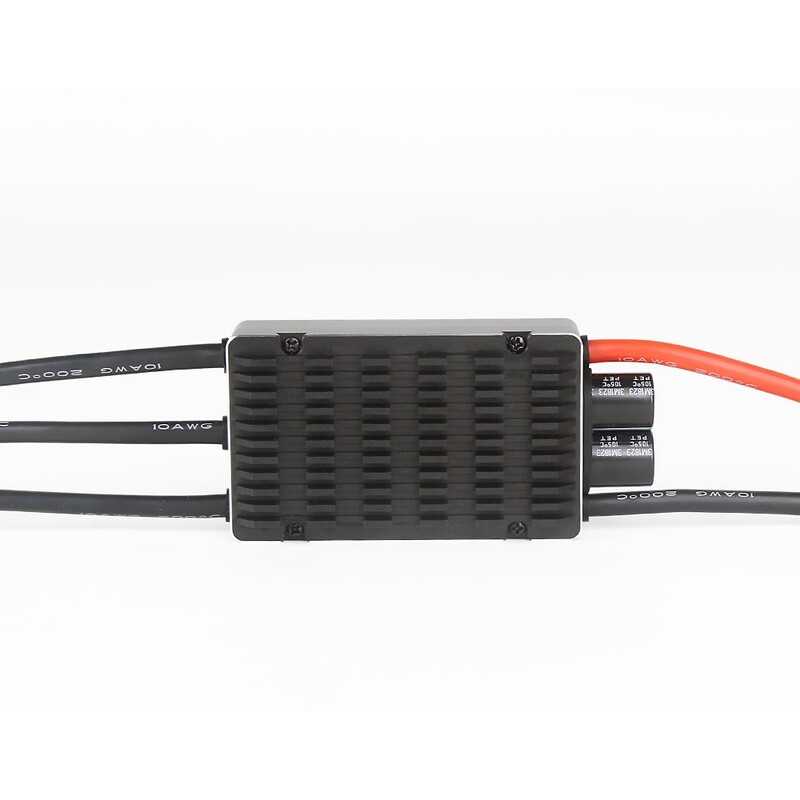

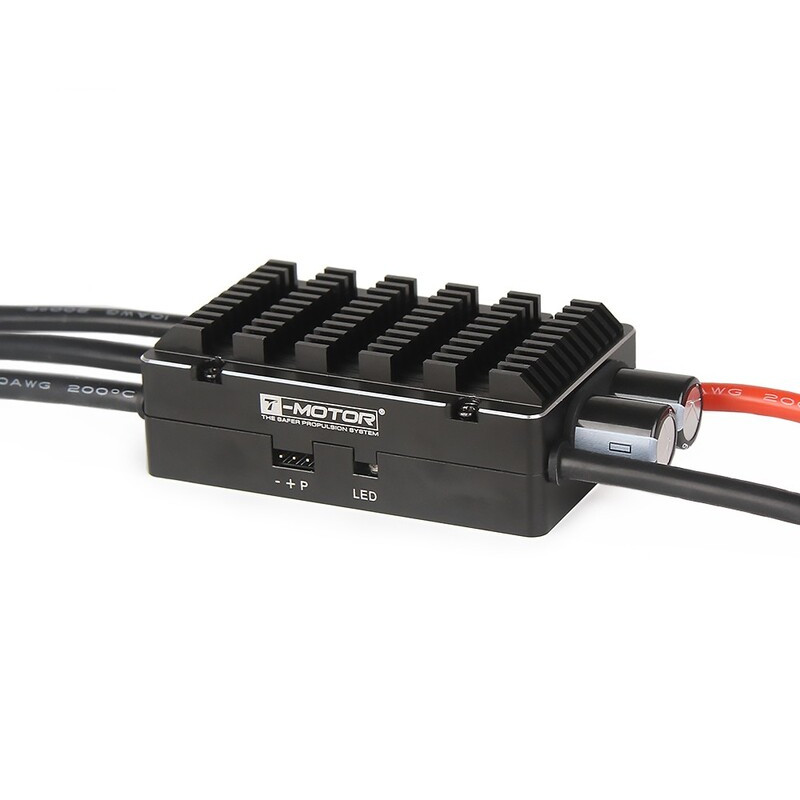

T-Motor AT 115A — Electronic Speed Controller (ESC) for RC Aircraft

T-Motor AT 115A — a powerful brushless speed controller designed for RC aircraft and outdoor flights, combining high performance and reliability. This ESC supports power from 6S to 14S LiPo batteries (22.2–51.8 Volts) and provides a continuous current of 115 A with a peak current of up to 120 A. The controller has compact dimensions of 92x46x27.3 mm and a weight of 182 grams, making it suitable for a wide range of models where power and weight are critical.

The device is equipped with a built-in SBEC (Switching BEC) with output voltages of 5.2V / 6V / 7.4V, which can power onboard electronics with a current supply of up to 10A/25A depending on the mode. Important: the controller does not have a connector for battery connection, so battery wires must be connected directly according to the instructions.

Key Advantages

• High performance and stable operation even under intense loads.SBEC output support for powering model electronics.
• Fast throttle response and smooth motor startup.
• Multiple programmable parameters for fine-tuning to specific models and motors.

Specifications

Package Contents and Additional Information

• Speed controller – 1 pc.
• User manual – 1 pc.

This T-Motor ESC is ideal for RC aircraft requiring a powerful and stable motor control source. Thanks to its wide input voltage range and SBEC, you can power both the motor and onboard electronics without additional modules. Passive air cooling allows the controller to be used in standard flight conditions, and programmable parameters enable optimization of system behavior for specific tasks.

Product category: Drones and Quadcopters > Stacks (FC+ESC). If you need a reliable ESC with excellent command response and modern protection mechanisms (overvoltage protection, thermal protection, emergency mode, braking, soft start), the T-Motor AT 115A — is an excellent choice.
