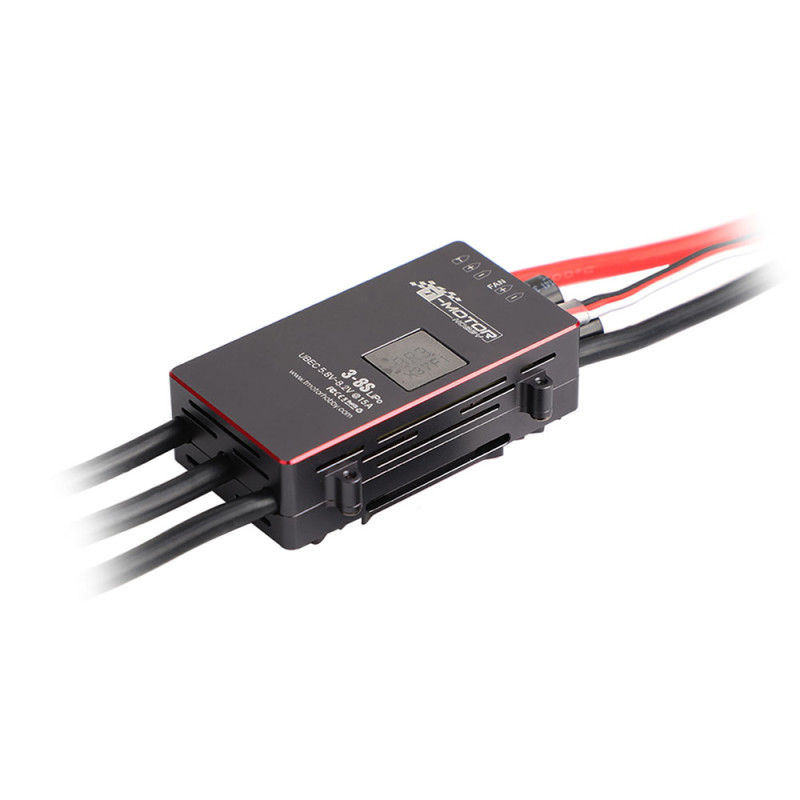

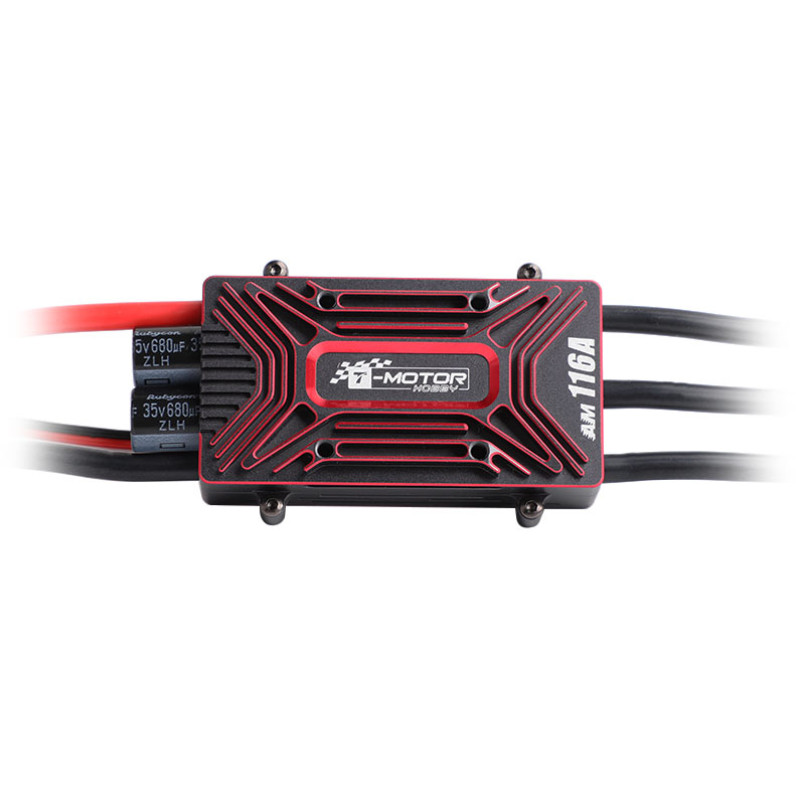

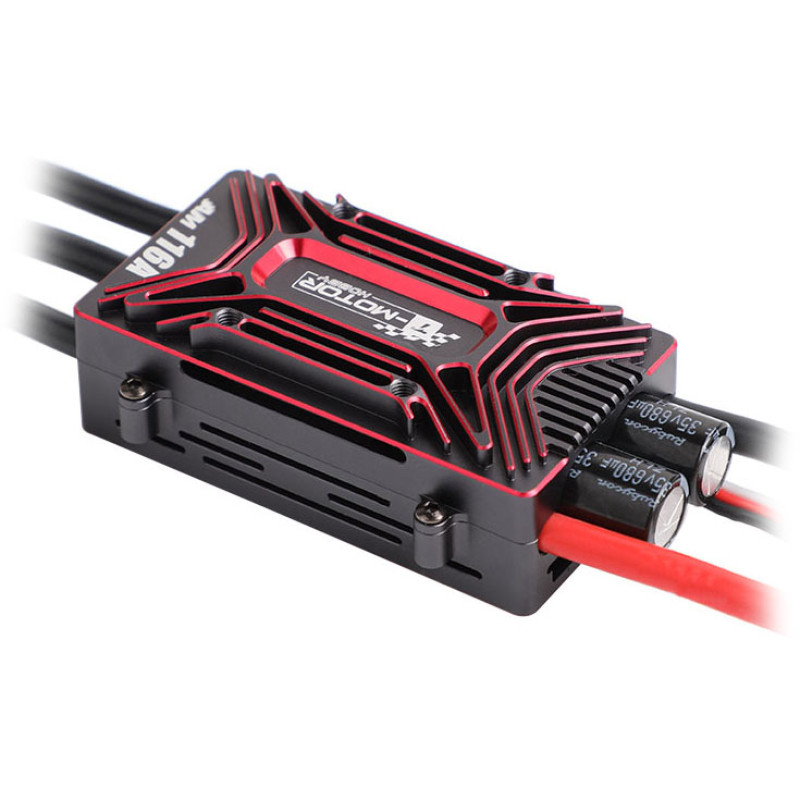

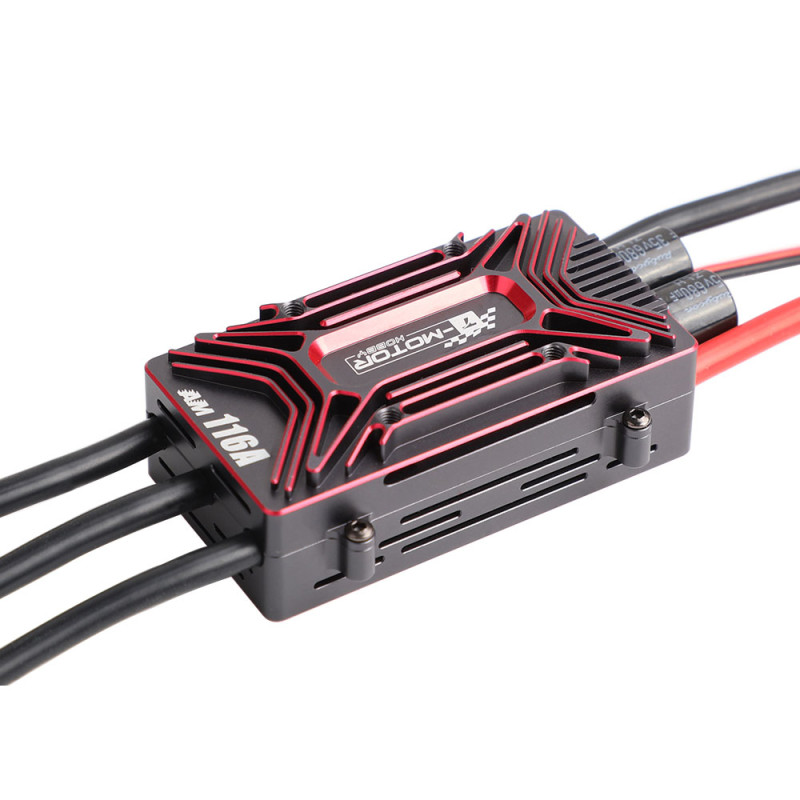

T-Motor AM116A ESC — a high-performance ESC from T-Motor for professional and semi-professional drones. This ESC is ideal for heavy-lift UAVs and applications requiring precise throttle response and reliable current delivery. This product belongs to the category: Drones & Quadcopters > Stacks (FC+ESC).

Thanks to advanced software and a modern 32-bit processor, the ESC provides fast and accurate response to remote control commands, improving flight control and stability. The casing has holes for secure strap mounting, simplifying installation in compact or modular designs. A small fan is included, which can be attached directly to the ESC for active cooling during intense loads.

Features and Benefits

The AM116A combines high throughput, an adjustable BEC, and the ability to integrate telemetry via an optional module. If you need to transmit telemetry data from the ESC to the remote control and gain extended configuration options, the ESC can be supplemented with the AM Link module. This unlocks additional real-time parameter control and simplifies in-flight system diagnostics.

Key Specifications

• Power Supply: 3-8S LiPo
• Current: 116A (136A burst)
• BEC Output Current: 5.8/7.4/8.2V – adjustable
• BEC Current: 15A (25A burst)

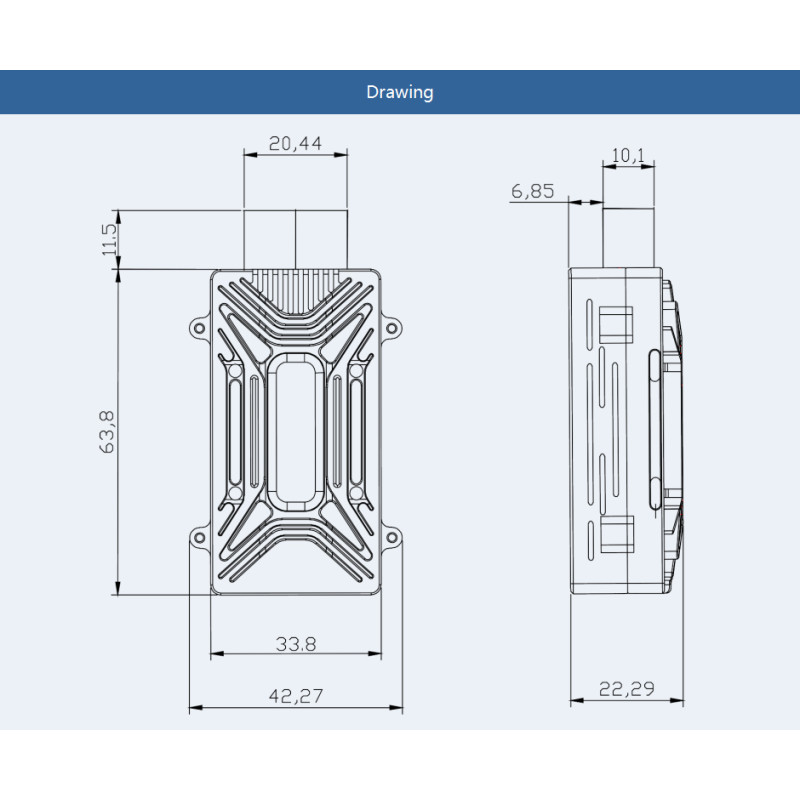

• Dimensions: 75x42x21.8 mm
• Weight: 113 g
• Power Cable: 200 mm 4 mm² (12AWG) without connector
• Output Cables: 90 mm 4 mm² (12AWG) – 4 mm Bullet connector
• Signal Cable: 400 mm

These technical parameters make the AM116A suitable for applications requiring high load resistance and stable power supply to electric motors. The adjustable BEC allows you to fine-tune the output voltage to meet the needs of your electronics, ensuring reliable operation of avionics and servos.

Package Contents

• 1x ESC
• 1x Capacitor
• 1x Screw Set
• 1x Fan

The kit includes everything necessary for initial installation and operation: a capacitor for smoothing voltage spikes, a screw set for mounting, and a fan for active cooling during intensive operation. Thanks to the length of the signal and power cables, the ESC easily integrates into various designs without additional wiring adjustments.

The AM116A is suitable for systems where prolonged operation under load and efficient heat dissipation are important. It is recommended for use in heavy and medium-heavy drones, robotic platforms, and projects where reliability and control across a wide range of LiPo voltages (3-8S) are a priority.

If you are looking for an ESC with 116A power and a 136A short-term peak current capability, with an adjustable BEC and the option to add telemetry via the AM Link module, the T-Motor AM116A is an excellent choice for your projects.

You can clarify other technical questions or recommendations for selecting compatible equipment with store specialists.
