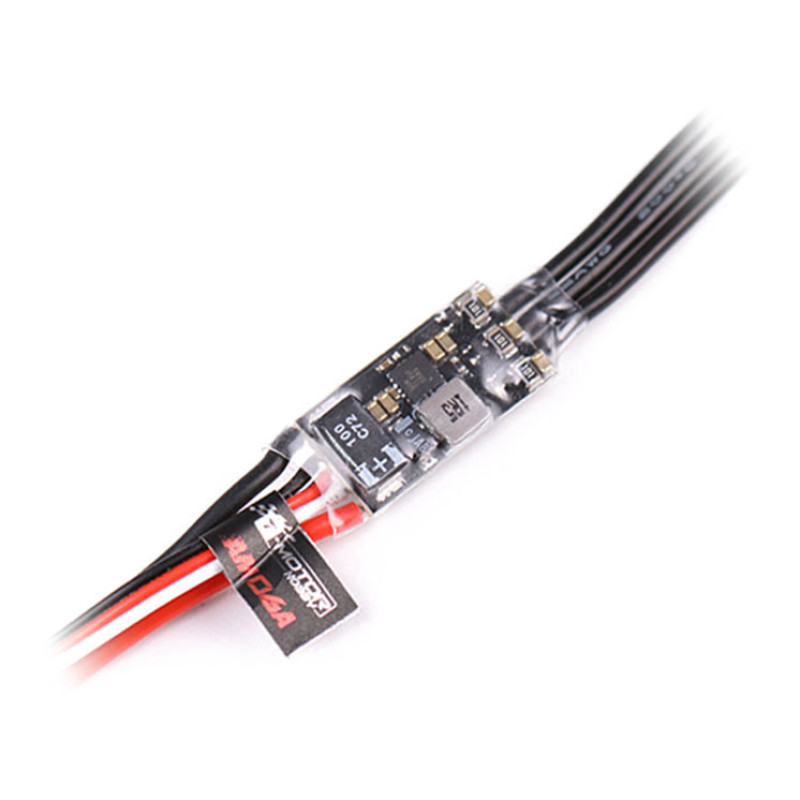

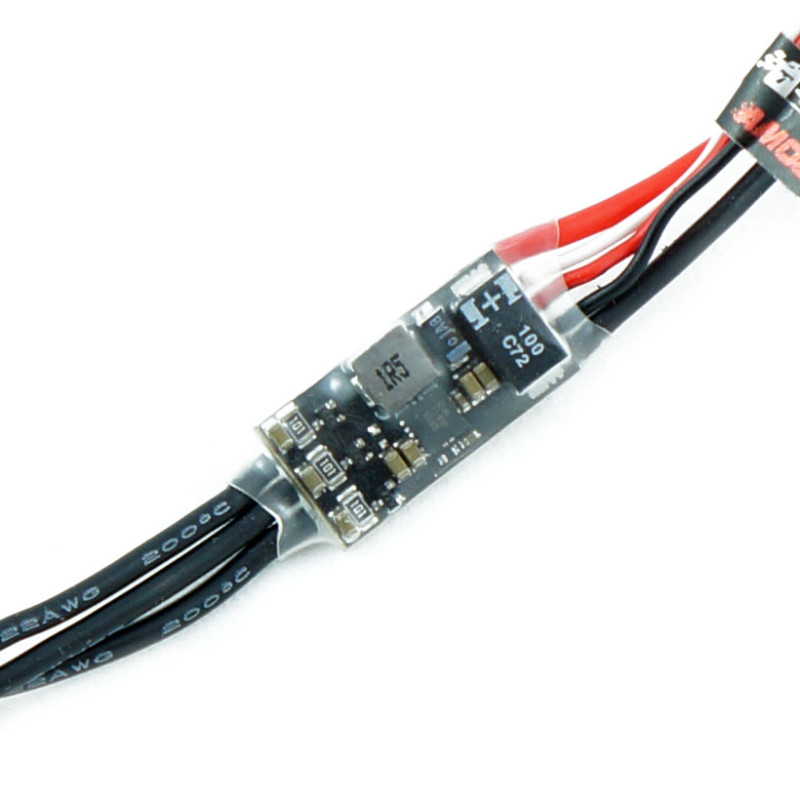

T-Motor AM06A F3P-A — a compact and ultralight 6A electronic speed controller (ESC) designed specifically for indoor aircraft models and F3P-class. This ESC has a continuous current of 6A and a peak tolerance of up to 8A, operates on 1-2S LiPo batteries, and weighs only 1.1g without cables. The built-in BEC provides a stable voltage of 5.2V at up to 1.5A, allowing it to power servos and the receiver without an additional power source. The BLHeli_S firmware ensures fast, precise, and reliable motor control, which is especially valued in acrobatic and racing FPV modeling.

Key Advantages

The AM06A F3P-A combines high performance with minimal weight, making it ideal for agile models. T-Motor's reliability and quality ensure stable operation under load, while efficient cooling helps maintain optimal temperature during complex maneuvers and tricks.

Main Characteristics

Below are all the technical parameters and configurations of this controller that are important to consider when selecting electronics for your model.

• 1. Continuous / Max Current: 6A / 8A
• 2. Compatible Batteries: 1-2S LiPo
• 3. Weight: 1.1g (without cables)
• 4. BEC: 5.2V / 1.5A
• 5. Dimensions: 18.5×9.5 mm

Additional Parameters and Connection

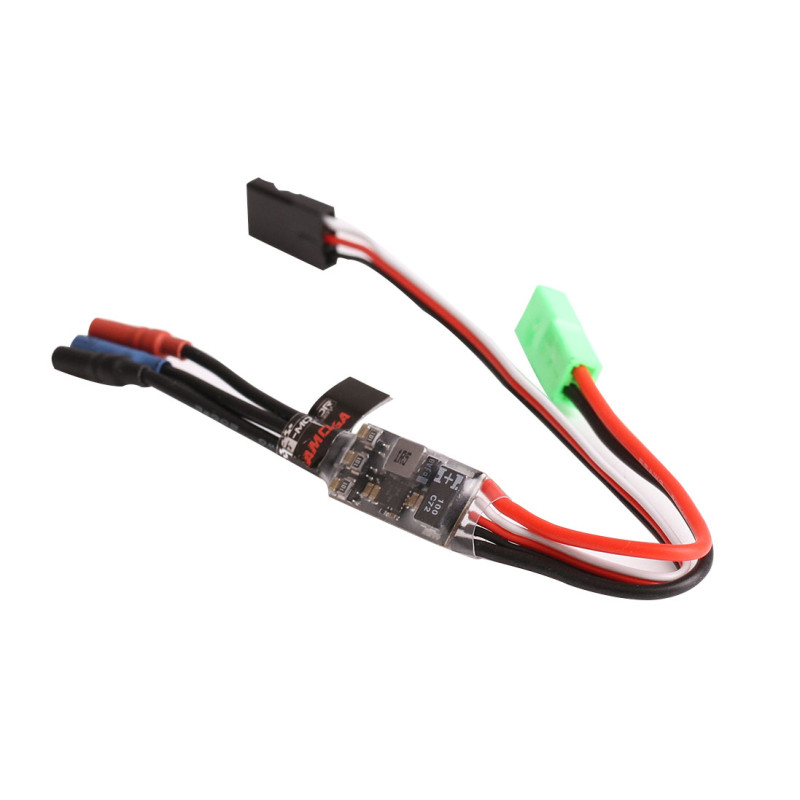

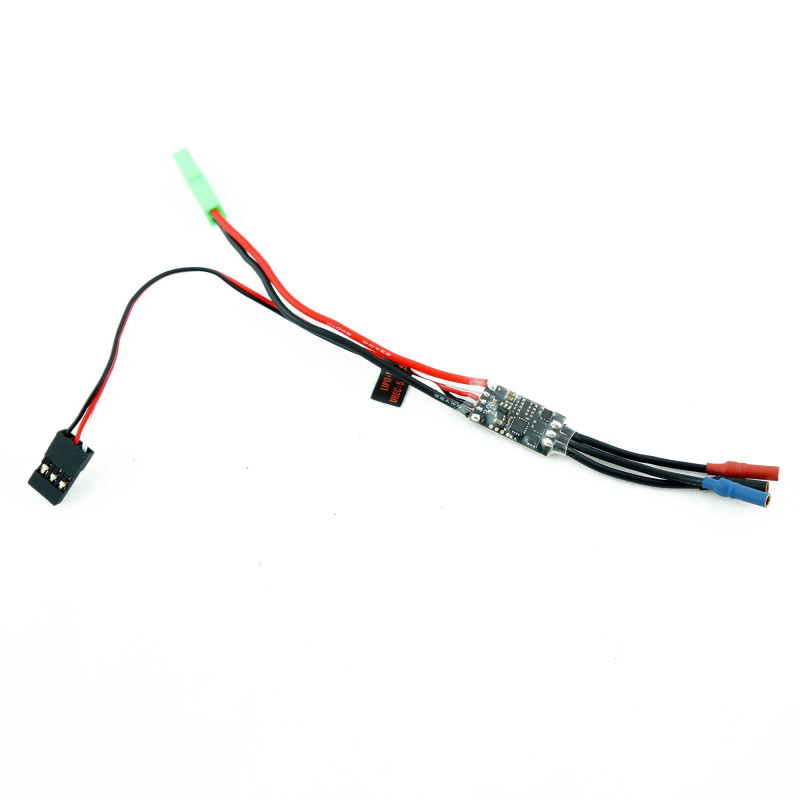

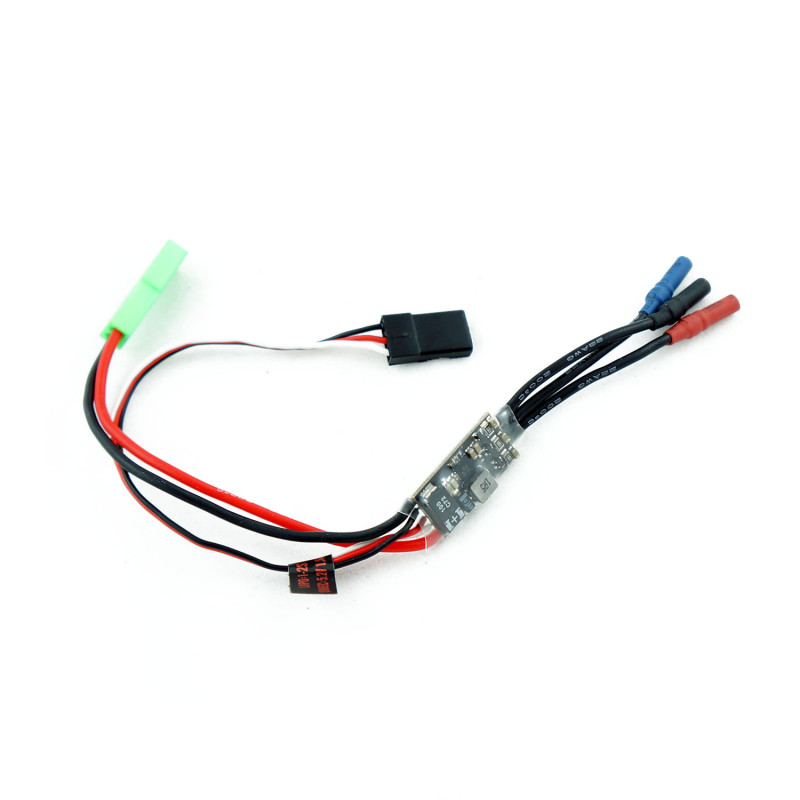

The controller features programmable parameters for fine-tuning to different motors and flight styles. The battery connector is JST-type. Battery power cables are 8 cm long with a cross-section of 0.34 mm2 (22AWG). Motor cables: 4 cm 0.34 mm2 (22AWG). Signal cable — 12 cm, providing sufficient length for convenient placement of the controller within the model's frame.

Included in the set

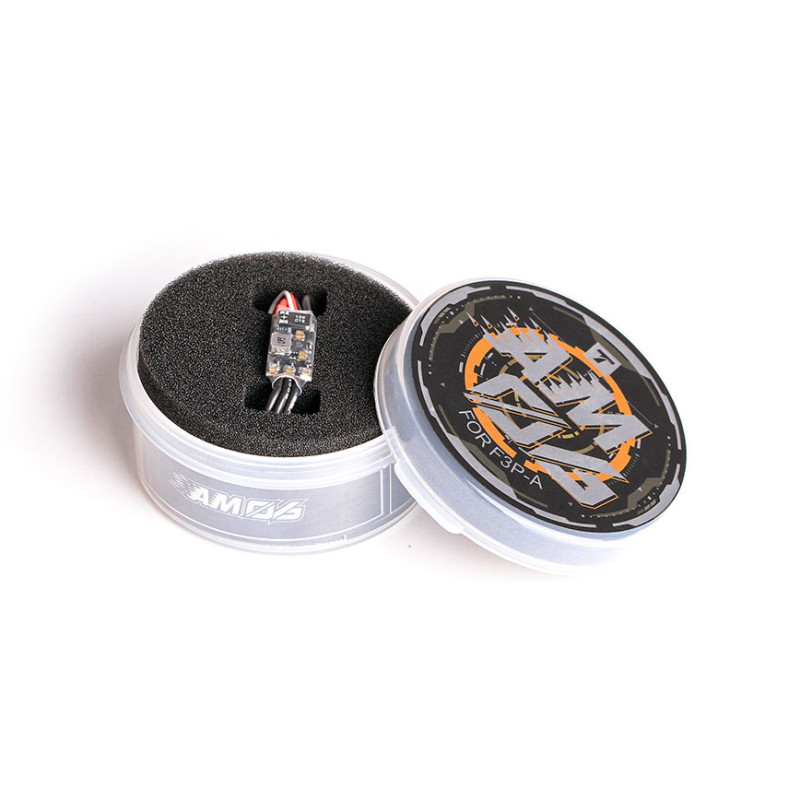

• 1x T-Motor AM06A F3P-A speed controller

This ESC is ideal for RC modeling enthusiasts who seek maximum maneuverability and reliability in small F3P aircraft. BLHeli_S firmware ensures fast response and smooth control, while compact dimensions and low weight minimize impact on the model's center of gravity.

Manufacturer: T-Motor. Product Type: Drones & Quadcopters > Stacks (FC+ESC).

Other important details: during connection and setup, follow safety instructions, check the polarity of the JST connector, and ensure reliable soldering to avoid overheating or short circuits. The AM06A F3P-A will be an excellent choice for professionals and amateurs who value performance combined with minimal weight.
