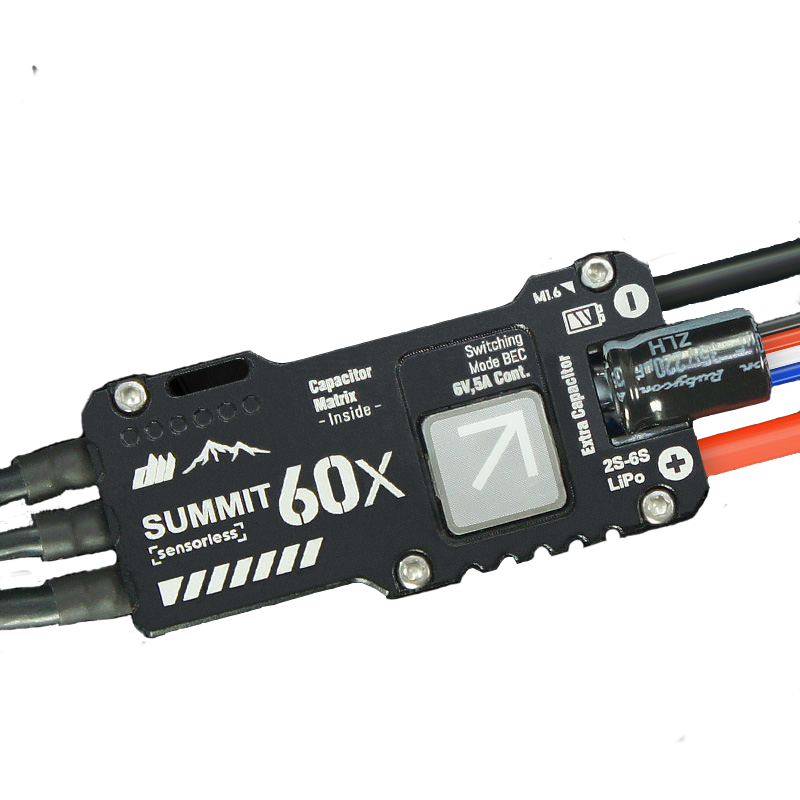

Dualsky SUMMIT 60X.U6 speed controller from Dualsky is a high-performance brushless ESC designed specifically for electric gliders and other aircraft with limited internal space. Its compact and narrow body, with a thickness of only 7.2 mm, allows the controller to be installed in thin fuselages. The "X" version features CNC cooling for enhanced heat dissipation efficiency, enabling it to withstand increased peak currents under intense loads, while the "Slim" version comes in heat shrink for maximum space saving — one of the most compact solutions in its class.

Description and Key Advantages

The SUMMIT 60X.U6 is equipped with a powerful built-in 6V / 5A BEC with a temporary boost capability up to 10A, ensuring stable power supply for onboard electronics and servos. The controller supports LiPo 2-6S batteries and provides a maximum continuous current of up to 60A. Programming and setup are done via the BLHeli_32 App (Android) or using a PC with an OTG adapter (sold separately), allowing fine-tuning of parameters for a specific model. The robust design and efficient cooling of the X version make this controller an excellent choice for models where every millimeter and gram matters.

Technical Specifications

• Motor Type: Brushless
• LiPo Cells: 2-6S
• Max. Continuous Current: 60A
• BEC: 6V / 5A (up to 10A momentary)
• Dimensions: 49×23×7.2 mm
• Weight: 40.6 g
• Housing: CNC-machined (X version), heat shrink (Slim version)
• BLHeli_32 Support: Yes
• Programming: Via Android app or PC with OTG adapter
• PWM Frequency: 24 kHz

Factory Settings

• Rotation Direction: Normal
• Motor Timing: Auto
• Minimum Throttle Position: 1040 µs
• Maximum Throttle Position: 1960 µs
• Voltage Cutoff: 3V per cell
• Braking: Activated at 80%
• PWM Frequency: 24 kHz

The Dualsky SUMMIT 60X.U6 controller is ideal for enthusiasts and professionals seeking a reliable solution with minimal dimensions for models where compactness and weight are crucial. Thanks to the BEC's temporary current boost capability, BLHeli_32 support, and the X version's well-designed cooling system, it ensures stable operation under intense loads. Recommended for electric gliders, high-speed models, and other lightweight aircraft.
