KASHTAN mBEC 6–26V – 5V/9V/12V Power Regulator

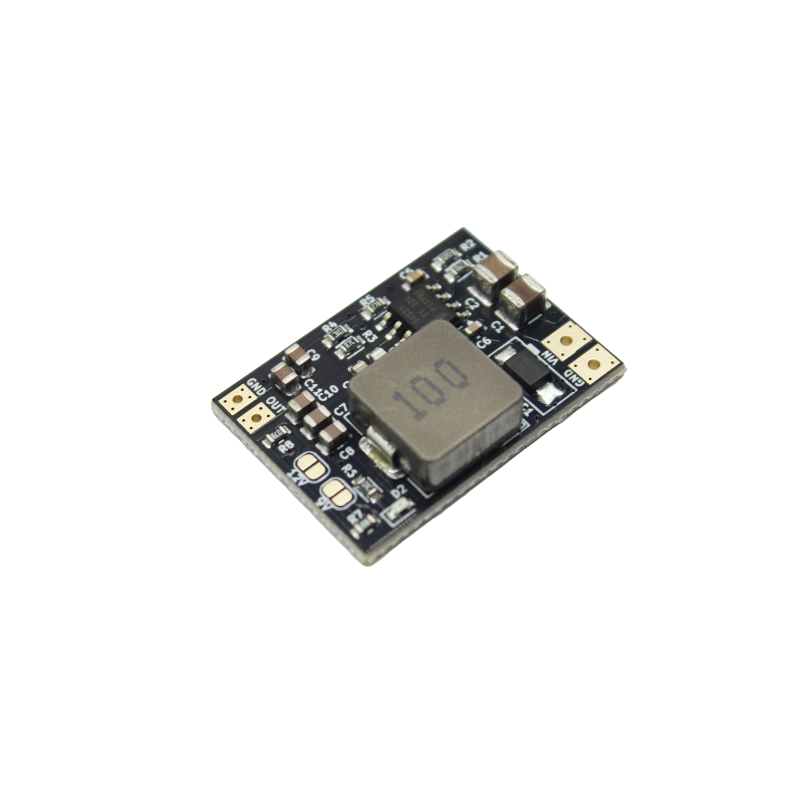

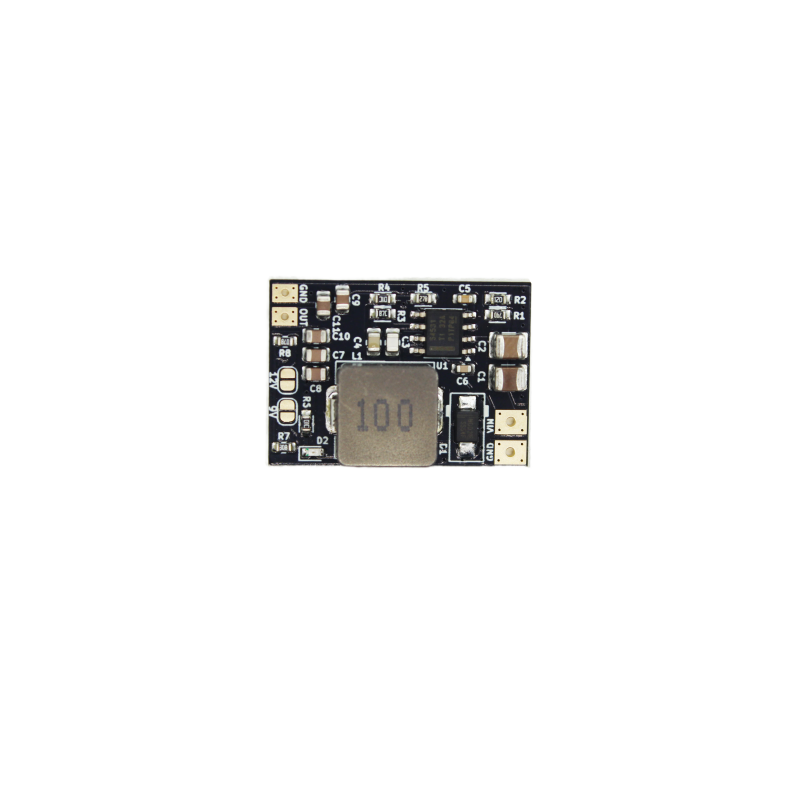

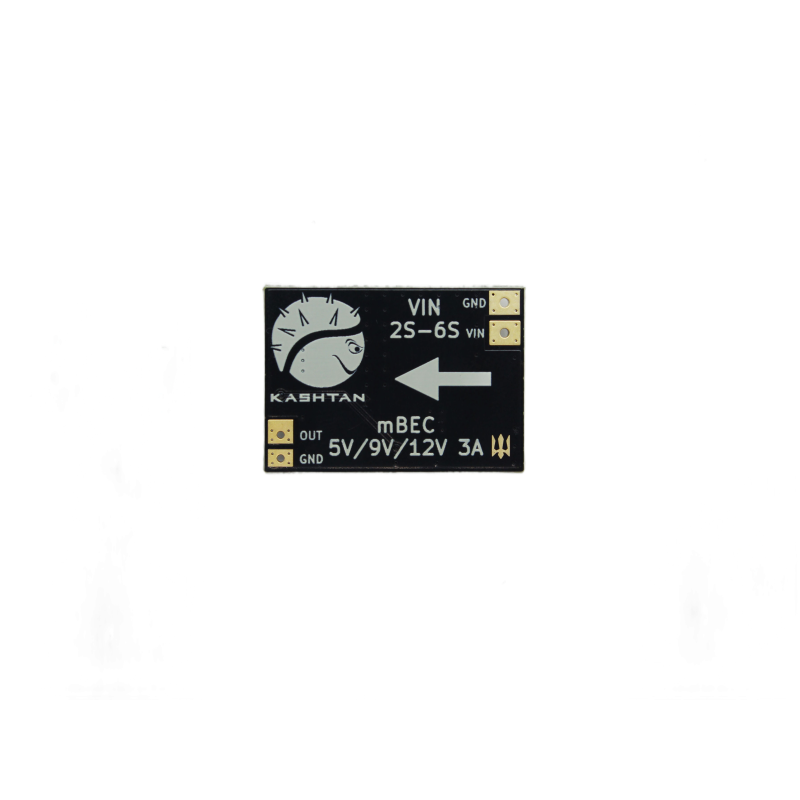

KASHTAN mBEC 6–26V – 5V/9V/12V is a universal power stabilization module (BEC) of Ukrainian production by the KASHTAN brand, designed to provide stable voltage to electronic components in drones, aircraft, ground platforms, FPV systems, and robotics. The module operates within a wide input voltage range of 6–26V (2–6S LiPo) and allows selecting an output voltage of 5V, 9V, or 12V using a jumper on the board. Compact and lightweight (weight 5g, dimensions 20 × 28 × 7 mm), it is optimal for models with limited space and for FPV drones. The module has built-in protection systems against overvoltage, overcurrent, short circuit, and overheating, ensuring reliable operation under load.
Technical Specifications
- Input Voltage: 6–26V (2–6S LiPo)
- Output Voltage: 5V / 9V / 12V (selectable by jumper)
- Default Output Voltage: 5V
- Maximum Continuous Load Current: up to 3A
- Dimensions: 20 × 28 × 7 mm
- Weight: 5g
- Protections:
- Overvoltage
- Overcurrent
- Short circuit
- Overheating
Performance (at 24V input voltage)
| Load Current | 5V (Ripple/Temperature) | 9V (Ripple/Temperature) | 12V (Ripple/Temperature) | Operating Time |
|---|---|---|---|---|
| 1A | 20 mV / 50°C | 20 mV / 52°C | 26 mV / 45°C | 10 min |
| 2.3A | 30 mV / 75°C | 30 mV / 75°C | 30 mV / 70°C | 10 min |
| 3A | 35 mV / 80°C | 48 mV / 94°C | 40 mV / 100°C | 5 min |
| 3.5A | 45 mV / 110°C | 48 mV / 100°C | 45 mV / 125°C | 5 min |
| 4A | 50 mV / 130°C | 50 mV / 130°C | – | 5 min |
| 4.5A | 55 mV / 136°C | – | – | 5 min |
Note: The duration of stable operation depends on cooling conditions. Recommended use up to 3A for prolonged operation.
Advantages
- Reliable and stable power supply for flight controllers (FC), video transmitters (VTX), cameras, and servos.
- Supports a wide input voltage range of 6–26V for compatibility with 2–6S LiPo batteries.
- Quick and easy setup of the desired output voltage using a jumper on the board (5V/9V/12V).
- Compact and lightweight (20×28×7 mm, 5g) — ideal for lightweight FPV drones and models with limited space.
- High degree of safety due to protection against overvoltage, overcurrent, short circuit, and overheating.
Package Contents
- 1 × KASHTAN mBEC 6–26V – 5V/9V/12V Power Regulator
- USER MANUAL
Fully Ukrainian Production
Brand: KASHTAN. Product Category: Drones & Quadcopters > Stacks (FC+ESC). The model provides stable output voltage for a wide range of components and is suitable for both hobby and professional applications in UAVs and robotics.
