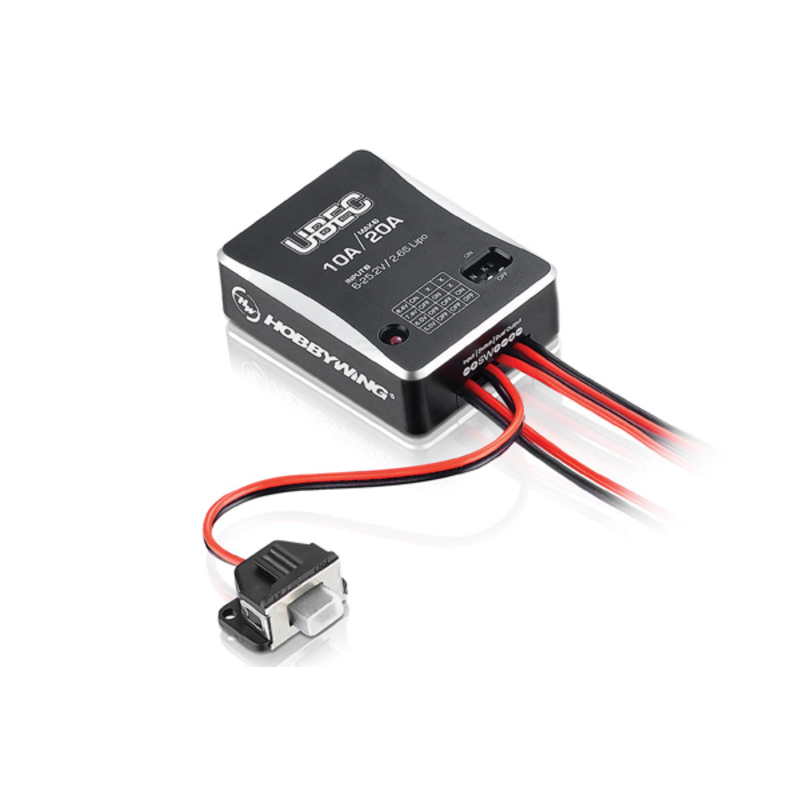

HOBBYWING UBEC 10A 2-6S Power Regulator

The HOBBYWING UBEC 10A 2-6S onboard electronics power regulator is a reliable and compact power module from Hobbywing, designed to stabilize the voltage of receivers, gyroscopes, and servos in large helicopter and aircraft models. This UBEC combines the high efficiency of a switching circuit with minimal weight and small dimensions, allowing for easy integration into the limited space of a model's chassis.

Description and Purpose

The regulator provides a stable output voltage when powered by 2S–6S (7.4–22.2 V) lithium-polymer batteries. The UBEC is suitable for large-scale and semi-professional models where a reliable current supply to servos, receivers, and other onboard electronic components is required. Switching conversion reduces heat generation and increases the overall energy efficiency of the system, which is especially important during prolonged and intensive loads.

Specifications

• Type: Switching.
• Power Source: 7.4–22.2 V (2–6S).
• Output Voltage: 5 V or 6 V (switchable according to electronics needs).
• Rated Current: 3 A (short-term peak current up to 10 A possible under appropriate conditions; for continuous use, it is recommended to adhere to the rated current).
• Dimensions: 43×17×7 mm.
• Weight: 11 g.

Compact dimensions of 43×17×7 mm and a weight of only 11 g make the UBEC 10A ideal for models with limited installation space. The switching design ensures high energy conversion efficiency and minimal heat generation even under prolonged loads, extending the lifespan of both the regulator and the connected electronics.

Advantages

• Stable output voltage of 5 V or 6 V — a universal solution for various onboard electronics.
• Compatibility with a wide range of 2S–6S (7.4–22.2 V) batteries.
• Low weight and compact dimensions for easy installation in confined enclosures.
• High efficiency and reliability from the Hobbywing brand — known for quality components and long service life.

Area of Application

Recommended for large helicopters, airplanes, and other models where stable power for receivers, servos, and gyroscopes is required. An ideal choice for hobby and semi-professional enthusiasts who value reliability, compactness, and efficiency of power elements.
