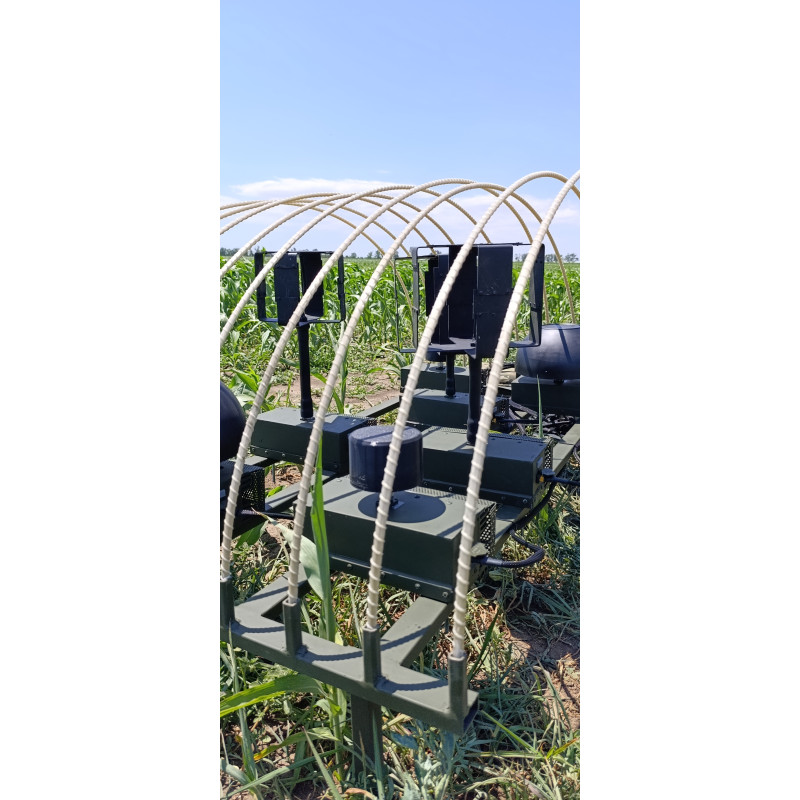

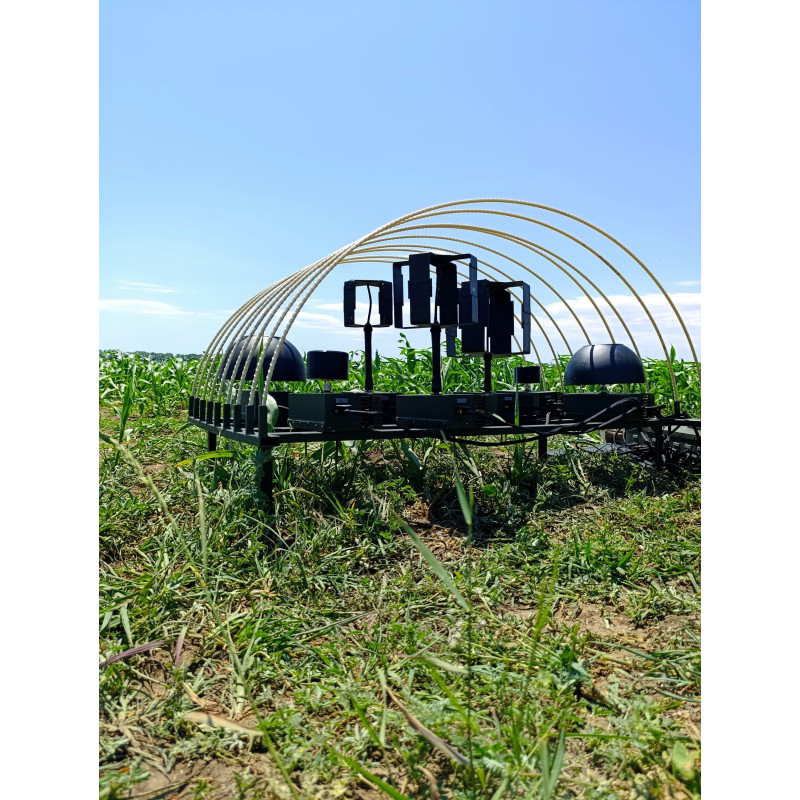

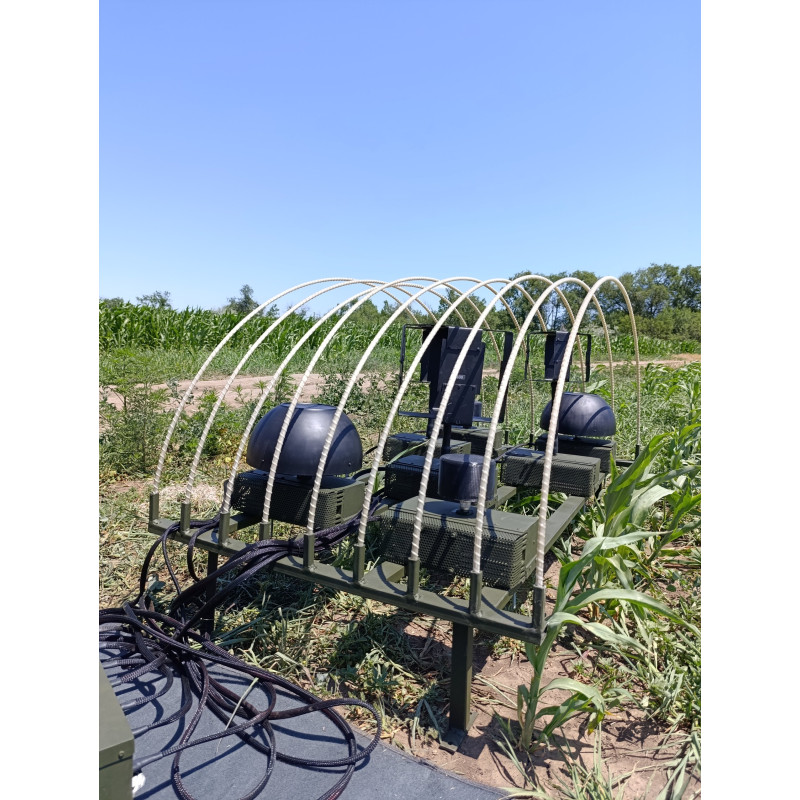

EW Jammer Shelter 9AM Modular

The Modular EW Jammer Shelter 9AM WITHOUT BATTERY (optional) is designed for installation on vehicles and operational use in electronic warfare tasks. The device ensures effective blocking of a wide range of frequencies thanks to its modular design, modern components, and high-power signal generation units. Due to variable configurations, it can be equipped with a built-in battery if needed, or connected to a 12V/24V onboard power supply for integration with various platforms.

Advantages

• 9 bands provide simultaneous coverage of a wide spectrum of signals, from control systems to drone video transmissions.
• Each module is a separate unit, ensuring quick replacement and adjustment without disassembling the entire system in the field.
• Antennas are protected from snagging on branches during movement, increasing operational reliability on mobile equipment.
• The ability to individually activate modules allows for economical energy use and fine-tuning of coverage for specific threats.

Key Features

• Autonomy: equipped with a built-in battery if necessary (optional).
• Power Supply: built-in and/or 12V/24V (automotive), allowing the device to be integrated into various platforms and used both stationary and mobile.
• Frequencies in bands: 300 MHz - 6000 MHz — wide frequency coverage for suppressing typical UAV control, telemetry, and video transmission channels.
• Antennas: cloverleaf, quadrifilar, patch (for Mavic) — selected for optimal coverage of various types of drones and unmanned systems.
• Operating Bands: up to 9, with the ability to individually activate each module for precise adjustment of the suppression zone.
• Control: remote control unit for use from inside the vehicle — safe and convenient system management while driving or parked.
• Cooling: combined active and passive cooling system with dust and moisture protection for stable operation in challenging climatic conditions.
• Power: 50W per band; GaN technology used in modules for increased efficiency and reliability of frequency generation.
• Manufacturer: DH.
• Product Type: EW Jammers > Trench EW Jammers.

Effective Range

• 1. 150-250 m against FPV drones.
• 2. 200-300 m against Mavic (with patch antenna).

Package Contents

• 2 remote control units (2 m cable).
• Power supply unit and cables for connection to a 12V/24V source or mains.
• Electromagnetic field indicator for operational control of impact effectiveness.
• Rechargeable battery and charger — optional (available as additional modules for autonomous operation).

The EW Jammer Shelter 9AM Modular combines mobility, high output power, and the ability to fine-tune for perimeter security, object defense, and convoy escort tasks. The modular architecture allows for configurations ranging from stationary deployment on vehicles to temporary or field positions, quickly changing equipment and adapting antennas for specific types of unmanned systems.

Additional operational advantages: quick module replacement in the field, compatibility with various antenna types for optimal coverage, protective solutions for operation in aggressive environments, and increased reliability due to the use of GaN technologies in the output stages.
