Opening detector for objects requiring special protection

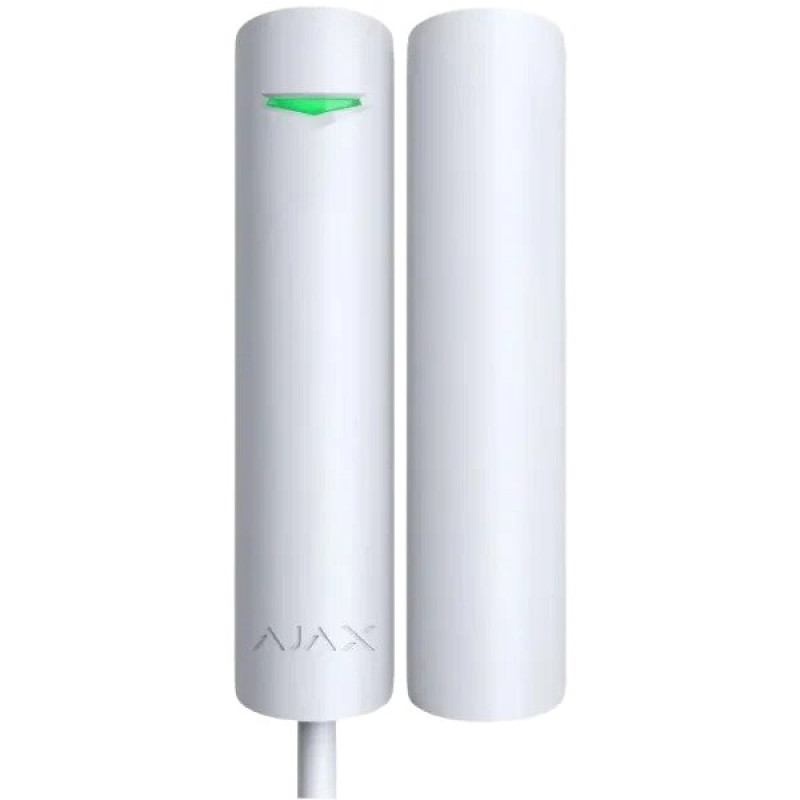

DoorProtect G3 Fibra is a wired opening detector for doors, windows, and safes. The device is equipped with two reed switches that function as opening sensors and are protected from rattling, and a magnetometer for protection against magnet substitution. Magnets of two sizes provide greater installation versatility for the device. The built-in accelerometer detects impact and tilt, allowing the premises to be protected even with windows open for ventilation. Smartphone setup and effortless installation — all for the comfortable work of professionals.

High-quality reed switches reliably detect opening

DoorProtect G3 Fibra has two durable reed switches, each guaranteeing decades of reliable device operation. Two sensors allow the magnet to be placed on either side of the detector (right or left). The reed switches are housed in plastic capsules, so they remain undamaged even if the detector is dropped or improperly transported. The operational effectiveness of DoorProtect G3 Fibra does not depend on the magnet's position.

Magnetometer to prevent sabotage

The built-in magnetometer records local magnetic field data during calibration. This allows the sensor to identify the installed magnet and monitor its influence. Any changes in the magnetic field instantly trigger an alarm, thus providing protection against magnet substitution. Simple calibration and sensitivity level adjustment in the application allow for precise detection of interference and prevention of false alarms. Plastic spacers included in the mounting kit reduce the influence of metal surfaces. For example, if the detector is installed on a safe door.

Instant threat detection

The built-in accelerometer instantly reacts to impacts and detects intrusion attempts. The sensor will trigger if an intruder tries to force open a safe or break down an entrance door. Choose one of three sensitivity levels according to the characteristics of the protected premises. Use the single impact ignore option to avoid false alarms. Set the necessary settings so that neighbors' renovations or loud street traffic do not trigger an alarm.

Protection for windows open for ventilation

The built-in accelerometer protects windows open for ventilation. Settings allow easy adaptation of the device to any windows. The installation engineer can set the normal tilt angle of the window or door — from 5 to 25 degrees. The detector will instantly detect even the slightest deviation from the normal position. Detection time can be adjusted from 1 second to 1 minute. If the tilt angle exceeds the selected value for the specified time, the system raises an alarm.
