BAYCK ExpressLRS 915MHz Nano TCXO Radio Receiver with Temperature Compensation

Brand: BAYCK
Category: Drones & Quadcopters > Drone Components > Drone Parts > Receivers

The compact BAYCK ExpressLRS 915MHz Nano TCXO receiver is a specialized module for models with limited space and weight, combining high link stability and ease of integration. The built-in TCXO (Temperature Compensation Crystal Oscillator) ensures a stable and precise microcontroller clock frequency, reducing frequency drift with temperature changes and increasing link reliability during flight in various conditions.

Brief Description and Advantages

The Nano form factor allows the receiver to be installed in compact frames where every gram of weight matters. The board features a convenient 4-pin JST (SH1.0) connector, enabling power and telemetry connection without soldering wires. The long T-shaped antenna improves reception quality and multiplies the chances of a stable connection in challenging conditions.

Device Features:

• Long T-shaped antenna for improved reception
• 4-pin JST (SH1.0) connector for solderless connection
• Built-in TCXO generator for stable clock frequency

Technical Specifications

• Model: 900MHz Nano RX TCXO (BAYCK ExpressLRS 915MHz Nano TCXO)
• Frequency: 915 MHz
• Antenna type: T-shaped

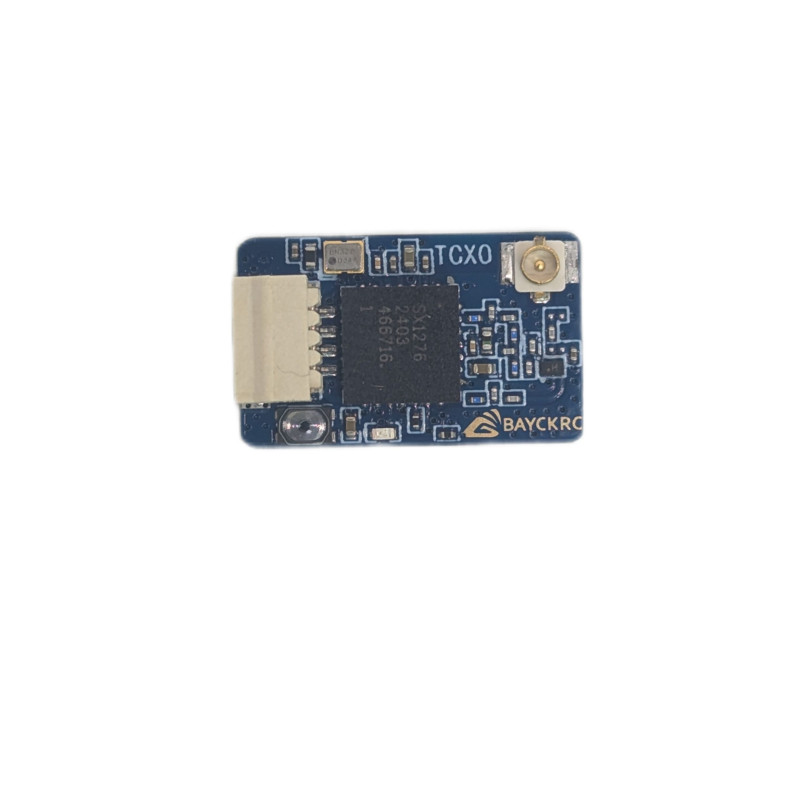

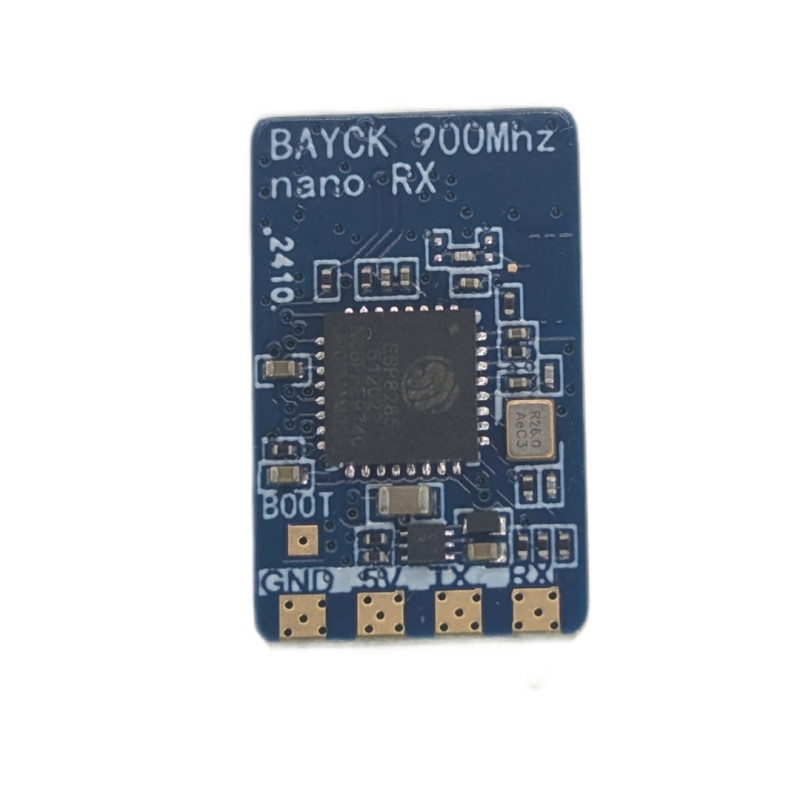

• Chip: SX1276 + ESP8285 + TCXO
• Target firmware: BetaFPV 900RX
• Board color: blue
• Telemetry power: 50 mW
• Input voltage: 3.6V-5.5V
• Antenna connector type: IPEX1
• Receiver weight: 0.6 g (without antenna)
• Board dimensions: 11 mm x 18 mm

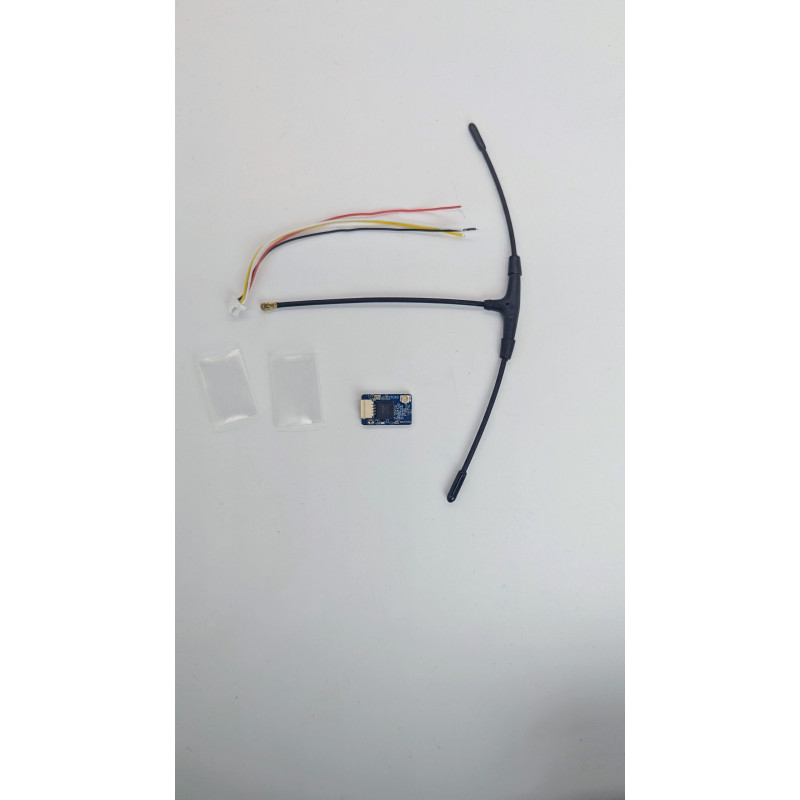

Package Contents

• 1x BAYCK ExpressLRS 915MHz Nano TCXO Receiver
• 1x T-shaped antenna
• 1x Heat shrink tubing
• 1x 4-pin JST SH1.0 extension cable

This module is suitable for pilots and builders who require a reliable, lightweight, and thermally stable receiver for ExpressLRS systems. The combination of the SX1276 chip, ESP8285 controller, and TCXO ensures high-quality telemetry and minimal frequency drift during temperature fluctuations. The IPEX1 connector simplifies external antenna connection, and its low weight (0.6 g without antenna) makes the device optimal for miniature and racing quadcopters.

If you need a practical and easy-to-install receiver with improved temperature stability — the BAYCK 915MHz Nano TCXO is an excellent choice for your project, offering a balance between size, weight, and link reliability.
