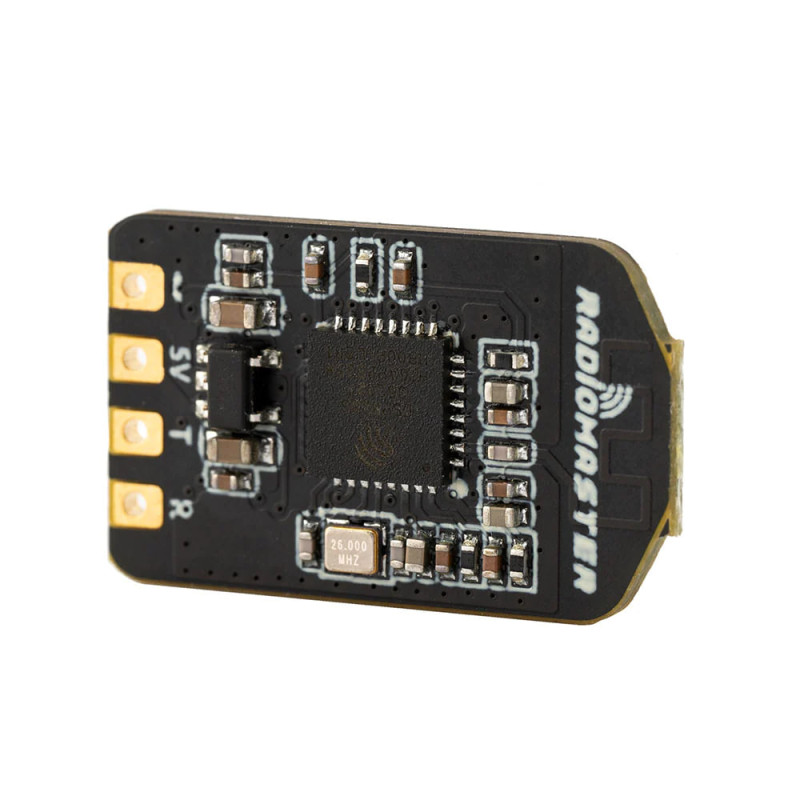

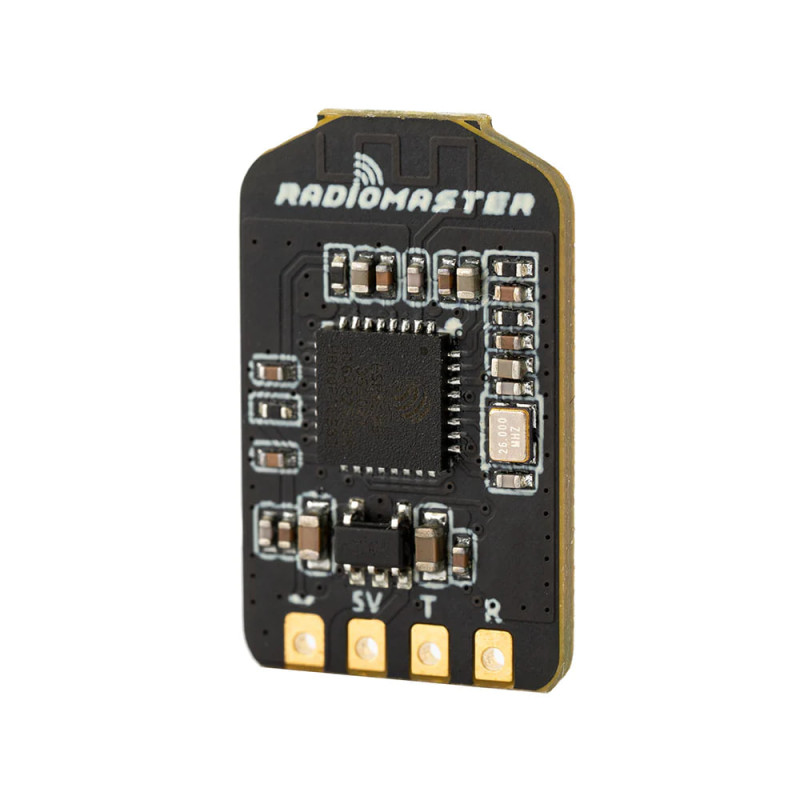

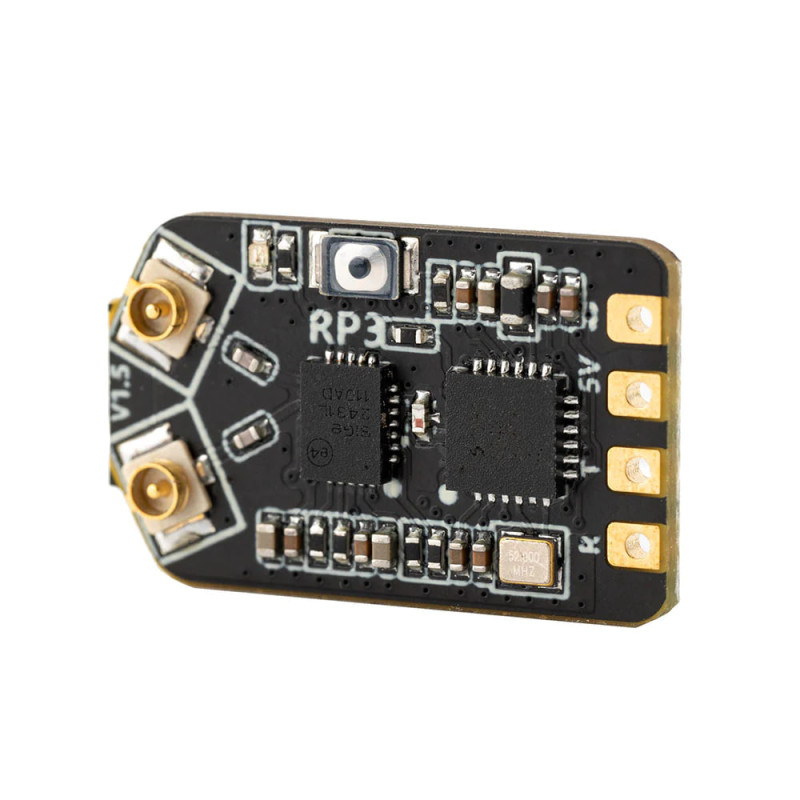

RadioMaster RP3 V2 ExpressLRS 2.4GHz Nano Receiver (FCC) from Radiomaster — a compact and high-performance module for drones and quadcopters, combining minimal weight and dimensions with reliable 2.4GHz radio communication. The device is ideal for amateur and professional pilots who need stable telemetry, low latency, and the ability to update firmware via Wi-Fi.

Description and Key Features

The RP3 V2 is equipped with a temperature-compensated crystal oscillator (TCXO), ensuring reception stability under varying environmental conditions. At the heart of the module is the ESP8285 MCU, while the RF section is mentioned as SX1280IMLTRT in the description and SX1281 in the specifications, which should be considered when comparing revisions in detail. The receiver supports LoRa and FLRC modulation modes in the 2.4GHz band, allowing for long-range communication and stable telemetry with excellent penetration capability.

The model has a built-in Wi-Fi module for over-the-air (OTA) firmware updates without the need to physically remove the receiver from the aircraft. Binding is done using a binding phrase, which simplifies the setup process and eliminates the need for additional buttons or special connectors. To improve reception quality, the Skyworks SE2431L chip is used, which functions as a low-noise amplifier (LNA) and power amplifier (PA). The receiver supports telemetry with power up to 100 mW and has an antenna switching function, which increases connection stability during flights in complex conditions.

Specifications

• Type: ISM receiver
• MCU: ESP8285
• RF chip: SX1280IMLTRT (in description) / SX1281 (in specs)
• Telemetry power: up to 100 mW
• Antennas: 2 pcs. 65mm T-antennas for 2.4GHz (UFL)
• Frequency range: 2.404 – 2.479 GHz
• Maximum receiver refresh rate: 500Hz / F1000Hz
• Minimum receiver refresh rate: 25Hz
• Operating voltage: 5V DC
• Weight: 4.6 g (including two antennas)

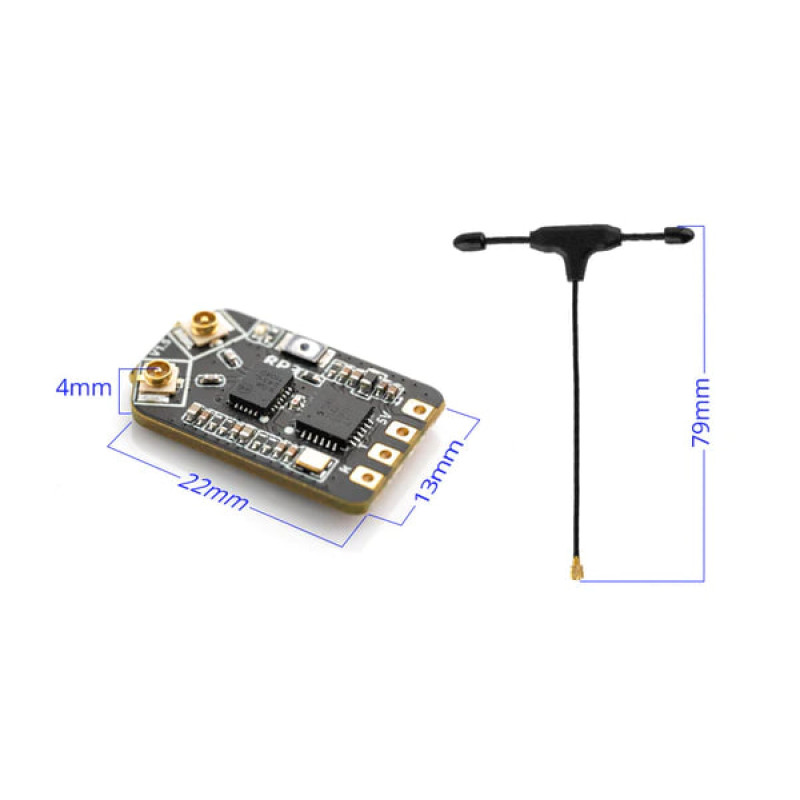

• Dimensions: 22 mm × 13 mm × 4 mm
• Firmware: ExpressLRS v3.0 (pre-installed)
• Bus interface: CRSF
• Feature: TCXO for stable operation at varying temperatures; Skyworks SE2431L LNA/PA; Wi-Fi support for OTA; phrase binding; antenna switching.

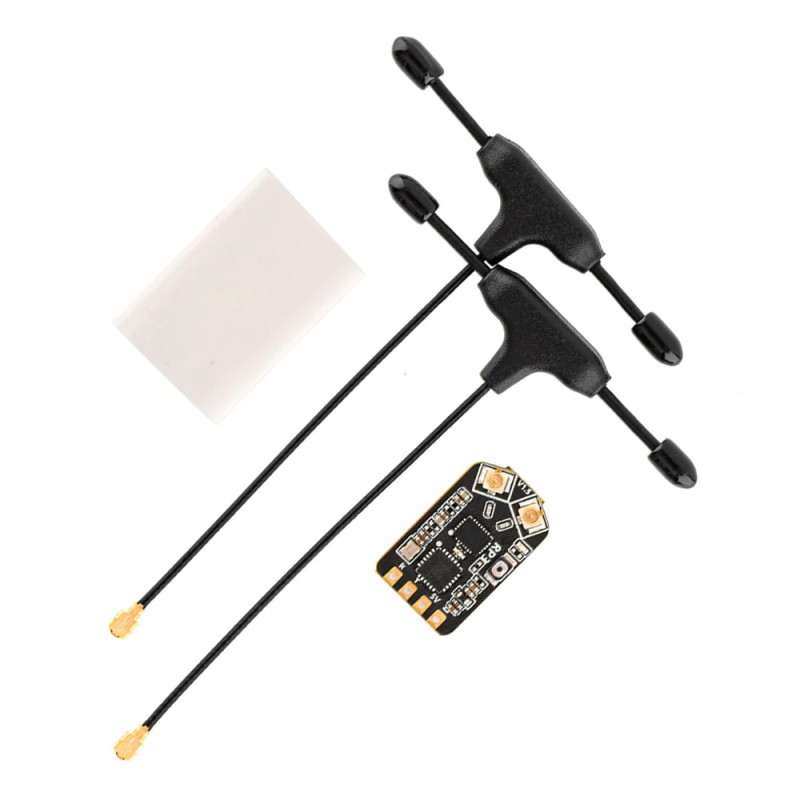

Package Contents

• 1 x RP3 V2 ExpressLRS 2.4GHz Nano receiver (FCC)
• 2 x 65mm UFL 2.4GHz T antennas
• 1 x User manual
• 1 x CRSF cable

The RadioMaster RP3 V2 receiver is an ideal solution for those looking for a compact, lightweight, yet powerful communication module for their models. With ExpressLRS v3.0 support, you get open-source firmware with an active community and frequent updates, Wi-Fi support for convenient updates without disassembly, and high flexibility in frequency settings and refresh rates up to 500Hz or F1000Hz. TCXO and Skyworks SE2431L are responsible for signal stability and quality, and two T-antennas ensure reliable coverage and the ability to switch antennas for optimized communication.

Product category: Drones and quadcopters > Receivers. Support for LoRa and FLRC standards makes the RP3 V2 a versatile choice for various tasks — from racing quadcopters to critical telemetry systems in FPV and other applications. If you need a reliable 2.4GHz module with fine-tuning capabilities and stable operation in various temperature conditions — the RadioMaster RP3 V2 is worth considering.
