BetaFPV ELRS Nano Receiver + Dipole T Antenna 46mm

Brand: BetaFPV. Category: Drones & Quadcopters > Drone Components > Drone Spare Parts > Receivers. This compact and lightweight ELRS Nano receiver is designed for micro and mini drones where size and weight are critical. The device is available in two key variants: 2.4 GHz and 915 MHz, allowing you to choose the optimal configuration for your flight style and operating conditions.

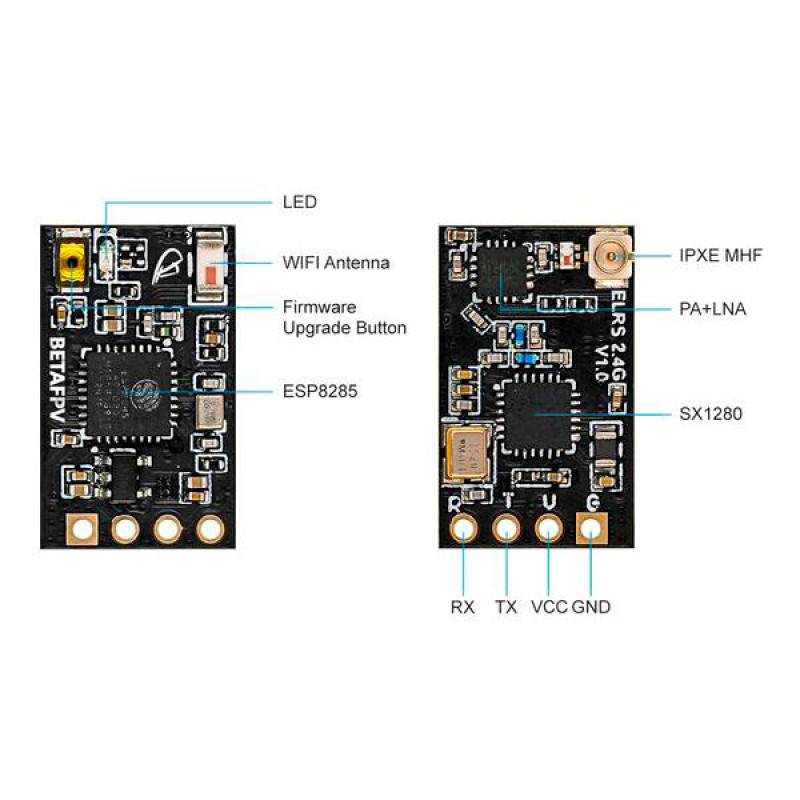

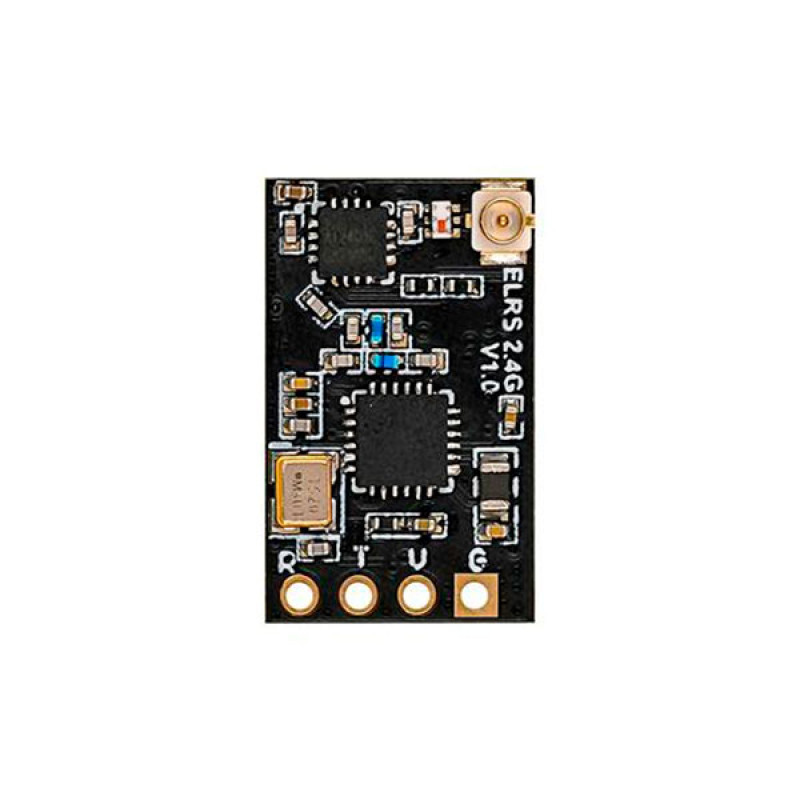

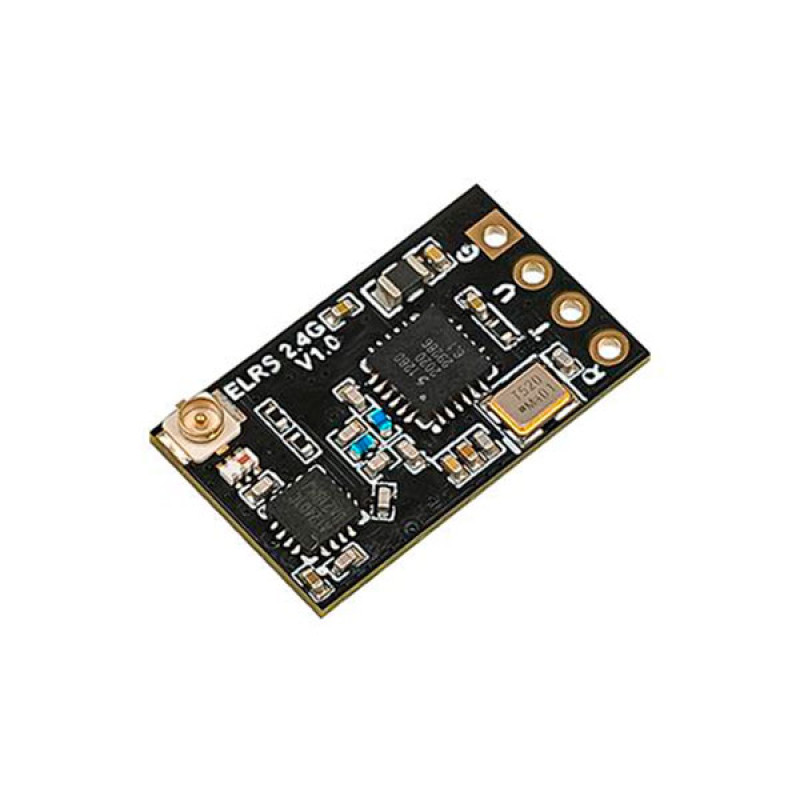

BetaFPV ELRS Nano 2.4G

Characteristics of the 2.4 GHz version:

• 2.4 GHz Frequency: optimal for indoor flights and in confined spaces due to good signal penetration and minimal interference at short distances.
• PWM Signal Support: allows control of motors, servos, and other actuators, providing basic compatibility with popular flight controllers.
• Lightweight and Compact: an ideal solution for integration into Toothpick, Whoop, and other micro and mini drones where weight and dimensions are crucial.

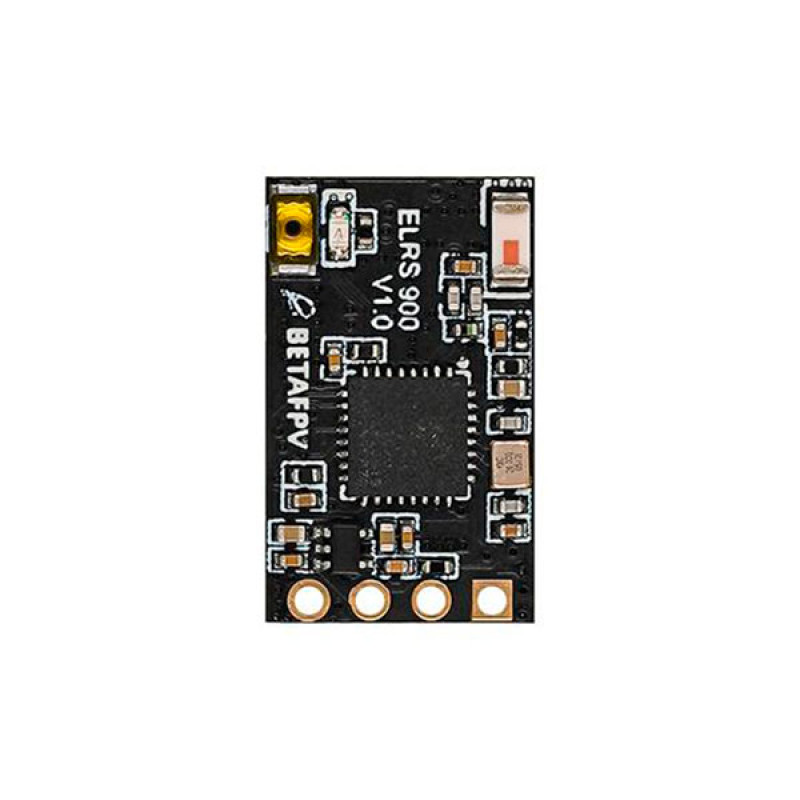

BetaFPV ELRS Nano 915MHz

Characteristics of the 915 MHz version:

• 915 MHz Frequency: provides a greater communication range between the receiver and transmitter, suitable for open-space flights at longer distances.
• PWM and SBUS Signal Support: expands compatibility with various transmitters and flight controllers, allowing the use of modern transmission protocols for precise control.
• Low Latency: important for precise and agile drone control over long distances, with minimal delays in control response.

The BetaFPV ELRS Nano is designed for applications where the receiver's mass and dimensions are critical. When choosing between the 2.4 GHz and 915 MHz versions, you should focus on communication range requirements and flight conditions: 2.4 GHz is better suited for indoor environments and dense urban areas, while 915 MHz will provide better communication in open spaces and for longer-distance flights.

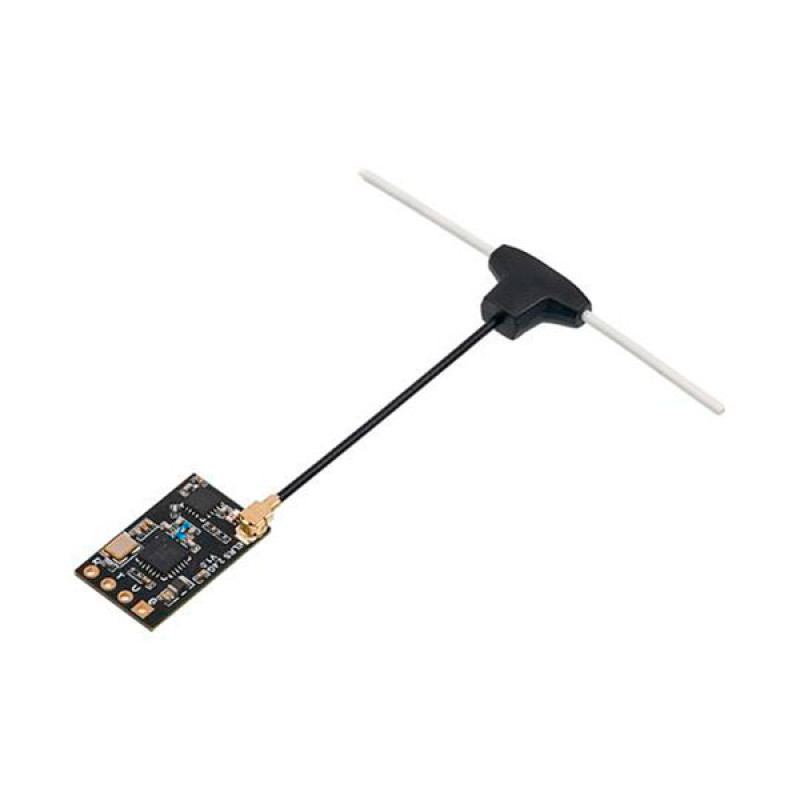

Antenna: blue Dipole T antenna for 915 MHz/868 MHz. The coaxial cable length of the antenna is 46 mm. Note that due to the short cable, the antenna has a limited range; to achieve maximum coverage and improve reception, it is recommended to additionally purchase a longer antenna or position the antenna mount to minimize shielding of the receiver by the drone's chassis.

The device is compatible with popular Toothpick and Whoop platforms, where weight and compactness are important, and provides reliable control via PWM or SBUS (depending on the model) with low latency for stable and safe flight.

Full product name: BetaFPV ELRS Nano Receiver + Dipole T Antenna 46mm. Manufacturer: BetaFPV. Product category: Drones & Quadcopters > Drone Components > Drone Spare Parts > Receivers.
