Receiver for Radio Equipment TBS Crossfire Nano RX (SE) w/ Immortal T V2 Antenna

Brand: TBS (Team Black Sheep). Model: TBS Crossfire Nano RX (SE) with Immortal T V2 Antenna. This is an ultracompact full-range receiver, created by Team Black Sheep engineers for stable long-distance operation in the Long Range / UHF segment.

Description and Advantages

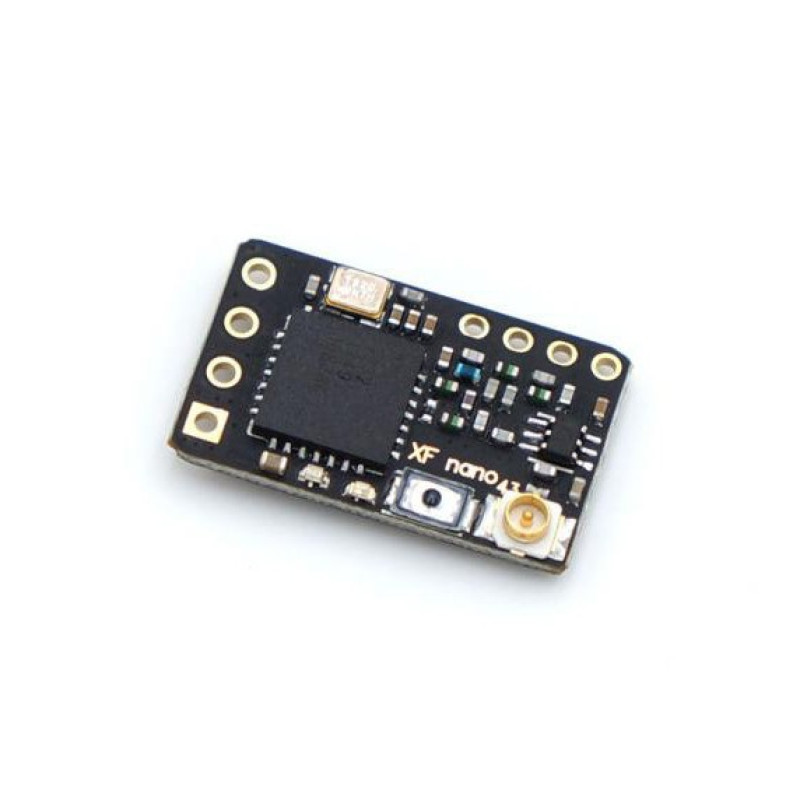

The TBS Crossfire Nano RX is one of the smallest and lightest full-range receivers in its class. The receiver's dimensions are smaller than FrSky XM+, yet it retains the full set of features required by modern FPV drone pilots: reliable long-range reception, telemetry transmission, and a wide range of interfaces for integration with flight electronics. The SE version comes with an Immortal T V2 antenna, which increases connection stability in challenging conditions.

Functionality

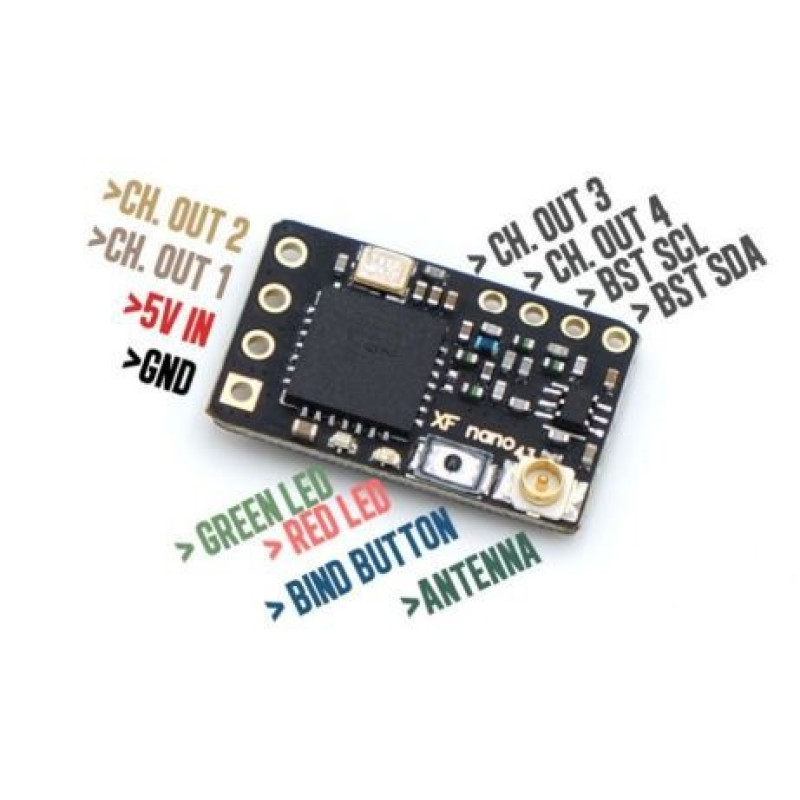

• Protocol and interface support: SBUS, PPM, PWM, CRSF, SmartAudio, MAVLink, Serial Bridge.
• Telemetry support for transmitting data on receiver and equipment status.
• Full Range receiver, suitable for long-distance flights in Long Range / UHF mode.
• Input voltage: 5V.
• Compact and very lightweight form factor, convenient for miniature multicopters and models with limited space.

Technical Specifications

• Firmware requirements: Firmware V2.25 (must be updated to the specified version for correct function operation).
• Size: 11 x 18 mm.
• Weight: 0.5 g (receiver only).
• Model: TBS Crossfire Nano RX (SE) w/ Immortal T V2 Antenna — ultracompact configuration with Immortal T V2 antenna.

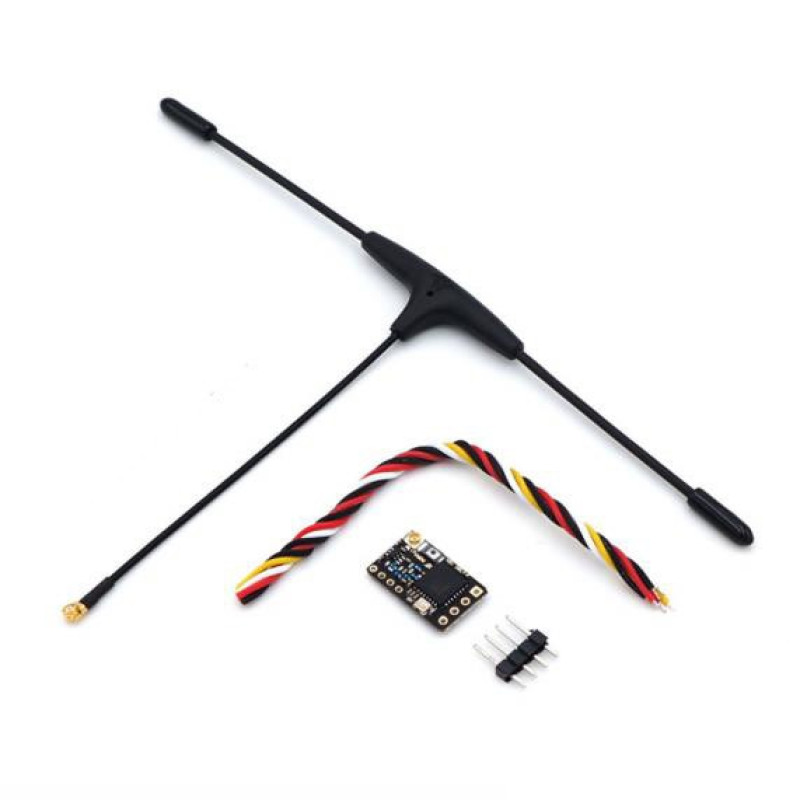

Package Contents

• 1 x TBS Crossfire Nano Receiver.
• 1 x antenna (antenna variant specified in product name — Immortal T V2).
• 1 x spare heat shrink tube.
• 6 x 30 AWG silicone connecting wires (2 black, 2 red, 1 white, 1 yellow).
• 1 x 1×4 pin header.

Purpose

The TBS Crossfire Nano RX (SE) is ideal for miniature FPV drones, racing drones, and other aircraft where compactness and low weight are critical, but long range and reliable communication are necessary. Thanks to SBUS, CRSF, and other interface support, it is easy to integrate into modern flight controllers and video transmission systems.

Additional Information

Manufacturer: TBS (Team Black Sheep). Product category: Drones and Quadcopters > Drone Components > Drone Spare Parts > Receivers. Attention: compatible firmware is not included — ensure your system is updated to V2.25 for correct operation of all functions.
