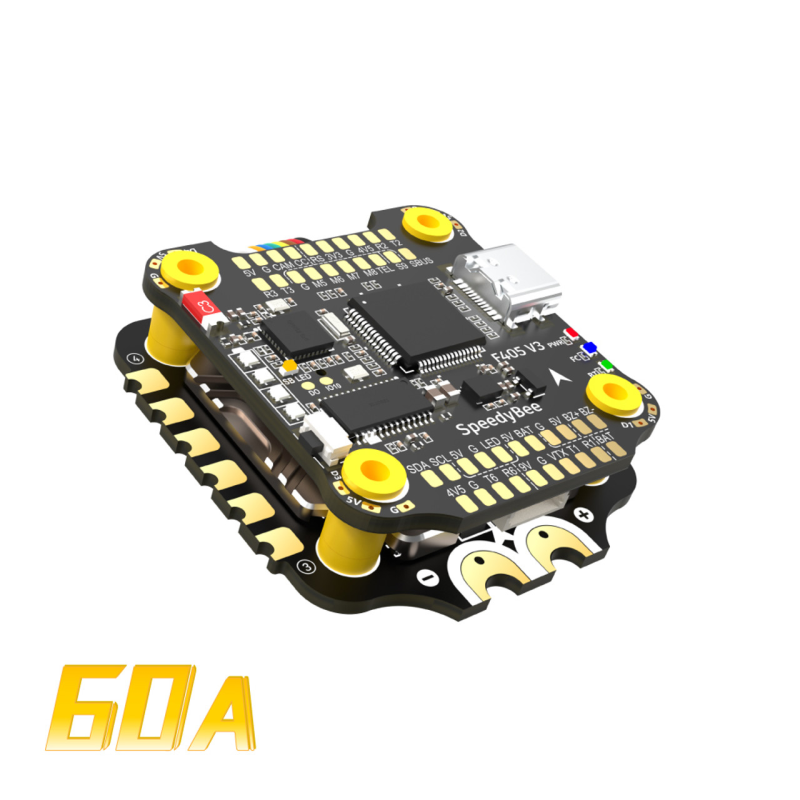

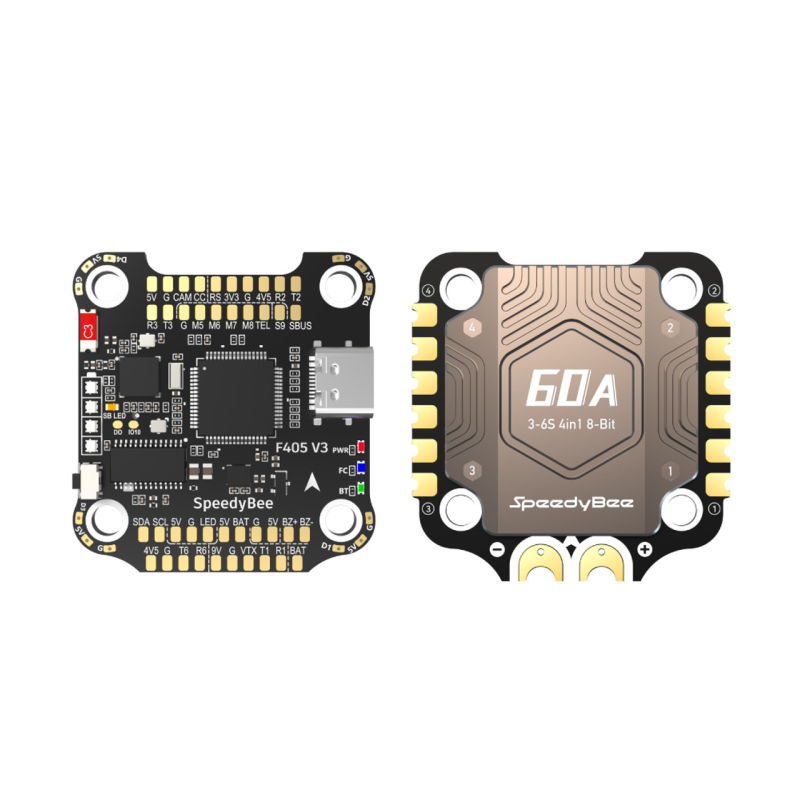

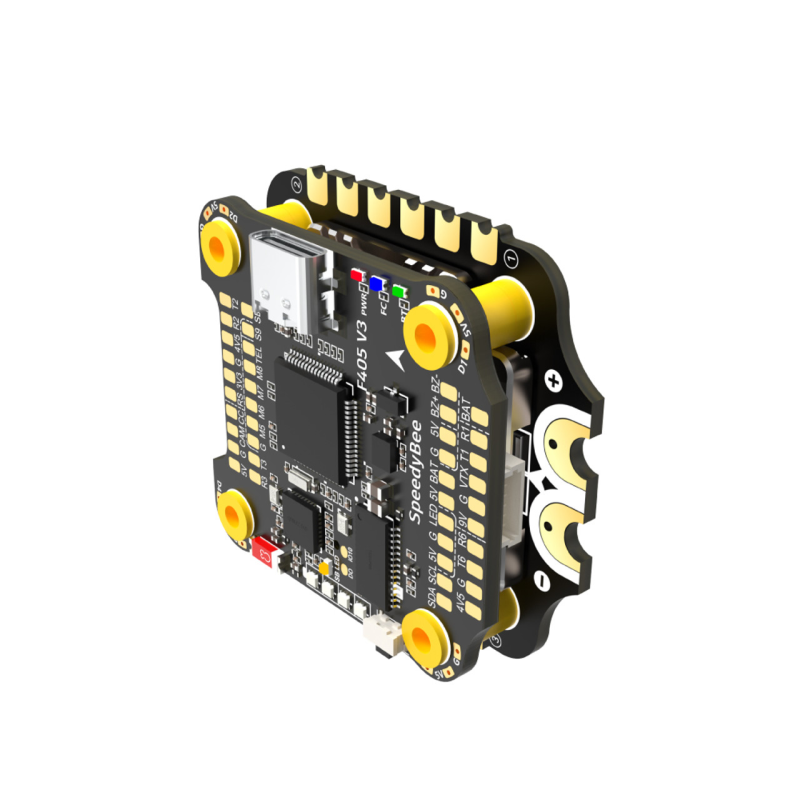

Flight Controller SpeedyBee F405 V3 BLS 60A 30*30 FC&ESC Stack

Brand: SpeedyBee. This kit is a ready-made solution for modern drones: the combination of the SpeedyBee F405 V3 flight controller and the BLS 60A electronic speed controller (ESC) in a 30×30 Stack format provides reliable, compact, and powerful aircraft control.

The SpeedyBee F405 V3 BLS 60A Stack 30×30 kit is designed for pilots who value fast system response, flight stability, and ease of setup. It is suitable for racing and freestyle drones, optimized for 3-6S LiPo batteries, and ensures high motor performance and precise control.

Technical specifications of the kit:

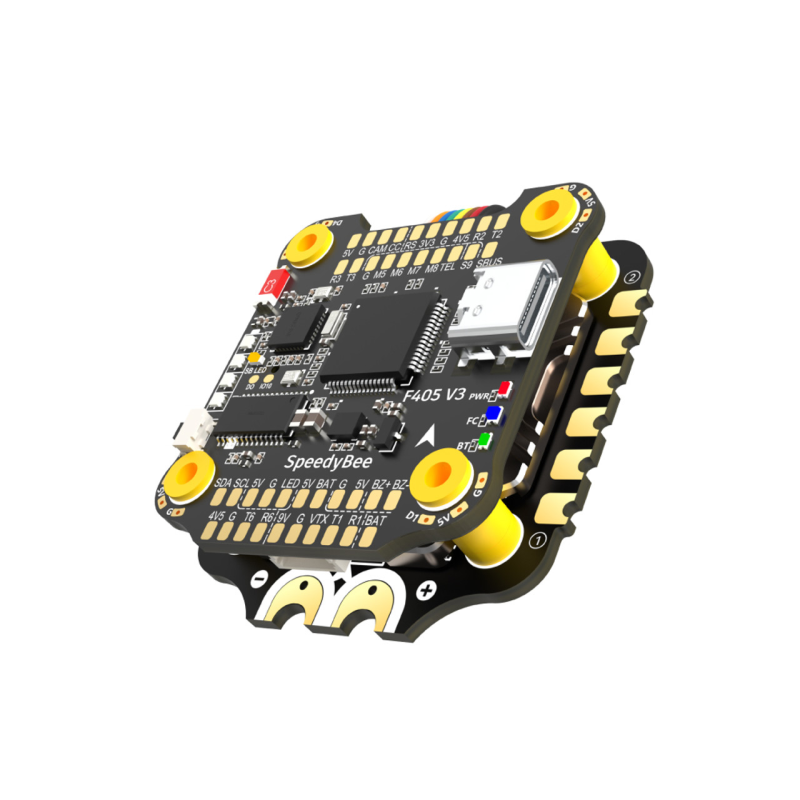

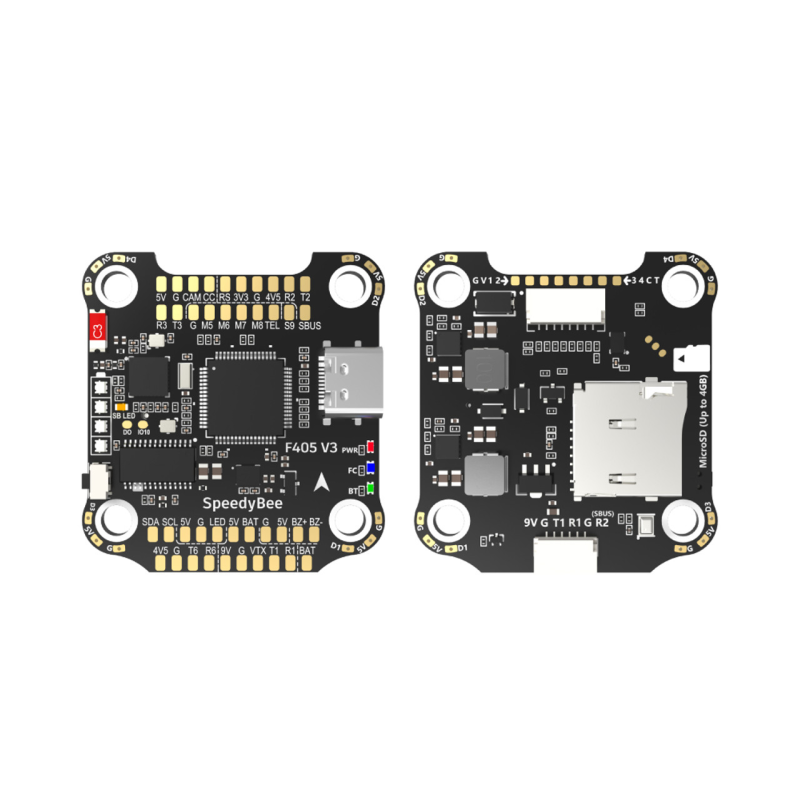

• 1. SpeedyBee F405 V3 Flight Controller:
  • Processor: STM32F405.
  • Gyroscope: MPU6000, ensuring stable operation and precise control.
  • Integrated Bluetooth for easy setup and control via the SpeedyBee mobile app.
  • Supports Betaflight and iNav firmware.
  • Board dimensions: 30.5×30.5 mm (compatible with standard 30×30 mm mounting), convenient mounting hole placement.
  • Power supply: compatible with 3-6S LiPo batteries.
  • Interfaces: UART ports, support for digital SBUS, IBUS protocols, and other modern interfaces for communication with receivers and peripherals.

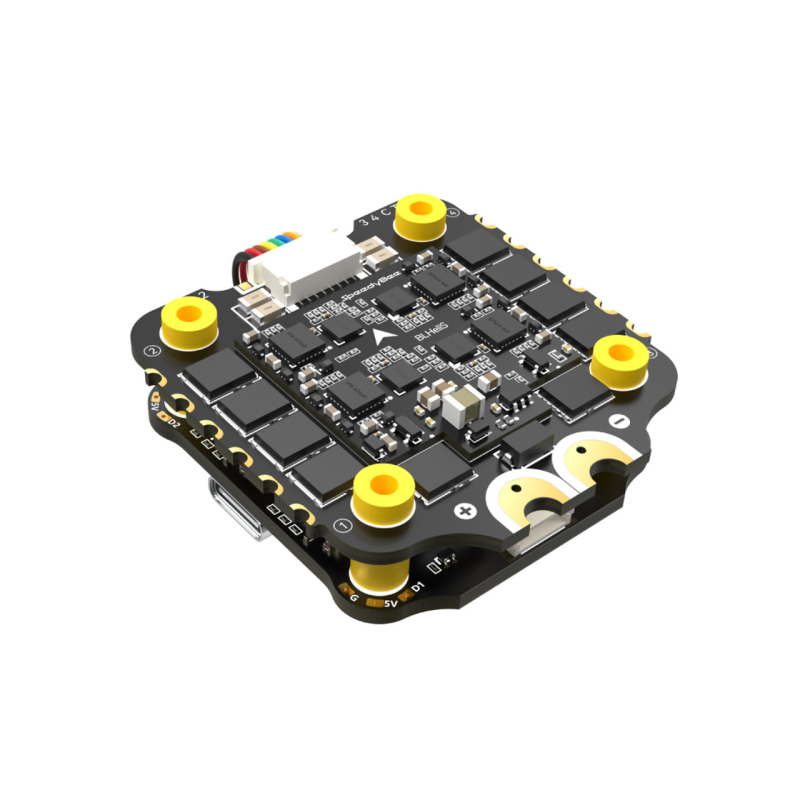

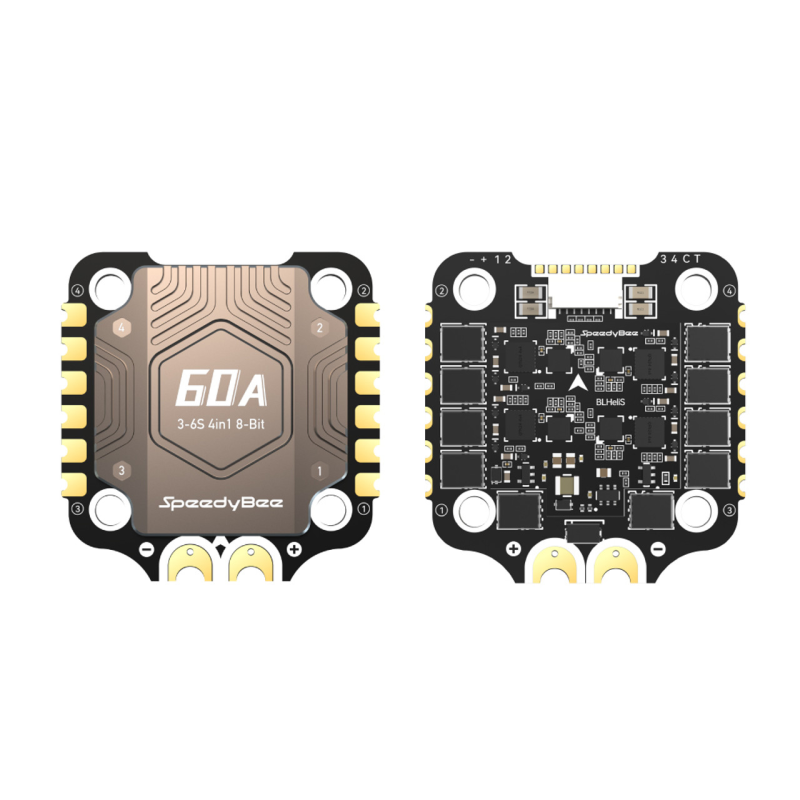

• 2. BLS 60A Electronic Speed Controller (ESC):
  • Continuous current support up to 60A with peak load up to 70A — for efficient power transfer to motors.
  • Firmware: BLHeli_S for precise signal processing and smooth motor operation.
  • Protections: overvoltage and overheating for increased reliability in aggressive flight modes.
  • Battery support: 3-6S LiPo.
  • Supported protocols: DShot150, DShot300, DShot600 — ensure low latency and high stability of motor control.
  • ESC dimensions: 30.5×30.5 mm — compatible with the controller to form a compact Stack module.

The kit does not contain an SKU in the description as requested, but includes all technical information for proper selection and installation into the frame. Thanks to integrated Bluetooth and support for popular firmware, you get convenient setup and diagnostics. The combination of STM32F405 and MPU6000 ensures fast flight data processing, while BLHeli_S and support for high-speed DShot digital protocols guarantee the most precise motor response.

This Stack is suitable for experienced pilots and those aiming for an optimal weight, size, and power ratio. It is ideal for aggressive maneuvers, high-speed runs, and freestyle tricks where instant reaction and control stability are crucial.

Manufacturer: SpeedyBee. Product type: Drones & Quadcopters > Stacks (FC+ESC).

Other features: compact 30×30 Stack format for easy installation, compatibility with popular controllers and ESCs, advanced protection mechanisms, and support for modern control commands to achieve the best flight results.
