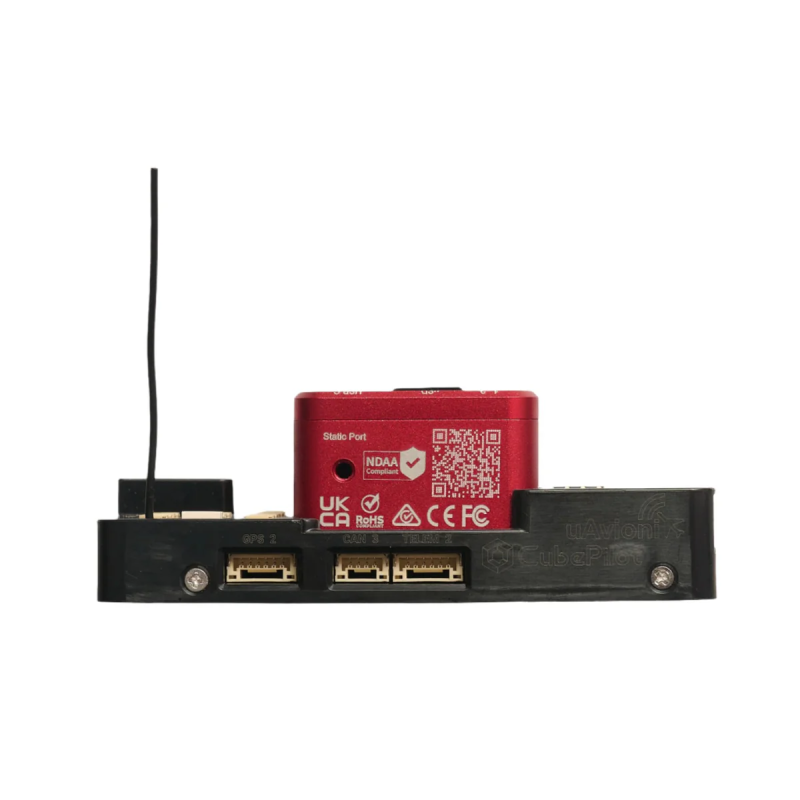

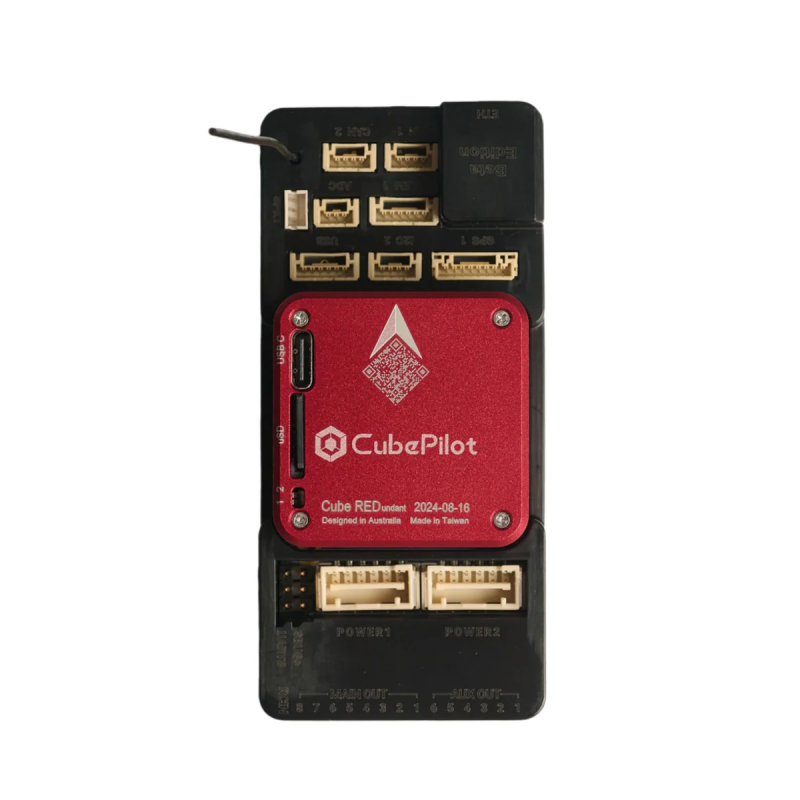

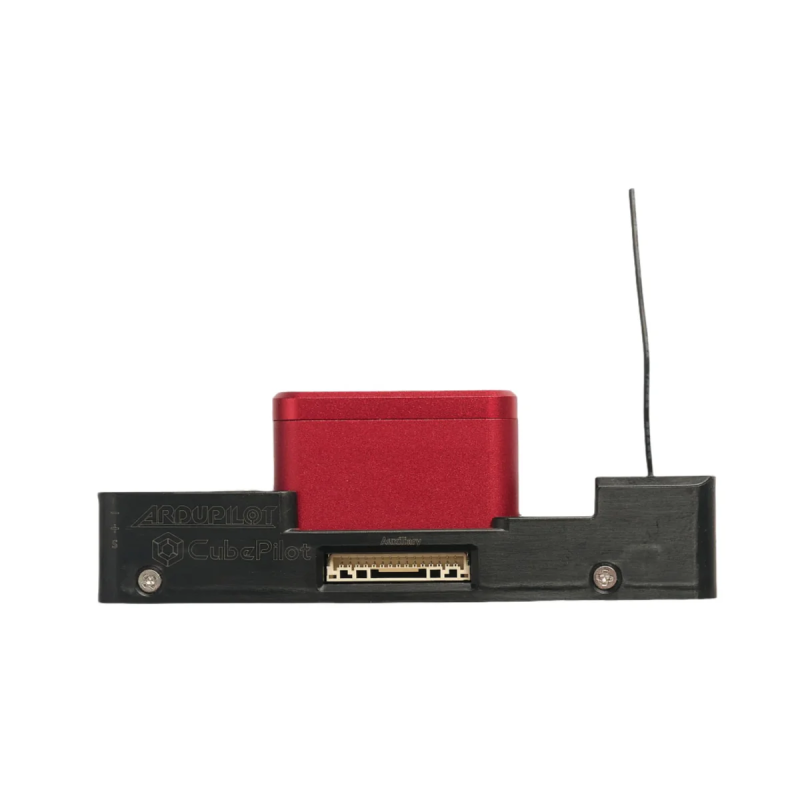

Pixhawk The Cube Red Pro is a new-generation professional flight platform designed for unmanned aerial vehicles where reliability, fault tolerance, and high computational performance are critical. The controller is aimed at complex industrial, military, and research UAV systems operating in harsh conditions.

The system is based on two high-performance STM32H7 dual-core processors with support for Double-Precision FPU, which allows processing large arrays of telemetry and navigation data with minimal delays. This is especially important for autonomous flights, precise positioning, and complex control algorithms.

Maximum Fault Tolerance

The controller is equipped with four independent IMUs and three barometric sensors, allowing the system to automatically filter out incorrect data and continue safe flight even in the event of partial sensor failure. This architecture meets the requirements of critical UAV applications.

Accurate Pressure Measurements

The design features an isolated static air channel with a fully enclosed chamber and interchangeable damping inserts (foams of various stiffnesses). This minimizes the impact of turbulent flows and vibrations, ensuring stable and accurate altitude readings.

Modern Interfaces and Extensions

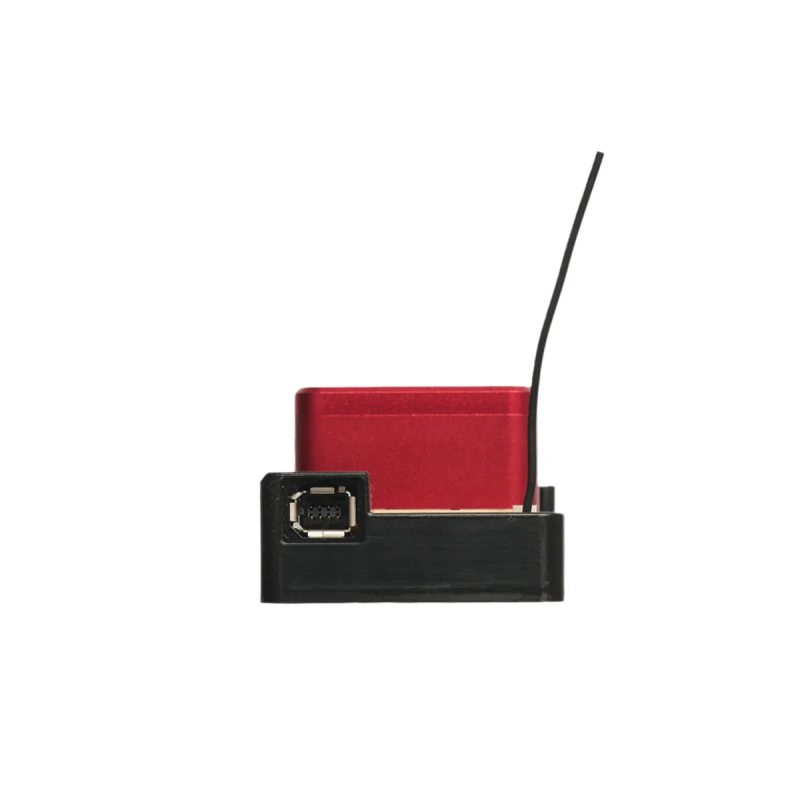

The Cube Red Pro features an Ethernet interface for high-speed data transfer, CAN FD for real-time operation with modern peripheral modules, and USB Type-C Debug for convenient development and diagnostics. DSI (Digital Serial Interface) is also supported for improved data and user interface operations.

Software Compatibility

The controller is fully compatible with ArduPilot firmware, making it a universal solution for multicopters, airplanes, VTOL platforms, ground, and marine robotic systems.

Technical Specifications
