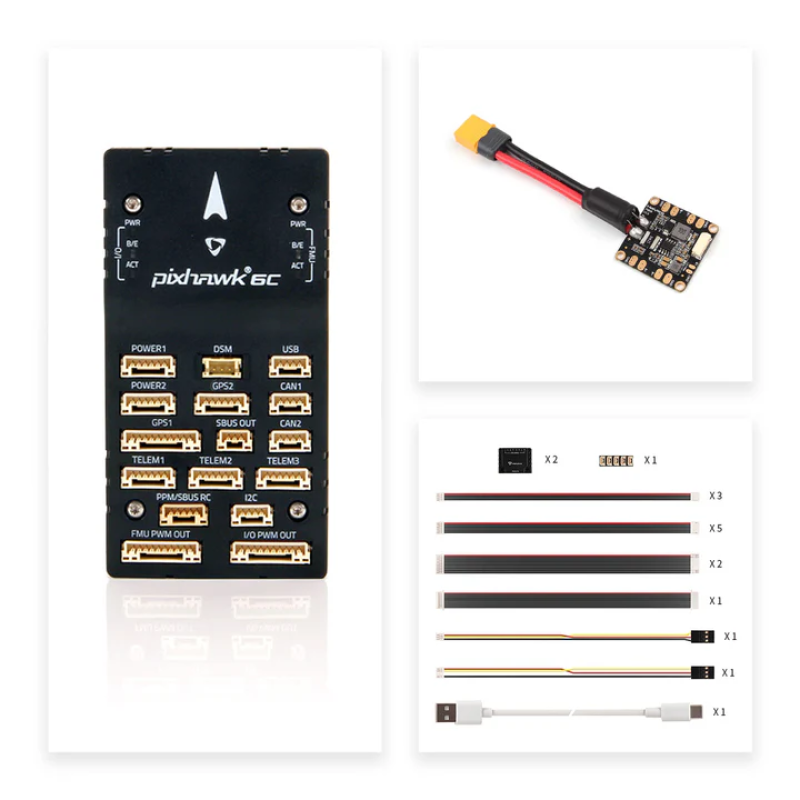

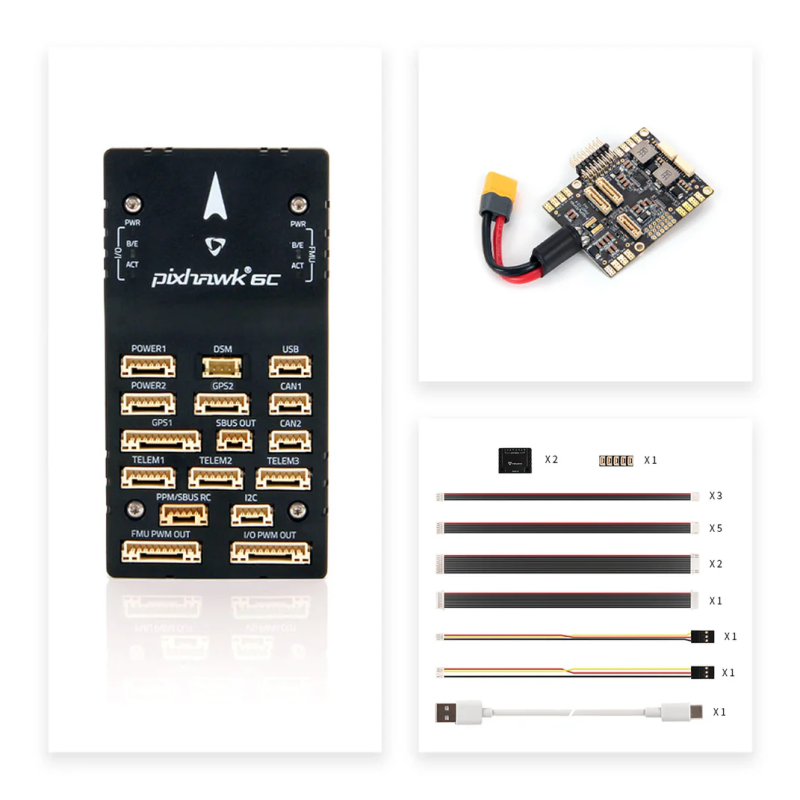

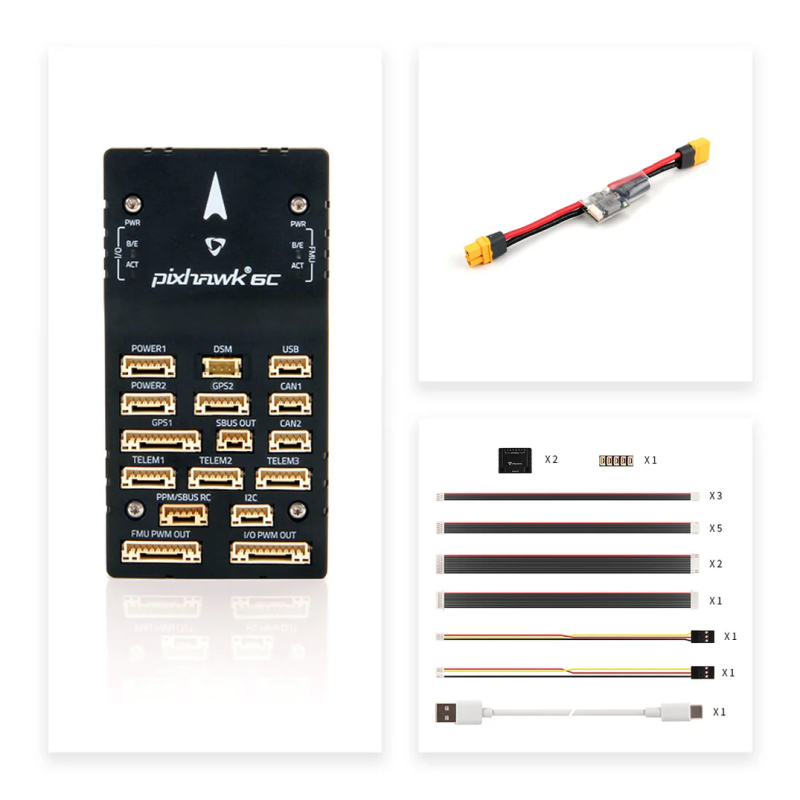

Holybro Pixhawk 6C Flight Controller (Plastic Case)

The Holybro Pixhawk 6C flight controller in a plastic case is a modern solution for creating reliable autonomous control systems for aircraft and other high-precision equipment. Developed by Holybro, this controller combines a powerful computing platform, enhanced vibration resistance, and an extended set of interfaces, making it an ideal choice for research laboratories, startups, educational projects, and commercial applications.


Brief Description

The Pixhawk 6C is based on the STM32H743 microcontroller (H7 series) and equipped with sensors from Bosch® and InvenSense®, ensuring precise orientation and stable operation in challenging conditions. The plastic case reduces system weight and simplifies integration into compact quadcopter and other UAV designs.

Advantages and Purpose

• High computing power for implementing complex autopilot algorithms.
• Reliable IMUs with redundancy and heating for stable operation across a wide temperature range.
• Integrated vibration isolation system for enhanced measurement accuracy.
• Optimal choice for research and commercial applications: scientists, engineers, students, and integrators.

Key Features

• High-performance STM32H743 processor with increased computing power and large RAM capacity.
• Cost-effective design with a low profile and plastic case.
• Vibration isolation for accurate IMU readings.
• Heated IMU to maintain optimal operating temperature and reduce drift.

Technical Specifications

• Processors and Sensors:
  • FMU processor: STM32H743 (32-bit, Arm® Cortex®-M7, 480 MHz, 2 MB Flash, 1 MB SRAM).
  • IO processor: STM32F103 (32-bit, Arm® Cortex®-M3, 72 MHz, 64 KB SRAM).
  • Available sensors: ICM-42688-P, BMI055, IST8310, MS5611.
• Electrical Data:
  • Maximum input voltage: 6V.
  • USB input: 4.75~5.25V.
  • Servo input: 0~36V.
  • Current limit for TELEM1: 1.5A.
• Mechanical Data:

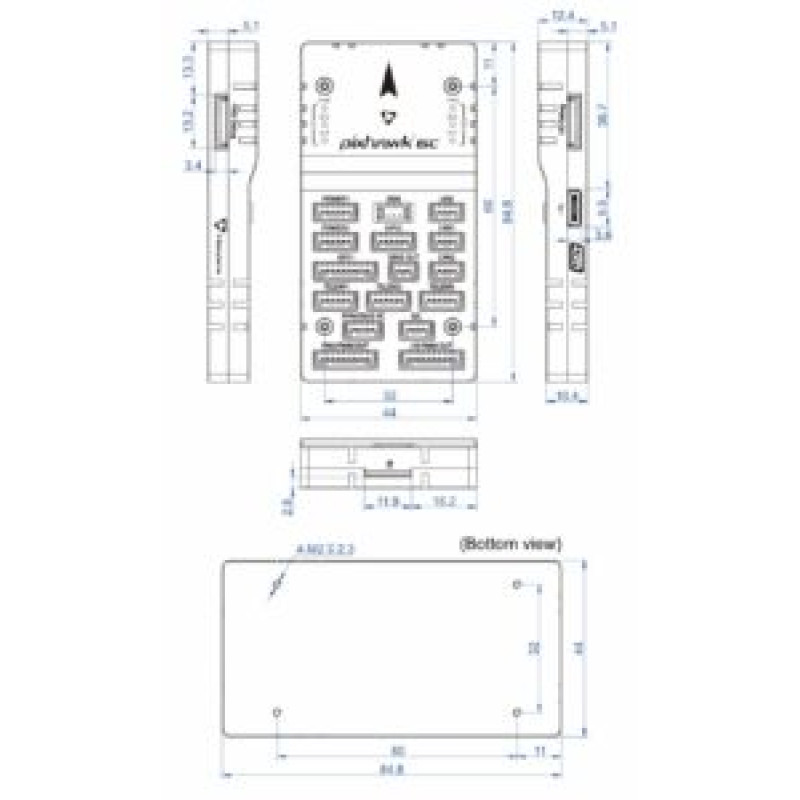

  • Dimensions: 84.8 x 44 x 12.4 mm.
  • Weight: 59.3 g.
• Interfaces:
  • 16 PWM outputs for servos.
  • 3 serial ports.
  • 2 GPS ports.
  • 1 I2C port.
  • 2 CAN buses.
  • 2 diagnostic ports.
  • R/C input.
  • S.BUS output.
  • 2 power inputs.
• Other Characteristics:
  • Operating and storage temperature range: -40 to 85°C.

This controller combines engineering reliability and configuration flexibility: from academic experiments to complex commercial projects with demands for precision and stability. The Pixhawk 6C supports advanced communication protocols and provides sufficient interfaces for connecting GPS, telemetry, sensor modules, and servos, significantly simplifying integration into various platforms.

Brand: Holybro.
