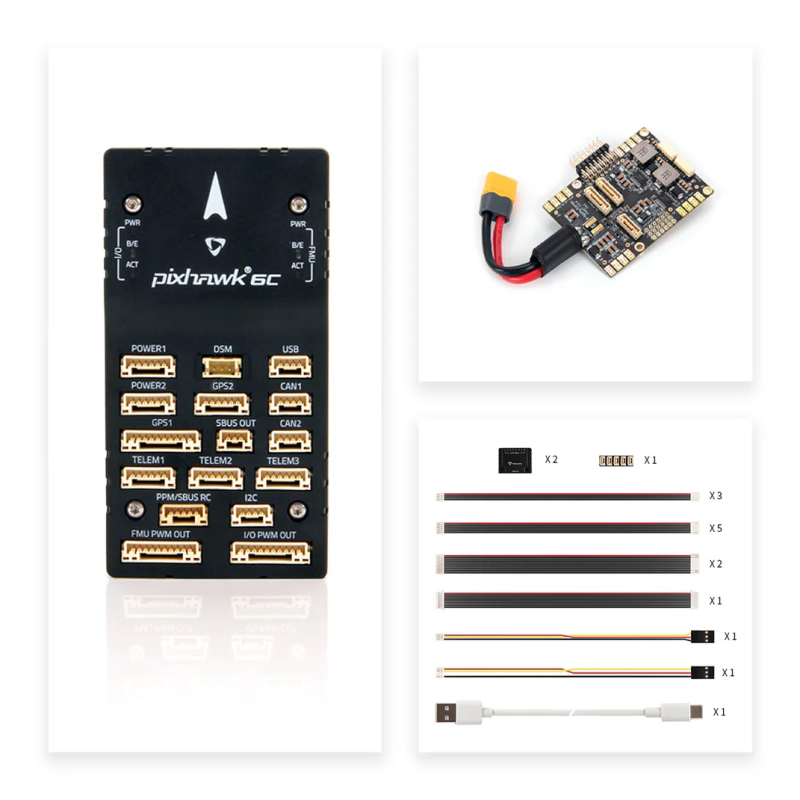

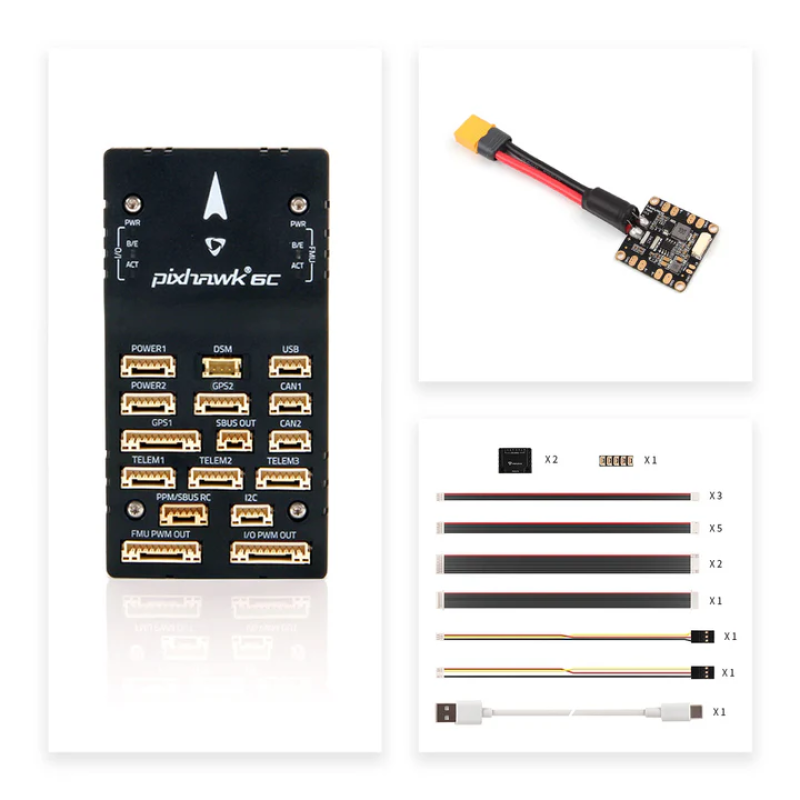

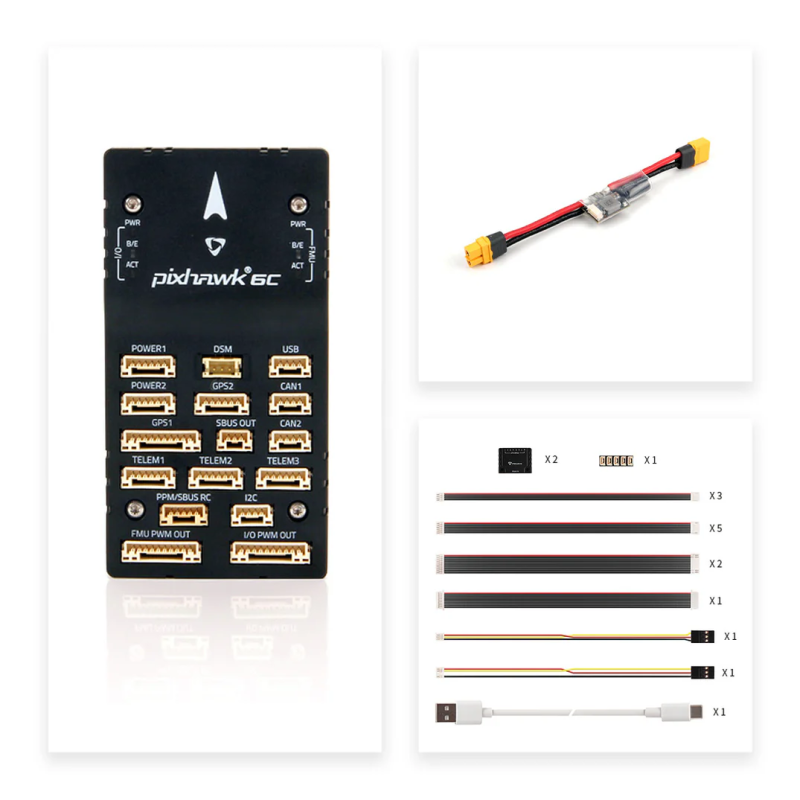

Holybro Pixhawk 6C Flight Controller (Plastic Case)

Pixhawk® 6C — the latest update to the renowned Pixhawk® series of flight controllers, developed by Holybro for high-performance and reliable autonomous platforms. This controller is based on the STM32H743 microcontroller from STMicroelectronics® and combines advanced sensor solutions from Bosch® and InvenSense®, ensuring flexibility and precision in controlling drones, quadcopters, and other autonomous vehicles.

The Pixhawk 6C features a high-performance STM32H743 FMU processor (32-bit, Arm® Cortex®-M7, up to 480 MHz, 2 MB flash memory, 1 MB SRAM). For I/O, an STM32F103 IO processor is used (32-bit, Arm® Cortex®-M3, 72 MHz, 64 KB SRAM). Thanks to powerful hardware, developers can implement complex autonomy and sensor processing algorithms.

Key Advantages

• High-performance STM32H743 processor with ample memory for complex computations.
• Cost-effective low-profile design in a plastic case.
• Integrated vibration isolation system for improved IMU data quality.
• Heated IMUs for stable operation across a wide temperature range.

Sensor and Computing Module Description

The Pixhawk 6C includes high-efficiency IMUs with low noise and implemented IMU redundancy, enhancing measurement reliability. Available sensors: ICM-42688-P, BMI055, IST8310, MS5611. The vibration isolation system helps filter high-frequency oscillations, and IMU heating ensures optimal performance at low temperatures.

Technical Specifications

• Processors and Sensors:
  • FMU processor: STM32H743 (32-bit, Arm® Cortex®-M7, 480 MHz, 2 MB flash, 1 MB SRAM).
  • IO processor: STM32F103 (32-bit, Arm® Cortex®-M3, 72 MHz, 64 KB SRAM).
  • Sensors: ICM-42688-P, BMI055, IST8310, MS5611.
• Electrical Data:
  • Maximum input voltage: 6V.
  • USB input: 4.75–5.25V.
  • Servo input: 0–36V.
  • Current limit for TELEM1: 1.5A.
• Mechanical Data:

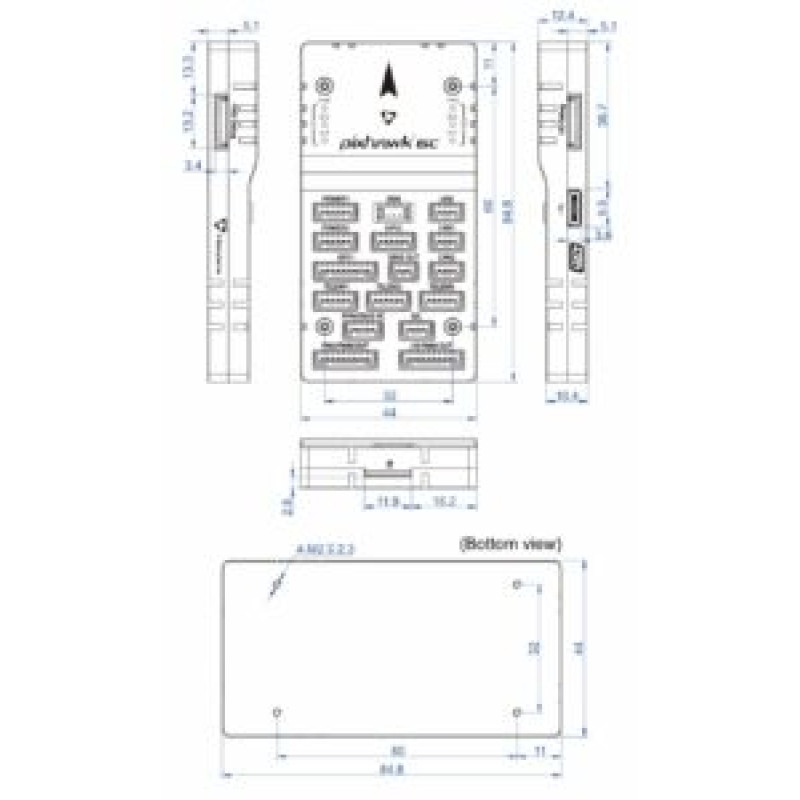

  • Dimensions: 84.8 x 44 x 12.4 mm.
  • Weight: 59.3 g.
• Interfaces:
  • 16 PWM outputs for servos.
  • 3 serial ports.
  • 2 GPS ports.
  • 1 I2C port.
  • 2 CAN buses.
  • 2 diagnostic ports.
  • R/C input.
  • S.BUS output.
  • 2 power inputs.
• Other Characteristics:
  • Operating and storage temperature range: -40 to 85°C.

The Pixhawk® 6C — is an ideal choice for researchers in corporate labs, startups, academia (scientists, lecturers, students), and commercial applications requiring high precision, reliability, and the ability to integrate with various peripheral modules. The plastic case provides lightness and protection, while the set of interfaces allows connecting a wide range of sensors and actuators.

This controller offers an optimal balance of performance, versatility, and cost, maintaining compatibility with the Pixhawk ecosystem and software availability for rapid development and testing.
