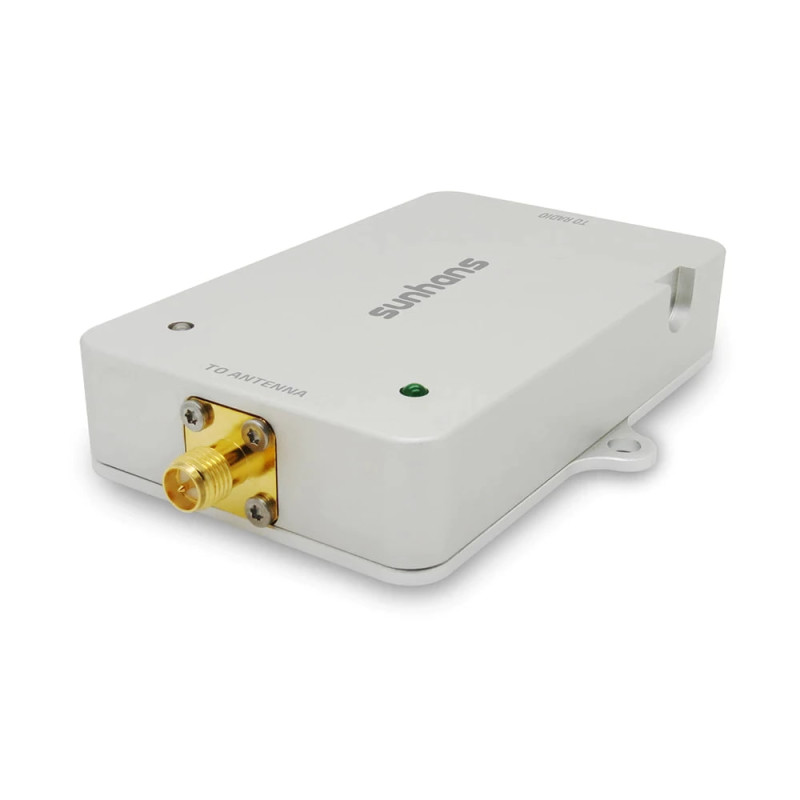

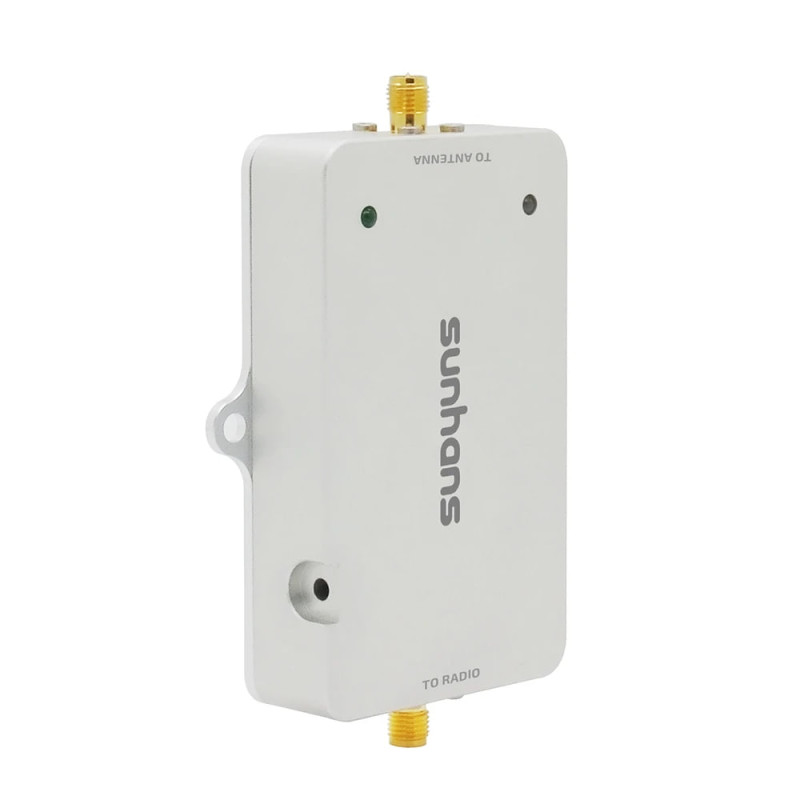

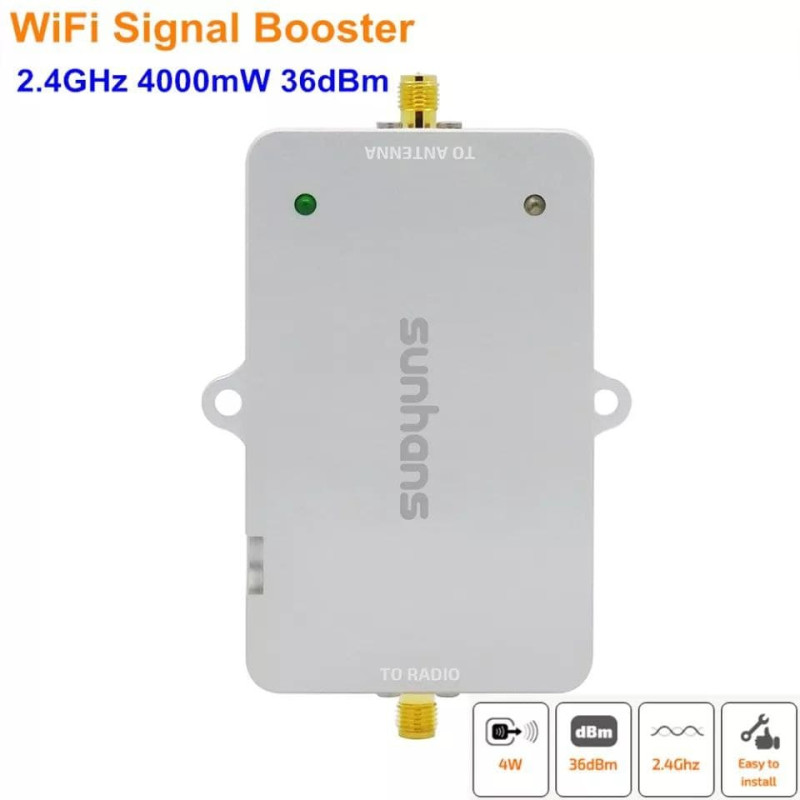

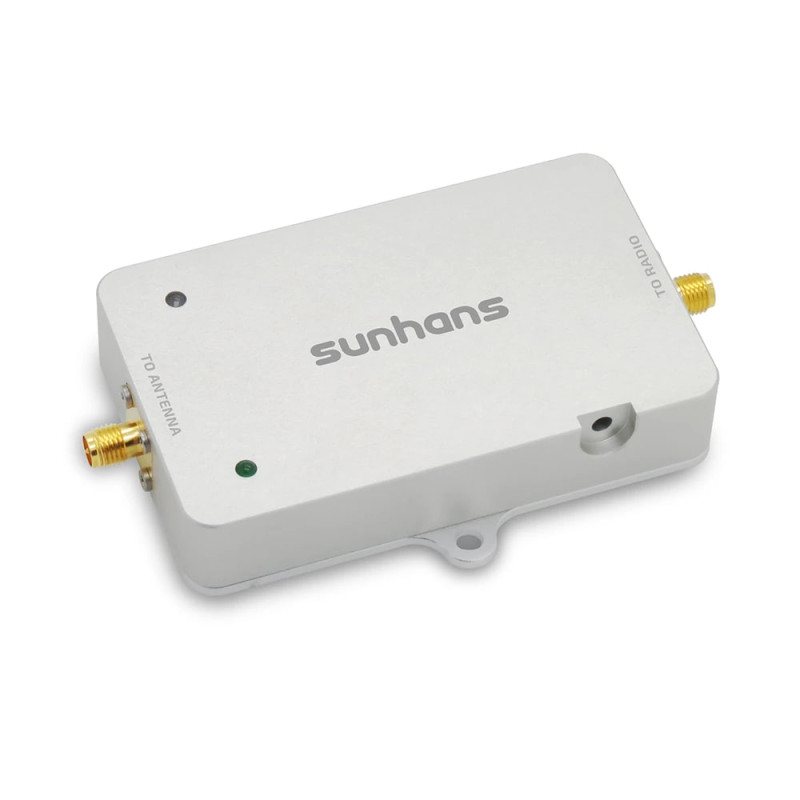

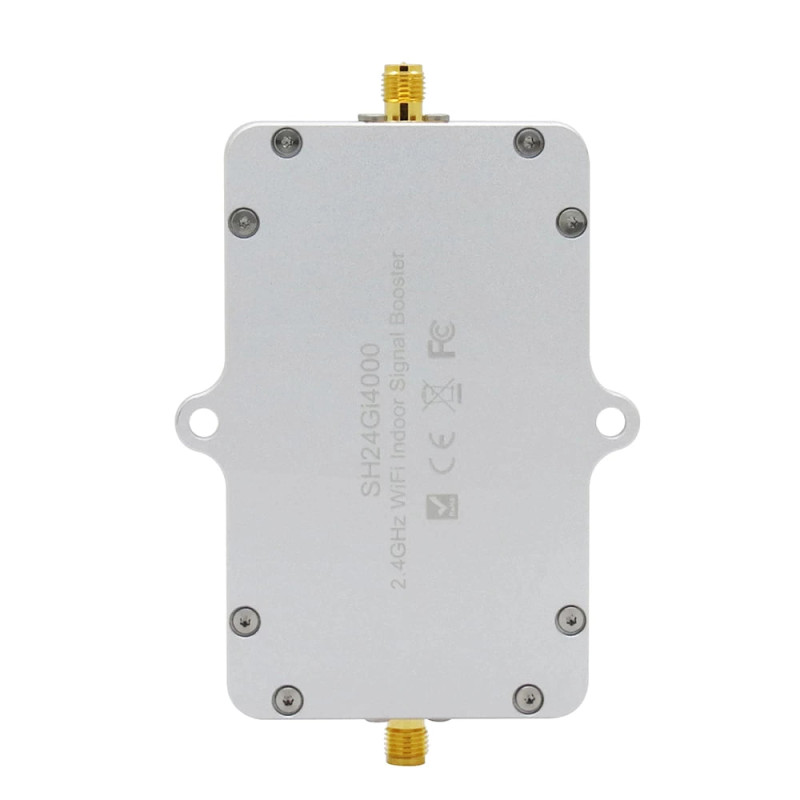

Sunhans SH24Gi4000 2.4G WiFi Signal Booster is a compact and powerful module from the Sunhans brand, designed to significantly improve communication quality in the 2.4 GHz spectrum. This booster is optimized for drones, quadcopters, and other wireless devices, combining high output power with a robust die-cast aluminum housing design.

Description and Purpose

The Sunhans SH24Gi4000 ensures stable operation in challenging radio communication environments, increasing connection range and stability. The booster is ideal for improving video transmission from drones, reducing data packet loss, and stabilizing the control channel during long-distance flights. The die-cast aluminum housing protects the electronics from mechanical damage and facilitates efficient heat dissipation during intensive use.

Key Features

The device operates in the 2.4 GHz Wi-Fi band and is compatible with IEEE 802.11b/g/n standards. It features high output power and minimal noise figures, ensuring high-quality signal reception and transmission. The connectors are standardized (SMA / RP-SMA), simplifying integration with drone antenna equipment.

Technical Specifications

• Operating Range: 2400~2500 MHz
• Channel Width: 20 MHz and 40 MHz
• Supported Standards: IEEE 802.11b/g/n
• Operating Mode: Bi-directional, half-duplex, time-division duplex
• Connector Type: Radio SMA female (hole inside)
• Antenna Compatibility: RP-SMA male (pin inside)
• Output Power: 4000 mW (36 dBm)
• Input Power: 0 ~ 20 dBm
• Transmission Gain: 16 - 19 dB
• Receiver Gain: ≤15 dB
• Noise Figure: ≤3.5 dB (typical)
• Frequency Response: ±1 dB over operating range
• Power Adapter: 12 V/2 A DC, 100 ~ 240 V for AC adapter
• Operating Temperature: -20°C to +70°C
• Operating Humidity: Up to 75% relative humidity
• Housing Material: Die-cast aluminum
• LED Indicator: Power/activity status indication
• Booster Weight: 130 g
• Booster Size: 9.7 x 6.4 x 1.7 cm
• Package Weight: 470 g
• Package Size: 21 x 15 x 6 cm

Advantages of Use

The Sunhans SH24Gi4000 significantly improves communication quality in the 2.4 GHz band: it enhances video quality and stability from the drone, reduces packet loss, and minimizes control interruptions during long-distance flights. The LED indicator allows for quick monitoring of the booster's power and activity status, while standardized SMA / RP-SMA connectors ensure easy integration with existing antenna systems and drone components.

The booster is powered by an external 12 V/2 A adapter with a wide input voltage range of 100~240 V, making it suitable for use in various countries and stationary conditions. The die-cast aluminum construction guarantees durability and reliability even during intensive flights and operation in moderately aggressive environments.

Brand: Sunhans. Category: Drones & Quadcopters > Drone Antennas.

If you need a reliable, easy-to-integrate, and high-power 2.4 GHz Wi-Fi booster, the Sunhans SH24Gi4000 offers an excellent combination of features, making it a great choice for professional and amateur applications.
