Matek M10Q-5883 GNSS Navigation Module with Compass

Matek introduces the full-featured Matek M10Q-5883 navigation module, which combines a high-precision GNSS receiver based on u-blox SAM-M10Q-00B and an integrated QMC5883L magnetic compass. This is a versatile solution for drones, quadcopters, autonomous robotic platforms, and other machines that require reliable positioning and accurate spatial orientation even in challenging satellite signal reception conditions.

The board uses the u-blox M10 GNSS platform, which supports simultaneous reception of signals from four satellite systems: GPS, GLONASS, Galileo, and BeiDou. The large number of visible satellites allows the module to select the best signals for maximum positioning accuracy, which is especially useful in urban "canyons." u-blox Super-S (Super-Signal) technology enhances RF sensitivity and improves dynamic accuracy with limited sky visibility.

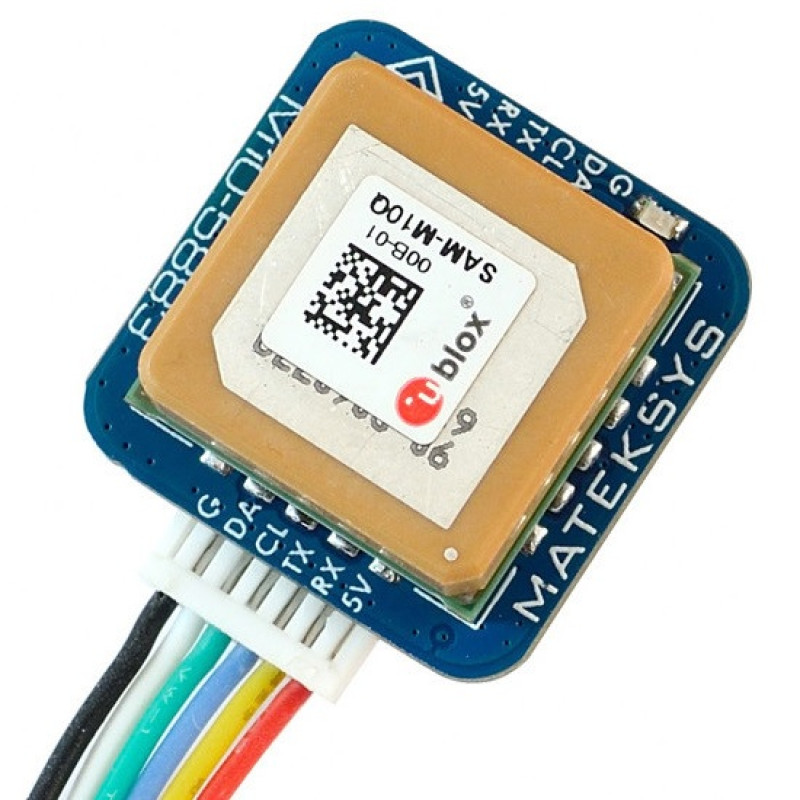

A 15×15×4 mm patch antenna with high gain provides an optimal balance between performance and compactness; the omnidirectional antenna pattern offers greater flexibility when placing the module on the aircraft body. The small size of the module — 20 × 20 × 12.4 mm — and low mass of 8 g make it ideal for integration in confined spaces on the carrier.

Key Advantages

• Compatibility with GPS, GLONASS, Galileo, and BeiDou for stable positioning.
• Integrated QMC5883L magnetic compass for correct orientation by magnetic field.
• Compact 15×15×4 mm patch antenna with high gain.
• Low power consumption — 13 mA, suitable for energy-efficient projects.
• Easy integration via standard UART and I2C interfaces.

Technical Specifications

• GNSS: u-blox SAM-M10Q-00B (GPS, GLONASS, Galileo, BeiDou)
• Magnetic Compass: QMC5883L
• Patch Antenna: 15×15×4 mm
• Input Voltage Range: 4–9 V (5 V pin/pad)
• Power Consumption: 13 mA
• UART Baud Rate: 9600 by default
• Operating Temperatures: -20–80 °C
• Interfaces: UART (TX, RX) for GNSS SAM-M10Q-00B; I2C (DA, CL) for QMC5883L compass
• Connector: JST-GH-6P (SM06B-GHS-TB), 1.27 mm pitch
• GNSS PPS Indicator: Green LED — solid after power-on, blinks 1 Hz upon 3D fix acquisition
• Protocols: UBX (u-blox) 5 Hz @ GPS+GAL+BDS B1C+GLO or NMEA 1 Hz

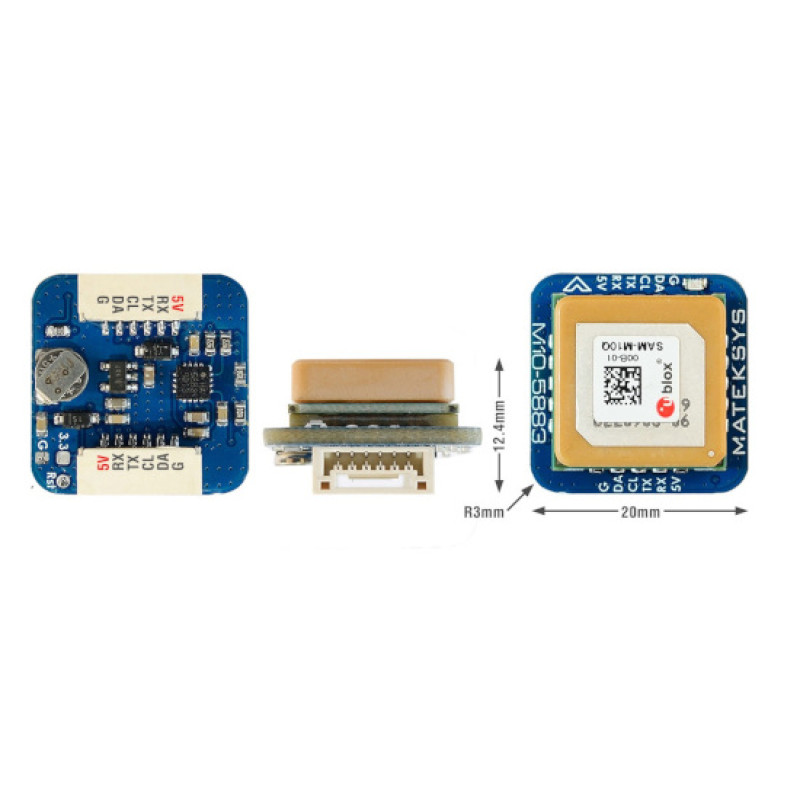

• Dimensions: 20 × 20 × 12.4 mm
• Mass: 8 g

Package Contents

• 1 × M10Q-5883 navigation module
• 1 × 20 cm JST-GH-6P to JST-GH-6P silicone wire

The Matek M10Q-5883 is designed for quick and convenient integration into flight control and navigation systems thanks to standard UART and I2C interfaces. Its low weight and dimensions allow the module to be installed on multirotor platforms, quadcopters, autonomous robotic systems, and other projects where precise positioning and stable magnetic field orientation are crucial. Low power consumption (13 mA) makes the module attractive for battery-powered solutions and energy-efficient designs. The GNSS PPS indication helps quickly assess the satellite signal reception status during startup and configuration.

The careful combination of the u-blox SAM-M10Q-00B platform and the QMC5883L compass ensures the reliability and accuracy required for commercial and hobby projects. If you need a compact, lightweight, and energy-efficient navigation module with support for modern satellite systems and simple connection interfaces — the Matek M10Q-5883 will be an excellent choice.
