TEKK HAUS BS 1350L 24L Inox Pumping Station

Looking for a reliable and efficient solution for your home's water supply? Home pumping stations are the key to uninterrupted and comfortable access to water in your household. A pumping station ensures stable pressure in the system, regulates the water level in a well or reservoir, and reliably supplies water to your sewage or heating system. Let us introduce you to the advantages and capabilities of our home pumping stations.

Home Pumping Stations. Area of Application

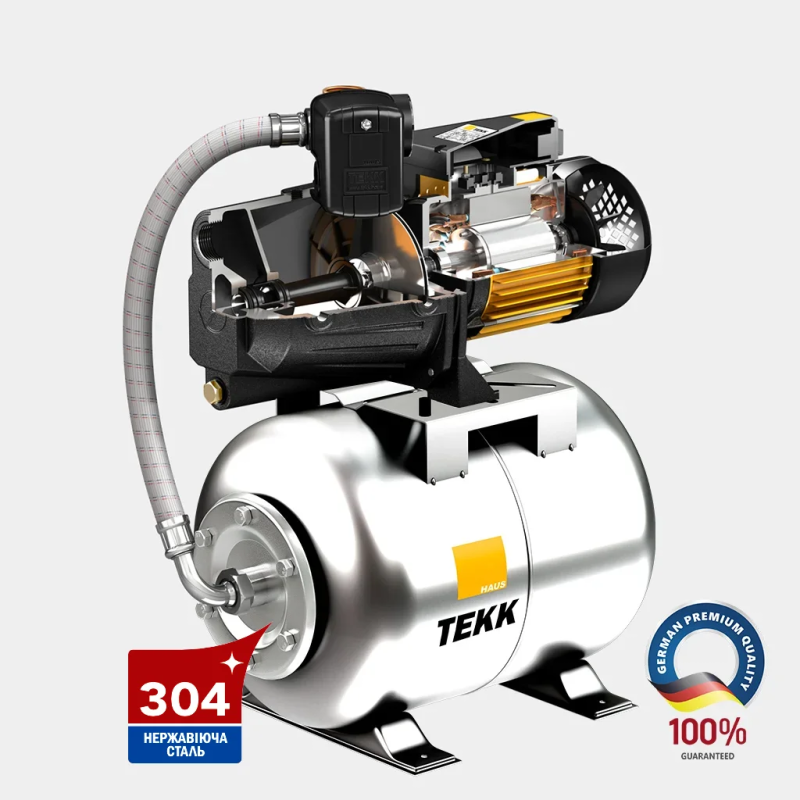

Pumping Station TEKK HAUS BS 1350L 24L Inox (stainless steel tank, stainless steel flange, EPDM membrane)

The BS 1350L 24L Inox home pumping station (stainless steel tank, stainless steel flange, EPDM membrane), based on a surface centrifugal pump (self-priming well pump) of JP type, is designed for water supply to houses, homesteads, and gardens.

The pumps can also be used for:

– irrigation or watering from ponds, rivers, shallow wells, wells,

– supplying, pumping, draining water from tanks and reservoirs,

– draining water from flooded basements.

The pumping station can operate in self-priming mode, for example: from shallow wells and wells, or in water intake mode from open reservoirs.

The hydrofor pump should not be connected to the central water supply system.

Home Pumping Station. Brief Technical Specifications

• Maximum power: 1350 W
• Mains voltage: 230 V
• Frequency: 50 Hz
• Pressure (maximum): 60 m / 6.0 bar
• Capacity (maximum): 60 l/min
• Suction depth (maximum): 8 m
• Liquid temperature (maximum): 35 °C
• Weight: 21 kg
• Inlet pipe diameter: 1″
• Outlet pipe diameter: 1″

Motor

• Asynchronous with squirrel-cage rotor, closed design, with external forced ventilation
• Insulation class: B
• Single-phase design
• Overload protection with automatic restart built into the motor winding
• Rotation speed: 2850 rpm

Limitations

Pumping Station BS 1350L 24L Inox

• Pumped liquid: water or other liquids similar to water in density and chemical activity
• Total water mineralization not more than 1500 g/m³
• pH value 6.5 – 9.5
• Content of mechanical impurities not more than 100 g/m³

Additional Information
for those who want to buy a home pumping station

Those who want to buy a home pumping station should first know that a hydrofor is a comprehensive solution that will allow owners of suburban plots and houses, as well as residents of multi-story buildings, to quickly create a full-fledged automated water supply system that will meet all requirements for power, quality, and comfortable operation.

The manufacturer of pumping equipment, TEKK HAUS, offers a large number of diverse models and strives to diversify its assortment by regularly producing an increasing number of pumping stations that differ in configuration, availability of automation, power, and many other parameters. Thanks to such a variety of characteristics, each of our clients will be able to find exactly the equipment that will meet all their expectations and requirements!

How to choose and buy a pumping station correctly?

Most pumping stations have a standard configuration, which includes the following list of equipment:

• Self-priming pump. The basis of any pumping station, each model differs in its operational characteristics, such as power, capacity, lift depth, etc.
• Hydro accumulators. A metal tank in which a removable (large volume tanks) or non-removable (small volume tanks) membrane made of elastic rubber is installed. Thanks to this element, pumping stations accumulate a certain amount of water, which serves as protection against water hammer and can be used as an additional liquid reserve if necessary.
• Manometer. An optional detail, which is a device that provides the consumer with information about the water pressure in the system. Most often necessary for the efficient operation of other electronic elements.
• Pressure switch. Another electronic element that works based on the manometer readings and is used for timely starting and stopping the motor. It significantly increases the motor's lifespan and creates full automation of use, requiring no user intervention.
• Anti-vibration hose. Used for a reliable connection between the hydro accumulator and the pump itself. Most manufacturers offer hoses made of dense rubber with metal edging, which guarantees reduced vibrations and noise during operation.

Home Pumping Stations. Their Advantages

You can buy pumping stations for your home or dacha plot in our online store Shop Tekk Haus at an excellent price. In general, a hydrofor will be a profitable solution for anyone who needs a stable water supply for domestic and commercial purposes. Thanks to the numerous advantages of such equipment, you will get maximum effect with minimal investment. The advantages of this type of pump include:

• Significant (up to 40%) electricity savings compared to similar devices;
• Compact dimensions, allowing the station to be placed without the need for a separate room;
• Ability to operate from both a constant and an emergency or alternative power source;
• Stable pressure in the system, possibility of connecting circulation pumps.
