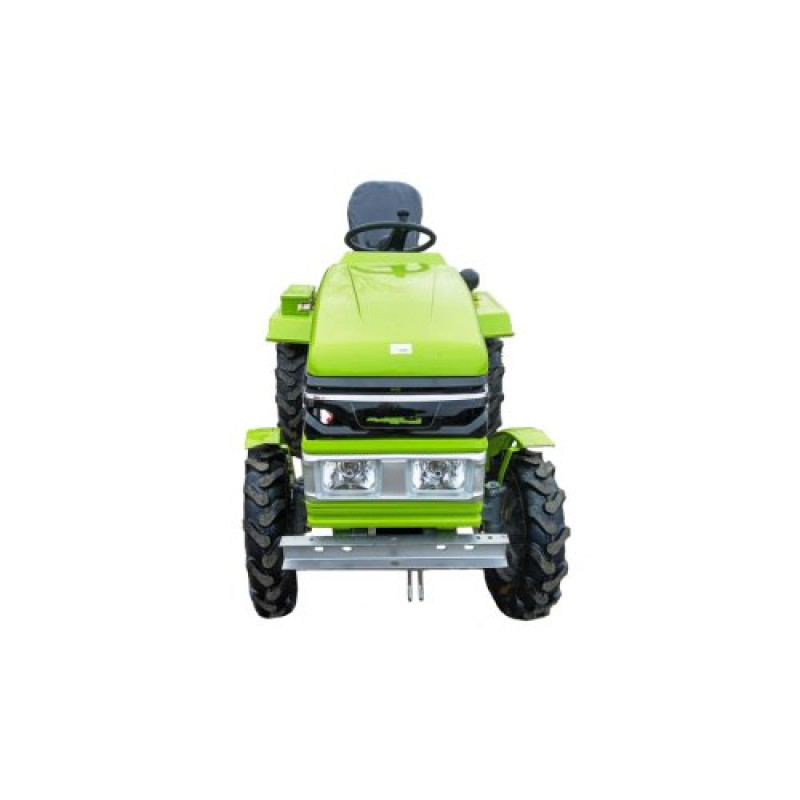

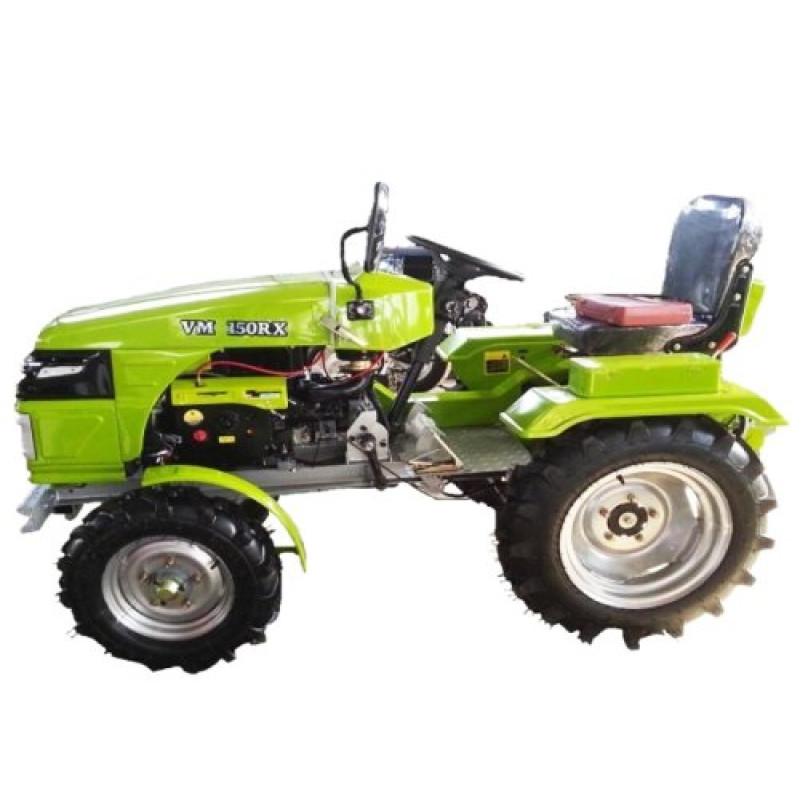

Mototractor Vityaz VM 150 RX — a versatile assistant for small farms
Model: Vityaz VM 150 RX. Manufacturer: Bulat. Product type: Tractors, Motor-, Quad Bikes, Boats (Vehicle) > Tractors > Mototractors. This mototractor is designed for efficient and economical work on small fields, in gardens, on household plots, and in the communal sector. Compact dimensions are combined with a robust design and a full set of basic attachments, allowing you to start working immediately after purchase.
Engine: horizontal diesel four-stroke Wl15ndl with a volume of 998 cm3, maximum power 15 hp, nominal 13.8 hp (nominal speed 2400 rpm). Cooling system — water cooling; lubrication is performed by a gear pump with a splash lubrication system. For starting, an electric starter with a battery and manual start (Z-shaped handle) are provided as a backup option. The dashboard features sensors that monitor coolant temperature, battery charge, fuel level, and operating hours.
Advantages and operational features
- 15 hp power and a reliable diesel unit allow for a wide range of tasks: soil cultivation, cleaning, cargo transportation.
- Liquid (water) cooling ensures stable operation under prolonged loads.
- "Herringbone" tread pattern and permanent differential lock with unlock capability guarantee traction on various soil types.
- Halogen headlights, turn signals, and marker lights allow working at night or in poor visibility.
- Operator comfort: soft adjustable seat, ergonomic control placement, and a hydraulic oil tank behind the seat.
The mototractor comes with two types of attachments: a plow and a rotary tiller. The rotary tiller has a width of 120 cm and provides a working depth of up to 25 cm, allowing you to start soil cultivation immediately without additional costs.
The model has received positive feedback from farmers and communal services as an economical and reliable solution for small farms. Delivery is possible throughout Ukraine (Kharkiv, Kyiv, Poltava, Vinnytsia, Chernihiv, and other cities). Payment options: full payment or credit.
Technical specifications:
| Engine | |
| Type: | Horizontal diesel four-stroke engine Wl15ndl |
| Starting method: | Electric starter + manual start (Z-shaped handle) |
| Cylinder diameter: | 95 mm |
| Engine displacement: | 998 cm3 |
| Maximum power: | 15 hp |
| Nominal power: | 13.8 hp |
| Nominal speed: | 2400 rpm |
| Cooling system: | Water |
| Flywheel rotation direction: | counter-clockwise |
| Lubrication: | gear pump with splash lubrication system |
| Injection pressure: | 12753 kPa (130 KMF / cm2) |
| Fuel injection advance angle: | 16 ± 2 |
| Intake valve clearance (cold engine): | 0.25 ± ; 0.05 mm |
| Exhaust valve clearance (cold engine): | 0.30 ± 0.05 mm |
| Engine weight: | 118 kg |
| Engine dimensions XT-15: | 750 * 500 * 500 mm |
| General mototractor characteristics | |
| Differential lock: | Permanent lock with unlock capability |
| Rotary tiller width: | 120 cm |
| Plow working width: | 21 cm |
| Overall dimensions without attachments: | 2100 1120 1300 mm |
| Overall dimensions with attachments: | 2800 1120 1300 mm |
| Ground clearance: | 240 mm |
| Wheel formula: | 4 x 2 (rear-wheel drive) |
| Rear gear PTO speed: | 1 176 rpm |
| Structural weight of mototractor (without attachments): | 430 kg |
| Structural weight of mototractor (with rotary tiller): | 490 kg |
| Rear wheels: | 6.5 -16, chevron tread pattern |
| Front wheels: | 5.00 -12, chevron tread pattern |
| Tire pressure, field conditions: | 80 ~ 120 (0.8 ~ 1.2 kgf / cm2) |
| Tire pressure, transport: | 140 ~ 200 (1.40 ~ 2.00 kgf / cm2) |
| Engine drive: | pair of B3050 V-belts under constant tension |
| Nominal trailer load weight: | 1200 kg |
| Clutch: | multi-plate, dry type, with constant engagement, friction type |
| Gearbox: | combined type (3 + 1) * 2, with cylindrical gear drive |
| Wheelbase (wheel width at extreme points): | Adjustable, 850-1300 mm |
| Track (distance between wheels at center points): | Adjustable, 800-1250 mm |
| Speed, 1st gear forward: | 2.8 km / h |
| Speed, 2nd gear forward: | 3.9 km / h |
| Speed, 3rd gear forward: | 6.1 km / h |
| Speed, 4th gear forward: | 10.4 km / h |
| Speed, 5th gear forward: | 16.5 km / h |
| Speed, 6th gear forward: | 23.5 km / h |
| Speed, 1st gear reverse: | 1.72 km / h |
| Speed, 2nd gear reverse: | 6.97 km / h |
| Final drive: | single-stage, spur cylindrical gear drive |
| Steering mechanism: | Worm gear with tilt angle adjustment |
| Brake: | Double-sided dry type brake |
| Gearbox oil volume: | 4.5 L |
| Attachment control: | hydraulic system |
| Hydraulic system: | two-vector system with floating position |
| Hydraulic pump distributor type: | two-vector distributor for front and rear attachments in parallel operation |
| Hydraulic oil volume in the system: | from 2 to 5 liters (depending on the type of installed attachment) |
| Critical pressure of hydraulic bridge safety valve: | 16 Mpa |
| Attachment lifting time: | 2 seconds |
| Rear attachment lifting capacity on suspension axis: | 780 kg |
| Tractor traction class: | 0.2 |
| Tractor traction force, nominal: | 4.32 kN |
| Lights: | High / Low beam |
| Horn: | + |
| Seat: | Soft seat with adjustment |
| Dashboard sensors: | Three sensors: Ammeter, Water temperature, Fuel level sensor in tank |
This Vityaz VM 150 RX model is ideal for owners of small farms and communal enterprises looking for multifunctional, economical, and reliable equipment. We also recommend paying attention to other models of the brand and similar tractors for comparison: Bulat, Bulat t25, Bulat 120, Bulat 150, Garden Scout, Scout t15, Scout t18, Scout t25, Scout 24, Tractor Fighter, Fighter t15, Fighter t18, Fighter t16, Tractor Forte, Forte t161, Forte t181, Forte t241, Tractor DTZ, DTZ 180, Shifeng 240.
