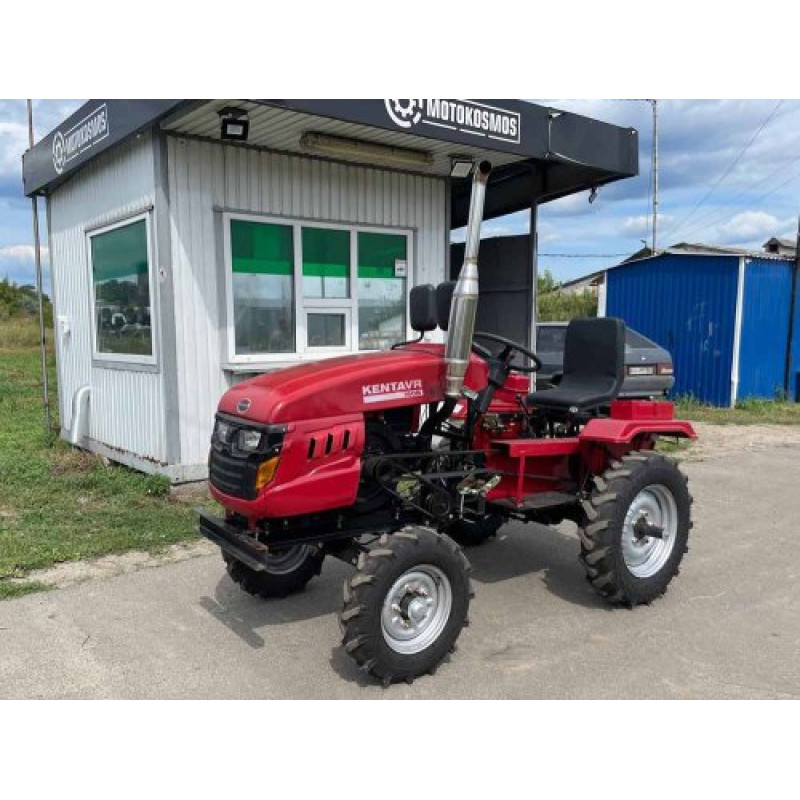

Mototractor KENTAVR 160 B (rotary tiller + plow)
Model Description: The KENTAVR 160 B mototractor with a rotary tiller and plow set is a reliable assistant for small farms, dachas, and agricultural and communal tasks. Manufacturer: KENTAVR. This model combines a powerful JD-16 diesel engine, a well-designed transmission, and a robust construction, ensuring long-term operation even under intensive load.
Technical Specifications:
Engine | JD-16 |
Type: | Horizontally positioned 195NL four-stroke diesel engine with water cooling |
Starting method: | Electric starter + manual start (Z-handle) |
Engine displacement: | 709 cm3 |
Rated power: | 15 hp |
Rated speed: | 2300 rpm |
Cooling system: | Condenser |
Flywheel rotation direction: | Counter-clockwise |
Lubrication: | Gear pump with splash lubrication system |
Engine weight: | 150 kg |
Overall dimensions without attachments, mm: | 2250x1250x1625 |
Ground clearance: | 330 mm |
Structural weight of mototractor: | 490 kg |
Rear wheels: | 6.5-16, chevron tread pattern |
Front wheels: | 5.00-12 |
Front wheel track, mm: | 940, 1040, 1140, 1240 |
Rear wheel track, mm: | 980-1280 |
Clutch: | Single-disc, dry type, with constant engagement, friction type |
Gearbox: | Combined type (3 + 1) * 2, with cylindrical gear drive |
Final drive: | Single-stage, spur cylindrical gear drive |
Brake: | 2 drum brakes |
Oil volume in gearbox (L): | 4 |
Engine and Transmission: The JD-16 engine with a displacement of 709 cm3 and a rated power of 15 hp ensures efficient operation with the rotary tiller and plow, while the electric starter with manual start provides reliable starting in all conditions. The lubrication system with a gear pump and splash lubrication increases the service life of the units. The combined gearbox (3+1)*2 offers flexibility in speed selection, and the single-disc dry clutch simplifies operation and maintenance.
Chassis and Brakes: The adjustable front and rear wheel track (front: 940–1240 mm, rear: 980–1280 mm) allows for optimal parameters for various crops and working conditions. The 6.5-16 rear tires with a chevron tread provide reliable grip on the soil, and two drum brakes ensure effective braking even under heavy loads.
Dimensions and Operational Parameters: Overall dimensions without attachments of 2250x1250x1625 mm, ground clearance of 330 mm, and a structural weight of 490 kg — these parameters make the KENTAVR 160 B stable and maneuverable in fields and between rows. The engine weight is 150 kg, which affects the overall center of gravity and stability when working with attachments.
Model Advantages:
- Versatility: works with rotary tiller and plow, cultivation, soil tillage, and bed preparation.
- Reliable JD-16 diesel engine with water cooling.
- Convenient electric starter plus backup manual start for operation in difficult conditions.
- Adjustable track width for adaptation to various planters and row spacings.
- Easy-to-maintain transmission and readily available consumables.
Operating Recommendations: Before the start of the season, check the oil level in the gearbox (volume 4 L), the condition of the brakes, and the attachment fasteners. Use original or manufacturer-recommended spare parts to extend the service life of the mechanisms. Regular engine maintenance, cooling system control, and timely oil changes will help maintain operational characteristics and prevent premature wear.
The Mototractor KENTAVR 160 B (rotary tiller + plow) is a practical solution for those who need a compact, yet powerful and reliable unit for working on homestead plots, gardens, and small farms. Manufacturer: KENTAVR. The model is ideal for soil preparation, cultivation, and other agricultural tasks where maneuverability and stable traction are required.
