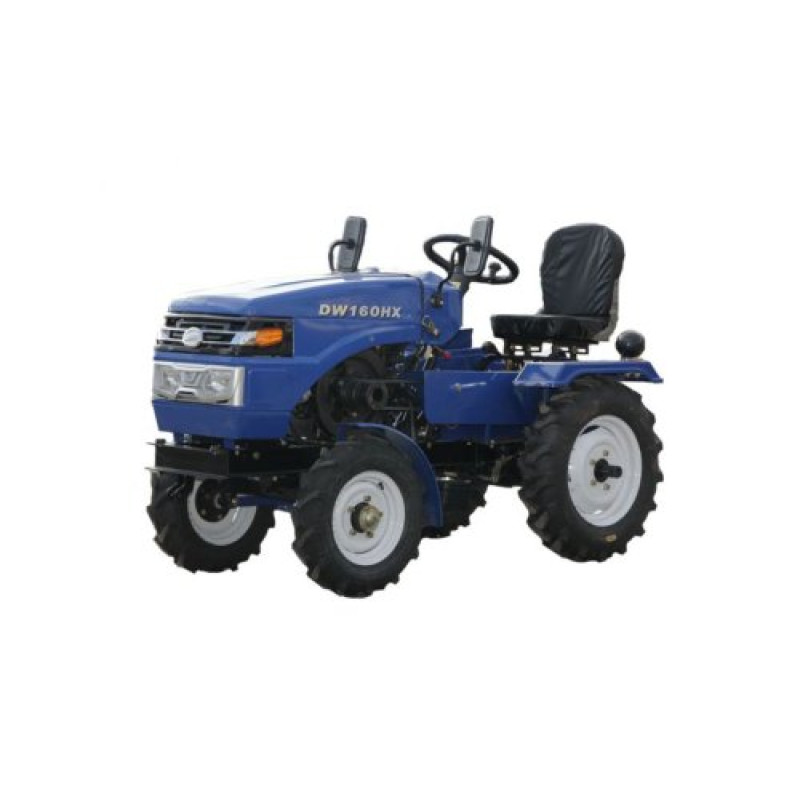

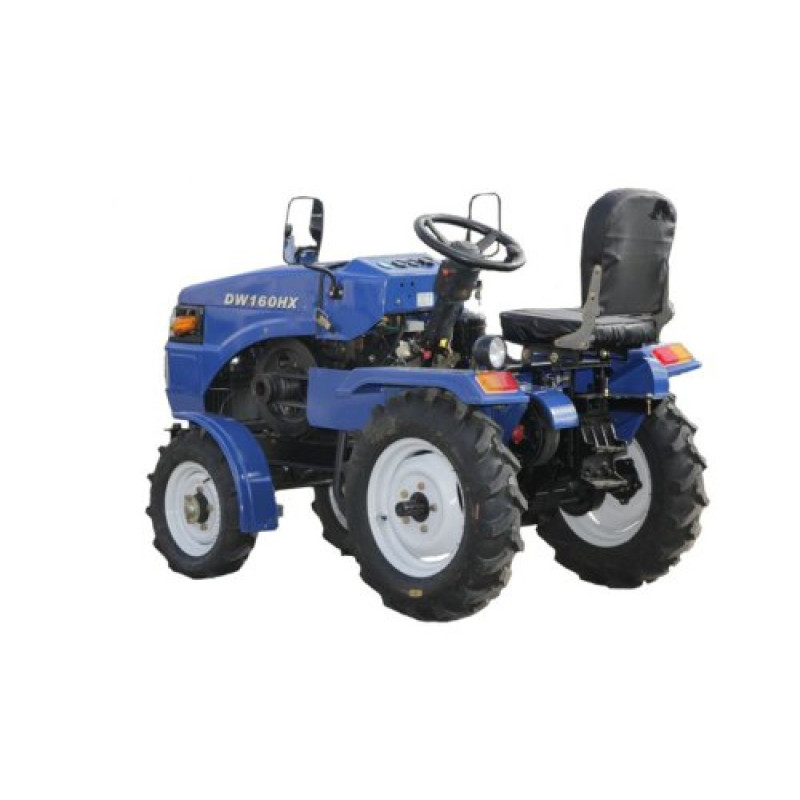

Mototractor DW 160 HX — Overview and Key Advantages

The DW 160 HX mototractor from manufacturer DW — is a compact and reliable model in the Tractors > Mototractors category, designed for small and medium-sized farms. With an engine power of 16 hp (11.8 kW) and a well-thought-out design, this machine is suitable for cultivating gardens up to 1 hectare, working with attachments, and towing trailers weighing up to 1 ton. The DW 160 HX offers a balanced combination of price, economy, and functionality.

Engine: JD16 model diesel 4-stroke unit with direct injection, no turbocharging, single cylinder with horizontal arrangement. Engine displacement — 995 cm3, cylinder bore/piston stroke — 90/110 mm, nominal crankshaft speed — 2300 rpm. Nominal fuel consumption — 249 g/kWh, nominal oil consumption — 1.5 g/kWh. Starting system — electric starter and manual starter.

Cooling — radiator-type water cooling; engine cooling system volume — 2.5 L. Mineral or semi-synthetic oil for diesel engines is recommended for the engine. Engine crankcase volume — 2.0 L. Gearbox and reducer crankcase volume — 5.0 L.

Kinematics, Transmission, and Control

Mechanical gearbox with (3 + 1) x2 configuration (three forward gears and one reverse with the ability to switch to high and low gears). Recommended transmission oil types: Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90. Clutch — dry, two-disc, constantly closed type. Main drive — V-belt. Driven wheels are powered by spur gear. Rear differential lock is absent (there is a rear axle shaft unlocking system). Steering — mechanical, brakes — drum type.

Power take-off (PTO) shaft is present, PTO speed — 1180 rpm. Nominal traction force — 3.1 kN. Maximum lifting capacity of the hitch mechanism — 130 kg. Minimum ground clearance — 260 mm, wheelbase — 1200 mm.

Wheels, Speeds, Dimensions, and Weight

Front wheel track has stepped adjustment: 820/870/920/970/1020/1070 mm, rear — smooth adjustment from 880 to 1220 mm. Tire size: front — 5.00-12 herringbone, rear — 6.50-16 herringbone. Minimum turning radius: without brakes 2.3 m, with brakes 1.8 m.

Travel speeds: forward — 2.24–22.78 km/h; reverse — 1.72–6.97 km/h. The general description indicates a fuel tank volume of 8 L and an approximate weight of about 500 kg, while the technical table shows a fuel tank volume of 5.5 L and an unladen weight of 498 kg. The mototractor can tow a trailer weighing up to 1 ton and reach a maximum speed of 22.78 km/h. Overall dimensions (L x W x H): 2080 x 1140 x 1400 mm.

Practical advantages: economical fuel consumption, ability to work for extended periods during daylight hours, compatibility with a wide range of attachments, reliable liquid cooling system for year-round operation. The model is noted for its ease of use and availability of spare parts. Warranty — 1 year. Delivery available throughout Ukraine (Kyiv, Kharkiv, Chernihiv, Vinnytsia, Poltava, and other settlements). Purchase on credit is possible. For clarification of configuration and availability of attachments, please contact the sales department.

Technical specifications DW-160HX:

The DW 160 HX — is an option for those seeking affordable, economical, and functional equipment: economical fuel consumption, ability to work year-round thanks to liquid cooling, compatibility with a wide range of attachments. The model is suitable for private households, farms, and service use. For ordering and clarifying delivery terms, please contact the sales department.
