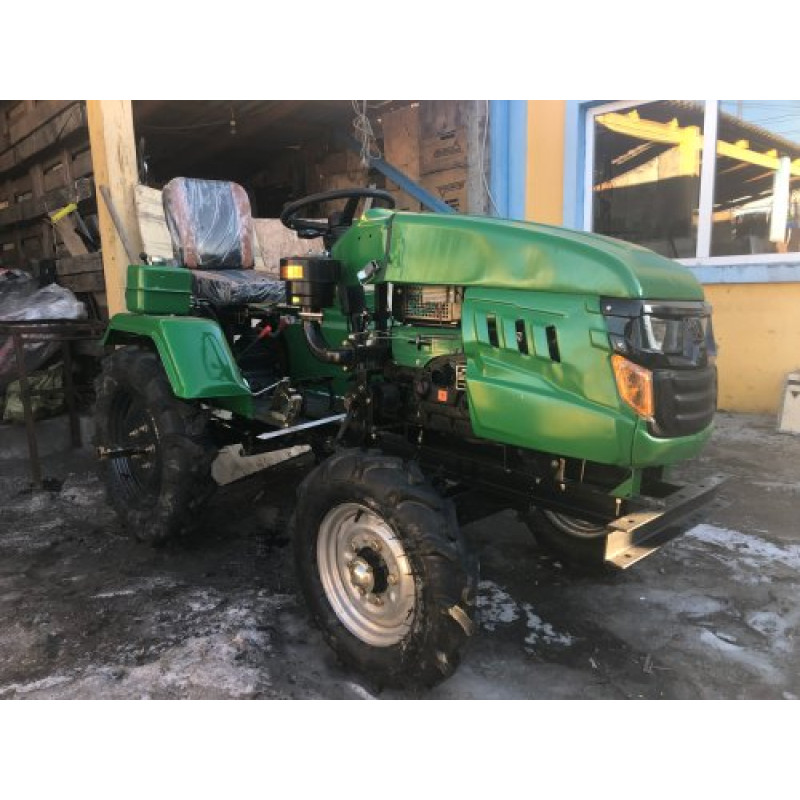

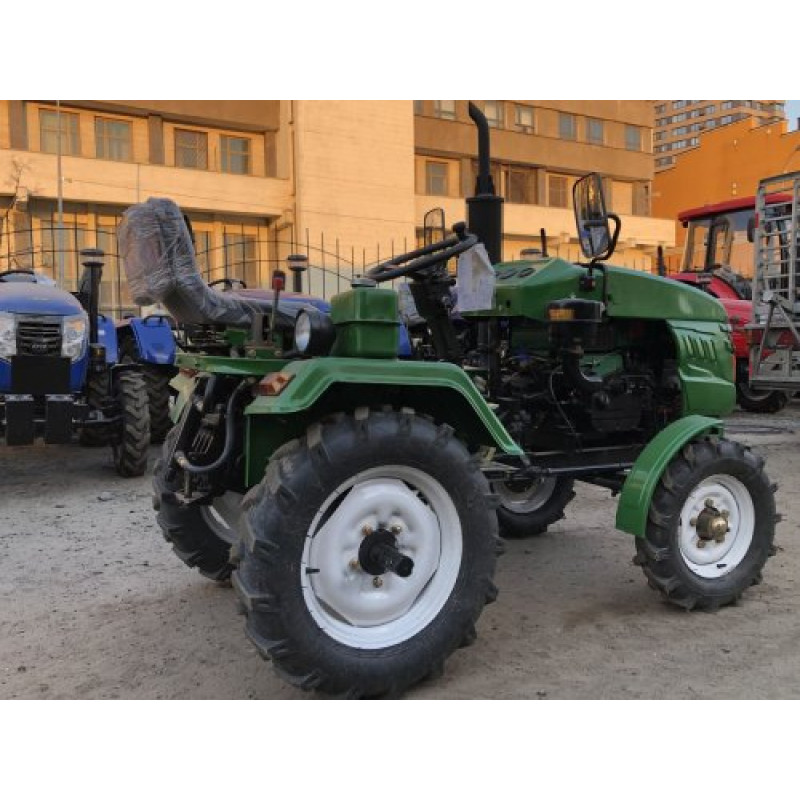

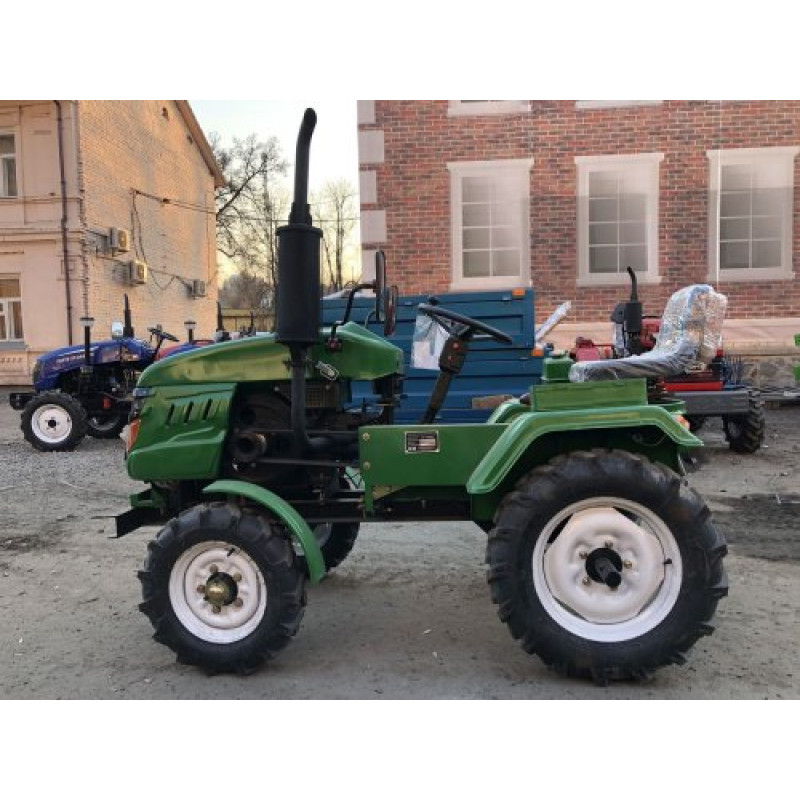

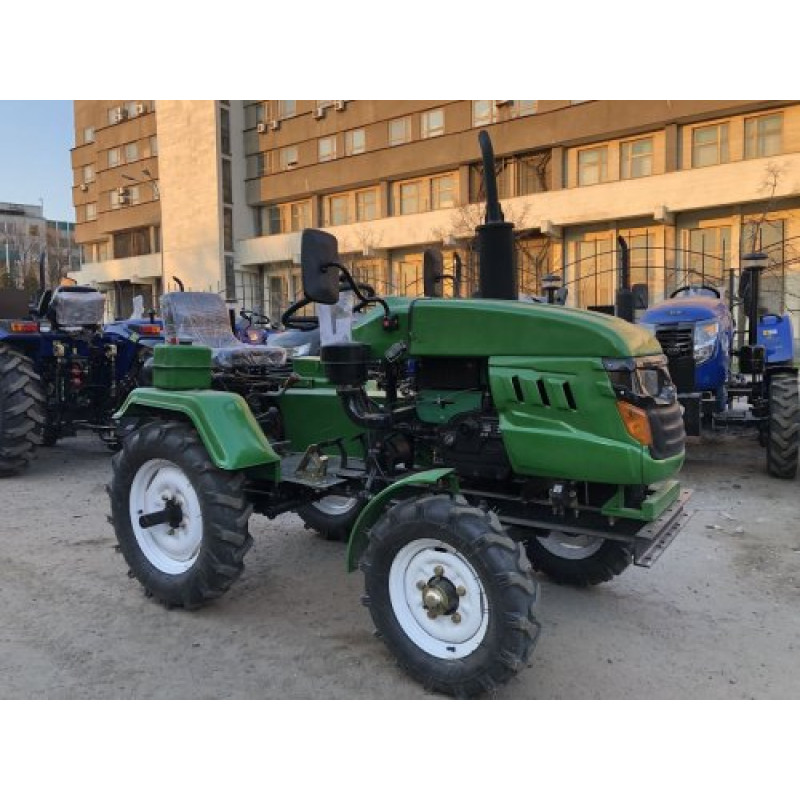

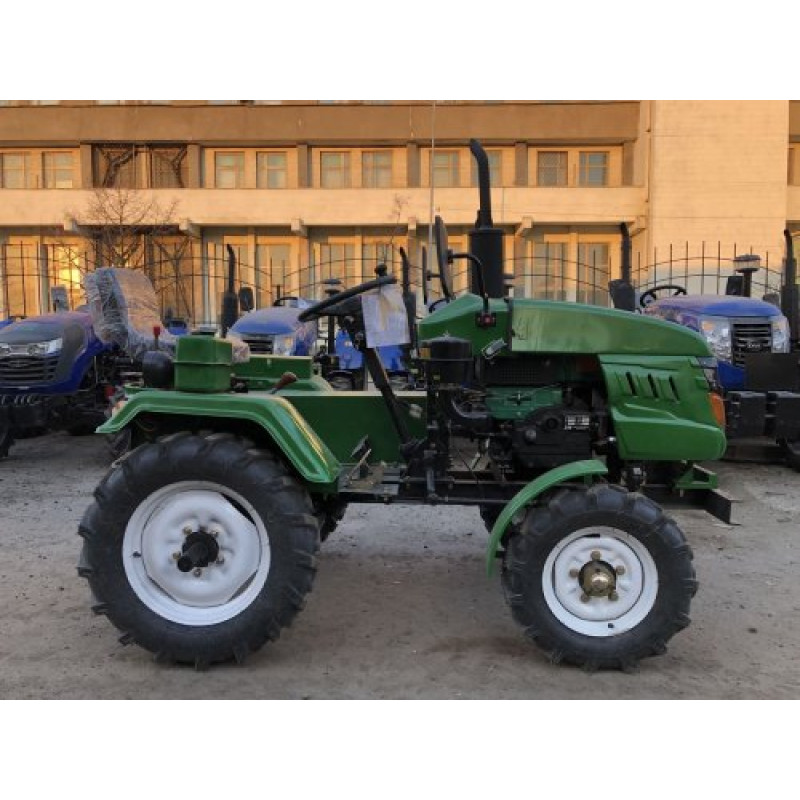

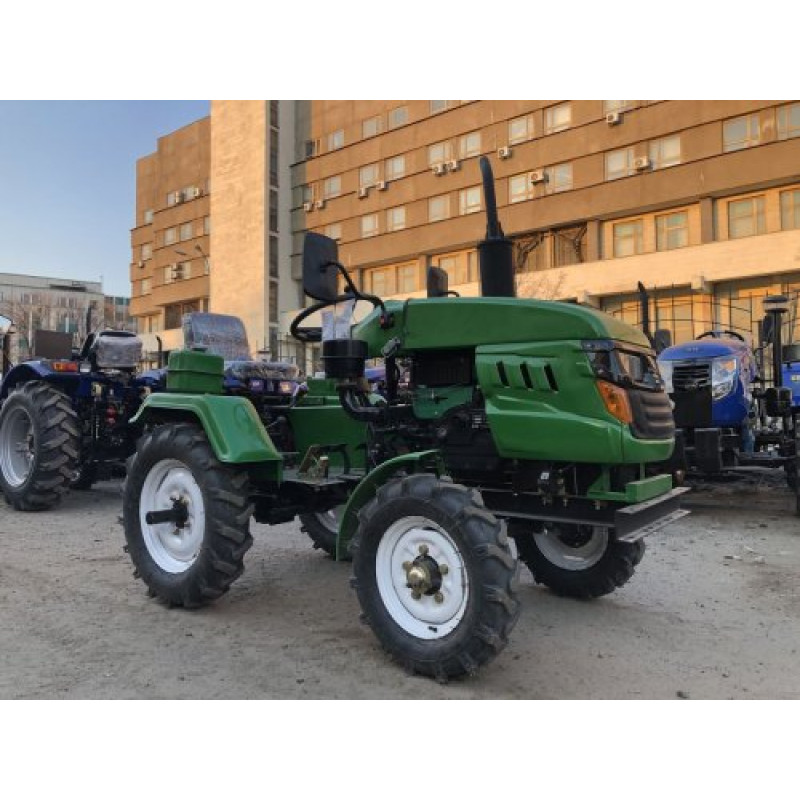

Mototractor DW 160 LXL — a reliable assistant for your farm

The DW 160 LXL mototractor from manufacturer DW is a practical and durable solution for private farms, agricultural enterprises, and the municipal sector. The model is designed for soil cultivation, sowing, applying mineral fertilizers, harvesting, and transporting crops. Combining compactness, maneuverability, and sufficient productivity, the DW 160 LXL effectively works on plots of various sizes.

Design and Key Advantages

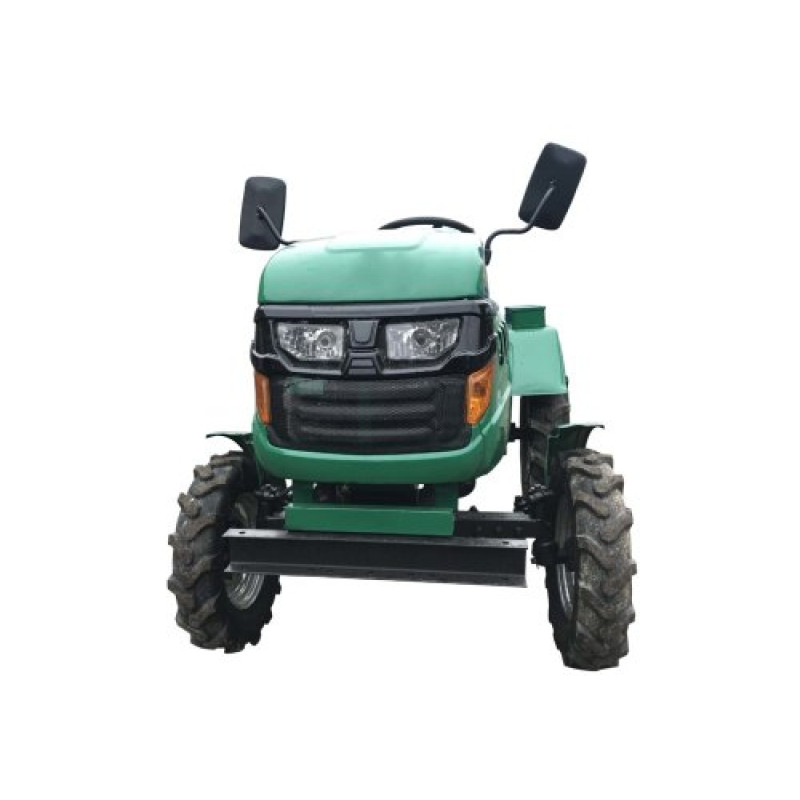

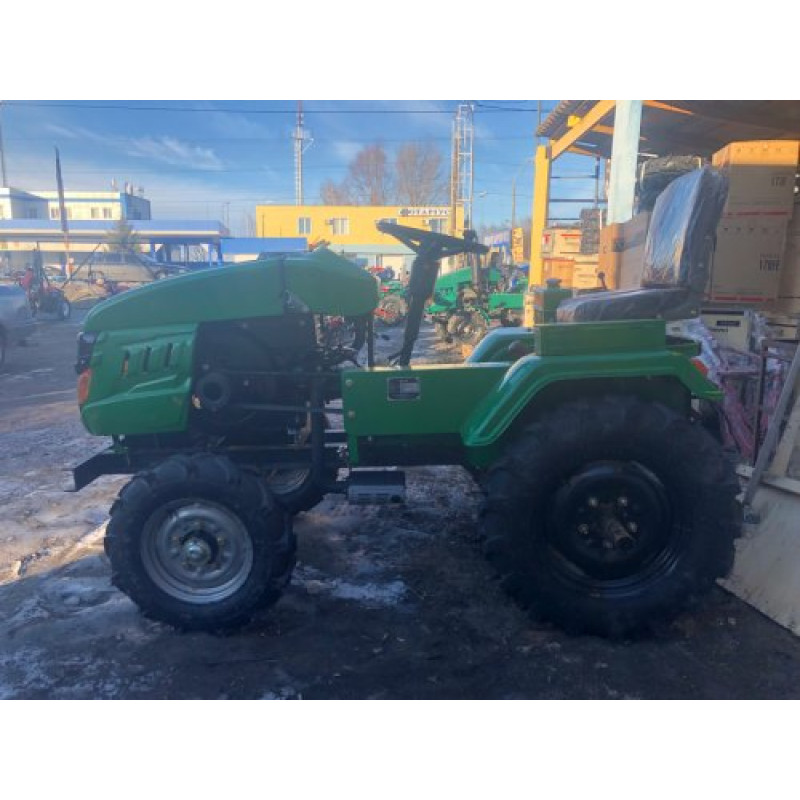

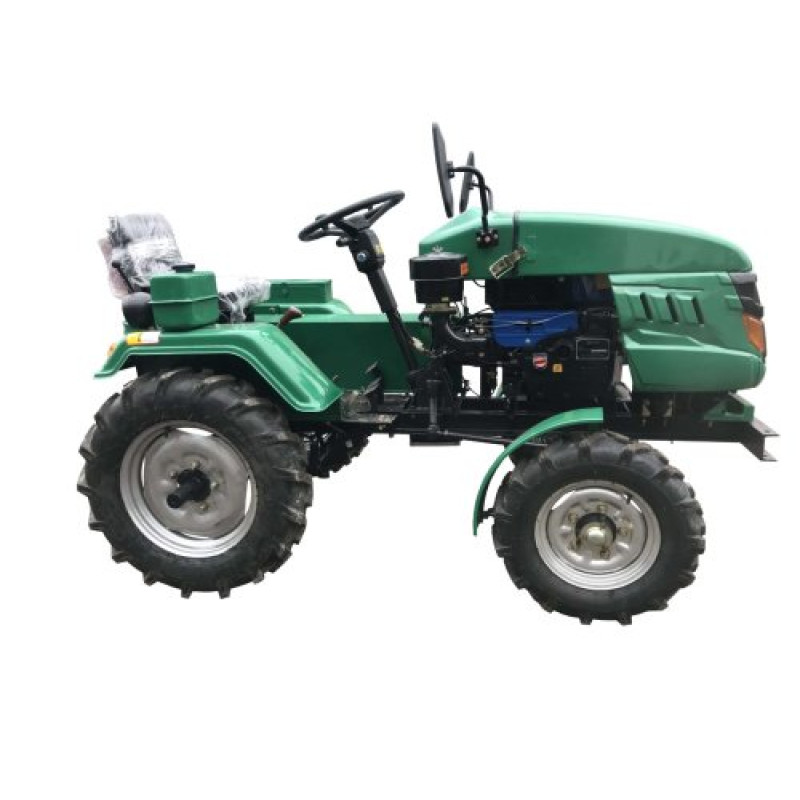

The DW 160 LXL features an improved design with a front block equipped with rectangular headlights for quality illumination of the working area, as well as a rear spotlight for controlling attachments. Enlarged wheels with a chevron tread improve traction. Optional differential lock is available, which helps prevent slippage in difficult conditions. The absence of a cabin and a simpler mid-drive make the design less complex to maintain and more affordable.

Functionality and Compatible Equipment

This mototractor is versatile: it can be aggregated with mounted and trailed equipment — plow, harrow, cultivator, seeder, rake, mowers, trailer, baler, hiller, potato digger, garlic planter, and others. The DW 160 LXL is suitable for soil cultivation, inter-row cultivation, irrigation, area cleaning, grass mowing, and fodder harvesting.

Technical Features and Operational Parameters

The model is equipped with a horizontally positioned diesel four-stroke engine, designated as JD-16 (type 195NL) with water cooling. The nominal engine power is 15 hp, working volume is 709 cm3, nominal rotation speed is 2300 rpm. Starting is provided by an electric starter with the option of manual start (Z-shaped handle). The lubrication system is a gear pump with splash lubrication. Fuel injection pressure is 12753 kPa, injection advance angle is 16±2. Valve clearances for a cold engine: intake 0.25±0.05 mm, exhaust 0.30±0.05 mm. Engine weight is 150 kg.

The drive from the engine is carried out by a pair of B3200 V-belts under constant tension. The combined-type gearbox (3+1)*2 with cylindrical gear drive provides 6 forward and 2 reverse gears. The clutch is single-disc, dry friction type. The final drive is a single-stage spur cylindrical gear drive. Steering is a classic steering wheel; brakes are two drum brakes.

The structural weight of the mototractor is 486 kg. Overall dimensions without attachments: 2200x1450x1330 mm. Ground clearance is 250 mm. Rear wheels: 6.5-16 with chevron tread pattern; front wheels: 5.00-12. Tire pressure in field conditions: 80~120 kPa (0.8~1.2 kg/cm2); during transport: 140~200 kPa (1.4~2.0 kg/cm2). Nominal trailer load is 1000 kg. Gearbox oil volume is 5 liters.

Speed Characteristics (Gears)

• 1st gear forward: 2.24 km/h;
• 2nd gear forward: 3.48 km/h;
• 3rd gear forward: 5.62 km/h;
• 4th gear forward: 9.10 km/h;
• 5th gear forward: 14.10 km/h;
• 6th gear forward: 22.78 km/h;
• 1st gear reverse: 1.72 km/h;
• 2nd gear reverse: 6.97 km/h.

Why Choose DW 160 LXL

Among the main advantages of the model are: reliability of components and compliance with international quality standards, compactness and maneuverability for working on small plots, and multifunctionality due to wide compatibility with mounted and trailed equipment. For difficult conditions, differential lock is available as an option.

Purchase and Service at Flash Army

Flash Army online store offers the new DW 160 LXL mototractor with an official manufacturer's warranty of 12–24 months. Available payment methods: cash, cashless payment, credit, or installment plan. We provide fast and free delivery throughout Ukraine, pre-sale preparation and inspection of equipment, as well as a wide range of mounted and trailed equipment.

Flash Army online store sells DW 160 LXL with warranty, service support, and delivery throughout Ukraine. You can order equipment on the website with various payment options.
