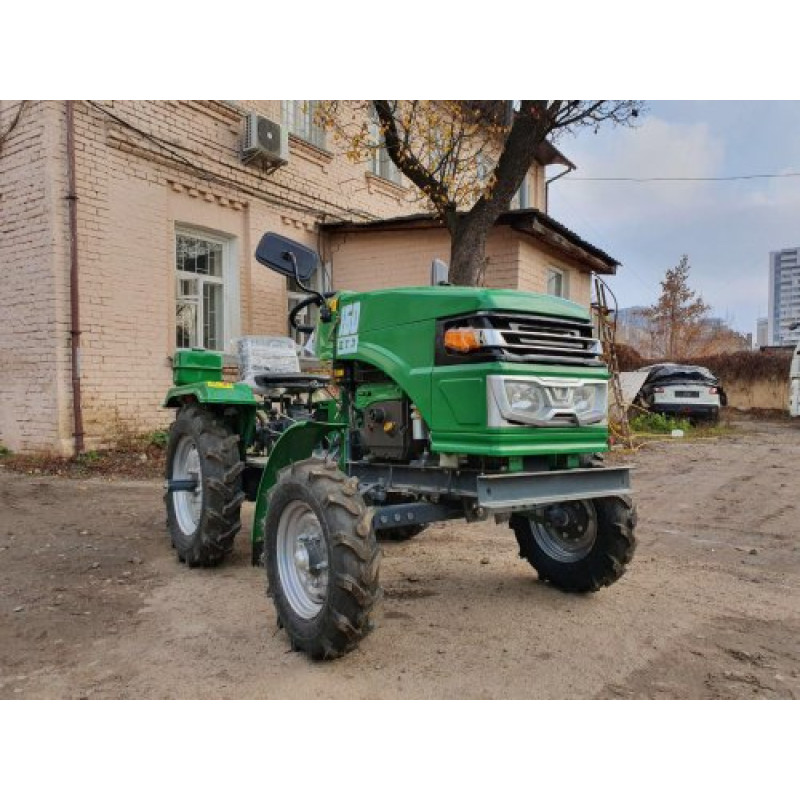

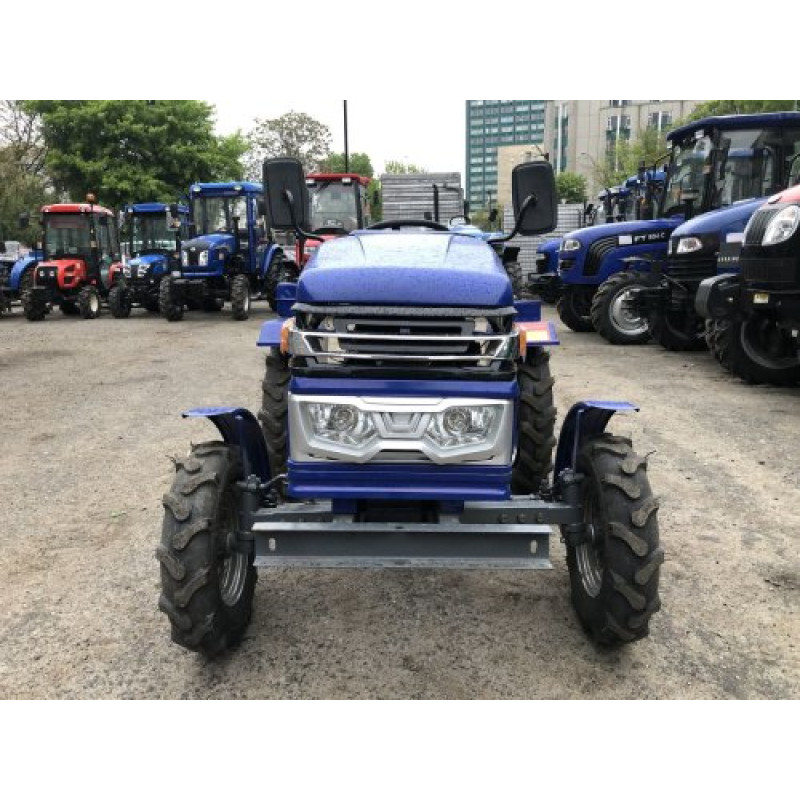

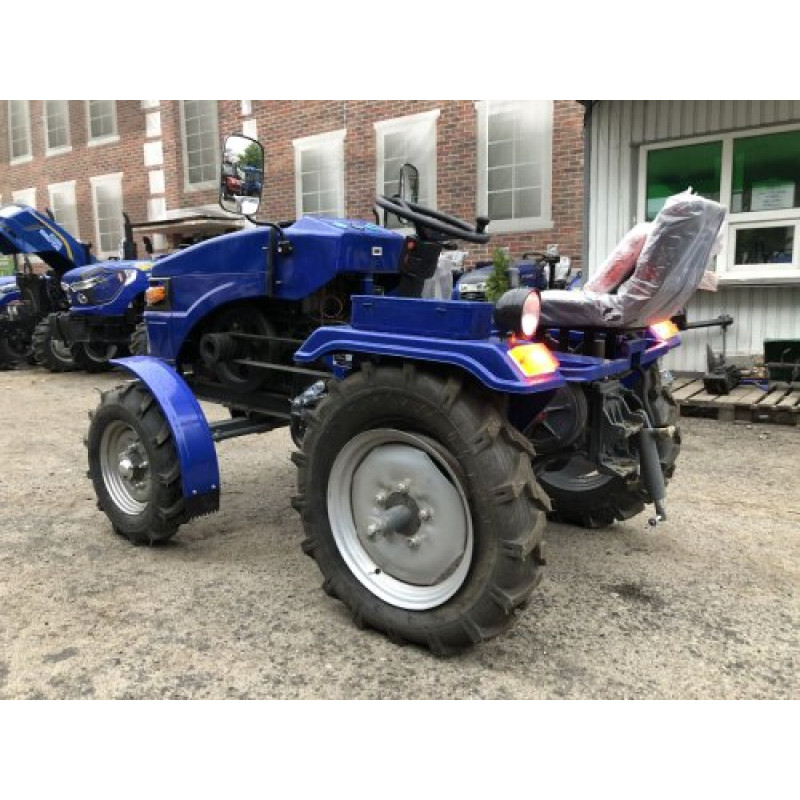

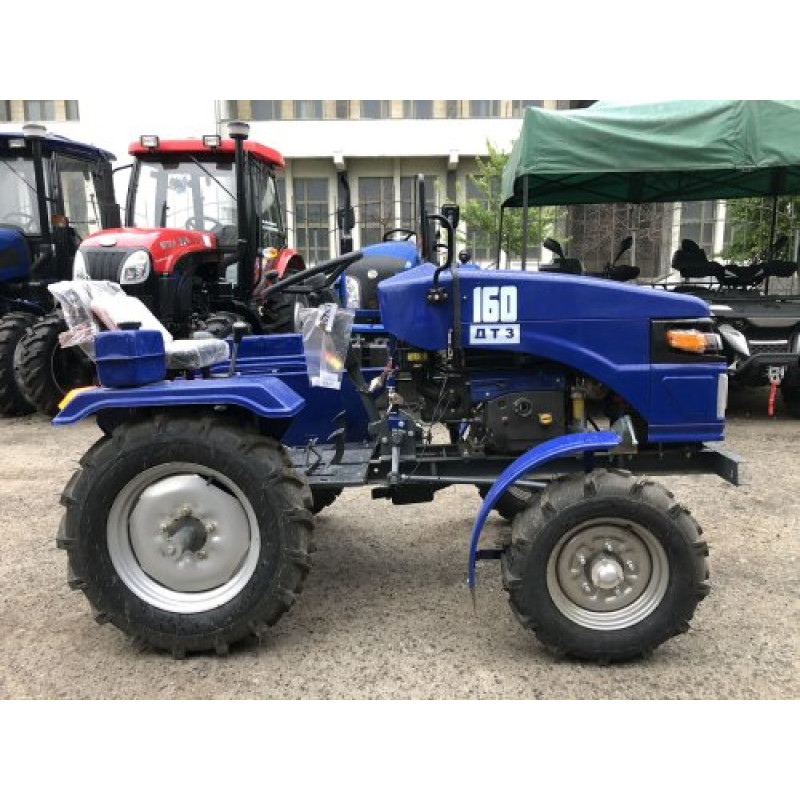

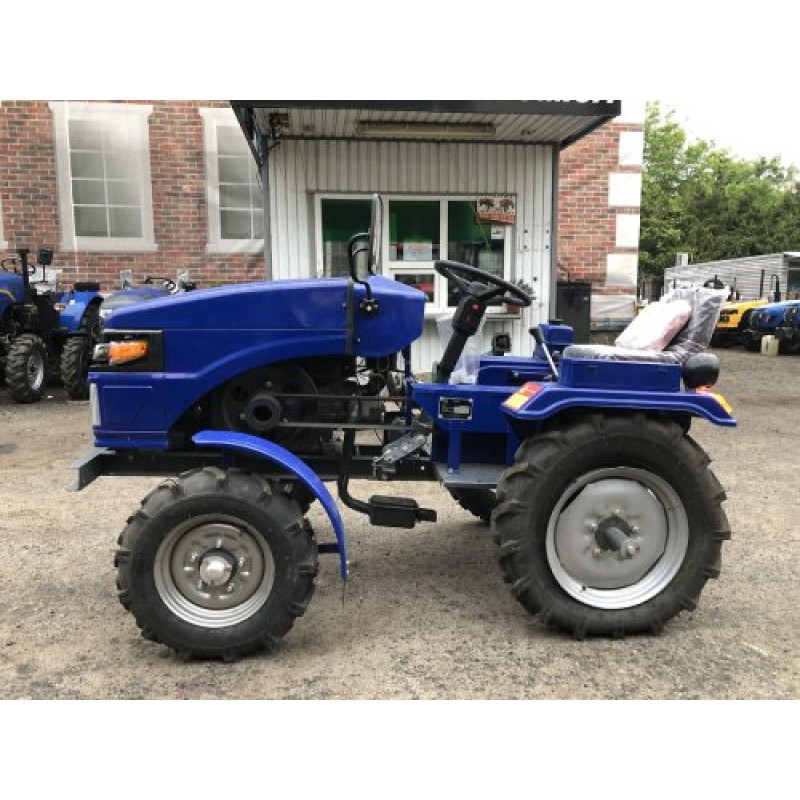

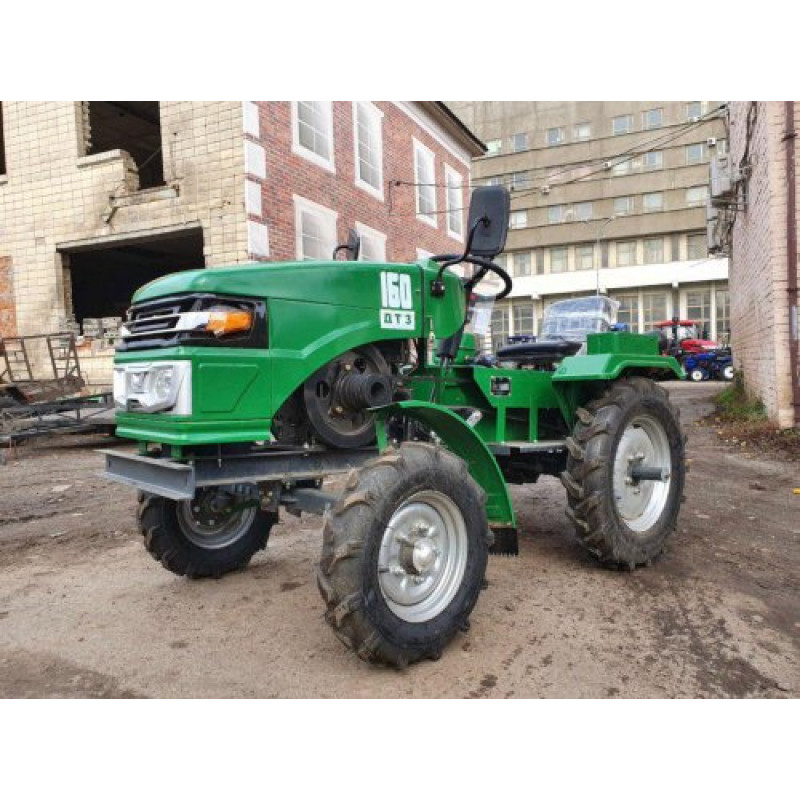

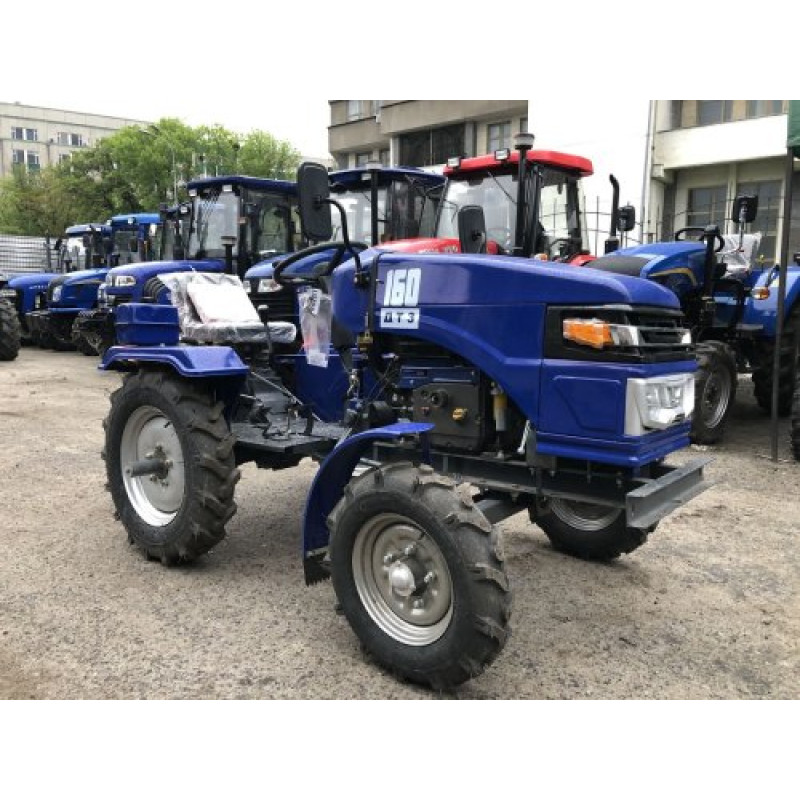

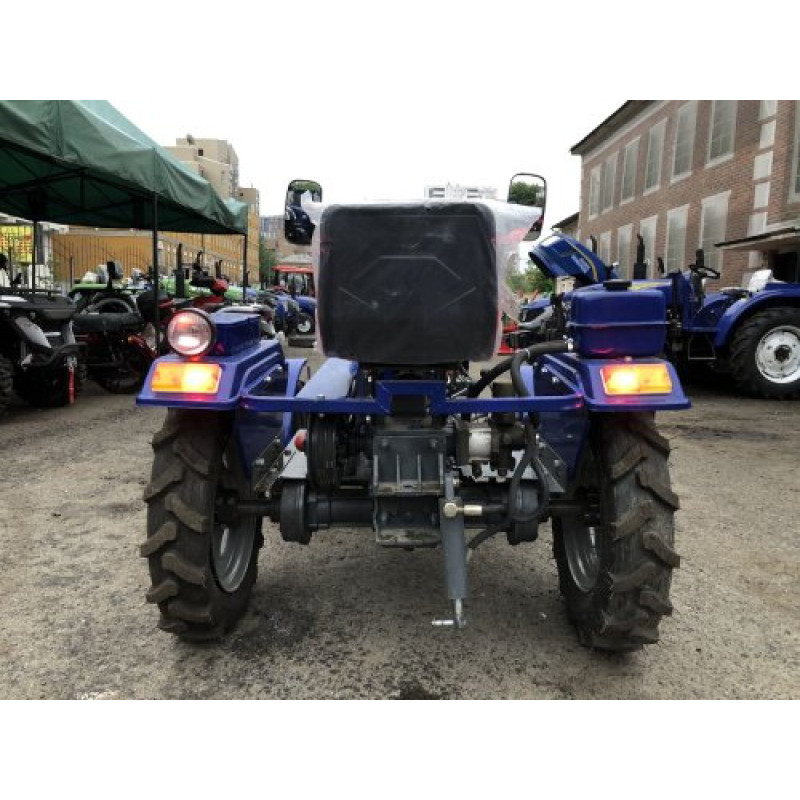

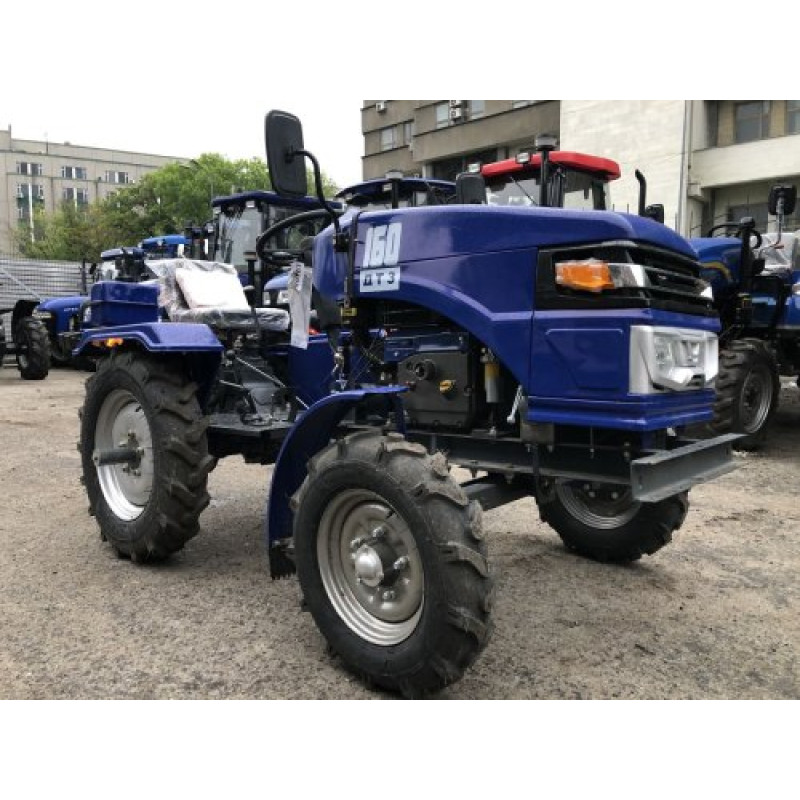

Mototractor DTZ 160 (Without tiller) — reliable, functional, and economical

The DTZ 160 mototractor from the manufacturer DTZ in the category Tractors > Mototractors is a modernized configuration without a tiller, combining ease of operation, economy, and durability. This model is ideal for cultivating small and medium-sized plots, working in greenhouses, and in confined spaces thanks to its compact dimensions and maneuverability.

Engine and starting system

The mototractor is equipped with a single-cylinder four-stroke diesel engine DD195VE with a power of 11.8 kW / 15 hp. The engine displacement is 815 cc, the number of cylinders is 1 (horizontal arrangement). The starting system is an electric starter, and the cooling system is water-cooled. The crankshaft speed is 2300 rpm. Mineral or semi-synthetic oil is recommended for the engine.

Transmission, PTO, and driving characteristics

The mechanical gearbox has a formula of (3 + 1) x 2, providing 6 forward and 2 reverse gears, allowing precise speed selection for tasks. The power take-off (PTO) operates at 1180 rpm. The clutch type is dual-disc. The traction force is 3.1 kN. The wheel formula is 4 x 2. A rear differential lock is present, preventing slippage on difficult terrain. Steering is mechanical; the drive of the steered wheels is mechanical, with a spur gear transmission. Brakes are drum-type.

Forward speed: 2.24-22.78 km/h. Reverse speed: 1.72-6.97 km/h. Turning radius: with brakes — 2.3 m, without brakes — 1.8 m.

Geometry, tires, and lifting capacity

Wheelbase — 1360 mm. Front wheel track adjustable: 1080/1180/1280 mm, rear — 1020-1310 mm. Ground clearance — 325 mm. Front tire size — 5.00-12, rear — 6.5-16. Lifting mechanism capacity — 130 kg. Tractor dimensions (LxWxH): 2400 x 1200 x 1440 mm. Unit weight — 460 kg.

Economy and operational parameters

Fuel consumption is 249 g/kWh, fuel tank capacity — 8 L. The main transmission is belt-driven, with 3 B-3250 type belts. Recommended transmission oils: Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90. Piston stroke/cylinder diameter — 115 / 100 mm.

Where to buy? Flash Army online store works directly with the manufacturer, so you get a competitive price on the DTZ 160 mototractor without a tiller. We arrange delivery in Kyiv and Ukraine, provide an official warranty, and the option to purchase on credit, for cash, or by bank transfer with VAT. Place an order through the website or contact us using the details provided on the website.

Technical specifications:

Engine	DD195VE
Engine type	Diesel, 4-stroke
Power	11.8 kW / 15 hp
Engine displacement	815 cc
Number of cylinders	1, horizontal
Cooling system	Water-cooled
Starting system	Electric starter
Traction force	3.1 kN
PTO	1180 rpm
Crankshaft speed	2300 rpm
Clutch type	Dual-disc
Fuel consumption	249 g/kWh
Gearbox	(3 + 1) x 2
Wheel formula	4 x 2
Forward speed	2.24-22.78 km/h
Reverse speed	1.72-6.97 km/h
Turning radius with brakes	2.3 m
Turning radius without brakes	1.8 m
Engine oil type	Mineral or semi-synthetic
Gearbox and reducer oil type	Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission)
Piston stroke/Cylinder diameter	115 / 100 mm
Main transmission	Belt-driven, 3 B-3250 belts
Rear differential lock	Yes
Steered wheel drive	Mechanical, spur gear transmission
Steering	Mechanical
Brakes	Drum-type
Lifting capacity	130 kg
Front tire size	5.00-12
Rear tire size	6.5-16
Wheelbase	1360 mm
Front wheel track	1080/1180/1280 mm
Rear wheel track	1020-1310 mm
Ground clearance	325 mm
Fuel tank capacity	8 L
Dimensions (LxWxH)	2400 x 1200 x 1440 mm
Weight	460 kg

This description contains all key technical data and features of the DTZ 160 mototractor without a tiller, so you can make an informed purchasing decision. Thanks to its adjustable track, differential lock, and compact size, the model is versatile for various agricultural tasks.
