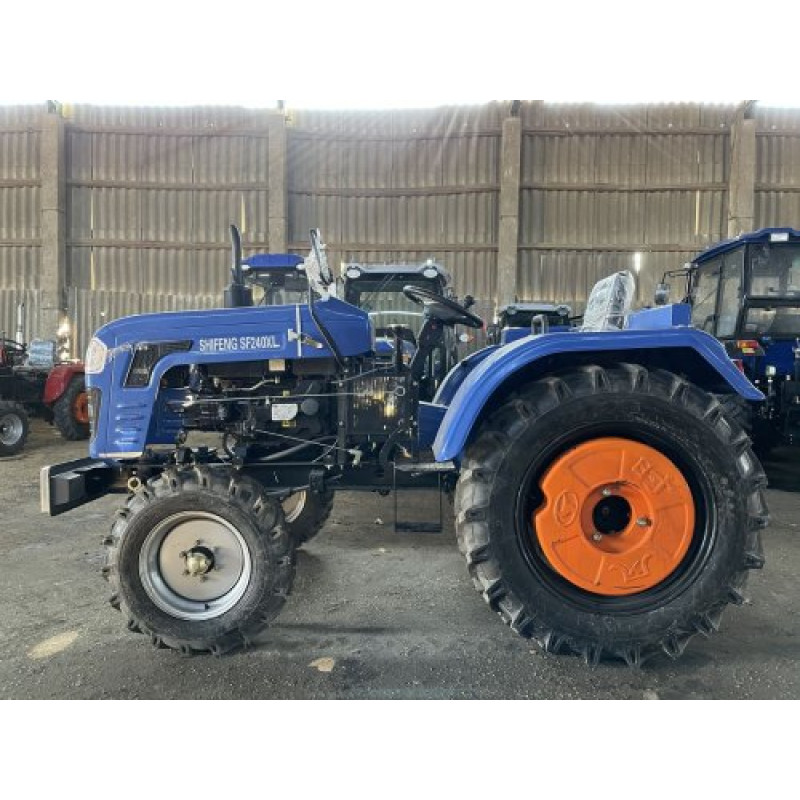

Mototractor Shifeng 240 XL (Shifeng SF 240 XL)
Model: Shifeng SF 240 XL. Manufacturer: Shifeng. Category: Tractors > Mototractors. The Shifeng brand has been manufacturing agricultural machinery for over twenty years, earning a reputation as a reliable producer. The company's lineup includes popular mototractors and power tillers, as well as highly specialized equipment. The SF 240 XL model combines optimal cost and high-quality components, a durable engine, and robust working units, making it a practical choice for farmers and landowners.
Advantages of the Shifeng Mototractor
Key advantages of the Shifeng SF 240 XL, which have made this machinery widely popular in Ukraine:
- Compatibility with mounted and trailed equipment: capability to install a plow, mower, potato planter, dozer blade, and other mounted implements.
- High maneuverability: compact design, large wheels with increased ground clearance, and an easy-to-maintain mechanical gearbox ensure good проходимость in the field and on the plot.
- Fuel efficiency: a modern diesel single-cylinder engine with a liquid cooling system is designed with an emphasis on fuel efficiency, reducing operating costs.
- Maintainability: availability of spare parts and a simple design guarantee quick service and inexpensive repairs.
- Optimal price-to-quality ratio: Shifeng maintains competitive prices with proper component quality.
Design Features of Shifeng SF 240 XL
The SF 240 XL is a modification of the popular SF 240 mototractor, distinguished by larger wheels, increased ground clearance, and the ability to install heavier counterweights. The upgraded hydraulic system includes an expansion tank for hydraulic oil, which increases the reliability of mounted equipment operation.
Key technical units and design solutions:
- Engine: single-cylinder unit with vertical arrangement; liquid cooling system for overheat protection.
- Drive: rear-wheel drive with belt clutch transmission; connecting two belts is recommended to reduce load on the transmission.
- Chassis: adjustable track width; front tires 6.0-16, rear 9.5-24; agrotechnical ground clearance increased to 350 mm for better проходимость.
- Hydraulics: three-point lifting system with a lifting capacity of up to 400 kg; power take-off (PTO) shaft operates at 540 rpm.
- Controls: standard set of levers and instrument panel; no engine hour meter included.
Sales and Delivery Terms
You can order the Shifeng SF 240 XL mototractor on the store's website with one click. The product page displays the current price and full specifications of the model. Delivery is available throughout Ukraine. Payment options include cash, cashless, credit, or installment plans. The store's catalog also offers a wide selection of mounted equipment for mototractors, compatible with the SF 240 XL.
Technical Specifications:
| Engine Power | 24 hp |
| Wheel Formula | 4x2 |
| Engine Type | 4-stroke, water-cooled diesel engine |
| Engine Displacement | 1344 cm3 |
| Nominal Fuel Consumption, g/kW*h | ≤252 |
| Nominal Tractive Force, kN | 4.7 |
| Gearbox | non-synchronized, mechanical (3+1)*2 |
| Differential Lock | none |
| Clutch | dry, single-disc |
| Power Steering | none |
| Cooling System Fan Drive | external in oil bath |
| Braking Mechanism | drum type |
| PTO Speed, rpm | 540 |
| Maximum Lifting Capacity of Mounted Mechanism, kg | 4.0 |
| Wheelbase, mm | 1585 |
| Front Wheel Track, mm | 1160-1260 |
| Rear Wheel Track, mm | 1025-1295 |
| Front Tire Size | 6.0-16 |
| Rear Tire Size | 9.5-24 |
| Ground Clearance, mm | 350 |
| Theoretical Forward Speed, km/h | 31.19 |
| Theoretical Reverse Speed, km/h | 11.25 |
Fuel Tank Capacity, L | 17 |
| Engine Crankcase Capacity, L | 3.5 |
| Gearbox and Rear Axle Crankcase Capacity, L | 19.0 |
| Lift Housing Capacity, L | 5.0 |
| Front Axle Crankcase Capacity, L | 5.0 |
| Engine Cooling System Capacity, L | 15 |
| Overall Dimensions (LxWxH), mm | 2990x1580x2400 |
The Shifeng SF 240 XL mototractor will be a reliable assistant for those who value efficiency, ease of maintenance, and versatility of application: from cultivating small fields and gardens to working on a homestead plot. If you need a versatile, economical solution with wide implement compatibility, the SF 240 XL meets these requirements.
