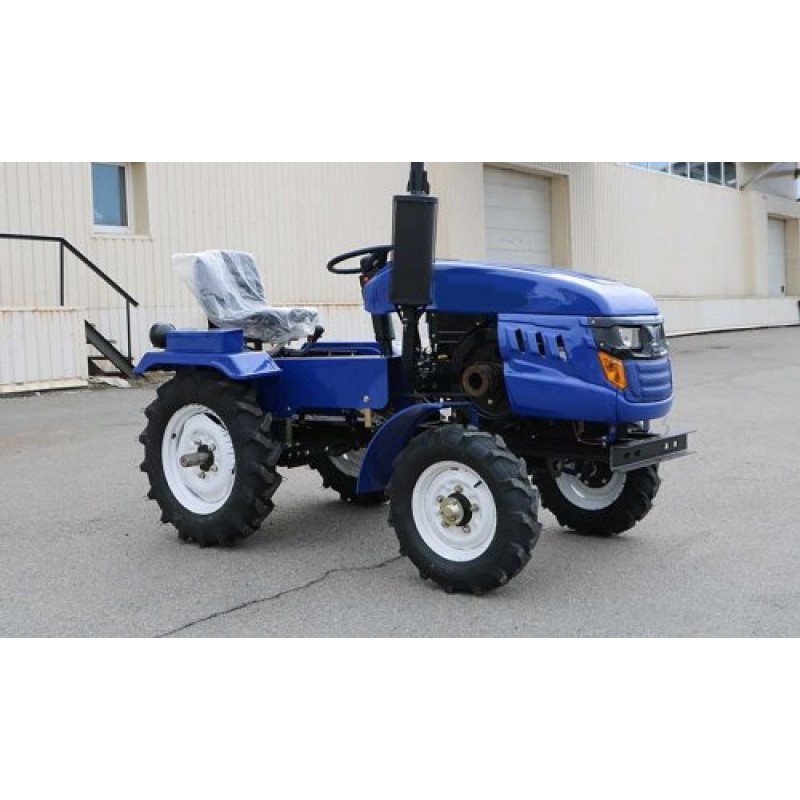

Mototractor DMTZ 224 (4x4) + 1.3 m Rotary Tiller

We offer versatile and reliable equipment for private farms — the DMTZ 224 mototractor in a 4x4 all-wheel drive configuration, complete with a 1.3 m (130 cm) wide rotary tiller. This model from the manufacturer DMTZ combines a simple design, high cross-country capability, and economical operation thanks to its single-cylinder diesel engine. The DMTZ 224 is suitable for cultivating small farm plots, dachas, and homesteads where reliability and efficiency are important.

Engine, Fuel, and Starting

The heart of the machine is a 4-stroke diesel engine with a displacement of 1169 cm3 and a power output of 22 hp (16.18 kW). The water cooling system with a pump ensures stable operation under intensive loads. The direct injection fuel system guarantees efficient combustion at high pressure. Starting is possible manually or with a key using the starter; the tractor is equipped with a battery, but its capacity is limited, so in cold weather, preheating through the radiator expansion tank with hot water is sometimes used for more reliable starting.

Chassis, Transmission, and Steering

The drive is a combined 4x4: torque is transmitted to the rear axle by two tensioned belts, while the front and rear axles are connected by a cardan drive. Adjustable tracks front and rear allow for inter-row cultivation. Standard tires are on the front, and wide tires are on the rear for better traction. The gearbox is a gear-type combined (3+1)x2, effectively providing 6+2 gears with high and low ranges. Differential lock is absent. The clutch is two-disc, and the brakes are dry-type, drum. The steering wheel is without power steering, which simplifies the design and maintenance.

Hydraulics and Attachments

The three-point hitch allows for connecting a wide range of trailed and mounted equipment; the lifting capacity of the hitch is up to 300 kg. The power take-off (PTO) shaft operates at 540 rpm, allowing the use of active implements, including the included 1.3 m rotary tiller. Hydraulic control is implemented via a separate external lever for raising and lowering attachments.

Comfort, Controls, and Operational Features

The mototractor is designed with an emphasis on simplicity and reliability: a simple dashboard with three gauges, the absence of a fuel level sensor and differential lock — all this makes the model affordable and easy to maintain. Thanks to the battery and starter, starts in warm weather are quick, but on cold days, it is advisable to follow the preheating recommendations for the best start.

Purchase Conditions

Flash Army online store offers installment plans and credit for the DMTZ 224 configuration. Delivery across Ukraine is free, payment is upon receipt. For orders and consultations, please contact the Flash Army sales department.

Specifications:

Manufacturer: DMTZ. Product Type: Tractors > Mototractors. The configuration includes a 1.3 m (130 cm) rotary tiller, making the model versatile for soil preparation.
