Product Code: FA108-123077-108
In Stock
35 780 грн.
Buy this product in 1 click:
Main specifications
Air Filter:
Multi-stage filter with transparent cyclone
Battery type, capacity A∙h:
Lead-acid, 28
Clutch type:
Normally open multi-disc in oil bath
Coolant type:
-
Cooling system capacity, L:
-
All specifications
We will deliver this product:
Payment
Description

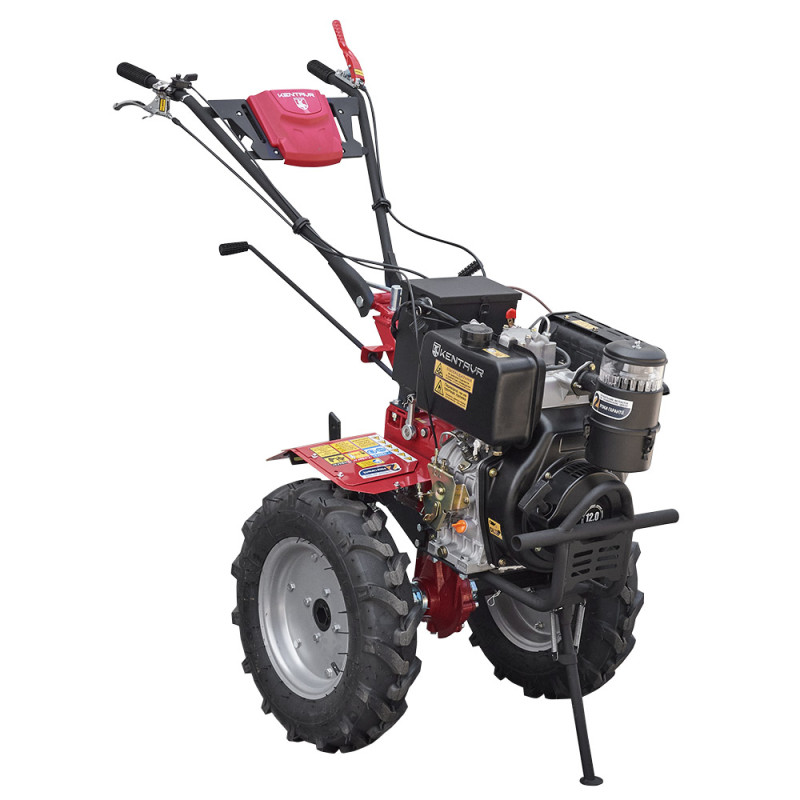

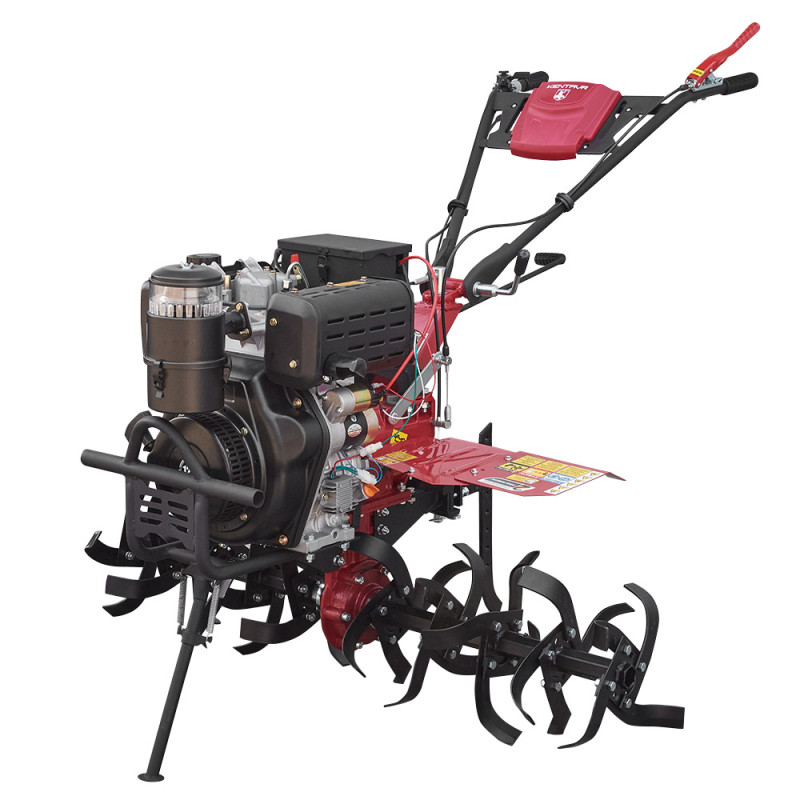

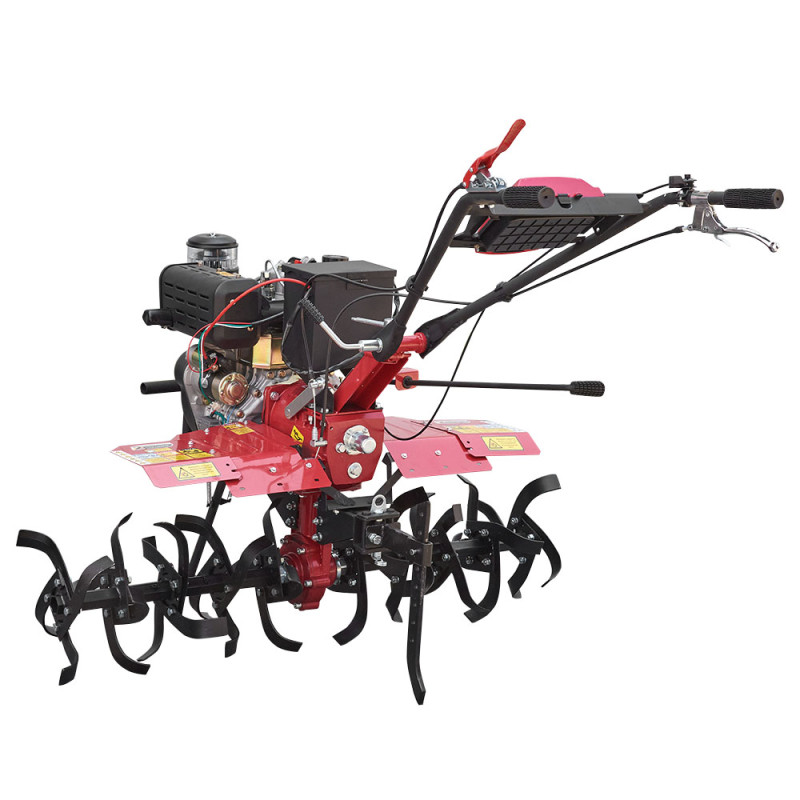

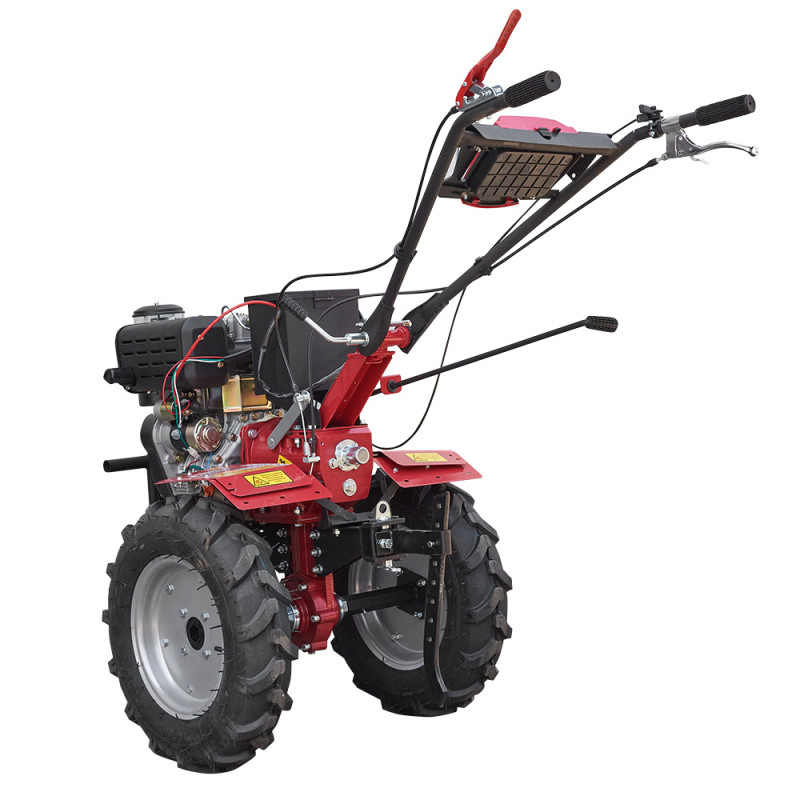

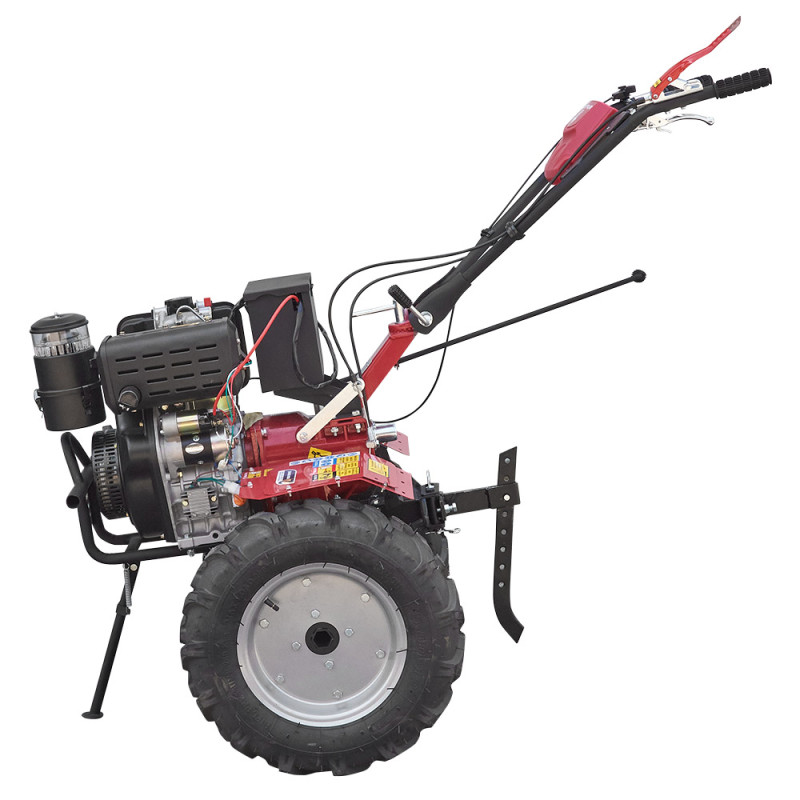

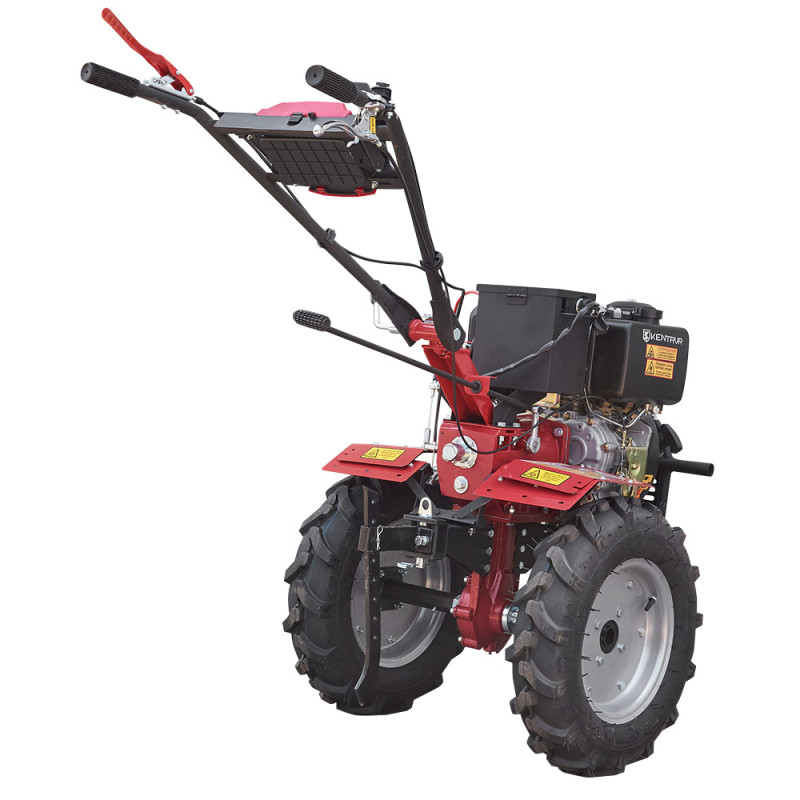

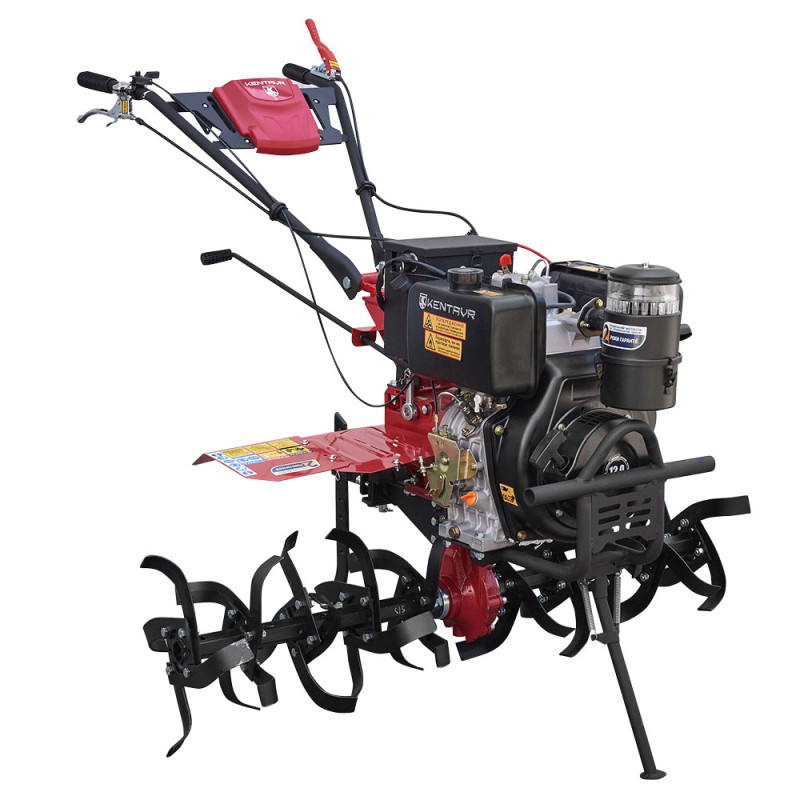

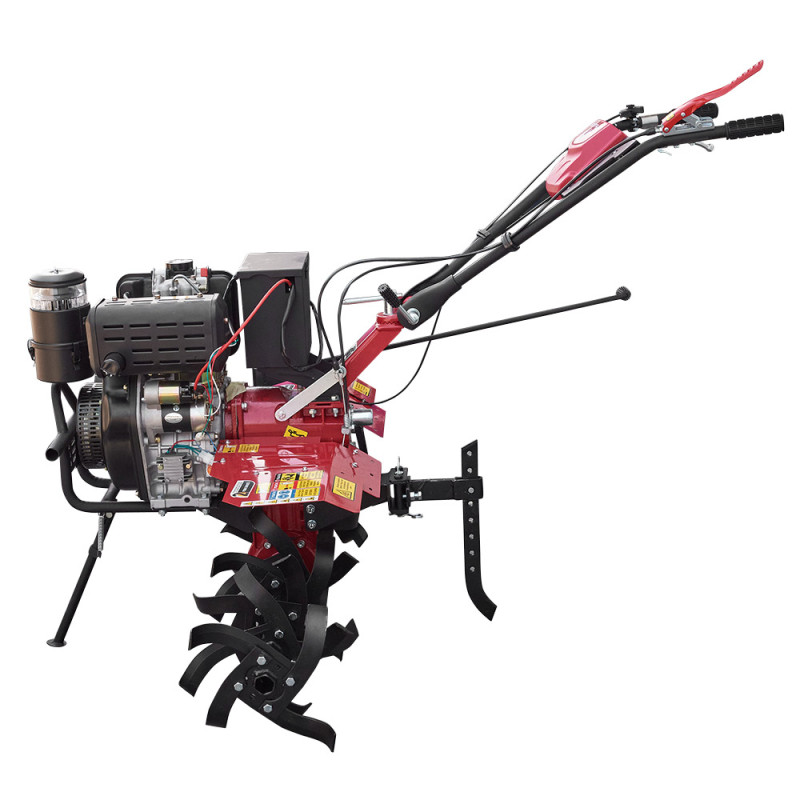

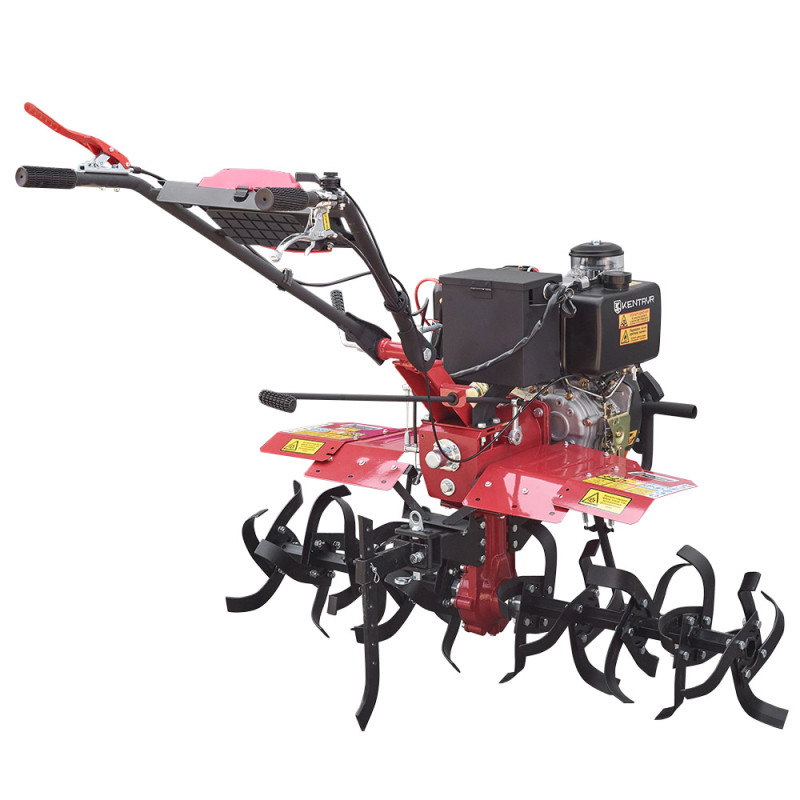

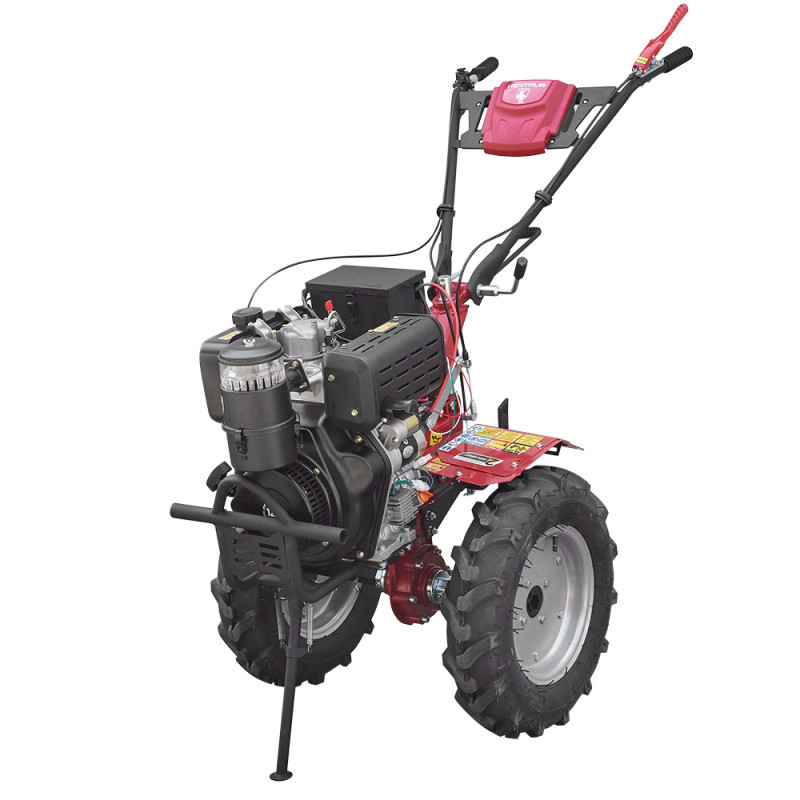

Description of the Kentavr MB2012DE walk-behind tractor (wheels 5.00-12)
New economical diesel engine with electric starter, increased power (12 hp) for solving the most complex tasks that a landowner may set for an air-cooled walk-behind tractor.The air filtration system with a transparent cyclone promotes timely maintenance, which in turn significantly increases the reliability and service life of the engine.
The new (normally open) clutch system has no constant contact between the discs. Therefore, it is completely safe to start the engine and shift to any gear – the walk-behind tractor will remain stationary. The power take-off shaft will not start rotating along with the attached implements, thus eliminating sudden danger to the operator and surroundings.
MB 2012D and MB 2012DE walk-behind tractors are the most powerful among Kentavr's air-cooled diesel models. These walk-behind tractors are equipped with reliable 12 hp engines. They come with tillers with a maximum working width of 1400 mm and large transport wheels 5.00-12. The MB 2012DE model is equipped with an electric starter and a battery. These walk-behind tractors are perfectly suitable not only for use in private households but also for professional use in vegetable gardens, orchards, and greenhouse complexes, as well as a vehicle for transporting goods on a special trailer.
Specifications
Air Filter
Multi-stage filter with transparent cyclone
Battery type, capacity A∙h
Lead-acid, 28
Clutch type
Normally open multi-disc in oil bath
Coolant type
-
Cooling system capacity, L
-
Cultivation depth, mm
Up to 200
Cutter Drive
Straight with bevel gear
Drive Belt Type
-
Electrical Equipment
Battery 28 Ah, metal box with ignition lock
Engine Cooling System
Air cooling
Engine crankcase oil type
TM "DTZ" TURBO SYNT 10W-40 API CF-4/SG
Engine crankcase volume, L
1,3
Engine displacement, cm³
438
Engine model
188FAE
Engine power, hp
12.0
Engine Start System
Electric/Manual Starter
Equipped weight, on wheels/on cutters, kg
133 / 139
Fuel tank capacity, L
4.0
Fuel type
Diesel
Gearbox type
Gear
Hitch type
Motor-block type
How to Engage Reverse Gear
Handlebar grip
Measuring Devices
-
Nominal fuel consumption, g/kW∙h
≤270
Nominal rotary tiller speed, rpm
93; 130 / 68
Nominal RPM
3000
Nominal wheeled speed forward/backward, km/h
10.3; 14.4 / 7.5
Number of Gears
2/1
Number of tiller sections, pcs
10=(1+1+3)+(3+1+1)
Oil Level Sensor
No
Other Equipment
-
Overall dimensions assembled (LxWxH), mm
1780×670×910 / 1780×670×1380
Power Take-Off (PTO) Shaft
Rear longitudinal for keyway Ø18, L=24
Rotor diameter of soil tiller, mm
360
Size/quantity/type of tiller blades
40
Spare Parts
In the box
Steering wheel type and adjuster
Quick adjustment for elevation and windage
Stream for connecting active attachments
-
Tiller mounting method
Instead of Transport Wheels
Tiller working width, mm
870 / 1140 / 1400
Transmission drive type
Direct Hexagonal
Transmission oil capacity, L
2.6
Transmission sump oil type
TM "DTZ" TAD-17I API GL-
Transport Wheels
5.00-12
Wheel track, mm
600
